Q3K-TRBR600GPoint to point/point to multipoint 57-71 GHz radio transceiver

INSTALLATION GUIDE Cat.No/Rev. TERRABRIDGE Rel. y.z FOR REGULATORY USES ONLY TerraBridge Installation Guide Cat.No/Rev.1‐1 Table of Contents Chapter 1: Introduction 1.1 Scope of this Document ...................................................................................................... 1‐1 1.2 Overview ............................................................................................................................. 1‐1 1.3 Basic Working Model .......................................................................................................... 1‐1 1.4 Main Features ..................................................................................................................... 1‐1 1.5 Mechanical Specifications................................................................................................... 1‐2 Chapter 2: Installation Steps 2.1 Prepare Laptop.................................................................................................................... 2‐2 2.2 Connect Laptop to Radio Unit............................................................................................. 2‐2 2.3 Update Connectivity Parameters of Radio Unit .................................................................. 2‐3 2.4 Prepare Items to be Installed.............................................................................................. 2‐3 2.5 Prepare Tools ...................................................................................................................... 2‐4 2.6 Prepare Railroad Car ........................................................................................................... 2‐4 2.7 Prepare PoE......................................................................................................................... 2‐5 2.8 Mount Unit.......................................................................................................................... 2‐6 2.8.1 Without the Base Plate ...............................................................................................2‐6 2.8.2 With the Base Plate.....................................................................................................2‐9 2.9 Ground Uni t ....................................................................................................................... 2‐11 2.9.1 With the Base Plate...................................................................................................2‐12 2.9.2 Without the Base Plate .............................................................................................2‐12 2.10 Connect Radio ................................................................................................................. 2‐12 2.11 Check Connectivity to Radio............................................................................................ 2‐13 2.12 Verify Link........................................................................................................................ 2‐13 Appendix A: Certified Antennas A.1 For Deployment in US/Canada............................................................................................A‐1 FOR REGULATORY USES ONLY TerraBridge Installation Guide Release y.z1‐1 Chapter 1: Introduction 1.1 Scope of this Document This document shows how to install and configure the TerraBridge radio units. 1.2 Overview TerraBridge is a millimeter‐wave radio unit that provides up to 1.5 Gbps aggregated wireless connectivity between railroad cars. The product enables Gbps Ethernet network throughout the train, seamlessly supporting dynamic changes in the train consist. The unit complies with outdoor spec IP‐69K. It is small and lightweight, which allows it to be mount ed out of the way in convenient locations. 1.3 Basic Working Model Show two train cars, with two TerraBridges on each. Show how each TerraBridge is connected to the network and power from within the train car. Mention the GUI. 1.4 Main Features Radio based on 802.11ad standard in mm‐waves unlicensed band Capacity of up to 1.5 Gbps aggregated Spectrum: mmWave / 60GHz Throughput: 1.5Gbps FOR REGULATORY USES ONLY TerraBridge Installation GuideRelease y.z1‐2 Mechanical SpecificationsIntroduction Delay:1‐3msec Power: PoE GbE interface, 802.3af Connector:M‐12 X‐coded connector Environmental: IP69 (high pressure water jet at 80deg C) Railway standards: EN50155, EN 50121 and EN61373, IEC 60571 Antenna:Integrated inside the radio unit 1.5 Mechanical Specifications Show a mechanical drawing including the locations of the screws and the M12 X (PoE) connection Size (HxWxD): 12x12x2.25 cm Weight Operating Temperature FOR REGULATORY USES ONLY TerraBridge Installation Guide Cat.No/Rev.2‐1 Installation StepsInstallation Steps Chapter 2: Installation Steps To install and establish a basic connection with a radio unit, carry out the steps shown below. Print out this list, and place a checkmark next to a completed task. Table 2‐1: Installation Check‐List StepActionPageDone? Before deploying at installation site 1. Prepare Laptoppage 2‐2 2. Connect Laptop to Radio Unitpage 2‐2 3. Update Connectivity Parameters of Radio UnitPage 2‐3 4. Prepare Items to be InstalledPage 2‐3 5. Prepare ToolsPage 2‐4 Installation 6. Prepare Railroad CarPage 2‐4 7. Prepare PoEPage 2‐5 8. Mount UnitPage 2‐6 9. Ground UnitPage 2‐11 10. Connect RadioPage 2‐12 Commissioning 11. Check Connectivity to RadioPag e 2‐13 12. Verify LinkPage 2‐13 FOR REGULATORY USES ONLY TerraBridge Installation Guide Cat.No/Rev.2‐2 Prepare LaptopInstallation Steps 2.1 Prepare Laptop Configure IP address and subnet mask of laptop as follows: •Control Panel ‐> Network and Internet ‐> Network and Sharing Center ‐> Change Adapter settings ‐> click on Network Interface Card name •Properties ‐> Select Internet Protocol Version 4 (TCP/IPv4) ‐> Properties ‐> set IP address to 10.0.0.100 and Subnet mask to 255.255.255.0 2.2 Connect Laptop to Radio Unit Connect PoE to power, connect the…

Text truncated - open the document above for the full version.

Please refer to below table have the information of W14's tile combination for combined mode. The distance data coming from calcuration of loss. Below is field test data by using 1x1 and 2x1 tile. The 2x2 tile can reach around 400m @MCS8. And we got the distance about 600m with 2x4 tilles. As you know, it is really depend on test conditions. And regarding the Talyn SW, SEMCO can not managing it. We also have to wait for QC's official release. This week, I asked for QC sharing of SW CS plan and waiting for their reply. As a my personal opinion, I suggest you develope the first QC solution product by using of MP stage module, like W14 and W26F. We can swap it with Talyn later.

RF_160, Issue 04 Declaration of Authorization We Name: Radwin Ltd. Address: 27 HaBarzel St., Ramat Hahayal. City: Tel Aviv, 6971039. Country: Israel. Declare that: Name Representative of agent: ............. (1) Agent Company name: Hermon Laboratories Ltd. . Address: Harakevet Industrial Zone .. City: Binyamina 30500 .. Country Israel . is authorized to apply for Certification of the following product(s): Product description: PtP/PtMP 57-71 GHz Radio Transceiver. Type designation: RADWIN 6000 6C00 Trademark: TerraBridge™. . Validity/ expiry date: N/A on our behalf. Date: August 11, 2020.. City: Tel Aviv.. Name: Shlomo Weiss.. (2) Function: Standardization Officer.... Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Radwin Ltd. Address : 27 HaBarzel St. City: Tel Aviv 6971039 Country: Israel To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: Q3K-TRBR600G Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: For ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices Date: August 11, 2020 Name and signature of applicant: Shlomo Weiss Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Radwin Ltd. FCC ID: Q3K-TRBR600G IC:5100A-TRBR600G Page 1 of 1 Label Label location An outdoor radio shall bear the label with FCC ID: Q3K-TRBR600G and IC: 5100A-TRBR600G on the bottom (side) panel as shown in the photo below: Label

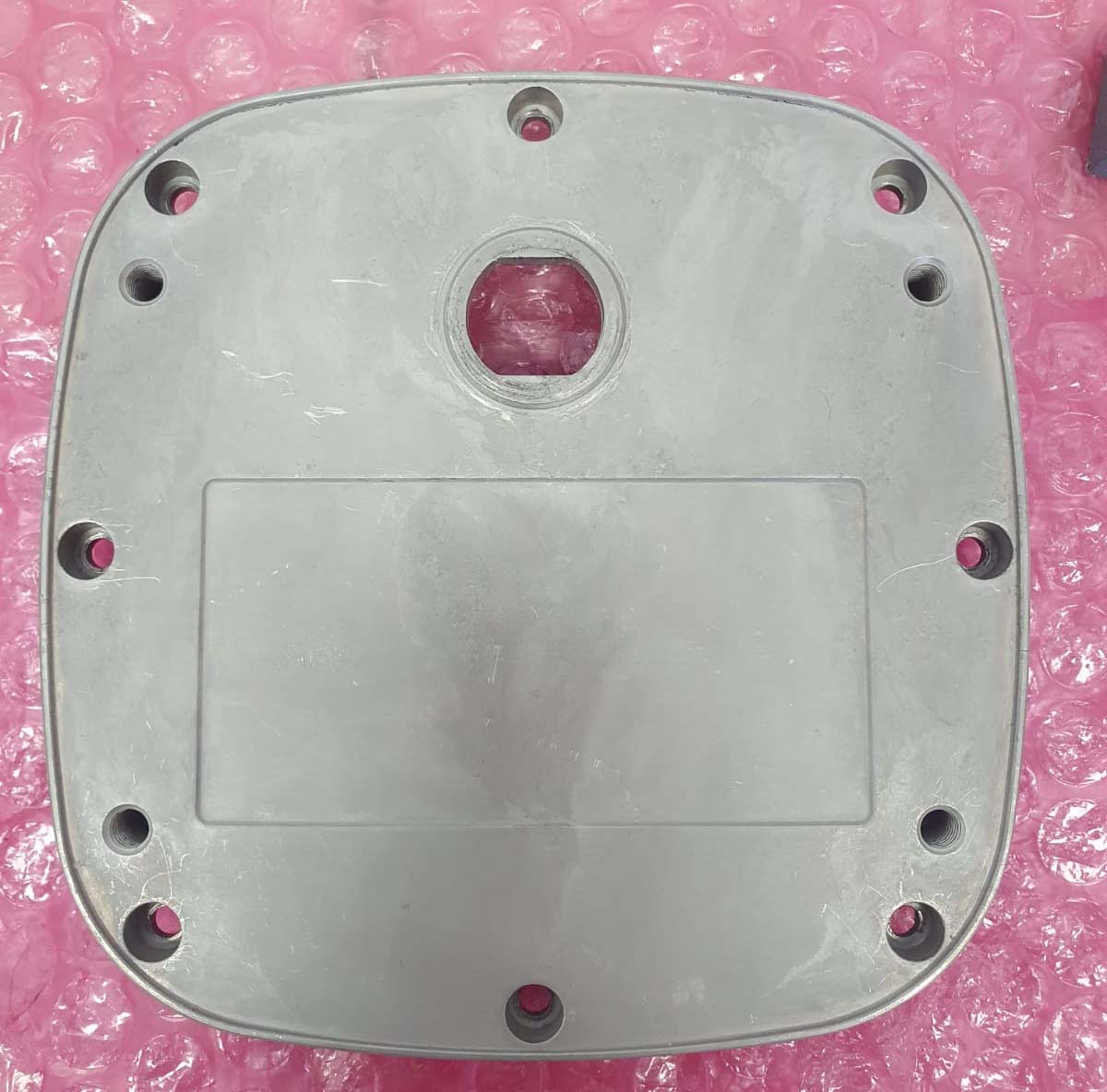

Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 1 of 8 INTERNAL PHOTOGRAPHS This document contains 7 photographs Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 2 of 8 Photograph No.1 RADWIN 6000 6C00 transceiver internal view Antenna Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 3 of 8 Photograph No.2 Transceiver PCB with antenna removed view Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 4 of 8 Photograph No.3 Transceiver PCB bottom view Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 5 of 8 Photograph No.4 Transceiver PCB close view Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 6 of 8 Photograph No.5 Transceiver PCB close view Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 7 of 8 Photograph No.6 RADWIN 6000 6C00 transceiver case internal view Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 8 of 8 Photograph No.7 RADWIN 6000 6C00 transceiver case internal view

Radwin Ltd. FCC ID:Q3K-TRBR600G Page 1 of 1 Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 The device is classified as mobile. Limit for power density for general population/uncontrolled exposure is 1 mW/cm 2 for 1500 -100000 MHz frequency range. The power density P (mW/cm 2 ) = P T / 4 r 2 , where P T is the maximum equivalent isotropically radiated power (EIRP), measured value is 26.72 dBm, which is equal to 470 mW. The power density at 20 cm (minimum safe distance, required for mobile devices), calculated as follows: 470 mW / 4 (20 cm) 2 ≈ 0.09 mW/cm 2 << 1 mW/cm 2 General public cannot be exposed to dangerous RF level.

Hermon Laboratories Ltd. P.O. Box 23, Binyamina 3055001, Israel Tel. +972 4628 8001 Fax. +972 4628 8277 E-mail: [email protected] Page 1 of 129 Report ID: RDWRAD_FCC.37852.docx Date of Issue: 27-Jul-20 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC 47 CFR part 15 section 15.255; RSS-210 issue 10 Annex J, RSS-Gen issue 5 FOR: Radwin Ltd. PtP/PtMP 57-71 GHz Radio Transceiver RW6000/TB/6C00/F60 Trade Mark: TerraBridge TM Model: RADWIN 6000 6C00 FCC ID: Q3KTRBR600G IC:5100A-TRBR600G This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: RDWRAD_FCC.37852.docx Date of Issue: 27-Jul-20 Page 2 of 129 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Ports and lines .............................................................................................................................................................. 5 6.3 Auxiliary equipment ....................................................................................................................................................... 5 6.4 Changes made in the EUT ............................................................................................................................................ 5 6.5 Test configuration .......................................................................................................................................................... 6 6.6 Transmitter characteristics ............................................................................................................................................ 7 7 Transmitter tests ........................................................................................................................................................... 8 7.1 Transmitter power test ................................................................................................................................................... 8 7.2 Occupied bandwidth test ............................................................................................................................................. 15 7.3 Field strength of emissions .......................................................................................................................................... 20 7.4 Out of band radiated emissions above 40 GHz up to 200 GHz ................................................................................... 31 7.5 Frequency stability test .............................................................................................................................................. 108 7.6 Conducted emissions ................................................................................................................................................ 110 7.7 Antenna requirements ............................................................................................................................................... 113 8 APPENDIX A Test equipment and ancillaries used for tests ..................................................................................... 114 9 APPENDIX B Measurement uncertainties ................................................................................................................. 117 10 APPENDIX C Test facility description ....................................................................................................................... 118 11 APPENDIX D Specification references ..................................................................................................................... 118 12 APPENDIX E Test equipment correction factors ....................................................................................................... 119 13 APPENDIX F Abbreviations and acronyms ............................................................................................................... 129 Report ID: RDWRAD_FCC.37852.docx Date of Issue: 27-Jul-20 Page 3 of 129 1 Applicant information Client name: Radwin Ltd. Address: 27 HaBarzel St., Ramat Hahayal, Tel Aviv, 6971039, Israel Telephone: +972 (3) 766 2900 Fax: +972 (3) 766 2902 E-mail: [email protected] Contact name: Mr. Slava Lagaev 2 Equipment under test attributes Product description: PtP/PtMP 57-71 GHz Radio Transceiver Product name: RW6000/TB/6C00/F60 Trade Mark: TerraBridge TM Model: RADWIN 6000 6C00 Serial number: Sample Hardware version: 2 Software release: 1.0.0.518 Receipt date 31-May-20 3 Manufacturer information Manufacturer…

Text truncated - open the document above for the full version.

Report ID: RDWRAD_FCC.37852.docx Date of Issue: 27-Jul-20 Test specification: FCC Section 15.255(d)(3), RSS-210 section J.3, Out of band radiated emissions above 40 GHz Test procedure: ANSI C63.10, Sections 9.9, 9.12 Test mode: Compliance Verdict: PASS Date(s): 03-Jun-20 Temperature: 24 ºC Relative Humidity: 45 % Air Pressure: 1010 hPa Power: 55 VDC Remarks: Page 31 of 129 7.4 Out of band radiated emissions above 40 GHz up to 200 GHz 7.4.1 General This test was performed to measure radiated spurious emissions from the EUT. Specification test limits are given in Table 7.4.1. Table 7.4.1 Spurious emission field strength limits Frequency, GHz Power density at 3 m distance pW/cm 2 Distance, m Field strength dB(V/m)*, peak Field strength dB(V/m)*, average 40 – 200 90.0 3.0 105.30 85.30 90 - 110 90.0 0.5 120.9** 100.9** 110 - 140 90.0 0.05 140.9** 120.9** 140 - 200 90.0 0.01 154.8** 134.8** *- The limit is provided in average values. **- The limit for 1 m and other test distance was calculated using the inverse distance extrapolation factor as follows: for far field: Lim S2 = Lim S1 + 20 log (S 1 /S 2 ), where S 1 – standard defined distance in meters; S 2 – measurement distance in meters (according to ANSI C63.10) 7.4.2 Test procedure for spurious emission field strength measurements 7.4.2.1 The EUT was set up as shown in Figure 7.4.1, energized and the performance check was conducted. 7.4.2.2 The specified frequency range was investigated with antenna connected to spectrum analyzer/ EMI receiver. To find maximum radiation the turntable was rotated 360 0 , the measuring antenna height was changed from 1 to 4 m, its polarization was switched from vertical to horizontal. 7.4.2.3 The test results were recorded in Table 7.4.2 and are shown in the associated plots. Report ID: RDWRAD_FCC.37852.docx Date of Issue: 27-Jul-20 Test specification: FCC Section 15.255(d)(3), RSS-210 section J.3, Out of band radiated emissions above 40 GHz Test procedure: ANSI C63.10, Sections 9.9, 9.12 Test mode: Compliance Verdict: PASS Date(s): 03-Jun-20 Temperature: 24 ºC Relative Humidity: 45 % Air Pressure: 1010 hPa Power: 55 VDC Remarks: Page 32 of 129 Figure 7.4.1 Spurious emission field strength above 40 GHz test set up Spectrum analyzer/ EMI receiver Test antenna Test antenna EUT Ground plane 1.0m 4.0m 1.5 m Height Test distance Ferrites Power supply Auxilliary equipment Flush mounted turn table Wooden table Report ID: RDWRAD_FCC.37852.docx Date of Issue: 27-Jul-20 Test specification: FCC Section 15.255(d)(3), RSS-210 section J.3, Out of band radiated emissions above 40 GHz Test procedure: ANSI C63.10, Sections 9.9, 9.12 Test mode: Compliance Verdict: PASS Date(s): 03-Jun-20 Temperature: 24 ºC Relative Humidity: 45 % Air Pressure: 1010 hPa Power: 55 VDC Remarks: Page 33 of 129 Table 7.4.2 Spurious emission field strength test results TEST DISTANCE: 0.005 - 3 m EUT POSITION: Typical (Vertical) TRANSMITTER OUTPUT POWER: Maximum INVESTIGATED FREQUENCY RANGE: 40 – 200 GHz RESOLUTION BANDWIDTH: 1000 kHz VIDEO BANDWIDTH: ≥ Resolution bandwidth TEST ANTENNA TYPE: Standard Gain Horn 24 dB (40-60 GHz) Standard Gain Horn 24 dB (60-90 GHz) Standard Gain Horn 24dB (90-140 GHz) Standard Gain Horn 24 dB (140-220 GHz) MODULATION: BPSK Frequency, MHz Antenna Azimuth, degrees* Peak field strength(VBW=3 MHz) Average field strength(VBW=1 kHz) Verdict Polariz. Height, m Measured, dB(V/m) Limit, dB(V/m) Margin, dB** Measured, dB(V/m) Limit, dB(V/m) Margin, dB** Low carrier frequency 58320 MHz No emissions were found Pass Mid carrier frequency 60480 MHz No emissions were found Pass High carrier frequency 64800 MHz No emissions were found Pass *- EUT front panel refer to 0 degrees position of turntable. **- Margin = Measured emission – specification limit. MODULATION: QPSK Frequency, MHz Antenna Azimuth, degrees* Peak field strength(VBW=3 MHz) Average field strength(VBW=1 kHz) Verdict Polariz. Height, m Measured, dB(V/m) Limit, dB(V/m) Margin, dB** Measured, dB(V/m) Limit, dB(V/m) Margin, dB** Low carrier frequency 58320 MHz No emissions were found Pass Mid carrier frequency 60480 MHz No emissions were found Pass High carrier frequency 64800 MHz No emissions were found Pass *- EUT front panel refer to 0 degrees position of turntable. **- Margin = Measured emission – specification limit. Reference numbers of test equipment used HL 0747 HL 0770 HL 0771 HL 0772 HL 1312 HL 2909 HL 3235 HL 3291 HL 3306 HL 3329 HL 3433 HL 3434 HL 3536 HL 4023 HL 5376 HL 5380 Full description is given in Appendix A. Report ID: RDWRAD_FCC.37852.docx Date of Issue: 27-Jul-20 Test specification: FCC Section 15.255(d)(3), RSS-210 section J.3, Out of band radiated emissions above 40 GHz Test procedure: ANSI C63.10, Sections 9.9, 9.12 Test mode: Compliance Verdict: PASS Date(s): 03-Jun-20 Temperature: 24 ºC Relative Humidity: 45 % Air Pressure: 1010 hPa Power: 55 VDC Remarks: Page 34 of 129 Plot 7.4.1 Spurious emission measurements in 40 – 45 GHz range TEST SITE: OATS TEST DISTANCE: 3 m MODULATION: BPSK ANTENNA POLARIZATION: Vertical and Horizontal Low carrier frequency: 58320 MHz DETECTOR: Peak RBW = 1 MHz; VBW = 3 MHz DETECTOR: Peak RBW = 1 MHz; VBW = 10 kHz Image suppress Modulated Image suppress CW Report ID: RDWRAD_FCC.37852.docx Date of Issue: 27-Jul-20 Test specification: FCC Section 15.255(d)(3), RSS-210 section J.3, Out of band radiated emissions above 40 GHz Test procedure: ANSI C63.10, Sections 9.9, 9.12 Test mode: Compliance Verdict: PASS Date(s): 03-Jun-20 Temperature: 24 ºC Relative Humidity: 45 % Air Pressure: 1010 hPa Power: 55 VDC Remarks: Page 35 of 129 Plot 7.4.2 Spurious emission measurements in 40 – 45 GHz range TEST SITE: OATS TEST DISTANCE: 3 m MODULATION: BPSK ANTENNA POLARIZATION: Vertical and Horizontal Low carrier frequency: 58320 MHz Image shift left Image shift right Report ID: RDWRAD_FCC.37852.docx Date of Issue: 27-Jul-20 Test specification: FCC Section 15.255(d)(3), RSS-210 section J.3, Out of band radiated emissions above …

Text truncated - open the document above for the full version.

Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 1 of 14 SETUP PHOTOGRAPHS This document contains 13 photographs Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 2 of 14 Photograph No.1 Peak output power measurement setup at the OATS Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 3 of 14 Photograph No.2 Peak output power measurement setup Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 4 of 14 Photograph No.3 Spurious emissions measurement setup in the anechoic chamber below 30 MHz Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 5 of 14 Photograph No.4 Spurious emissions measurement setup in the anechoic chamber in 30 -1000 MHz Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 6 of 14 Photograph No.5 Spurious emissions measurement setup in the anechoic chamber below 1000 MHz, EUT close view Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 7 of 14 Photograph No.6 Spurious emissions measurement setup in the anechoic chamber in 1-18 GHz Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 8 of 14 Photograph No.7 Spurious emissions measurement setup at the OATS in 18-40 GHz Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 9 of 14 Photograph No.8 Spurious emissions measurement setup at the OATS above 40 GHz, 3 m test distance Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 10 of 14 Photograph No.9 Spurious emissions measurement setup at the OATS above 40 GHz, 0.05 m test distance Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 11 of 14 Photograph No.10 Spurious emissions measurement setup at the OATS above 40 GHz, 0.01 m test distance Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 12 of 14 Photograph No.11 OBW measurement setup Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 13 of 14 Photograph No.12 Frequency stability measurement setup Radwin Ltd. FCC ID:Q3K-TRBR600G IC:5100A-TRBR600G Page 14 of 14 Photograph No.13 Conducted emission measurement setup on AC power lines
