AP0263510, AP0263530, AP0263540 5 GHz SU/Alpha Assembly Boards REFERENCE GUIDE Regulatory Compliance FCC/ISED - Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and ISED RSS standards. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. It is the responsibility of the installer to ensure that when using the outdoor antenna kits, only those antennas certified with the product are used. The use of any antenna other than those certified with the product is expressly forbidden by FCC rules 47 CFR part 15.204 and ISED RSS standards. Il est de la responsabilité de l'installateur de s'assurer que lorsque vous utilisez les kits d'antennes extérieures, seules les antennes certifiés avec le produit sont utilisés. L'utilisation d'une antenne autre que ceux qui sont certifiés avec le produit est expressément interdite par la réglementation FCC partie 47 CFR 15.204 et ISDE normes RSS. Outdoor units and antennas should be installed ONLY by experienced installation professionals who are familiar with local building and safety codes and, wherever applicable, are licensed by the appropriate government regulatory authorities. Failure to do so may void the product warranty and may expose the end user or the service provider to legal and financial Caution liabilities. Resellers or distributors of this equipment are not liable for injury, damage or violation of regulations associated with the installation of outdoor units or antennas. The installer should configure the output power level of antennas according to country regulations and antenna type. AP0263510/..30/..40 Reference Guide i Warning Avertissement Les unités extérieures et les antennes doivent être installés que par des professionnels expérimentés d'installation qui sont familiers avec les normes locales et les codes de sécurité et, si applicable, sont agréées par les autorités gouvernementales de réglementation compétents. Ne pas le faire peut annuler la garantie du produit et peuvent exposer l'utilisateur final ou le fournisseur de services d'obligations juridiques et financiers. Revendeurs ou distributeurs de ces équipements ne sont pas responsables des blessures, des dommages ou violation des règlements liés à l'installation des unités extérieures ou des antennes. L'installateur doit configurer le niveau de puissance de sortie des antennes conformément aux réglementations nationales et le type d'antenne. Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 24 cm from all persons Les antennes utilisées pour cet émetteur doivent être installées de manière à fournir une distance de séparation d'au moins 24 cm par rapport à toutes les personnes The module is granted to operate under FCC certification in the 5.2 / 5.3 / 5.4 / 5.8 GHz bands. Warning Le module est autorisé à fonctionner sous certification ISDE dans les bandes 5,3 / 5,4 / 5,8 GHz. Avertissement This device complies with Part 15 of the FCC rules and with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme la norme d’Industrie Canada exempts de licence RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: 1. Cet appareil ne peut pas causer d’interférences, et 2. Cet appareil doit accepter toute 3nterference, y compris les 3nterferences qui peuvent causer un mauvais fonctionnement de l’appareil. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numrique de la classe B est conforme la norme NMB-003 du Canada AP0263510/..30/..40 Reference Guide ii Prudence Avertissement Overview The AP0263510, AP0263530, AP0263540 is a 5 GHz assembly board operating in the 5.2, 5.3, 5.4 and 5.8 GHz frequency bands. It is a TDD OFDM radio supporting 10, 20 MHz, 40 MHz and 80 MHz channel bandwidths. It is a 2x2 MIMO transceiver. The assembly board contains the power supply block, the CPU and peripheral block, the Ethernet communication interface and the radio transceiver block on a single board. It is installed in a host enclosure manufactured by RADWIN. The 5 GHz assembly board is certified as a limited modular approval type under the FCC ID: Q3K-5XSUALMOD. It is also certified under IC: 5100A-5XSUALMOD excluding the 5.2 GHz band. Condition of Use The AP0263510, AP0263530, AP0263540 5 GHz assembly board is a proprietary radio module manufactured by RADWIN. The module is not for sale to the general public or for installation in hosts not manufactured by RADWIN. FCC rules and ISED Regulation Restrictions The host firmware is factory programmed to operate under the FCC rules and ISED regulation restrictions. The firmware is locked and inaccessible by any…

Text truncated - open the document above for the full version.

RDWN72 FCC Restr Config Cntl Attstn Rev1.1.docx Date: February 14, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: FCC Restriction Configuration Control Attestation for FCC ID: Q3K- 5XSUALMOD. To Whom It May Concern: RADWIN Ltd. attests that the software used in conjunction with the assembly board models AP0263510, AP0263530, AP0263540 conforms to the requirements of the FCC’s “SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES” specified in 594280 D02 U-NII Device Security v01r03 and KDB 442812 D01 SDR Apps Guide v02r03 under the SDR rules when installed in any RADWIN manufactured host. We have submitted separate documentation to the FCC outlining the software security features. Furthermore that the software used in conjunction with the assembly board models AP0263510, AP0263530, AP0263540 cannot be modified by any third party in any way that causes the AP0263510, AP0263530, AP0263540 to operate in violation of the limits of the FCC GRANT OF EQUIPMENT AUTHORIZATION for FCC ID: Q3K-5XSUALMOD. Sincerely Yours, Name: Shlomo Weiss Date: February 14, 2021 Title: Standardization Officer RADWIN Ltd. Phone: +972-3-7662988 Fax: +972-3-7662902 Email: [email protected]

Agent Authorization Company: RADWIN Ltd. Address: 27 Habarzel Street Tel Aviv, 6971039 Israel Product Name: 5 GHz SU/Alpha Board Model Number(s): AP0263510, AP0263530, AP0263540 Product Description: 5 GHz SU/Alpha Board We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: February 14, 2021 Name: Shlomo Weiss Title: Standardization Officer Company: RADWIN Ltd.

FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: March 29, 2021 Subject: Modular Transmitter Application Company name: RADWIN Ltd. FCC ID: Q3K-5XSUALMOD Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID: Q3K-5XSUALMOD has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. The module has RF shielding on the radio section The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. The module is a self-sustaining assembly board containing the power supply block, CPU, Ethernet communication and radio block on a single board. The radio is based on Qualcomm chipset which provides the buffering and data/modulation. The module must contain power supply regulation on the module. As mentioned above the module contains also the power supply regulation. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). The module is supplied with unique antenna connector. The module is installed into the host at RADWIN’s production line with the unique antenna cabling and connectors, as tested. Only the RADWIN antennas detailed in the manual are marketed with the module. The final installation of the host is done only by professional installers trained by RADWIN representatives. The module must demonstrate compliance in a stand-alone configuration. The unit was tested while inserted in host FCC Modular Approval Request Rev 3.0 The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). The module will be labeled with the FCC ID: Q3K-5XSUALMOD. The host into which the module is installed will also be labeled with reference to the enclosed module: “Contains FCC ID: Q3K-5XSUALMOD”. The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. The module was tested for compliance to FCC rule Part 15 subpart E. The integration of the module is done by RADWIN and there is no access to RADWIN manufactured device by third party. The module must comply with RF exposure requirements The module complies with RF exposure requirements as shown in the MPE documents Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist. Refer to the KDB for description of the complete requirements; KDB Ref Sect Requirements of KDB 996369 D03 User Manual Page Number reference 2.2 List of applicable FCC rules 5, 6 2.3 Summarize the specific operational use conditions 5, 6 2.4 Limited module procedures 4 2.5 Trace antenna designs Not Applicable 2.6 RF exposure considerations 3 2.7 Antennas 5 2.8 Label and compliance information 6 2.9 Information on test modes and additional testing requirements Not Applicable 2.10 Additional testing, Part 15 Subpart B disclaimer Not Applicable Name: Shlomo Weiss Date: March 29, 2021 Title: Standardization Officer Signature of applicant

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: April 1, 2021 Subject; Request for Confidentiality FCC ID: Q3K-5XSUALMOD To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Additionally the device is not accessible to users being installed in hosts manufactured only by RADWIN and hosts being mounted on antenna towers. Schematic Diagram Block Diagram Parts List Operational Description Security Descriptions In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); Internal Photos External Photos Test Setup Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Shlomo Weiss Title: Standardization Officer

FCC Request Date: February 14, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: 5 GHz SU/Alpha Assembly Boards / AP0263510, AP0263530, AP0263540 To whom it may concern; The enclosed documents constitute a formal submittal and application for Equipment Authorization for a software defined radio pursuant to the following rules; Subpart E of Part 15 of FCC rules (CFR 47) UNII devices The device is a 5 GHz SU/Alpha Assembly Board The application is seeking approval as a software defined radio. Name: Shlomo Weiss Date: February 14, 2021 Title: Standardization Officer Signature of applicant

Model Difference Declaration Letter There are 3 models requested for family approval under FCC ID: Q3K-5XSUALMOD 1. AP0263510 2. AP0263530 3. AP0263540 The radio and digital circuitry is identical in all models. The models indicate different assembly options as shown below – 1. AP0263510 – basic assembly 2. AP0263530 – assembly supporting isolated power input stage and GPS module 3. AP0263540 – basic assembly with GPS module Following is a table for reference Power input stage GPS AP0263510 Non-Isolated Not Supported AP0263530 Isolated Supported AP0263540 Non-Isolated Supported Name: Shlomo Weiss Title: Standardization Officer Signature of applicant

RDWN72 SW Config Cntl Declaration Rev1.1.docx FCC Software Configuration Control Declaration Date: February 14, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: 5 GHz SU/Alpha Assembly Boards / AP0263510, AP0263530, AP0263540 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Shlomo Weiss Date: February 14, 2021 Title: Standardization Officer Signature of applicant

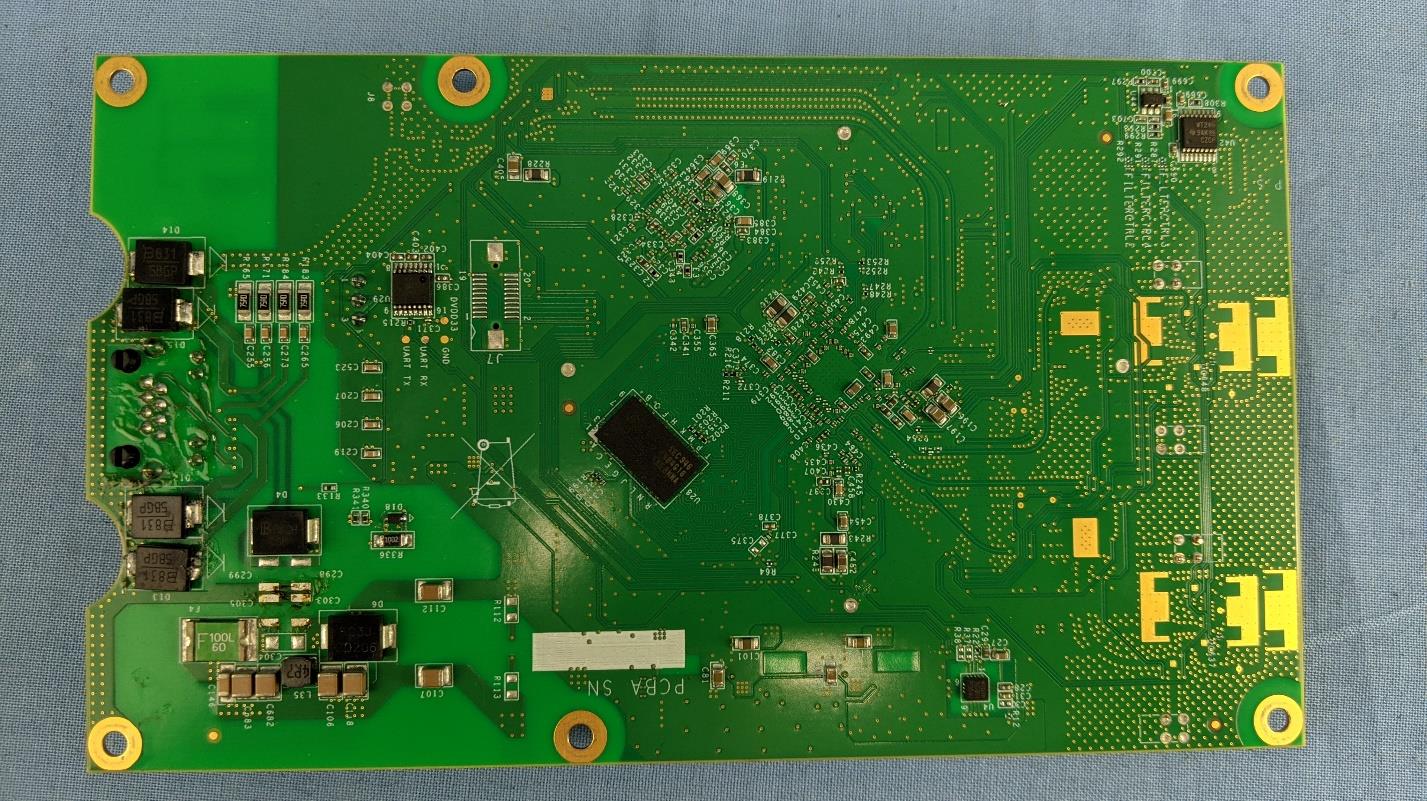

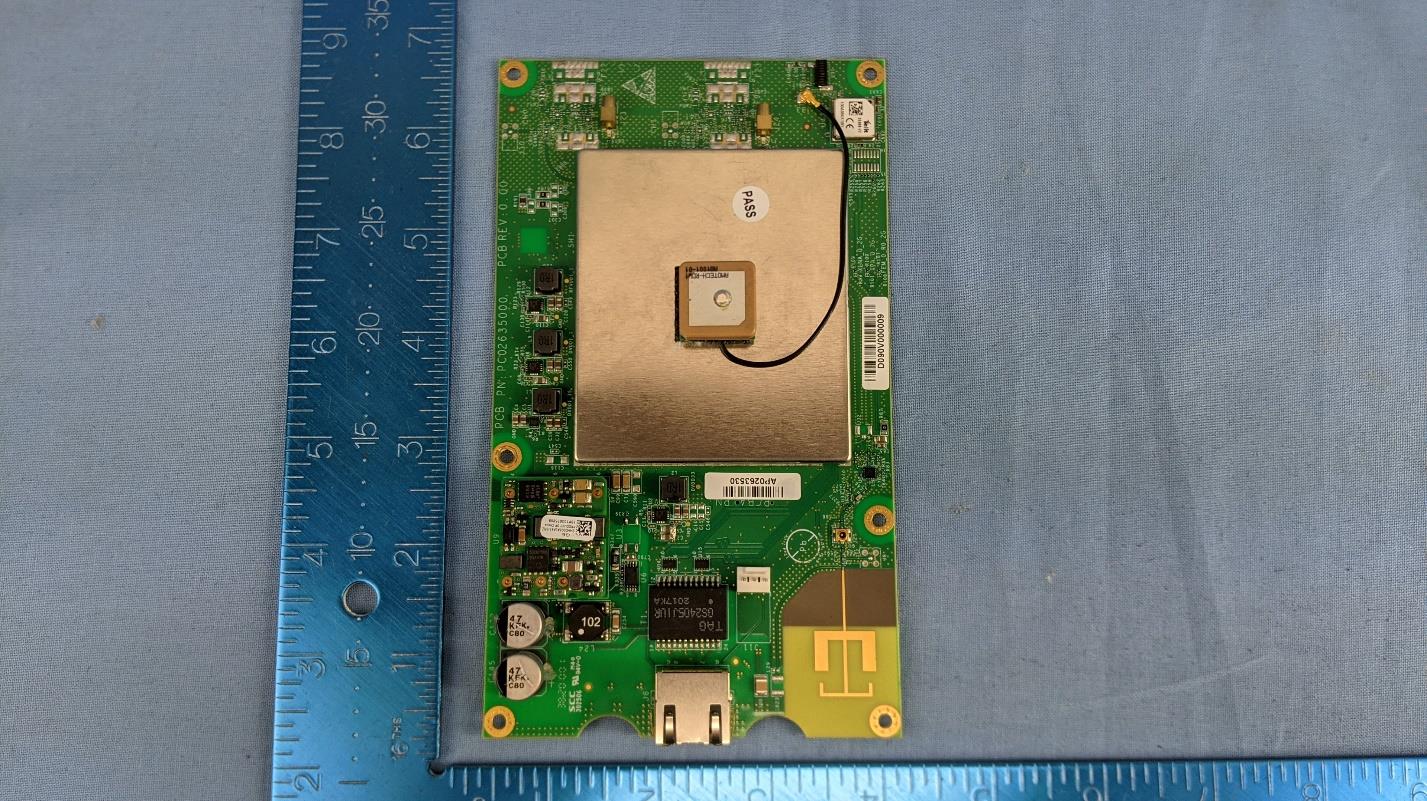

PHOTOS - EXTERNAL Company: Radwin Product Name: 5 GHz SU/Alpha Board Report No.: RDWN72 – External Photos Title: RDWN72 External Photos To: Serial #: Issue Date: 24 March 2021 Page: 2 of 4 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com 1. External Photographs 1.1.1. Product - External Main Board Title: RDWN72 External Photos To: Serial #: Issue Date: 24 March 2021 Page: 3 of 4 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Main Board Bottom Main Board Top 575 Boulder Court Pleasanton, California 94566, USA Tel: +1 (925) 462 0304 Fax: +1 (925) 462 0306 www.micomlabs.com

LABEL AND LOCATION Photo #1: Label Artwork Photo #2: AP0263510 Label Artwork Photo #3: AP0263530 Label Artwork Photo #4: AP0263540 Label Artwork Photo #5: Label Location on Assembly Board

PHOTOS - INTERNAL Company: Radwin Product Name: 5 GHz SU/Alpha Board Report No.: RDWN72 – Internal Photos Title: RDWN72 Internal Photos To: Serial #: Issue Date: 24 March 2021 Page: 2 of 5 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com 1. Internal Photographs 1.1.1. Product - Internal Main Board Title: RDWN72 Internal Photos To: Serial #: Issue Date: 24 March 2021 Page: 3 of 5 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Main Board Bottom Main Board Top Title: RDWN72 Internal Photos To: Serial #: Issue Date: 24 March 2021 Page: 4 of 5 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Main Board Top No Shield 575 Boulder Court Pleasanton, California 94566, USA Tel: +1 (925) 462 0304 Fax: +1 (925) 462 0306 www.micomlabs.com

MPE/RF EXPOSURE REPORT FCC CFR 47 Part 1.1310 Report No.: RDWN72-U2 FCC MPE Rev A Company: Radwin Model Name: AP0263510, AP0263530, AP0263540 MPE/RF EXPOSURE REPORT Company Name: Radwin Model Name: AP0263510, AP0263530, AP0263540 To: FCC CFR 47 Part 1.1310 Report Serial No.: RDWN72-U2 FCC MPE Rev A This report supersedes: NONE Applicant: Radwin 27 Habarzel Street Tel Aviv, 6971039 Israel Issue Date: 25th March 2021 This Test Report is Issued Under the Authority of: MiCOM Labs, Inc. 575 Boulder Court Pleasanton California 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Radwin AP0263510, AP0263530, AP0263540 To: FCC CFR 47 Part 1.1310 Serial #: RDWN72-U2 FCC MPE Rev A Issue Date: 25th March 2021 Page: 3 of 4 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com 1. MAXIMUM PERMISSABLE EXPOSURE Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4*π*d 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) These calculations represent worst case in terms of the exposure levels. Limits for Occupational/Controlled Exposure for professional installation: 5 mW/cm 2 Point to Point Freq. Band (MHz) Ant Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Power Density (mW/cm 2 ) @ 20cm Power Density Limit (mW/cm 2 ) Min Calculated safe distance for Limit (cm) Calculated Power Density (mW/cm 2 ) @ Safe Distance 5150.0 - 5250.0 13.00 19.95 29.11 814.70 4.78 5.00 16.08 5.00 5725.0 - 5850.0 32.00 1584.89 13.31 21.43 6.757 5.00 23.25 5.00 *Note; The minimum safe distance for Point to Point operation is calculated as 24 cm. Point to Multi-Point Freq. Band (MHz) Ant Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Power Density (mW/cm 2 ) @ 20cm Power Density Limit (mW/cm 2 ) Min Calculated safe distance for Limit (cm) Calculated Power Density (mW/cm 2 ) @ Safe Distance 5150.0 - 5250.0 13.00 19.95 22.99 199.07 0.79 5.00 7.95 5.00 5250.0 - 5350.0 13.00 19.95 16.77 47.53 0.189 5.00 3.88 5.00 5470.0 - 5720.0 13.00 19.95 16.70 46.77 0.186 5.00 3.85 5.00 5725.0 - 5850.0 13.00 19.95 22.80 190.55 0.756 5.00 7.78 5.00 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits FCC §1.1310 Limit = 5mW / cm 2 from 1.310 Table 1 575 Boulder Court Pleasanton, California 94566, USA Tel: +1 (925) 462 0304 Fax: +1 (925) 462 0306 www.micomlabs.com

REGULATORY COMPLIANCE TEST REPORT FCC CFR 47 Part 15 Subpart E 15.407 Report No.: RDWN72-U2 Rev A Company: Radwin Model Name: AP0263510, AP0263530, AP0263540 REGULATORY COMPLIANCE TEST REPORT Company Name: Radwin Model Name: AP0263510, AP0263530, AP0263540 To: FCC CFR 47 Part 15 Subpart E 15.407 Test Report Serial No.: RDWN72-U2 Rev A This report supersedes: NONE Applicant: Radwin 27 Habarzel Street Tel Aviv, 6971039 Israel Issue Date: 25th March 2021 This Test Report is Issued Under the Authority of: MiCOM Labs, Inc. 575 Boulder Court Pleasanton California 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Radwin AP0263510, AP0263530, AP0263540 To: FCC CFR 47 Part 15 Subpart E 15.407 Serial #: RDWN72-U2 Rev A Issue Date: 25th March 2021 Page: 3 of 283 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Table of Contents 1. ACCREDITATION, LISTINGS & RECOGNITION ................................................................................ 5 1.1. TESTING ACCREDITATION ........................................................................................................ 5 1.2. RECOGNITION ............................................................................................................................. 6 1.3. PRODUCT CERTIFICATION ........................................................................................................ 7 2. DOCUMENT HISTORY ......................................................................................................................... 8 3. TEST RESULT CERTIFICATE ............................................................................................................. 9 4. REFERENCES AND MEASUREMENT UNCERTAINTY ................................................................... 10 4.1. Normative References ................................................................................................................ 10 4.2. Test and Uncertainty Procedure ................................................................................................. 11 5. PRODUCT DETAILS AND TEST CONFIGURATIONS ..................................................................... 12 5.1. Technical Details ......................................................................................................................... 12 5.2. Scope Of Test Program .............................................................................................................. 13 5.3. Equipment Model(s) and Serial Number(s) ................................................................................. 14 5.4. Antenna Details ........................................................................................................................... 14 5.5. Cabling and I/O Ports .................................................................................................................. 14 5.6. Test Configurations ..................................................................................................................... 15 5.7. Equipment Modifications ............................................................................................................. 15 5.8. Deviations from the Test Standard ............................................................................................. 15 6. TEST SUMMARY ................................................................................................................................ 16 7. TEST EQUIPMENT CONFIGURATION(S) ......................................................................................... 17 7.1. Conducted RF ............................................................................................................................. 17 7.2. Radiated Emissions - 3m Chamber ............................................................................................ 19 7.3. AC Wireline Emissions ................................................................................................................ 22 8. MEASUREMENT AND PRESENTATION OF TEST DATA ............................................................... 24 9. TEST RESULTS .................................................................................................................................. 25 9.1. Peak Transmit Power .................................................................................................................. 25 9.1.1.1. Point to Multi-Point ......................................................................................................... 27 9.1.1.2. Point to Point .................................................................................................................. 31 9.2. 26 dB & 99% Bandwidth ............................................................................................................. 35 9.2.1.3. Point to Multi-Point ......................................................................................................... 36 9.2.1.4. Point to Point .................................................................................................................. 40 9.3. Power Spectral Density ............................................................................................................... 44 9.3.1.5. Point to Multi-Point ......................................................................................................... 46 9.3.1.6. Point to Point .................................................................................................................. 50 9.4. Radiated .............................................................................................................…

Text truncated - open the document above for the full version.

Title: Radwin AP0263510, AP0263530, AP0263540 To: FCC CFR 47 Part 15 Subpart E 15.407 Serial #: RDWN72-U2 Rev A Issue Date: 25th March 2021 Page: 166 of 283 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com POWER SPECTRAL DENSITY Variant: 10MHz, Channel: 5210.00 MHz, SUM, Temp: 20, Voltage: 56 Vdc Analyzer Setup Marker:Frequency:Amplitude Test Results Detector = AVER Sweep Count = +100 RF Atten (dB) = 30 Trace Mode = VIEW M1 : 5209.300 MHz : 16.503 dBm M1 + DCCF : 5209.300 MHz : 16.547 dBm Duty Cycle Correction Factor : +0.04 dB Limit: ≤ 17.0 dBm Margin: -0.5 dB back to matrix Title: Radwin AP0263510, AP0263530, AP0263540 To: FCC CFR 47 Part 15 Subpart E 15.407 Serial #: RDWN72-U2 Rev A Issue Date: 25th March 2021 Page: 167 of 283 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com POWER SPECTRAL DENSITY Variant: 10MHz, Channel: 5245.00 MHz, Chain a, Temp: 20, Voltage: 56 Vdc Analyzer Setup Marker:Frequency:Amplitude Test Results Detector = AVER Sweep Count = +100 RF Atten (dB) = 30 Trace Mode = VIEW M1 : 5247.920 MHz : 12.945 dBm Limit: ≤ 14.000 dBm back to matrix Title: Radwin AP0263510, AP0263530, AP0263540 To: FCC CFR 47 Part 15 Subpart E 15.407 Se…
