Q3K-5XACMD3C5 GHz 802.11ac 3x3 RF Module

5XACMD3C 5 GHz 802.11ac 3x3 RF Module REFERENCE GUIDE Regulatory Compliance FCC/IC - Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and IC RSS standards. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. It is the responsibility of the installer to ensure that when using the outdoor antenna kits, only those antennas certified with the product are used. The use of any antenna other than those certified with the product is expressly forbidden by FCC rules 47 CFR part 15.204 and IC RSS standards. Il est de la responsabilité de l'installateur de s'assurer que lorsque vous utilisez les kits d'antennes extérieures, seules les antennes certifiés avec le produit sont utilisés. L'utilisation d'une antenne autre que ceux qui sont certifiés avec le produit est expressément interdite par la réglementation FCC partie 47 CFR 15.204 et IC normes RSS. Outdoor units and antennas should be installed ONLY by experienced installation professionals who are familiar with local building and safety codes and, wherever applicable, are licensed by the appropriate government regulatory authorities. Failure to do so may void the product warranty and may expose the end user or the service provider to legal and financial Caution liabilities. Resellers or distributors of this equipment are not liable for injury, damage or violation of regulations associated with the installation of outdoor units or antennas. The installer should configure the output power level of antennas according to country regulations and antenna type. 5XACMD3C Reference Guide i Warning Avertissement Les unités extérieures et les antennes doivent être installés que par des professionnels expérimentés d'installation qui sont familiers avec les normes locales et les codes de sécurité et, si applicable, sont agréées par les autorités gouvernementales de réglementation compétents. Ne pas le faire peut annuler la garantie du produit et peuvent exposer l'utilisateur final ou le fournisseur de services d'obligations juridiques et financiers. Revendeurs ou distributeurs de ces équipements ne sont pas responsables des blessures, des dommages ou violation des règlements liés à l'installation des unités extérieures ou des antennes. L'installateur doit configurer le niveau de puissance de sortie des antennes conformément aux réglementations nationales et le type d'antenne. This equipment should be installed and operated with a minimum distance of 354cm between the radiator and your body. Warning Cet équipement doit être installé et utilisé à une distance minimale de 354cm entre le radiateur et votre corps. The module is granted to operate under FCC certification in the 5.8 GHz bands. Warning This device complies with Part 15 of the FCC rules and with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme la norme d'Industrie Canada exempts de licence RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: 1. Cet appareil ne peut pas causer d'interférences, et 2. Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numrique de la classe B est conforme la norme NMB-003 du Canada 5XACMD3C Reference Guide ii Prudence Avertissement Overview The 5XACMD3C is a 3x3 wireless module operating in the 5.8 GHz frequency bands. It is a TDD OFDM radio supporting 5 MHz, 10 MHz, 20 MHz, 40 MHz and 80 MHz channel bandwidths. The module cannot work as a stand-alone device. It can operate and be controlled only when attached to a digital main board and altogether assembled in an enclosure suitable for outdoor use. The assembly of the wireless module attached to the digital main board is hereafter referred to as ‘ODU’. The ODU in its various outdoor enclosures is manufactured by RADWIN. The module is certified as a limited modular approval type under the FCC ID: Q3K- 5XACMD3C for 5.8 GHz band. It is also certified under IC: 5100A-5XACMD3C for 5.8 GHz band. Condition of Use The 5XACMD3C module is a proprietary radio interface and can only be connected to digital boards manufactured by RADWIN. The ODU resides in an outdoor enclosure also manufactured and assembled by RADWIN or its subcontractors. The wireless module is not for sale to the general public. FCC rules and IC Regulation Restrictions The ODU firmware is factory programmed to operate under the FCC rules and Industry Canada regulation restrictions. The firmware is locked and inaccessible by any third party. As a result of the above the user interface allows both the installer and the user to co…

Text truncated - open the document above for the full version.

Letter of Authorization Company: RADWIN Ltd. Address: 27 Habarzel street Tel Aviv, Israel 6971039 Product Name: 5 GHz 802.11ac 3x3 RF Module Model Number: 5XACMD3C FCC Identifier: Q3K-5XACMD3C We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Roni Barshan Date: August 20, 2015 Title: RF Department Manager Signature of applicant:

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: Aug 27, 2015 Subject; Request for Confidentiality FCC ID: Q3K-5XACMD3C To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Software Configuration Control  UNII Device Security Description  SDR Security Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Furthermore, the product is an RF module assembled inside outdoor enclosures mounted on top of large towers and mounting poles and serviceable only by the licensee or his designated technicians. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Roni Barshan Title: RF Department Manager

FCC – Modular Approval Request Rev 2.0 Modular Transmitter Approval Request Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Company name: RADWIN Ltd. FCC ID: Q3K-5XACMD3C Gentlemen, In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Certification Guide v01r04’. FCC ID: Q3K-5XACMD3C has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 ‘Modular Certification Guide v01r04 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly The module has its own RF shielding as shown in the presented in the photo at the end of this document. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal The module is based on Atheros chipset which provides the buffering and data/modulation. The module must contain power supply regulation on the module The module certification type is LMA but nevertheless it has on-board regulators for power supply as seen in the schematics page 5. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) The module is supplied with unique antenna connector. The module is installed into the device at RADWIN’s production line with the unique antenna cabling and connectors, as tested. Only the RADWIN antennas detailed in the manual are marketed with the module. The final installation of the unit is done only by professional installers trained by RADWIN representatives. The module must demonstrate compliance in a stand-alone configuration The unit was tested in a stand-alone configuration. The test was performed with an open configuration enclosure with the module exposed and attached to a digital board representing typical RADWIN host configuration. The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) The module will be labeled with the FCC ID: Q3K-5XACMD3C and IC: 5100A- 5XACMD3C as shown in the photo at the end of this document. The device into which the module is installed will also display a label referring to the enclosed module as shown at the end of this document: “Contains FCC ID: Q3K-5XACMOD, Contains IC: 5100A-5XACMOD”. FCC – Modular Approval Request Rev 2.0 The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee The module was tested for compliance with FCC rule Part 15 subparts C. The integration of the module is done by RADWIN and there is no access to RADWIN manufactured device by third party. The module must comply with RF exposure requirements The module complies with RF exposure requirements as shown in the MPE documents Module with the RF shielding and Label External Label sample attached to host enclosure FCC – Modular Approval Request Rev 2.0 Name: Roni Barshan Date: Aug 27, 2015 Title: RF Department Manager Signature of applicant

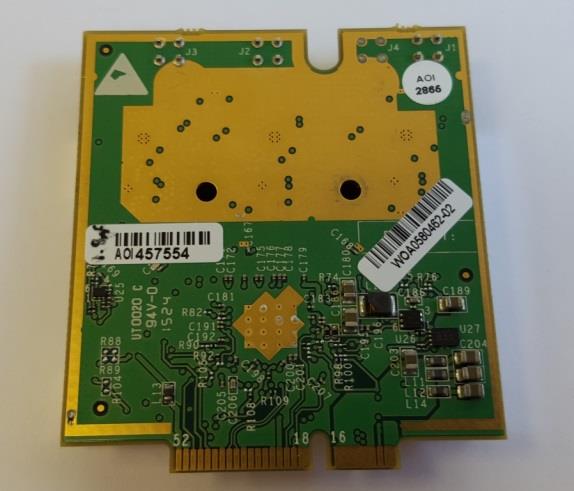

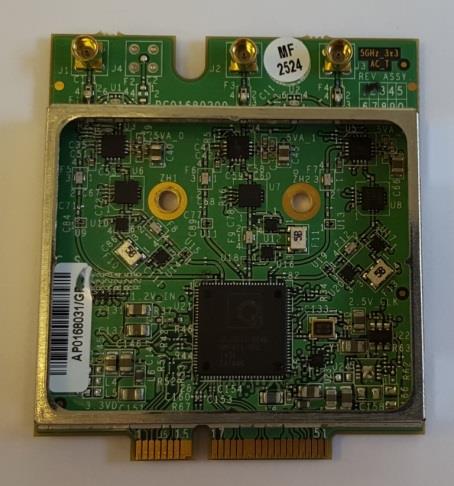

5 GHZ WIRELESS MODULE PHOTOS Photo 1: Front Photo 2: Rear Photo 3: Front with shield removed

5 GHZ WIRELESS MODULE PHOTOS Photo 1: Front Photo 2: Rear Photo 3: Front with shield removed

Tracker: RDWN38-U3 Maximum Permissible Exposure FCC, Part 90 Subpart C §90.1217 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4d 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) The 5 GHz 802.11ac 3x3 RF Module 5XACMD3C has three antenna chains. The peak power in the table below is calculated by assuming a worst case scenario for the maximum gain antenna and output power. The calculated separation distance is worst case found (Operational mode 80 MHz, channel 5787.00 MHz. Calculation was performed using the 18 dBi antenna gain. Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 Distance (cm) Freq. Band (MHz) Antenna Gain (dBi) Numeric Gain (numeric) Max Peak Output Power (dBm) Peak Output Power (mW) Calculated Power Density @ 20cm Calculated Safe Distance @ 1mW/cm 2 Limit(cm) Minimum Separation Distance (cm) 5787.0 18 63.1 +29.93 984.01 12.35 53.6 70.3 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits §90.1217 Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency levels in excess of the Commission’s guidelines. See §1.1307 (b)(1) of this chapter. Limit = 1 mW / cm 2 from 1.310 Table 1 Laboratory Measurement Uncertainty for Power Measurements Measurement uncertainty 1.33dB

Company: Radwin Ltd. Test of: 5 GHz 802.11ac 3x3 RF Module 5XACMD3C To: FCC CFR 47 Part 15 Subpart E 15.407 & IC RSS-247 Report No.: RDWN38-U3 Rev A TEST REPORT FROM Test of: Radwin Ltd. 5 GHz 802.11ac 3x3 RF Module 5XACMD3C to To: FCC CFR 47 Part 15 Subpart E 15.407 & IC RSS-247 Test Report Serial No.: RDWN38-U3 Rev A This report supersedes: NONE Applicant: Radwin Ltd. 27 Habarzel Street Tel Aviv 69710 Israel Product Function: 5 GHz 802.11n/ac 3x3 MIMO RF Module Issue Date: 20 th August 2015 This Test Report is Issued Under the Authority of: MiCOM Labs, Inc. 575 Boulder Court Pleasanton California 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Radwin Ltd. 5 GHz 802.11ac 3x3 RF Module 5XACMD3C To: FCC CFR 47 Part 15 Subpart E 15.407 & IC RSS-247 Serial #: RDWN38-U3 Rev A Issue Date: 20 th August 2015 Page: 3 of 235 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Table of Contents 1. ACCREDITATION, LISTINGS & RECOGNITION................................................................................. 4 1.1. TESTING ACCREDITATION ......................................................................................................... 4 1.2. RECOGNITION ............................................................................................................................. 5 1.3. PRODUCT CERTIFICATION ........................................................................................................ 6 2. DOCUMENT HISTORY ......................................................................................................................... 7 3. TEST RESULT CERTIFICATE .............................................................................................................. 8 4. REFERENCES AND MEASUREMENT UNCERTAINTY ..................................................................... 9 4.1. Normative References ................................................................................................................... 9 4.2. Test and Uncertainty Procedure .................................................................................................. 10 5. PRODUCT DETAILS AND TEST CONFIGURATIONS ...................................................................... 11 5.1. Technical Details ......................................................................................................................... 11 5.2. Scope Of Test Program ............................................................................................................... 12 5.3. Equipment Model(s) and Serial Number(s) ................................................................................. 13 5.4. Antenna Details ........................................................................................................................... 13 5.5. Cabling and I/O Ports .................................................................................................................. 13 5.6. Test Configurations...................................................................................................................... 13 5.7. Equipment Modifications ............................................................................................................. 14 5.8. Deviations from the Test Standard .............................................................................................. 14 6. TEST SUMMARY ................................................................................................................................ 15 7. TEST EQUIPMENT CONFIGURATION(S) ......................................................................................... 16 7.1. Conducted ................................................................................................................................... 16 7.2. Radiated Emissions - 3m Chamber ......................................................................................... 18 7.3. ac Wireline Emission Test Set-up ............................................................................................ 20 8. MEASUREMENT AND PRESENTATION OF TEST DATA ............................................................... 21 9. TEST RESULTS .................................................................................................................................. 22 9.1. Peak Transmit Power .................................................................................................................. 22 9.2. 26 dB & 99% Bandwidth .............................................................................................................. 29 9.3. Power Spectral Density ............................................................................................................... 35 9.4. Radiated ...................................................................................................................................... 42 9.4.1. Restricted Band Emissions ................................................................................................... 45 9.4.1.1. RADWIN Ltd AT0058760 ............................................................................................... 45 9.4.1.2. RADWIN Ltd RW-9401-5002 ......................................................................................... 48 9.4.2. Restricted Band-Edge Emissions ......................................................................................... 51 9.4.2.3. RADWIN Ltd AT0058760 ............................................................................................... 51 9.4.2.4. RADWIN Ltd RW-9401-5002 .............................................................…

Text truncated - open the document above for the full version.

Test Setup Photographs Antenna: AT0058760 Radiated Spurious Emissions Close Up Test Setup - RE#1 - Radiated Emissions - 3m Chamber Antenna: RW-9401-5002 Radiated Spurious Emissions Digital Emissions
