Q3K-5XACMOD5 GHz Wireless Module

Radwin Ltd.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Feb 18, 2015
Application Purpose: Original Equipment
Date of Application: Feb 05, 2015
Equipment Note: 5 GHz Wireless Module
Frequency Range: 5730.00000000 - 5845.00000000
Company: Radwin Ltd.
Country: Israel

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

AP0158770 5 GHz Wireless Module REFERENCE GUIDE Regulatory Compliance FCC/IC - Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and IC RSS standards. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. It is the responsibility of the installer to ensure that when using the outdoor antenna kits, only those antennas certified with the product are used. The use of any antenna other than those certified with the product is expressly forbidden by FCC rules 47 CFR part 15.204 and IC RSS standards. Il est de la responsabilité de l'installateur de s'assurer que lorsque vous utilisez les kits d'antennes extérieures, seules les antennes certifiés avec le produit sont utilisés. L'utilisation d'une antenne autre que ceux qui sont certifiés avec le produit est expressément interdite par la réglementation FCC partie 47 CFR 15.204 et IC normes RSS. Outdoor units and antennas should be installed ONLY by experienced installation professionals who are familiar with local building and safety codes and, wherever applicable, are licensed by the appropriate government regulatory authorities. Failure to do so may void the product warranty and may expose the end user or the service provider to legal and financial Caution liabilities. Resellers or distributors of this equipment are not liable for injury, damage or violation of regulations associated with the installation of outdoor units or antennas. The installer should configure the output power level of antennas according to country regulations and antenna type. AP0158770 Reference Guide i Warning Avertissement Les unités extérieures et les antennes doivent être installés que par des professionnels expérimentés d'installation qui sont familiers avec les normes locales et les codes de sécurité et, si applicable, sont agréées par les autorités gouvernementales de réglementation compétents. Ne pas le faire peut annuler la garantie du produit et peuvent exposer l'utilisateur final ou le fournisseur de services d'obligations juridiques et financiers. Revendeurs ou distributeurs de ces équipements ne sont pas responsables des blessures, des dommages ou violation des règlements liés à l'installation des unités extérieures ou des antennes. L'installateur doit configurer le niveau de puissance de sortie des antennes conformément aux réglementations nationales et le type d'antenne. This equipment should be installed and operated with a minimum distance of 354cm between the radiator and your body. Warning Cet équipement doit être installé et utilisé à une distance minimale de 354cm entre le radiateur et votre corps. The module is granted to operate under FCC certification in the 5.1 GHz and 5.8 GHz bands only. Warning This device complies with Part 15 of the FCC rules and with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme la norme d'Industrie Canada exempts de licence RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: 1. Cet appareil ne peut pas causer d'interférences, et 2. Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numrique de la classe B est conforme la norme NMB-003 du Canada AP0158770 Reference Guide ii Prudence Avertissement Overview The AP0158770 is a wireless module operating in the 5.1 GHz and 5.8 GHz frequency bands. It is a TDD OFDM radio supporting 5 MHz, 10 MHz, 20 MHz, 40 MHz and 80 MHz channel bandwidths. The wireless module cannot work as a stand-alone device. It can operate and be controlled only when attached to a digital main board and altogether assembled in an enclosure suitable for outdoor use. The assembly of the wireless module attached to the digital main board is hereafter referred to as ‘ODU’. The ODU in its various outdoor enclosures is manufactured by RADWIN. The wireless module is certified as a limited modular approval type under the FCC ID: Q3K- 5XACMOD for 5.1 GHz and 5.8 GHz bands. It is also certified under IC: 5100A-5XACMOD for 5.8 GHz band. Condition of Use The AP0158770 wireless module is a proprietary radio interface and can only be connected to digital boards manufactured by RADWIN. The ODU resides in an outdoor enclosure also manufactured and assembled by RADWIN or its subcontractors. The wireless module is not for sale to the general public. FCC rules and IC Regulation Restrictions The ODU firmware is factory programmed to operate under the FCC rules and Industry Canada regulation restrictions. The firmware is locked and inaccessible by any third party. As a result of the above th…

Text truncated - open the document above for the full version.

Cover Letter(s)

FCC – Modular Approval Request Rev 2.0 Modular Transmitter Approval Request Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Company name: RADWIN Ltd. FCC ID: Q3K-5XACMOD Gentlemen, In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Certification Guide v01r04’. FCC ID: Q3K-5XACMOD has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 ‘Modular Certification Guide v01r04 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly The module has its own RF shielding as shown in the presented in the photo at the end of this document. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal The module is based on Atheros chipset which provides the buffering and data/modulation. The module must contain power supply regulation on the module The module certification type is LMA but nevertheless it has on-board regulators for power supply as seen in the schematics page 5. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) The module is supplied with unique antenna connector. The module is installed into the device at RADWIN’s production line with the unique antenna cabling and connectors, as tested. Only the RADWIN antennas detailed in the manual are marketed with the module. The final installation of the unit is done only by professional installers trained by RADWIN representatives. The module must demonstrate compliance in a stand-alone configuration The unit was tested in a stand-alone configuration. The test was performed with an open configuration enclosure with the module exposed and attached to a digital board representing typical RADWIN host configuration. The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) The module will be labeled with the FCC ID: Q3K-5XACMOD and IC: 5100A-5XACMOD as shown in the photo at the end of this document. The device into which the module is installed will also display a label referring to the enclosed module as shown at the end of this document: “Contains FCC ID: Q3K-5XACMOD, Contains IC: 5100A- 5XACMOD”. FCC – Modular Approval Request Rev 2.0 The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee The module was tested for compliance with FCC rule Part 15 subparts C. The integration of the module is done by RADWIN and there is no access to RADWIN manufactured device by third party. The module must comply with RF exposure requirements The module complies with RF exposure requirements as shown in the MPE documents Module with the RF shielding and Label External Label sample attached to host enclosure FCC – Modular Approval Request Rev 2.0 Name: Roni Barshan Date: January 19, 2015 Title: RF Department Manager Signature of applicant

Cover Letter(s)

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: February 5, 2015 Subject; Request for Confidentiality FCC ID: Q3K-5XACMOD To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Software Configuration Control  UNII Device Security Description  SDR Security Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Furthermore, the product is an RF module assembled inside outdoor enclosures mounted on top of large towers and mounting poles and serviceable only by the licensee or his designated technicians. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Roni Barshan Title: RF Department Manager

Cover Letter(s)

Letter of Authorization Company: RADWIN Ltd. Address: 27 Habarzel Street, Tel Aviv, Israel, 6971039 Product Name: 5 GHz Wireless Module Model Number: AP0158770 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following:  Testing  Approval applications (includes complete product documentation package, including Confidential information) and procedures  Payment of approval fees We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Roni Barshan Date: January 18, 2015 Title: RF Department Manager Signature of applicant:

External Photos

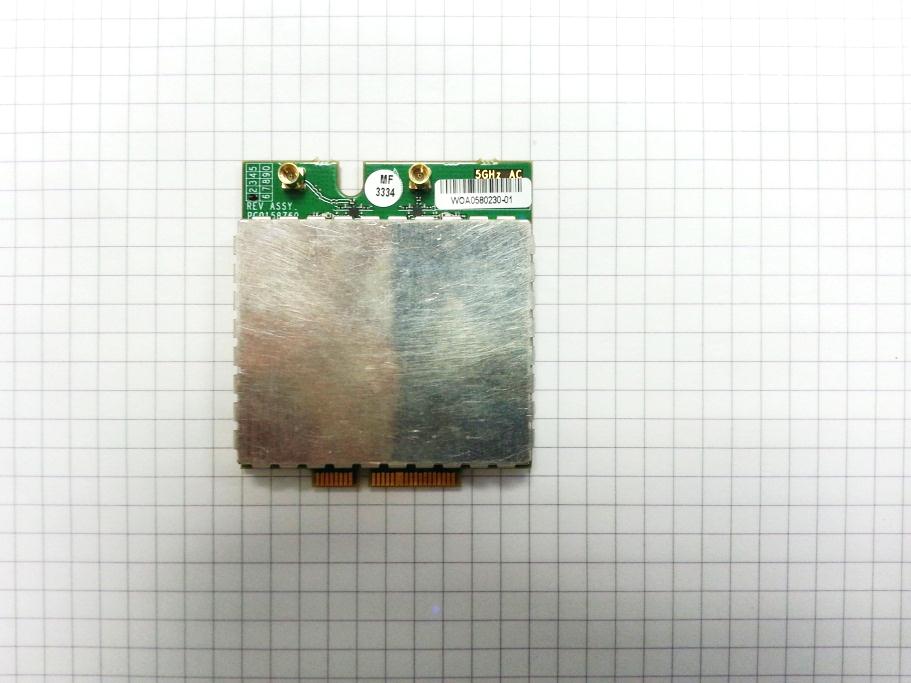

5 GHZ WIRELESS MODULE PHOTOS Photo 1: Front Photo 2: Rear Photo 3: Front with shield removed

Internal Photos

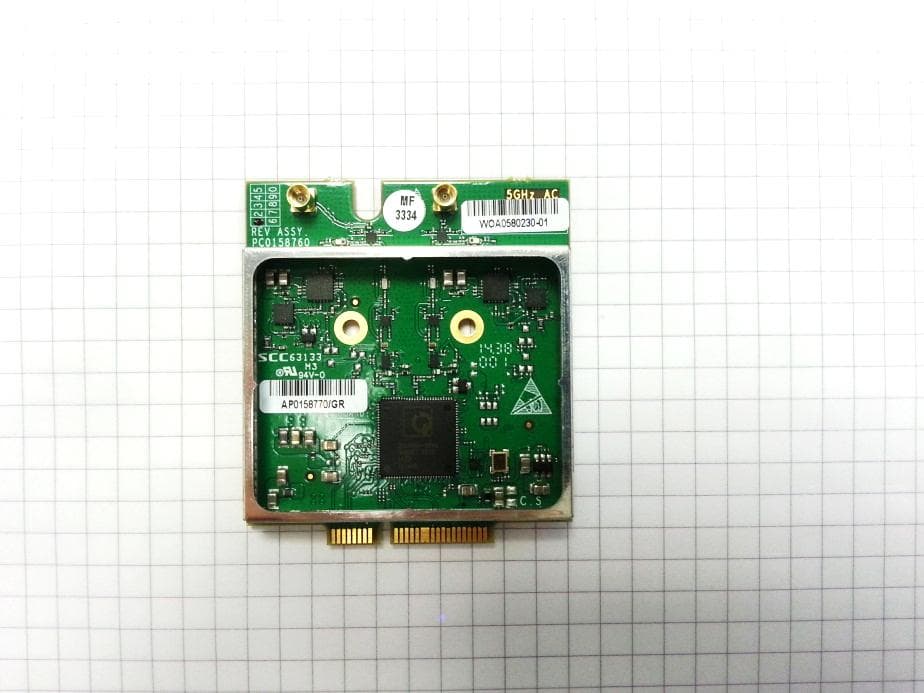

5 GHZ WIRELESS MODULE PHOTOS Photo 1: Front Photo 2: Rear Photo 3: Front with shield removed

Operational Description

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: February 1, 2015 Subject: Access Point Elevation Angle Consideration FCC ID: Q3K-5XACMOD To Whom It May Concern, Pursuant to the KDB 789033 D02 Section H of the Commission's guidelines following are the Access Point elevation angle installation considerations. List of investigated access point antennas: Antenna Type Model Number Antenna Gain (dBi) Min. Tilt (Deg) Sector Dual Crossed Pole Integrated 120 Deg MT0128930 11 -27 Sector Dual Crossed Pole Integrated 95 Deg AM0135060 12 0 Sector Dual Crossed Pole 60 Deg RW-9061-5002 15.5 -2 Shark Fin Monopole RW-9401-5002 12.5 0* * Output Power reduced by 13 dB for compliance Method used to show compliance The elevation plane radiation patterns are available therefore calculation was used to show compliance. This method shows how the installation angle is calculated so that the total EIRP would comply with the 125 mW (21 dBm) EIRP limit. 1. The elevation angles range investigated is 30° to 120° 1 . The horizontal plane is defined as 0° angle. 2. The frequencies investigated are 5.15 GHz and 5.25 GHz at each transmission chain. 3. The “Consolidated Highest EIRP.” (worst case scenario) is calculated from the Antenna Elevation Pattern Data tables, by combining the highest gain values found within the 30° to 120° angles range with the highest output power for each port. Following is the calculation method used: EIRPa = Porta + Ver. Gain, EIRPb = Portb + Hor. Gain, Comb. EIRP = EIRPa + EIRPb (calculated separately for channel 5.15 GHz and 5.25 GHz) Consolidated Highest EIRP: The highest EIRP value transmitted from either 5.15 or 5.25 GHz channel 1 Since the dual pole flat panel sector antennas are mounted on staves and tilted downwards (negative elevation angles), there are radiation patterns from angles higher than 90° penetrating the original 30° to 90° angle range. In order to rule out the risk of high gain patterns penetration, an additional arbitrary 30° angle range was investigated. 4. The highest output power is taken from the RDWN34-U6 test report. 5. Non- Complying Angles Range: The angles range in which the Consolidated Highest EIRP violates the 21 dBm limit. This indicates the range that must be outside the 30° to 90° degrees elevation boundaries. 6. Max Complying EIRP: Max EIRP that complies with the 21 dBm limit outside the Non- Complying Angles Range 7. Elevation Angle @ Complying EIRP: The angle at which the Max Complying EIRP was detected 8. Min Tilt: The minimum tilt angle needed for installation to bring the device into compliance. The tilt angle is relative to horizontal level 0°. 9. Equation for calculating the minimum tilt angle: Min Tilt Angle = 30 - [Elevation Angle @ Complying EIRP]-1 10. Omni antenna has no tilt option because of its circular gain and vehicle rooftop assembly configuration. The investigated angle range is 30° to 150°. The output power is reduced by 13 dB to comply with the “EIRP Limit”. The antenna is a monopole type therefore 2 (two) antennas can be assembled with one device. TILT ANGLE Flat Panel Sector Antenna Tilt 11 dBi Antenna Non- Complying Angles Range Max Complying EIRP Elevation Angle @ Complying EIRP Min Tilt EIRP Limit Margin dBm dBm Deg Deg dBm dB 30 - 55 20.97 56 -27 21.00 -0.03 12 dBi Antenna Non- Complying Angles Range Max Complying EIRP Elevation Angle @ Complying EIRP Min Tilt EIRP Limit Margin dBm dBm Deg Deg dBm dB None 16.46 35 0 21.00 -4.54 14.5 dBi Antenna (including 1 dB feeder cable loss) Non- Complying Angles Range Max Complying EIRP Elevation Angle @ Complying EIRP Min Tilt EIRP Limit Margin dBm dBm Deg Deg dBm dB 30 20.43 31 -2 21.00 -0.57 11.5 dBi Omni Antenna (including 1 dB feeder cable loss) Non- Complying Angles Range Max Complying EIRP Elevation Angle @ Complying EIRP Min Tilt EIRP Limit Margin dBm dBm Deg Deg dBm dB None 20.39 41 N/A 21.00 -0.61 Omni antenna mounting form Sincerely, Roni Barshan RF Department Manager RADWIN Ltd. Antennas Elevation & Output Power Pattern Data 11 dBi Antenna 5.15 GHz 5.25 GHz Consolidated Highest EIRP E V E H Comb. EIRP E V E H Comb. EIRP Angle Port a Ver. Gain EIRP a Port b Hor. Gain EIRP b Port a Ver. Gain EIRP a Port b Hor. Gain EIRP b Deg dBm dBi dBm dBm dBi dBm dBm dBm dBi dBm dBm dBi dBm dBm dBm 30 22.54 -3.32 19.22 21.06 -7.56 13.50 20.25 22.54 -7.90 14.64 21.06 -0.84 20.22 21.28 21.28 31 22.54 -2.66 19.88 21.06 -5.62 15.44 21.21 22.54 -10.75 11.79 21.06 0.58 21.64 22.07 22.07 32 22.54 -2.15 20.39 21.06 -4.54 16.52 21.88 22.54 -16.79 5.75 21.06 1.62 22.68 22.77 22.77 33 22.54 -1.85 20.69 21.06 -2.89 18.17 22.62 22.54 -18.13 4.41 21.06 2.13 23.19 23.25 23.25 34 22.54 -1.78 20.76 21.06 -2.27 18.79 22.90 22.54 -16.40 6.14 21.06 2.69 23.75 23.82 23.82 35 22.54 -1.89 20.65 21.06 -1.53 19.53 23.14 22.54 -12.78 9.76 21.06 3.09 24.15 24.31 24.31 36 22.54 -2.22 20.32 21.06 -1.12 19.94 23.14 22.54 -9.85 12.69 21.06 3.14 24.20 24.50 24.50 37 22.54 -2.83 19.71 21.06 -0.58 20.48 23.12 22.54 -7.61 14.93 21.06 3.04 24.10 24.60 24.60 38 22.54 -3.64 18.90 21.06 -0.41 20.65 22.87 22.54 -6.38 16.16 21.06 2.77 23.83 24.52 24.52 39 22.54 -4.33 18.21 21.06 -0.27 20.79 22.70 22.54 -4.86 17.68 21.06 2.48 23.54 24.54 24.54 40 22.54 -5.69 16.85 21.06 -0.24 20.82 22.28 22.54 -3.76 18.78 21.06 1.67 22.73 24.20 24.20 41 22.54 -6.69 15.85 21.06 -0.31 20.75 21.97 22.54 -2.93 19.61 21.06 1.12 22.18 24.09 24.09 42 22.54 -8.33 14.21 21.06 -0.46 20.60 21.50 22.54 -2.51 20.03 21.06 0.09 21.15 23.64 23.64 43 22.54 -9.88 12.66 21.06 -0.57 20.49 21.15 22.54 -2.05 20.49 21.06 -1.07 19.99 23.26 23.26 44 22.54 -10.80 11.74 21.06 -0.75 20.31 20.88 22.54 -1.76 20.78 21.06 -1.94 19.12 23.04 23.04 45 22.54 -10.81 11.73 21.06 -0.95 20.11 20.70 22.54 -1.63 20.91 21.06 -3.33 17.73 22.62 22.62 46 22.54 -10.09 12.45 21.06 -1.18 19.88 20.60 22.54 -1.64 20.90 21.06 -4.25 16.81 22.33 22.33 47 22.54 -9.10 13.44 21.06 -1.33 19.73 20.65 22.54 -1.79 20.75 21.06 -5.43 15.63 21.91 2…

Text truncated - open the document above for the full version.

RF Exposure Info

RDWN34-U10 MPE Maximum Permissible Exposure FCC, Part 15 §1.1310 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4d 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 The calculations in the table below use highest gain antennas for the client EUT. Where the antenna gain exceeds 6dBi the transmitter power is reduced where necessary to meet the EIRP requirements. These calculations represent worst case in terms of the exposure levels. Worst case results for each antenna type Antenna Model Type Ant Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Safe Distance @ 1mW/cm 2 Limit (cm) Power Density @ 20cm (mW/cm 2 ) MT0128930 Sector Dual Pole Integrated 120 Deg 11 12.59 24.85 305.49 17.49 0.77 AM0135060 Sector Dual Pole Integrated 95 Deg 12 15.85 23.94 247.74 17.68 0.78 RW-9401-5002 Shark Fin Monopole 11.5* 14.13 24.44 277.97 17.68 0.78 RW-9061-5002 Sector Dual Pole 60 Deg 14.5* 28.18 23.4 218.78 22.15 1.23 AM0111760 Flat Panel Dual Pole Integrated 16 39.81 26.94 494.31 39.57 3.91 MT0070760 Flat Panel Dual Pole Integrated 23.5 223.87 26.94 494.31 93.84 22.02 RW-9622-5001 Flat Panel Dual Pole External 28* 630.96 24.94 311.89 125.14 39.15 RW-9732-4958 Dual Pole Dish 31* 1258.93 21.94 156.31 125.14 39.15 * Gain includes 1 dB feeder loss for external antennas Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 Ref FCC KDB 447498 General RF Exposure Guidance RSS-Gen §5.6 Category I and Category II equipment shall comply with the applicable requirements of RSS-102. Laboratory Measurement Uncertainty for Power Measurements Measurement uncertainty 1.33 dB

Test Report

Title: To: Serial #: Issue Date: Page: RADWIN Ltd, AP0158770 Wireless Module FCC 47 CFR Part 15.247 & IC RSS-210 RDWN34-U3 Rev B 11th February 2015 131 of 278 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. M iCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com A. APPENDIX SUPPORTING INFORMATION A.1. CONDUCTED TEST PLOTS Title: To: Serial #: Issue Date: Page: RADWIN Ltd, AP0158770 Wireless Module FCC 47 CFR Part 15.247 & IC RSS-210 RDWN34-U3 Rev B 11th February 2015 132 of 278 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. M iCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com A.1.1. 6 dB & 99% Bandwidth 6 dB & 99% BANDWIDTH Variant: 5 MHz, Channel: 5730.00 MHz, Chain a, Temp: Ambient, Voltage: 55 Vdc Analyser Setup Marker:Frequency:Amplitude Test Results Detector = MAX PEAK Sweep Count = 0 RF Atten (dB) = 20 Trace Mode = VIEW M1 : 5727.725 MHz : 2.889 dBm M2 : 5730.291 MHz : 10.756 dBm Delta1 : 4.509 MHz : 3.533 dB T1 : 5727.645 MHz : -0.656 dBm T2 : 5732.315 MHz : 1.162 dBm OBW : 4.669 MHz Measured 6 dB Bandwidth: 4.509 MHz Limit: ≥500.0 kHz Margin: -4.01 MHz Back to Matrix Title: To: Serial #: Issue Date: Page: RADWIN Ltd, AP0158770 Wireless Module FCC 47 CFR Part 15.247 & IC RSS-210 RDWN34-U3 Rev B 11th February 2015 133 of 278 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. M iCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 6 dB & 99% BANDWIDTH Variant: 5 MHz, Channel: 5730.00 MHz, Chain b, Temp: Ambient, Voltage: 55 Vdc Analyser Setup Marker:Frequency:Amplitude Test Results Detector = MAX PEAK Sweep Count = 0 RF Atten (dB) = 20 Trace Mode = VIEW M1 : 5727.705 MHz : -0.186 dBm M2 : 5729.309 MHz : 8.673 dBm Delta1 : 4.529 MHz : 4.885 dB T1 : 5727.625 MHz : -2.702 dBm T2 : 5732.355 MHz : -2.167 dBm OBW : 4.729 MHz Measured 6 dB Bandwidth: 4.529 MHz Limit: ≥500.0 kHz Margin: -4.03 MHz Back to Matrix Title: To: Serial #: Issue Date: Page: RADWIN Ltd, AP0158770 Wireless Module FCC 47 CFR Part 15.247 & IC RSS-210 RDWN34-U3 Rev B 11th February 2015 134 of 278 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. M iCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 6 dB & 99% BANDWIDTH Variant: 5 MHz, Channel: 5800.00 MHz, Chain a, Temp: Ambient, Voltage: 55 Vdc Analyser Setup Marker:Frequency:Amplitude Test Results Detector = MAX PEAK Sweep Count = 0 RF Atten (dB) = 20 Trace Mode = VIEW M1 : 5797.725 MHz : -0.426 dBm M2 : 5801.673 MHz : 7.851 dBm Delta1 : 4.489 MHz : 4.438 dB T1 : 5797.645 MHz : -3.161 dBm T2 : 5802.335 MHz : -3.125 dBm OBW : 4.689 MHz Measured 6 dB Bandwidth: 4.489 MHz Limit: ≥500.0 kHz Margin: -3.99 MHz Back to Matrix Title: To: Serial #: Issue Date: Page: RADWIN Ltd, AP0158770 Wireless Module FCC 47 CFR Part 15.247 & IC RSS-210 RDWN34-U3 Rev B 11th February 2015 135 of 278 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. M iCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 6 dB & 99% BANDWIDTH Variant: 5 MHz, Channel: 5800.00 MHz, Chain b, Temp: Ambient, Voltage: 55 Vdc Analyser Setup Marker:Frequency:Amplitude Test Results Detector = MAX PEAK Sweep Count = 0 RF Atten (dB) = 20 Trace Mode = VIEW M1 : 5797.745 MHz : 4.516 dBm M2 : 5801.112 MHz : 11.362 dBm Delta1 : 4.469 MHz : 2.546 dB T1 : 5797.645 MHz : -0.074 dBm T2 : 5802.355 MHz : -0.709 dBm OBW : 4.709 MHz Measured 6 dB Bandwidth: 4.469 MHz Limit: ≥500.0 kHz Margin: -3.97 MHz Back to Matrix Title: To: Serial #: Issue Date: Page: RADWIN Ltd, AP0158770 Wireless Module FCC 47 CFR Part 15.247 & IC RSS-210 RDWN34-U3 Rev B 11th February 2015 136 of 278 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. M iCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 6 dB & 99% BANDWIDTH Variant: 5 MHz, Channel: 5845.00 MHz, Chain a, Temp: Ambient, Voltage: 55 Vdc Analyser Setup Marker:Frequency:Amplitude Test Results Detector = MAX PEAK Sweep Count = 0 RF Atten (dB) = 20 Trace Mode = VIEW M1 : 5842.725 MHz : 3.485 dBm M2 : 5843.968 MHz : 10.552 dBm Delta1 : 4.509 MHz : 2.609 dB T1 : 5842.645 MHz : -0.068 dBm T2 : 5847.335 MHz : 1.494 dBm OBW : 4.689 MHz Measured 6 dB Bandwidth: 4.509 MHz Limit: ≥500.0 kHz Margin: -4.01 MHz Back to Matrix Title: To: Serial #: Issue Date: Page: RADWIN Ltd, AP0158770 Wireless Module FCC 47 CFR Part 15.247 & IC RSS-210 RDWN34-U3 Rev B 11th February 2015 137 of 278 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. M iCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com 6 dB & 99% BANDWIDTH Variant: 5 MHz, Channel: 5845.00 MHz, Chain b, Temp: Ambient, Voltage: 55 Vdc Analyser Setup Marker:Frequency:Amplitude Test Results Detector = MAX PEAK Sweep Count = 0 RF Atten (dB) = 20 Trace Mode = VIEW M1 : 5842.725 MHz : 1.897 dBm M2 : …

Text truncated - open the document above for the full version.

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Shlomo Weiss(Standardization Officer)

[email protected]+97237662988Fax: +97237662902

Technical Contact

MiCOM LabsGordon Hurst

[email protected](925)4620304

575 Boulder Court · Pleasanton, California

Test Firm

MiCOM LabsGordon Hurst

[email protected]925-462-0304Fax: 925-462-0306

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	5.73 GHz - 5.84 GHz	925.00 mW

Modular Type

Single Modular Approval

Software Defined Radio

Yes

Confidentiality

Long Term

Grant Notes

Power Output listed is maximum combined Conducted power operating in a 2x2 MIMO configuration. The antennas used for this transmitter must be installed to provide a separation distance of at least 125cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter within a device, except in accordance with accepted multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device is capable of 5, 10, 20, 40, and 80MHz bandwidths.
