Q3K-TRWN600GPoint to point/point to multipoint 60 GHz radio transceiver

INSTALLATION GUIDE DQ0266170/O.02 TERRAWIN Release 1.0 TerraWIN Installation Guide DQ0266170/O.021‐1 Table of Contents Chapter 1: Introduction 1.1 Scope of This Document...................................................................................................... 1‐1 1.2 TerraWIN Overview............................................................................................................. 1‐1 1.2.1 Basic Deployment........................................................................................................1‐1 1.2.2 TerraWIN Radio Unit (Node) .......................................................................................1‐4 1.2.3 TerraWIN Power Supply ..............................................................................................1‐5 1.2.4 Management Tools .....................................................................................................1‐6 1.3 Key Features of TerraWIN................................................................................................... 1‐7 1.4 Notifications ....................................................................................................................... 1‐7 Chapter 2: Installation Steps 2.1 Verify Controller Existence.................................................................................................. 2‐2 2.2 Install WINTouch................................................................................................................. 2‐2 2.3 Configure Connectivity Parameters for Nodes in POP Site ................................................. 2‐2 2.3.1 Connect Nodes in POP Site to Power...........................................................................2‐2 2.3.2 Connect Smartphone to Nodes via Bluetooth .............................................................2‐3 2.3.3 Update Connectivity Parameters of Nodes .................................................................2‐3 2.3.4 Teach Nodes IP Address of the Controller ...................................................................2‐4 2.4 Check Conne ctivity to Nodes in POP Site............................................................................ 2‐4 2.5 Check items to be installed ................................................................................................. 2‐4 2.6 Prepare Tools ...................................................................................................................... 2‐4 2.7 Install Standard Mounting Kit ............................................................................................. 2‐5 2.7.1 Standard Mounting Kit................................................................................................2‐5 2.7.2 Pole..............................................................................................................................2‐6 2.7.3 Wall.............................................................................................................................2‐8 2.8 Mount Nodes ...................................................................................................................... 2‐8 2.9 Mount the ODU‐S (optional)............................................................................................. 2‐12 2.10 Ground Nodes ................................................................................................................. 2‐13 2.11 Ground the ODU‐S ........................................................................................................... 2‐13 2.12 Mount the Lightning Protection Units ............................................................................ 2‐14 2.13 Connect Node (External Connections) ............................................................................ 2‐16 2.14 Connect PoE (optional).................................................................................................... 2‐17 2.15 Waterproofing................................................................................................................. 2‐18 2.16 Mount and Connect Client Nodes................................................................................... 2‐19 2.17 Align Client Node............................................................................................................. 2‐19 Chapter 3: Safety Practices and Provisions 3.1 Scope of this Chapter .......................................................................................................... 3‐1 3.2 Practices and Provisions...................................................................................................... 3‐1 3.2.1 Preventing Overexposure to RF Energy.......................................................................3‐1 3.2.2 Grounding ...................................................................................................................3‐1 3.2.3 Protection against Lightning.......................................................................................3‐1 3.2.4 General........................................................................................................................3‐2 3.2.5 Internal ESD Protection circuits...................................................................................3‐2 Appendix A: Terminology Appendix B: About Antennas B.1 Scope of this Appendix........................................................................................................ B‐1 B.1 Antenna Issues .................................................................................................................... B‐1 B.2 Considerations for Changing Antenna Parameters............................................................. B‐1 Appendix C: Certified Antennas TerraWIN Installation Guide DQ0266170/O.021‐2 Appendix D: Revision History TerraWIN Installation Guide DQ0266170/O.021‐1 Chapter 1: Introduction 1.1 Scope of This Document This document shows how to install TerraWIN radios, including Distribut…

Text truncated - open the document above for the full version.

May 20, 2020 To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Application for certification of a Point to point/point to multipoint 60 GHz radio transceiver, operating in 57-66 GHz, FCC ID:Q3K-TRWN600G Dear Gentlemen, Please find attached our application for certification of a Point to point/point to multipoint 60 GHz radio transceiver, operating in the 57-66 GHz band, with the FCC ID:Q3K-TRWN600G, prepared in accordance with FCC Rules, parts 2 and 15 section 15.255. The product testing and this application for certification were performed by Hermon Laboratories, which is recognized and accredited by FCC, Test Firm Registration Number is 927748, Designation Number is IL1001. Hermon Labs responsible person is Mr. Michael Nikishin, tel: 011 972 4626 8440, fax:011 972 4628 8277, e-mail: [email protected]. We hope this application satisfies your requirements. Please send an invoice to Hermon Labs. Sincerely, Shlomo Weiss, Standardization Office Radwin Ltd.

RF_160, Issue 04 Declaration of Authorization We Name: Radwin Ltd. Address: 27 HaBarzel St., Ramat Hahayal. City: Tel Aviv, 6971039. Country: Israel. Declare that: Name Representative of agent: ............. (1) Agent Company name: Hermon Laboratories Ltd. . Address: Harakevet Industrial Zone .. City: Binyamina 30500 .. Country Israel . is authorized to apply for Certification of the following product(s): Product description: PtP/PtMP 60 GHz Radio Transceiver . Type designation: RADWIN 6000 TerraWIN™ 625G; RADWIN 6000 TerraWIN™ 601G Trademark: TerraWIN . Validity/ expiry date: N/A on our behalf. Date: April 28, 2020.. City: Tel Aviv .. Name: Shlomo Weiss.. (2) Function: Standartization Officer.... Signature:. Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Radwin Ltd. Address : 27 HaBarzel St. City: Tel Aviv 6971039 Country: Israel To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: Q3K-TRWN600G Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: For ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices Date: May 25, 2020 Name and signature of applicant: Shlomo Weiss Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

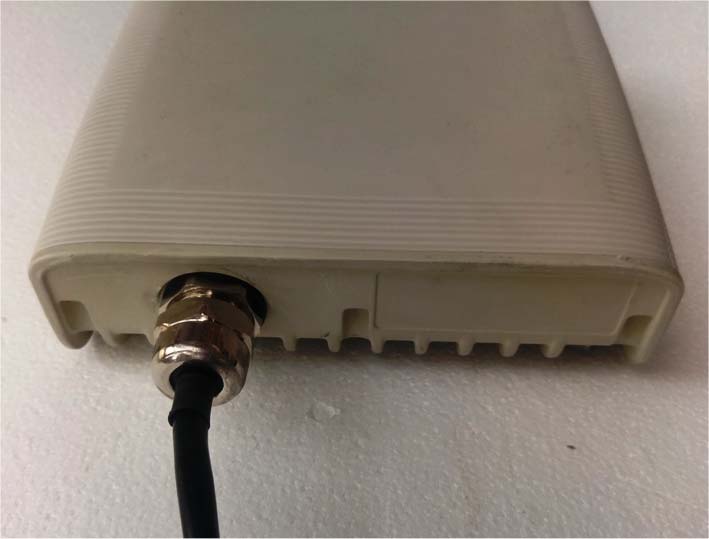

Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 1 of 4 EXTERNAL PHOTOGRAPHS This document contains 3 photographs Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 2 of 4 Photograph No.1 RADWIN 6000 outdoor radio general view Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 3 of 4 Photograph No.2 RADWIN 6000 outdoor radio top view Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 4 of 4 Photograph No.3 RADWIN 6000 outdoor radio bottom view

Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 1 of 2 Label Model RADWIN 6000 TerraWIN TM 625G Model RADWIN 6000 TerraWIN TM 601G Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 2 of 2 Label location An outdoor radio shall bear the label with FCC ID: Q3K-TRWN600G and IC: 5100A-TRWN600G on the front panel as shown in the photo below: Label

Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 1 of 7 INTERNAL PHOTOS www. radwin.com INTERNAL PHOTOS Photo 1 – Top view with cover off Photo 2 – Digital Control Board (bottom) Antenna Modules www. radwin.com Photo 3 – Digital Control Board (top) Photo 4 – BB Board Assembly (bottom) Antenna Modules www. radwin.com Photo 5 – BB Board Assembly (top) Photo 6 – GPS patch antenna and interface board www. radwin.com Photo 7 – PCI-e 64 Pin Adapter (bottom) Photo 8 – PCI-e 64 Pin Adapter (top) Photo 9 – BB Board Base Plate www. radwin.com Photo 10 – BB Board Top Plate Photo 11 – BB Board (bottom) www. radwin.com Photo 12 – BB Board (top) Antenna Modules

Radwin Ltd. FCC ID:Q3K-TRWN600G Page 1 of 1 Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 The calculation was done to confirm required safe distance for fixed device. Limit for power density for general population/uncontrolled exposure is 1 mW/cm 2 for 1500 -100000 MHz frequency range: The power density P (mW/cm 2 ) = P T / 4 r 2 , where P T is the maximum equivalent isotropically radiated power (EIRP), measured value is 42.32 dBm. which is equal to 17061 mW. The minimum safe distance “r” for general population/uncontrolled exposure, where RF exposure does not exceed FCC permissible limit, is r = sqrt { P T / (Px4)} = sqrt {17061 / 12.56} = 37 cm. The information note about safe distance shall be provided in the User Manual.

Hermon Laboratories Ltd. P.O. Box 23, Binyamina 3055001, Israel Tel. +972 4628 8001 Fax. +972 4628 8277 E-mail: [email protected] Page 1 of 140 Report ID: RDWRAD_FCC.36870.docx Date of Issue: 27-May-20 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC 47 CFR part 15 section 15.255; RSS-210 issue 10 Annex J, RSS-Gen issue 5 FOR: Radwin Ltd. PtP/PtMP 60 GHz Radio Transceiver Models: RADWIN 6000 TerraWIN™ 625G RADWIN 6000 TerraWIN™ 601G FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: RDWRAD_FCC.36870.docx Date of Issue: 27-May-20 Page 2 of 140 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Ports and lines .............................................................................................................................................................. 5 6.3 Auxiliary equipment ....................................................................................................................................................... 5 6.4 Changes made in the EUT ............................................................................................................................................ 5 6.5 Test configuration .......................................................................................................................................................... 6 6.6 Transmitter characteristics ............................................................................................................................................ 7 7 Transmitter tests ........................................................................................................................................................... 8 7.1 Transmitter power test ................................................................................................................................................... 8 7.2 Occupied bandwidth test ............................................................................................................................................. 17 7.3 Field strength of emissions .......................................................................................................................................... 24 7.4 Out of band radiated emissions above 40 GHz up to 200 GHz ................................................................................... 37 7.5 Frequency stability test .............................................................................................................................................. 120 7.6 Conducted emissions ................................................................................................................................................ 122 7.7 Antenna requirements ............................................................................................................................................... 125 8 APPENDIX A Test equipment and ancillaries used for tests ..................................................................................... 126 9 APPENDIX B Measurement uncertainties ................................................................................................................. 128 10 APPENDIX C Test facility description ....................................................................................................................... 129 11 APPENDIX D Specification references ..................................................................................................................... 129 12 Test equipment correction factors ............................................................................................................................. 130 13 APPENDIX F Abbreviations and acronyms ............................................................................................................... 139 14 APPENDIX G Manufacturer’s declaration ................................................................................................................. 140 Report ID: RDWRAD_FCC.36870.docx Date of Issue: 27-May-20 Page 3 of 140 1 Applicant information Client name: Radwin Ltd. Address: 27 HaBarzel St., Ramat Hahayal, Tel Aviv, 6971039, Israel Telephone: +972 (3) 766 2900 Fax: +972 (3) 766 2902 E-mail: [email protected] Contact name: Mr. Slava Lagaev 2 Equipment under test attributes Product name: PtP/PtMP 60 GHz Radio Transceiver Trade Mark: TerraWIN TM Model(s): RADWIN 6000 TerraWIN™ 625G Serial…

Text truncated - open the document above for the full version.

Report ID: RDWRAD_FCC.36870.docx Date of Issue: 27-May-20 Test specification: FCC Section 15.255(d)(3), RSS-210 section J.3, Out of band radiated emissions above 40 GHz Test procedure: ANSI C63.10, Sections 9.9, 9.12 Test mode: Compliance Verdict: PASS Date(s): 11-Mar-20 Temperature: 25 ºC Relative Humidity: 43 % Air Pressure: 1015 hPa Power: 55 VDC Remarks: Page 37 of 140 7.4 Out of band radiated emissions above 40 GHz up to 200 GHz 7.4.1 General This test was performed to measure radiated spurious emissions from the EUT. Specification test limits are given in Table 7.4.1. Table 7.4.1 Spurious emission field strength limits Frequency, GHz Power density at 3 m distance pW/cm 2 Distance, m Field strength dB(V/m)*, peak Field strength dB(V/m)*, average 40 – 200 90.0 3.0 105.30 85.30 90 - 140 90.0 0.05 140.9** 120.9** 140 - 200 90.0 0.01 154.8** 134.8** *- The limit is provided in average values. **- The limit for 1 m and other test distance was calculated using the inverse distance extrapolation factor as follows: for far field: Lim S2 = Lim S1 + 20 log (S 1 /S 2 ), where S 1 – standard defined distance in meters; S 2 – measurement distance in meters (according to ANSI C63.10) 7.4.2 Test procedure for spurious emission field strength measurements 7.4.2.1 The EUT was set up as shown in Figure 7.4.1, energized and the performance check was conducted. 7.4.2.2 The specified frequency range was investigated with antenna connected to spectrum analyzer/ EMI receiver. To find maximum radiation the turntable was rotated 360 0 , the measuring antenna height was changed from 1 to 4 m, its polarization was switched from vertical to horizontal. 7.4.2.3 The test results were recorded in Table 7.4.2 and are shown in the associated plots. Report ID: RDWRAD_FCC.36870.docx Date of Issue: 27-May-20 Test specification: FCC Section 15.255(d)(3), RSS-210 section J.3, Out of band radiated emissions above 40 GHz Test procedure: ANSI C63.10, Sections 9.9, 9.12 Test mode: Compliance Verdict: PASS Date(s): 11-Mar-20 Temperature: 25 ºC Relative Humidity: 43 % Air Pressure: 1015 hPa Power: 55 VDC Remarks: Page 38 of 140 Figure 7.4.1 Spurious emission field strength above 40 GHz test set up Spectrum analyzer/ EMI receiver Test antenna Test antenna EUT Ground plane 1.0m 4.0m 1.5 m Height Test distance Ferrites Power supply Auxilliary equipment Flush mounted turn table Wooden table Report ID: RDWRAD_FCC.36870.docx Date of Issue: 27-May-20 Test specification: FCC Section 15.255(d)(3), RSS-210 section J.3, Out of band radiated emissions above 40 GHz Test procedure: ANSI C63.10, Sections 9.9, 9.12 Test mode: Compliance Verdict: PASS Date(s): 11-Mar-20 Temperature: 25 ºC Relative Humidity: 43 % Air Pressure: 1015 hPa Power: 55 VDC Remarks: Page 39 of 140 Table 7.4.2 Spurious emission field strength test results TEST DISTANCE: 0.01 - 3 m EUT POSITION: Typical (Vertical) TRANSMITTER OUTPUT POWER: Maximum INVESTIGATED FREQUENCY RANGE: 40 – 200 GHz RESOLUTION BANDWIDTH: 1000 kHz VIDEO BANDWIDTH: ≥ Resolution bandwidth TEST ANTENNA TYPE: Standard Gain Horn 24 dB (40-60 GHz) Standard Gain Horn 24 dB (60-90 GHz) Standard Gain Horn 24dB (90-140 GHz) Standard Gain Horn 24 dB (140-220 GHz) MODULATION: 16QAM Frequency, MHz Antenna Azimuth, degrees* Peak field strength(VBW=3 MHz) Average field strength(VBW=1 kHz) Verdict Polariz. Height, m Measured, dB(V/m) Limit, dB(V/m) Margin, dB** Measured, dB(V/m) Limit, dB(V/m) Margin, dB** Low carrier frequency 58320 MHz 56999.361 Vertical 1.0 0 85.45 105.3 -19.85 77.23 85.3 -8.07 Pass Mid carrier frequency 60480 MHz No emissions were found Pass High carrier frequency 64800 MHz 55806.801 Vertical 1.0 0 92.15 105.3 -13.15 84.75 85.3 -0.55 Pass *- EUT front panel refer to 0 degrees position of turntable. **- Margin = Measured emission – specification limit. MODULATION: BPSK Frequency, MHz Antenna Azimuth, degrees* Peak field strength(VBW=3 MHz) Average field strength(VBW=1 kHz) Verdict Polariz. Height, m Measured, dB(V/m) Limit, dB(V/m) Margin, dB** Measured, dB(V/m) Limit, dB(V/m) Margin, dB** Low carrier frequency 58320 MHz 56999.421 Vertical 1.0 0 86.03 105.3 -19.27 77.85 85.3 -7.45 Pass Mid carrier frequency 60480 MHz No emissions were found Pass High carrier frequency 64800 MHz 55796.122 Vertical 1.0 0 94.42 105.3 -10.88 85.06 85.3 -0.24 Pass *- EUT front panel refer to 0 degrees position of turntable. **- Margin = Measured emission – specification limit. Reference numbers of test equipment used HL 0747 HL 0770 HL 0771 HL 1300 HL 1303 HL 1312 HL 2909 HL 3235 HL 3290 HL 3329 HL 3433 HL 3434 HL 3536 HL 4023 HL 5376 HL 5380 Full description is given in Appendix A. Report ID: RDWRAD_FCC.36870.docx Date of Issue: 27-May-20 Test specification: FCC Section 15.255(d)(3), RSS-210 section J.3, Out of band radiated emissions above 40 GHz Test procedure: ANSI C63.10, Sections 9.9, 9.12 Test mode: Compliance Verdict: PASS Date(s): 11-Mar-20 Temperature: 25 ºC Relative Humidity: 43 % Air Pressure: 1015 hPa Power: 55 VDC Remarks: Page 40 of 140 Plot 7.4.1 Spurious emission measurements in 40 – 45 GHz range TEST SITE: OATS TEST DISTANCE: 3 m MODULATION: BPSK ANTENNA POLARIZATION: Vertical and Horizontal Low carrier frequency: 58320 MHz DETECTOR: Peak RBW = 1 MHz; VBW = 3 MHz Report ID: RDWRAD_FCC.36870.docx Date of Issue: 27-May-20 Test specification: FCC Section 15.255(d)(3), RSS-210 section J.3, Out of band radiated emissions above 40 GHz Test procedure: ANSI C63.10, Sections 9.9, 9.12 Test mode: Compliance Verdict: PASS Date(s): 11-Mar-20 Temperature: 25 ºC Relative Humidity: 43 % Air Pressure: 1015 hPa Power: 55 VDC Remarks: Page 41 of 140 Plot 7.4.2 Spurious emission measurements in 40 – 45 GHz range TEST SITE: OATS TEST DISTANCE: 3 m MODULATION: BPSK ANTENNA POLARIZATION: Vertical and Horizontal Low carrier frequency: 58320 MHz DETECTOR: Peak RBW = 1 MHz; VBW = 10 kHz Image suppress Modulated Image suppress CW Image shift left Image shift right Report ID: RDWRAD_FCC.36870.docx Date of Issue: 2…

Text truncated - open the document above for the full version.

Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 1 of 14 SETUP PHOTOGRAPHS This document contains 13 photographs Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 2 of 14 Photograph No.1 Peak output power measurement setup at the OATS Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 3 of 14 Photograph No.2 Peak output power measurement setup, EUT close view Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 4 of 14 Photograph No.3 Peak output power measurement setup Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 5 of 14 Photograph No.4 Spurious emissions measurement setup in the anechoic chamber below 30 MHz Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 6 of 14 Photograph No.5 Spurious emissions measurement setup in the anechoic chamber in 30 -1000 MHz Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 7 of 14 Photograph No.6 Spurious emissions measurement setup in the anechoic chamber below 1000 MHz, EUT close view Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 8 of 14 Photograph No.7 Spurious emissions measurement setup in the anechoic chamber in 1-18 GHz Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 9 of 14 Photograph No.8 Spurious emissions measurement setup in the anechoic chamber in 18-40 GHz Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 10 of 14 Photograph No.9 Spurious emissions measurement setup at the OATS above 40 GHz, 3 m test distance Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 11 of 14 Photograph No.10 Spurious emissions measurement setup at the OATS above 40 GHz, 0.05 m test distance Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 12 of 14 Photograph No.11 OBW measurement setup Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 13 of 14 Photograph No.12 Frequency stability measurement setup Radwin Ltd. FCC ID:Q3K-TRWN600G IC:5100A-TRWN600G Page 14 of 14 Photograph No.13 Conducted emission measurement setup on AC power lines
