RADWIN 2000 JET, RADWIN 5000 JET Smart Antenna Outdoor Radio Device REFERENCE GUIDE Regulatory Compliance FCC/IC - Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and IC RSS standards. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Outdoor units and antennas should be installed ONLY by experienced installation professionals who are familiar with local building and safety codes and, wherever applicable, are licensed by the appropriate government regulatory authorities. Failure to do so may void the product warranty and may expose the end user or the service provider to legal and financial Caution liabilities. Resellers or distributors of this equipment are not liable for injury, damage or violation of regulations associated with the installation of outdoor units or antennas. The installer should configure the output power level of antennas according to country regulations and antenna type. This equipment should be installed and operated with a minimum distance of 76cm between the radiator and your body. Warning The device is granted to operate under FCC/IC certification in the 5.8 GHz band only. Warning RADWIN 2000 JET, RADWIN 5000 JET Reference Guide i This device complies with Part 15 of the FCC rules and with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme la norme d'Industrie Canada exempts de licence RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: 1. Cet appareil ne peut pas causer d'interférences, et 2. Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numrique de la classe B est conforme la norme NMB-003 du Canada RADWIN 2000 JET, RADWIN 5000 JET Reference Guide ii Overview The RADWIN 2000 JET, RADWIN 5000 JET is a Smart Antenna Outdoor Radio Device operating in the 5.8 GHz frequency band. It is a TDD OFDM radio supporting 5 MHz, 10 MHz, 20 MHz and 40 MHz channel bandwidths. The RADWIN 2000 JET, RADWIN 5000 JET incorporates an integrated phase array cross- polarized active antenna that supports 2x2 and 3x3 MIMO configuration modes. The antenna is software configurable to operate in 2x2 or 3x3 MIMO modes. The RADWIN 2000 JET, RADWIN 5000 JET also supports software configurable capabilities for PtP and PtMP deployment architecture. The RADWIN 2000 JET model indicates PtP software configuration device. The RADWIN 5000 JET model indicates PtMP software configuration device. The device is certified under the FCC ID: Q3K -BSA5XS and IC: 5100A-BSA5XS. Condition of Use The RADWIN 2000 JET, RADWIN 5000 JET is a RADWIN proprietary radio device. The device is manufactured and assembled by RADWIN or its subcontractors. The device is not for sale to the general public. Antenna The RADWIN 2000 JET, RADWIN 5000 JET is certified with a proprietary RADWIN manufactured integrated smart antenna type covering both Point-to-Point and Point-to- Multipoint configurations. It supports 2x2 and 3x3 MIMO and is the only antenna to be incorporated in the device. RADWIN 2000 JET, RADWIN 5000 JET Reference Guide 1 Maximum Output Power 5725 – 5850 MHz band - FCC/IC The maximum output power can be set as follows, when operating in the 5.8 GHz band, under FCC and IC regulations. The power values are for PtP systems and PtMP systems. For PtMP systems the total EIRP is limited to 36 dBm. Therefore the output power of the system will be reduced to comply with 36 dBm EIRP. RADWIN 2000 JET (PtP) RADWIN 5000 JET (PtMP) 5 MHz: 29.8 dBm 10 MHz: 29.7 dBm 20 MHz: 29.8 dBm 40 MHz: 29.7 dBm 5 MHz: 15.3 dBm 10 MHz: 15.2 dBm 20 MHz: 15.3 dBm 40 MHz: 15.2 dBm Radiation Exposure Evaluation RADWIN 2000 JET systems - the calculated recommended safe distance at density of 1mW/cm 2 is 76cm. RADWIN 5000 JET systems - the minimum separation distance is 20cm RADWIN 2000 JET, RADWIN 5000 JET Reference Guide 2

FCC Confidentiality Form October 21, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457 and 0.459 pertaining to confidential material. Radwin Ltd. would like the following documents regarding this submission for FCC ID: Q3K- BSA5XS to be kept confidential. 1) Block Diagram 2) Schematics 3) Bill of Material The above material contains trade secrets and technical data, which would customarily be guarded from competitors. RADWIN Ltd. would not want them to be accessible to the general public. The product is an outdoor radio unit mounted on top of large towers and mounting poles and serviceable only by the licensee or his designated technicians. . Sincerely, Roni Barshan RF Department Manager RADWIN Ltd. RADWIN Ltd. 27 Habarzel St Tel-Aviv, 6971039, Israel, Tel- 972-3-766-2900, Fax-972-3-766-2902

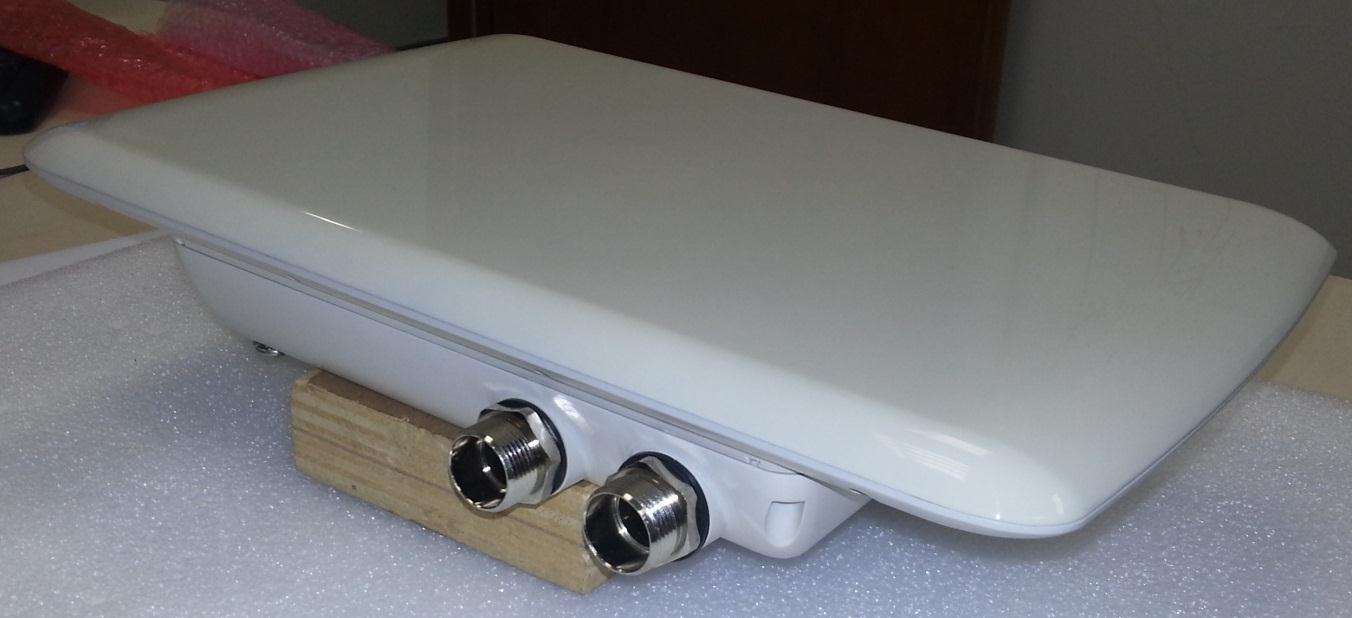

EXTERNAL PHOTOGRAPHS Photo #1: Rear Photo #2: Connectors Panel Photo #3: General View

LABEL AND LABEL LOCATION Photo #1: RADWIN 2000 Label Artwork Photo #2: RADWIN 5000 Label Artwork Photo #3: Label on Device

INTERNAL PHOTOGRAPHS Photo #1: General View of Digital & RF PCBs Photo #2: Digital PCB Print Side Photo #3: RF Module Print Side Photo #4: Smart Antenna PCB Front (Radiating Patches) Photo #5: Smart Antenna PCB Rear

RF Exposure The purpose of the letter: Environmental evaluation and exposure limit according to FCC CFR 47 part 1, §1.1307, §1.1310. Belongs to the Test report No: 9412327172 5.8 GHz Smart Antenna Outdoor Radio Device Model: RADWIN 2000 JET/RADWIN 5000 JET FCC ID: Q3K-BSA5XS Limit for power density for general population/uncontrolled exposure is 1 mW/cm 2 or 10 W/m 2 . The power density calculation is S = (Pt /4π r 2 ). Where: Pt - The transmitted power (EIRP) (mW) r - The distance from the unit. (cm) The limit 1 mW/cm 2 can be calculated from the above based on the following data: Pt- the transmitted power which is equal to the maximum EIR power. The maximum EIRP = 48.6 dBm = 72444 mW Maximum allowed distance “r”, where RF exposure limits may not be exceeded, r = SQRT(72444/4π) and is more than 76 cm from the antenna main lobe.

Test Report No. 9412327172 For RADWIN Ltd Equipment Under Test: 5.8 GHz Smart Antenna Outdoor Radio Device Model: RADWIN 2000 JET/RADWIN 5000 JET FCC ID - Q3K-BSA5XS IC ID - 5100A-BSA5XS From The Standards Institution Of Israel Industry Division Electronics & Telematics Laboratory EMC Branch ACLASS Accreditation Services Certificate Number: AT-1359 Test report No: 9412327172 Page 2 of 75 Pages Title: 5.8 GHz Smart Antenna Outdoor Radio Device Model : RADWIN 2000 JET/RADWIN 5000 JET Table of Contents 1. Applicant information ............................................................................................................... 3 2. Test performance ...................................................................................................................... 3 3. Summary of test: ....................................................................................................................... 5 4. Equipment under test description. .......................................................................................... 6 4.1 General description .................................................................................................................. 6 4.2 Environmental evaluation and exposure limit according to FCC CFR 47 part 1, §1.1307 and IC RSS – 102. ...................................................................................................................... 7 4.3 EUT test configuration .............................................................................................................. 8 5. Test results .............................................................................................................................. 10 5.1 Transmitter characteristics ................................................................................................... 10 5.1.1 Transmitter 6 dB occupied bandwidth. ................................................................................. 10 5.1.2 Maximum peak conducted output power test. ..................................................................... 11 5.1.3 Power spectral density test .................................................................................................... 13 5.1.4 Radiated emissions according to §§ 15.247(d), 15.205(a) ................................................... 14 5.1.5 Receiver spurious emission test according to RSS-Gen section 4.10. ............................. 20 5.2 Radiated emissions test according to § 15.209 ................................................................... 21 5.3 Conducted emissions test according to § 15.207, RSS-Gen § 7.2.4 .................................. 23 APPENDIX A Photographs ........................................................................................................ 24 APPENDIX B Test equipment used ........................................................................................... 26 APPENDIX C Plot test results. ................................................................................................... 31 Test report No: 9412327172 Page 3 of 75 Pages Title: 5.8 GHz Smart Antenna Outdoor Radio Device Model : RADWIN 2000 JET/RADWIN 5000 JET 1. Applicant information Applicant: RADWIN Ltd Address: 27 Habarzel str, Tel-Aviv, 69710, Israel Sample for test selected by: The customer The date of tests: 19 – 22 May 2014 Equipment under test information Description of Equipment Under Test (EUT ): 5.8 GHz Smart Antenna Outdoor Radio Device Model: RADWIN 2000 JET/RADWIN 5000 JET Serial Number: NA Hardware version: Prototype Software version: Prototype Manufactured by: RADWIN Ltd. 2. Test performance Location: SII EMC Section Purpose of test: Apparatus compliance verification in accordance with emission requirements Test specifications: 47CFR part 15.247, 15.205 15.207. 15.209 and part 1 §1.1310 IC RSS – 210 issue 8, IC RSS – 102. This Test Report contains 75 pages and may be used only in full. This Test Report applies only to the specimen tested and may not be applied to other specimens of the same product. Test report No: 9412327172 Page 4 of 75 Pages Title: 5.8 GHz Smart Antenna Outdoor Radio Device Model : RADWIN 2000 JET/RADWIN 5000 JET Normative References. FCC 47 CFR Part 15, Subpart C, 2014 Radio Frequency Devices Subpart C – Intentional Radiators IC RSS – 210 Annex 8, 2010 Radio Standard Specification 2010, Issue 8, Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment. RSS – Gen , 2010 Radio Standard Specification, Issue 3, General Requirements and Information for the Certification of Radiocommunication Equipment ANSI C63.4: 2009 American National Standard for Method of Measurements of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC OET KDB 558074, April 2013 Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247 FCC OET KDB 662911, October 2011 Emissions testing of Transmitters with Multiple Outputs in the Same Band. Test report No: 9412327172 Page 5 of 75 Pages Title: 5.8 GHz Smart Antenna Outdoor Radio Device Model : RADWIN 2000 JET/RADWIN 5000 JET 3. Summary of test: The EUT was found to be in compliance with requirements of: 47CFR Part 15, §§ 15.247, 15.205, 15.209 and IC RSS-210. Transmitter characteristics Subclasses Minimum 6 dB bandwidth 15.247(a)(2); RSS-210 A8.2(a) Maximum output power 15.247(b)(3); RSS-210 A8.4(5) Peak power spectral density 15.247(e); RSS-210 A8.2(b) Out of band spurious emissions radiated 15.205, 15.247(d); RSS-210 A8.5 Receiver spurious emissions radiated RSS-Gen section 6 Conducted emissions on AC power line 15.207, RSS-Gen section 7.2.2 N/A. PoE DC power option only. Unwanted radiated emissions below 1 GHz 15.209, RSS-210 section 2.2 Electronics and Telematics Laboratory 21 October 2014 Name: Eng. Yuri Rozenberg Name: Michael Feldman Position: Head of EMC Branch Position: Test Technician …

Text truncated - open the document above for the full version.

Test Set Up photos Photo #1. Radiated emission test setup. Photo #2. Radiated emission test setup. Photo #3. Radiated emission test setup at 1m test distance . Photo #4. Radiated emission test setup with Loop antenna .
