Q3KRW6000-B5Broadband Wireless access UTRA FDD Base Station

RADWIN 6000 Small Cell Base Station REFERENCE GUIDE RELEASE 6.1.00p8 Regulatory Compliance FCC - Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. It is the responsibility of the installer to ensure that when using the outdoor antenna kits in the United States (or where FCC rules apply), only those antennas certified with the product are used. The use of any antenna other Warning than those certified with the product is expressly forbidden by FCC rules 47 CFR part 15.204. It is the responsibility of the installer to ensure that when configuring the radio in the United States (or where FCC rules apply), the Tx power is set according to the values for which the product is certified. The use of Tx Warning power values other than those, for which the product is certified, is expressly forbidden by FCC rules 47 CFR part 15.204. Outdoor units and antennas should be installed ONLY by experienced installation professionals who are familiar with local building and safety codes and, wherever applicable, are licensed by the appropriate government regulatory authorities. Failure to do so may void the product warranty and may expose the end user or the service provider to legal and Caution financial liabilities. Resellers or distributors of this equipment are not liable for injury, damage or violation of regulations associated with the installation of outdoor units or antennas. The installer should configure the output power level of antennas according to country regulations and antenna type. RADWIN 6000 Reference Guide Release 6.1.00p8 i • Where Outdoor units are configurable by software to Tx power values other than those for which the product is certified, it is the responsibility of the Professional Installer to restrict the Tx power to the certified limits. The RADWIN 6000 band 2 should be installed and operated with a minimum distance of 243 cm (8 ft) between the radiator and any person and RADWIN 6000 band 5 should be installed and operated with a minimum distance of 142 cm (4.7 ft) between the radiator and any person Warning • This product was tested with special accessories - FTP CAT 5e shielded cable with sealing gasket, 10 AWG grounding cable - which must be used with the unit to insure compliance. Canadian Emission Requirements for Indoor Units This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numrique de la classe B est conforme la norme NMB-003 du Canada. ation configuration, best results will be obtained using Universal regulation configuration. Safety Practices Applicable requirements of National Electrical Code (NEC), NFPA 70; and the National Electrical Safety Code, ANSI/IEEE C2, must be considered during installation. NOTES: 1. A Primary Protector is not required to protect the exposed wiring as long as the exposed wiring length is limited to less than or equal to 140 feet, and instructions are provided to avoid exposure of wiring to accidental contact with lightning and power conductors in accordance with NEC Sections 725-54 (c) and 800-30. In all other cases, an appropriate Listed Primary Protector must be provided. Refer to Articles 800 and 810 of the NEC for details. 2. For protection of ODU against direct lightning strikes, appropriate requirements of NFPA 780 should be considered in addition to NEC. 3. For Canada, appropriate requirements of the CEC 22.1 including Section 60 and additional requirements of CAN/CSA-B72 must be considered as applicable. RADWIN 6000 Reference Guide Release 6.1.00p8 ii RADWIN 6000 Small Cell Base Station REFERENCE GUIDE RELEASE 6.1.00p8 Part 1: Basic Installation Chapter 1 Introduction Product Overview RW6000 is a small cell solution that provides (UMTS) HSPA+ services for cellular operators and Broadband Wireless Access (BWA) Services for Internet Service Providers. This compact, carrier grade and fully outdoor unit supports high capacity and high transmission power with remarkably low power consumption. Offering an intelligent and cost effective solution, RW6000 extends remote rural area coverage and expands capacity in dense urban outdoor hotspots. Product Highlights: • 5 Watt 3GPP compliant UTRAN solution • High capacity - Up to 24 simultaneous users • HSPA+ data rates: 21.1 Mbps / 5.7 Mbps • Superb coverage with maximum transmission power of 5 Watt and Rx space diversity • Extremely low power consumption of 25 Watt • Integrated GPS for synchronization and inventory management • Integrated Ethernet switch with PoE • Small, rugged and sealed enclosure to withstand extreme outdoor conditions • High availability, no fans or moving parts • Self-organizing capabilities for quick & easy installation and maintenance • IPv4 support (Iu over IP only) • RADWIN Small Cell Access point Access control • UE Access control • Aggregation of UE associated signal…

Text truncated - open the document above for the full version.

LETTER OF AUTHORIZATION Dec-12-2013 To whom it may concern: I the undersigned, hereby authorize Roni Barshan to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Roni Barshan on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from RADWIN Ltd. Radwin Grantee Code: Q3K Sincerely, Itai Rubinstein Engineering Dept. Manager

FCC Confidentiality Form October 6, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. Radwin Ltd. would like the following documents regarding this submission for FCC ID: Q3KRW6000-B5 to be kept confidential. 1) RW6000_Block diagram 2) RW6000 850MHz schematics 3) RF 850MHz PCB BOM 4) Tune_up_procedure for 850MHz.pdf The above material contains trade secrets and technical data, which would customarily be guarded from competitors. RADWIN Ltd. would not want them to be accessible to the general public. The product is mounted on top of large towers and mounting poles and serviceable only by the licensee or his designated technicians. . Sincerely, Roni Barshan RF Department Manager RADWIN Ltd. RADWIN Ltd. 27 Habarzel St Tel-Aviv, 6971039, Israel, Tel- 972-3-766-2900, Fax-972-3-766-2902

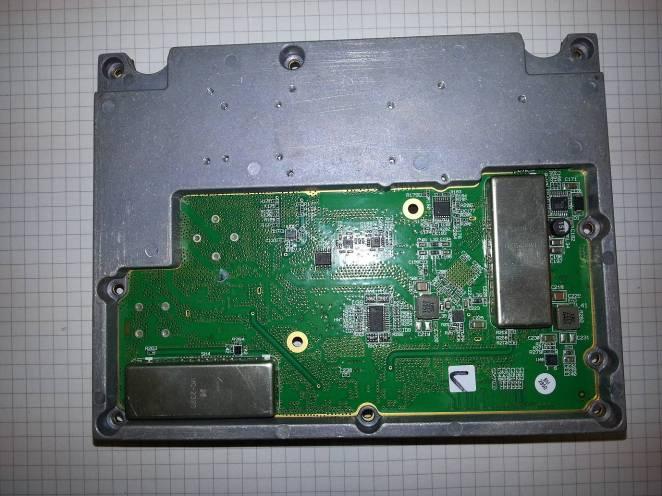

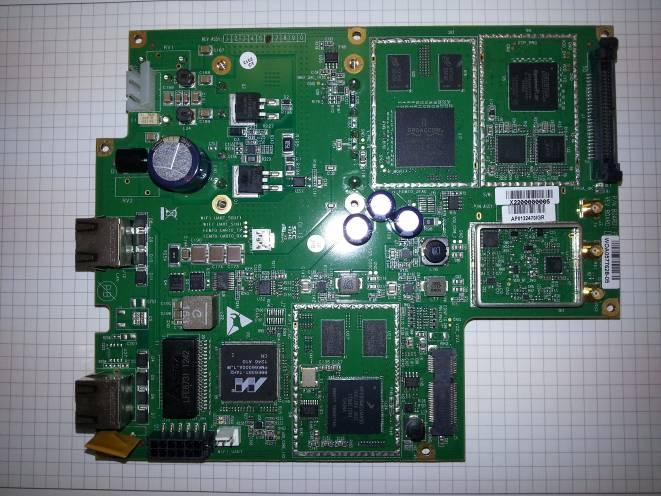

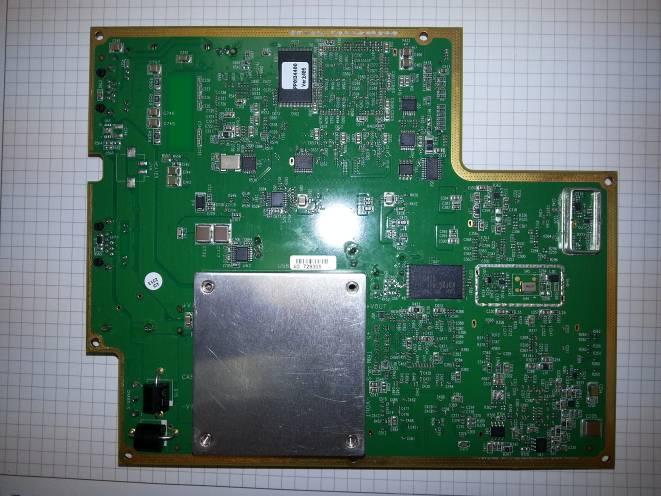

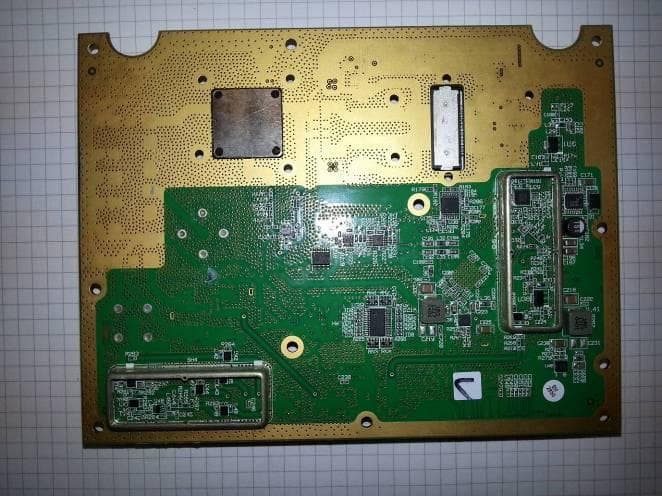

Photo # 1: Chassis Assembly Photo # 2: Digital PCB Top Photo # 3: Digital PCB Bottom Photo # 4: RF PCB Top Photo # 5: RF PCB Bottom with Shield Photo # 6: RF PCB Bottom

Technical Description RW6000 Band 5 RW6000 is a small cell solution that provides HSPA+ services for cellular operators and Broadband Wireless Access (BWA) Services for Internet Service Providers. This compact, carrier grade and fully outdoor unit supports high capacity and high transmission power with remarkably low power consumption. Offering an intelligent and cost effective solution, RW6000 extends remote rural area coverage and expands capacity in dense urban outdoor hotspots. Basic features: Operating frequency range: 871.4-891.6 MHz Emission bandwidth: 5 MHz Rated output power: 37 dBm Modulation: WCDMA Duplexing type: FDD The device supports various types of Dual Pole flat antennas and Omni antennas connected to the device by N-type connectors. The device requires professional installation. Sincerely, Roni Barshan RF Department Manager RADWIN Ltd. RADWIN Ltd. 27 Habarzel St Tel-Aviv, 6971039, Israel, Tel- 972-3-766-2900, Fax-972-3-766-2902

RF Exposure The purpose of the letter: Environmental evaluation and exposure limit according to FCC CFR 47 part 1, §1.1307, §1.1310. Belongs to the Test report No: 9312320320 Broadband Wireless Access UTRA FDD Base Station Model: RADWIN-6000 FCC ID: Q3KRW6000-B5 Power density limit in 869- 894 MHz frequency band for general population/uncontrolled exposure is 0.6 (mW/cm 2 ) or 6 (W/m 2 ). The power density calculation S = [Pt / (4π r 0.6) 2 ] . Where: Pt - The transmitted power (EIRP) (mW) r - The distance from the unit. (cm) The 0.6 (mW/cm 2 ) limit can be calculated from the above based on the following data: Pt- the transmitted power which calculated for antenna 15 dBi gain is equal to the maximum EIRP = 51.8 dBm = 151356 mW. Minimum allowed distance r from the antenna main lobe were RF exposure limit may not be exceeded = SQRT(151356/4π 0.6) > 1.42 m. Pt- the transmitted power which calculated for antenna 11 dBi is equal to the maximum EIRP = 47.8 dBm = 60256 mW. Minimum allowed distance r from the antenna main lobe were RF exposure limit may not be exceeded = SQRT(60256/(4π 0.6) > 0.9 m.

Test Report No. 9312320320 Applicant: RADWIN Ltd Broadband Wireless Access UTRA FDD Base Station Model: RADWIN-6000 FCC ID: Q3KRW6000-B5 From The Standards Institution Of Israel Industry Division Electronics & Telematics Laboratory EMC Branch Test report N: 9312320320 Page 2 of 31 Title: Broadband Wireless Access UTRA FDD Base Station Model : RADWIN-6000 FCC ID: Q3KRW6000-B5 Table of contents 1. Applicant information 3 2. Test performance: 3 3. Summary of test 4 4. Equipment under test description. 5 4.1 General description 5 5. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, §1.1307, §1.1310. 6 6. EUT block diagram and test configuration. 7 7. Test results 8 7.1 Transmitter characteristics 8 7.1.1 Base Station maximum transmit power test. 8 7.1.2 Occupied bandwidth test. 10 7.1.3 Harmonic and band edge emissions test at antenna terminal. 12 7.1.4 Undesired radiated emissions test. 16 7.1.5 Frequency stability test. 23 8.APPENDIX A. Photo 24 9.APPENDIX B. Test equipment used. 26 10.APPENDIX C. Abbreviation and acronyms. 31 Test report N: 9312320320 Page 3 of 31 Title: Broadband Wireless Access UTRA FDD Base Station Model : RADWIN-6000 FCC ID: Q3KRW6000-B5 1. Applicant information Applicant: RADWIN Ltd Address: 27 Habarzel str, Tel-Aviv, 69710, Israel Sample for test selected by: The customer The date of tests: 9, 22 April 2013 Equipment under test information Description of Equipment Under Test (EUT ): Broadband Wireless Access UTRA FDD Base Station. Model: RADWIN-6000 Serial Number: NA Manufactured by: RADWIN Ltd 2. Test performance: Location: SII EMC Section Purpose of test: Apparatus compliance verification in accordance with emission requirements Test specifications: 47CFR part 22 Subpart H; Part 1 §1.1310 This Test Report contains 31 pages and may be used only in full. This Test Report applies only to the specimen tested and may not be applied to other specimens of the same product. Test report N: 9312320320 Page 4 of 31 Title: Broadband Wireless Access UTRA FDD Base Station Model : RADWIN-6000 FCC ID: Q3KRW6000-B5 3. Summary of test The EUT was found to be in compliance with requirements of: 47 CFR Part 22 H § 22.913, 22.917. Transmitter characteristics Subclasses ERP transmit power 22.913(a) Occupied Bandwidth 2.1049 Transmitter spurious emissions at antenna terminal 22.917 Transmitter spurious emissions radiated 22.917 Frequency stability over temperature variation 2.1055 Electronics and Telematics Laboratory 22 July 2013 Test performed by: Mr. Michael Feldman Test technician Test report approved by: Mr. Yuri Rozenberg. Head of EMC Branch Test report N: 9312320320 Page 5 of 31 Title: Broadband Wireless Access UTRA FDD Base Station Model : RADWIN-6000 FCC ID: Q3KRW6000-B5 4. Equipment under test description. *The customer provided description. 4.1 General description RW-6000 is a small cell solution that provides HSPA+ services for cellular operators and Broadband Wireless Access (BWA) Services for Internet Service Providers. This compact, carrier grade and fully outdoor unit supports high capacity and high transmission power with remarkably low power consumption. Offering an intelligent and cost effective solution, RW-6000 extends remote rural area coverage and expands capacity in dense urban outdoor hotspots. EUT technical characteristics Transmitter technical characteristics. Note Stand-alone/fixed use Assigned frequency ranges 869 MHz – 880 MHz Block A 890 MHz – 891.5 MHz Block A 880 MHz – 890 MHz Block B 891.5 MHz – 894 MHz Block B Operating frequency range 871.4 MHz – 891.6 MHz Emission bandwidth 5 MHz Rated output power 37 dBm Antenna connection N-type connector. Professional installation Type of modulation QPSK, 16QAM, 64QAM (WCDMA) Type of duplexing FDD Modulating test signal (baseband) PRBS Antenna information Antenna Type Manufacturer Model Gain, dBi Double-Polarization Panel KATHREIN 80010309v01 15 Double-Polarization Panel RADWIN Ltd. RW-9462-0821 13 Double-Polarization Panel RADWIN Ltd. RW-9462-0825 8 Omni Antenna KATHREIN 738192 11 Omni Antenna RADWIN Ltd. RW-9463-0821 4 Omni Antenna RADWIN Ltd. RW-9461-0825 2 Omni Antenna RADWIN Ltd. RW-9461-1825 2 Omni Antenna RADWIN Ltd. RW-9462-2825 7 Test report N: 9312320320 Page 6 of 31 Title: Broadband Wireless Access UTRA FDD Base Station Model : RADWIN-6000 FCC ID: Q3KRW6000-B5 Measurement uncertainty. Were relevant, the following measurement uncertainty level have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: This uncertainty represents an expended uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Test description Expanded uncertainty Radiated emissions in the open field test site at 3 m measuring distance: 30 MHz – 1.0 GHz 1.0 GHz – 18 GHz 2 Uc (E) =  4.32 dB 2 Uc (E) =  4.47 dB 5. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, §1.1307, §1.1310. Power density limit in 869- 894 MHz frequency band for general population/uncontrolled exposure is 0.6 (mW/cm 2 ) or 6 (W/m 2 ). The power density calculation S = [Pt / (4π r 0.6) 2 ]. Where: Pt - The transmitted power (EIRP) (mW) r - The distance from the unit. (cm) The 0.6 (mW/cm 2 ) limit can be calculated from the above based on the following data: Pt- the transmitted power which calculated for antenna 15 dBi gain is equal to the maximum EIRP = 51.8 dBm = 151356 mW. Minimum allowed distance r from the antenna main lobe were RF exposure limit may not be exceeded = SQRT(151356/4π 0.6) > 1.42 m. Pt- the transmitted power which calculated for antenna 11 dBi is equal to the maximum EIRP = 47.8 dBm = 60256 mW. Minimum allowed distance r from the antenna main lobe were RF exposure limit may not be exceeded = SQRT(60256/(4π 0.6) > 0.9 m. Test report N: 9312320320 Page 7 of 31 Title: Broadband Wireless Access UTRA FDD Base Station Model : RADWIN-6000 FCC ID: Q3KRW6000-B5 6. EUT block diagram and test configuration. Fig. 1. EUT block diagram. Spectrum A…
