Q3QIHWM622ANHTablet PC MC-C5 / MC-F5

Safety and Regulatory Guide Motion Tablet Model CFT-003 MC-C5v Tablet PC (White)/ MC-F5v Tablet PC (Black) CFT-Series Docking Station TCD001 Guide de sécurité et de réglementation Tablette Motion CFT-003 Tablette PC MC-C5v (blanc)/ Tablette PC MC-F5v (noir) Station d'accueil CFT-Series TCD001 Sicherheits- und Vorschriftshandbuch Motion Tablet Modell CFT-003 MC-C5v Tablet PC (weiß)/ MC-F5v Tablet PC (schwarz) CFT-Series Docking Station TCD001 © 2010 Motion Computing, Inc. All rights reserved. This document contains information protected by copyright. No part of this document may be reproduced in any form without written consent from Motion. The information in this document is provided “as is” and is subject to change without notice. Motion is not liable for errors or omissions in this document. Gobi2000 is a trademark of Qualcomm Incorporated. Motion, Motion Computing, Speak Anywhere, and View Anywhere are trademarks or registered trademarks of Motion Computing, Inc. in the U.S.A. and other countries. Mayo Clinic and MayoClinic.com are trademarks of Mayo Foundation for Medical Education and Research. Sierra Wireless is a registered trademark of Sierra Wireless, Inc. Motion Computing, Inc. has made every effort to identify trademarked properties and owners on this page. All brands and product names used in this document are for identification purposes only and may be trademarks or registered trademarks of their respective companies. The warranties for Motion products are set forth in the express limited warranty statements accompanying such products. Nothing in this document constitutes an additional warranty. The Motion Computing products and services may be covered by one or more patent-protected inventions. Additional patents may also be pending. For more information, see www.motioncomputing.com/info/patents.asp. This product incorporates copy protection technology that is protected by U.S. and foreign patents, including patent numbers 5,315,448 and 6,836,549, and other intellectual property rights. The use of Macrovision's copy protection technology in the product must be authorized by Macrovision. Reverse engineering or disassembly is prohibited. © 2010 Motion Computing, Inc. Tous droits réservés. Les informations du présent document sont protégées par des droits d’auteur. Aucun élément du présent document ne peut être copié ou reproduit sous quelque forme que ce soit sans l’accord écrit de Motion Les informations dans ce document sont fournies « en l’état » et peuvent faire l’objet de modifications sans préavis. Motion ne peut être tenu responsable des erreurs ou omissions dans ce document. Gobi2000 est une marque commerciale de Qualcomm Incorporated. Motion, Motion Computing, Speak Anywhere et View Anywhere sont des marques commerciales ou des marques déposées de la société Motion Computing, Inc. aux Etats-Unis et dans d’autres pays. Mayo Clinic et MayoClinic.com sont des marques commerciales de Mayo Foundation for Medical Education and Research. Sierra Wireless est une marque déposée de Sierra Wireless, Inc. Motion Computing, Inc. a fait en sorte d’identifier les appartenances et les propriétaires des marques déposées et commerciales. Les marques et les noms de produits mentionnés dans le présent document sont désignés exclusivement à des fins d’identification et peuvent être des marques commerciales ou déposées appartenant à leurs propriétaires respectifs. Les garanties relatives aux produits, consenties par Motion, sont spécifiées dans les clauses de garantie limitée accompagnant les produits concernés. Aucun élément du présent document ne constitue une garantie complémentaire. Les produits et services de Motion Computing peuvent être protégés par une ou plusieurs inventions brevetées. D’autres brevets peuvent être en cours de certification. Pour plus d’informations, consultez le site www.motioncomputing.com/info/patents.asp. Ce produit inclut une technologie de protection contre la copie protégée par des brevets des Etats- Unis et d’autres pays, parmi lesquels les brevets 5315448 et 6836549, et d’autres droits de propriété intellectuelle. L’utilisation dans le produit de la technologie de protection contre la copie de Macrovision doit être autorisée par Macrovision. L’ingénierie inverse ou le désassemblage est interdit. © 2010 Motion Computing, Inc. Alle Rechte vorbehalten. Dieses Dokument enthält urheberrechtlich geschützte Informationen. Kein Teil dieses Dokuments darf ohne schriftliche Genehmigung von Motion reproduziert werden. Die Informationen in diesem Dokument werden in ihrem derzeitigen Zustand zur Verfügung gestellt und unterliegen unangekündigten Änderungen. Motion haftet nicht für Fehler oder Auslassungen in diesem Dokument. Gobi2000 ist eine Marke von Qualcomm Incorporated. Motion, Motion Computing, Speak Anywhere und View Anywhere sind Marken oder eingetragene Marken von Motion Computing, Inc. in den USA und anderen Ländern. Mayo Clinic und MayoClinic.com sind Marken der Mayo Foundation for Medical Education and Research. Sierra Wireless ist eine eingetragene Marke von Sierra Wireless, Inc. Motion Computing, Inc. war bestrebt, sämtliches Markeneigentum und deren Inhaber auf dieser Seite zu erwähnen. Alle Marken und Produktnamen in diesem Dokument dienen ausschließlich Identifizierungszwecken und können Marken oder eingetragene Marken ihrer jeweiligen Unternehmen sein. Die Garantien für Motion-Produkte sind in den Erklärungen zur eingeschränkten Garantie ausgeführt, die den Produkten beiliegen. Die Informationen in diesem Dokument stellen keine zusätzliche Garantie dar. Die Motion Computing-Produkte und - Dienstleistungen können einem oder mehreren patentgeschützten Erfindungen unterliegen. Weitere Patente sind angemeldet. Weitere Informationen erhalten Sie unter www.motioncomputing.com/info/patents.asp. Dieses Produkt ist mit Kopierschutztechnologie ausgestattet, die durch US-amerikanische Patente und Patente aus anderen Ländern geschützt ist, zu denen die Patentnu…

Text truncated - open the document above for the full version.

Motion Computing Incorporated FCC ID.: Q3QIHWM622ANH 8601 Ranch Road 2222, Building #2 Austin, Texas 78730 USA Tel : 512-637-1149 Federal Communications Commission April 27 , 2010 Authorization and Evaluation Division ATTESTATION FCC ID: Q3QIHWM622ANH Product: Tablet PC MC-C5 / MC-F5 Model: CFT-003 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ----------------------------------------------- Don Bobo / Agency Engineering Manager Motion Computing Incorporated

RF_160, Issue 02 Motion Computing Incorporated Declaration of Authorization We Name: Motion Computing Incorporated Address: 8601 Ranch Road 2222, Building #2 Austin, Texas 78730 USA City: Austin . Country: United States . Declare that: Name Representative of agent: Gene Chang (1) Agent Company name: QuieTek Corp. Address: Fl.2, No.345, Xin-hu 2 nd Rd., Nei-hu District City: Taipei Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Tablet PC MC-C5 / MC-F5 Type designation: CFT-003 Trademark: Motion Computing Incorporated on our behalf. Date: 2010/04/27.. City: Austin .. Name: Don Bobo .. (2) Function: Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent. Agency Engineering Manager

Motion Computing Incorporated FCC ID.: Q3QIHWM622ANH 8601 Ranch Road 2222, Building #2 Austin, Texas 78730 USA Tel : 512-637-1149 Federal Communications Commission Authorization and Evaluation Division April 27, 2010 Confidential Statement We have understood that the following request for confidential documents has been and viewable since the date of grant, since it has been granted. Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Schematics : (CFT-003) Schem Block Diagram: (CFT-003) BlkDia Operational Description: (CFT-003) OPDes Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 DFR § 2.803 and the importation rules in 47 CFR § 2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized divices. We are requesting the commission to grant short-thrm confidentiality request for 90 days on the following attachments: Exter nal Photos: (CFT-003) Expho Internal Photos: (CFT-003) Inpho Test Setup Photos: (CFT-003) Tsup User Manual: (CFT-003) UserMan It is our understanding that all m easurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued.

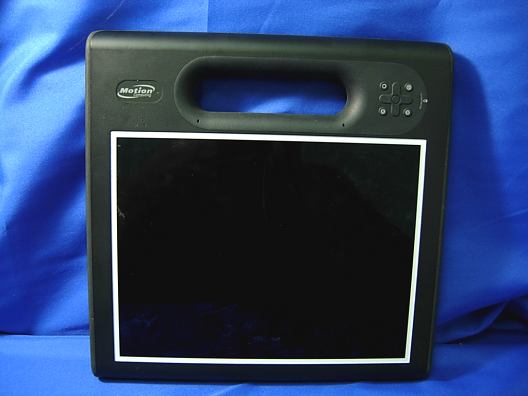

Report No.: 101358R-RFUSP42V01 Page : 1 of 15 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Report No.: 101358R-RFUSP42V01 Page : 2 of 15 (3) EUT Photo (4) EUT Photo Bluetooth Module RF ID Antenna WLAN Antenna WLAN Antenna Report No.: 101358R-RFUSP42V01 Page : 3 of 15 (5) EUT Photo (6) EUT Photo WLAN Antenna WLAN Antenna Report No.: 101358R-RFUSP42V01 Page : 4 of 15 (7) EUT Photo (8) EUT Photo RF ID Antenna Report No.: 101358R-RFUSP42V01 Page : 5 of 15 (9) EUT Photo (10) EUT Photo - (RFID Module) Report No.: 101358R-RFUSP42V01 Page : 6 of 15 (11) EUT Photo - (RFID Module) (12) EUT Photo - (RFID Module) Report No.: 101358R-RFUSP42V01 Page : 7 of 15 (13) EUT Photo (14) EUT Photo RF ID Antenna WLAN Antenna WLAN Antenna 12cm Report No.: 101358R-RFUSP42V01 Page : 8 of 15 (15) EUT Photo - (WLAN Module) (16) EUT Photo - (WLAN Module) Report No.: 101358R-RFUSP42V01 Page : 9 of 15 (17) EUT Photo - (WLAN Module) (18) EUT Photo - (WLAN Module) Report No.: 101358R-RFUSP42V01 Page : 10 of 15 (19) EUT Photo - (WLAN Module) (20) EUT Photo – (WLAN Antenna) Report No.: 101358R-RFUSP42V01 Page : 11 of 15 (21) EUT Photo – (WLAN Antenna) (22) EUT Photo – (RF ID Antenna) Report No.: 101358R-RFUSP42V01 Page : 12 of 15 (23) EUT Photo (24) EUT Photo Report No.: 101358R-RFUSP42V01 Page : 13 of 15 (25) EUT Photo (26) EUT Photo Report No.: 101358R-RFUSP42V01 Page : 14 of 15 (27) EUT Photo (28) EUT Photo Report No.: 101358R-RFUSP42V01 Page : 15 of 15 (29) EUT Photo (30) EUT Photo

Report No：101358R-HPUSP10V01 Page: 1 of 29 SAR Test Report Product Name ：Tablet PC MC-C5 / MC-F5 Model No. ：CFT-003 Applicant ： Motion Computing Incorporated. Address ： 8601 Ranch Road 2222; Building #2 Austin, Texas 78730 USA Date of Receipt ：2010/01/20 Issued Date ：2010/04/21 Report No. ：101358R-HPUSP10V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Report No：101358R-HPUSP10V01 Page: 2 of 29 Test Report Certification Issued Date: 2010/04/21 Report No.:101358R-HPUSP10V01 Product Name ： Tablet PC MC-C5 / MC-F5 Applicant ： Motion Computing Incorporated. Address ： 8601 Ranch Road 2222; Building #2 Austin, Texas 78730 USA Manufacturer ： Motion Computing Incorporated. Model No. ： CFT-003 Trade Name ： Motion Computing Incorporated. FCC ID. ： Q3QIHWM622ANH Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Test Result ： Max. SAR Measurement (1g) 802.11b(2.4GHz): 0.729 W/kg 802.11a(5 GHz): 1.48 W/kg Application Type Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Documented By ： (Adm. Assistant / Anny Chou ) Tested By ： (Engineer / Jung Chang) Approved By ： (Manager / Vincent Lin) Report No：101358R-HPUSP10V01 Page: 3 of 29 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Antenna List ................................................................................................................... 5 1.3 Test Environment ...........................................................................................................6 2. SAR Measurement System .................................................................. 7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 15 4. SAR Measurement Procedure ........................................................... 16 4.1 SAR System Validation................................................................................................ 16 4.1.1 Validation Dipoles..................................................................................................... 16 4.1.2 Validation Result ....................................................................................................... 16 4.2 Arrangement Assessment Setup ................................................................................... 18 4.2.1 Test Positions of Device Relative to Head................................................................ 18 4.2.1.1 Definition of the “Cheek” Position ........................................................................ 18 4.2.1.2 Definition of the “Tilted” Position......................................................................... 19 4.2.2 Test Positions for body-worn.................................................................................... 20 4.3 SAR Measurement Procedure ...................................................................................... 20 5. SAR Exposure Limits ......................................................................... 22 6. Test Equipment List............................................................................ 23 Report No：101358R-HPUSP10V01 Page: 4 of 29 7. Measurement Uncertainty .................................................................. 24 8. Conducted Power Measurement ....................................................... 25 9. Test Results......................................................................................... 27 9.1 SAR Test Results Summary ......................................................................................... 27 Appendix ......................................…

Text truncated - open the document above for the full version.

Appendix D. Probe Calibration Data Miniature Isotropic RF Probe S/N: 3602 Appendix E. Dipole Calibration Validation Dipole 0 MHz M/N: ALS-D-0-S-2 S/N: QTK-31 NCL CALIBRATION LABORATORIES Calibration File No: DC-891 C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Quietek Validation Dipole Manufacturer: APREL Laboratories Part number: ALS-D-2450-S-2 Frequency: 2.45 GHz Serial No: QTK-319 Customer: Quietek Project Number: QTKB-Dipole-CAL-5336 Calibrated: 9 th May 2008 Released on: 9 th May 2008 NCL CALIBRATION LABORATORIES 51 SPECTRUM WAY Division of APREL Lab. NEPEAN, ONTARIO TEL: (613) 820-4988 CANADA K2R 1E6 FAX: (613) 820-4161 NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 2 Calibration Results Summary The following results relate the Calibrated Dipole and should be used as a quick reference for the user. Mechanical Dimensions Length: 53.5 mm Height: 30.4 mm Electrical Specification SWR: 1.19 U Return Loss: -20.8 dB Impedance: 49.4 System Validation Results Frequency 1 Gram 10 Gram Peak 2.45 GHz 48.07 25.65 95.6 NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 3 Conditions Dipole 319 is a recalibration. Ambient Temperature of the Laboratory: 22 C +/- 0.5C Temperature of the Tissue: 21 C +/- 0.5C References SSI-TP-018-ALSAS Dipole Calibration Procedure SSI-TP-016 Tissue Calibration Procedure IEEE 1528 “Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques” IEC 62209 “Human exposure to radio frequency fields from hand-held and body- mounted wireless communication devices – Human models, instrumentation, and procedures –Part 1 & Part 2: Procedure to determine the specific absorption rate (SAR) for mobile wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz) NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 4 Dipole Calibration Results Mechanical Verification IEEE Length IEEE Height Measured Length Measured Height 51.5 mm 30.4 mm 53.5 mm 30.4 mm Tissue Validation Head Tissue 2450 MHz Measured Dielectric constant, r 40.1 Conductivity, [S/m] 1.78 NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 5 Electrical Calibration Test Result S11 R/L -20.8 dB SWR 1.2 U Impedance 49.4 The Following Graphs are the results as displayed on the Vector Network Analyzer. S11 Parameter Return Loss NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 6 SWR NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 7 Smith Chart Dipole Impedance NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 8 System Validation Results Using the Electrically Calibrated Dipole Frequency 1 Gram 10 Gram Peak Above Feed Point 2.45 GHz 48.07 25.65 95.6 NCL Calibration Laboratories Division of APREL Laboratories. This page has been reviewed for content and attested to by signature within this document. 9 Test Equipment The test equipment used during Probe Calibration, manufacturer, model number and, current calibration status are listed and located on the main APREL server R:\NCL\Calibration Equipment\Instrument List May 2008. Appendix E. Dipole Calibration Validation Dipole 3-6 GHz M/N: D5GHzV2 S/N: 1041

Report No. 101358R-RFUSP42V01 Page : 1 of 136 Test Report Product Name Tablet PC MC-C5 / MC-F5 Model No CFT-003 FCC ID. Q3QIHWM622ANH Transmitter Module Intel / 622ANHMW Applicant Motion Computing Incorporated. Address 8601 Ranch Road 2222; Building #2 Austin, Texas 78730 USA Date of Receipt Jan. 20, 2010 Issue Date April 26, 2010 Report No. 101358R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 101358R-RFUSP42V01 Page : 2 of 136 Test Report Certification Issue Date: April 26, 2010 Report No.: 101358R-RFUSP42V01 Product Name Tablet PC MC-C5 / MC-F5 Applicant Motion Computing Incorporated. Address 8601 Ranch Road 2222; Building #2 Austin, Texas 78730 USA Manufacturer Motion Computing Incorporated. Model No. CFT-003 EUT Rated Voltage AC 100-240V, 50-60Hz EUT Test Voltage AC 120V/60Hz Trade Name Motion Computing Incorporated. Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2009 ANSI C63.4: 2003 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Johnson Liao ) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 101358R-RFUSP42V01 Page : 3 of 136 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................9 1.6. Test Facility .................................................................................................................................10 2. Conducted Emission.................................................................................................................. 11 2.1. Test Equipment............................................................................................................................11 2.2. Test Setup ....................................................................................................................................11 2.3. Limits ..........................................................................................................................................12 2.4. Test Procedure .............................................................................................................................12 2.5. Uncertainty ..................................................................................................................................12 2.6. Test Result of Conducted Emission.............................................................................................13 3. Peak Power Output ...................................................................................................................17 3.1. Test Equipment............................................................................................................................17 3.2. Test Setup ....................................................................................................................................17 3.3. Limits ..........................................................................................................................................17 3.4. Test Procedure .............................................................................................................................17 3.5. Uncertainty ..................................................................................................................................17 3.6. Test Result of Peak Power Output...............................................................................................18 4. Radiated Emission .....................................................................................................................25 4.1. Test Equipment............................................................................................................................25 4.2. Test Setup ....................................................................................................................................26 4.3. Limits ..........................................................................................................................................27 4.4. Test Procedure .............................................................................................................................28 4.5. Uncertainty ..................................................................................................................................28 4.6. Test Result of Radiated Emission................................................................................................29 5. RF antenna conducted test........................................................................................................56 5.1. Test Equipment.....................................................................…

Text truncated - open the document above for the full version.

Report No. 101358R-RFUSP42V01 Page: 81 of 136 Product : Tablet PC MC-C5 / MC-F5 Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2462 31.892 72.54 104.432 Peak Horizontal 2462 31.892 62.19 94.082 Average Vertical 2462 30.48 70.82 101.3 Peak Vertical 2462 30.48 60.58 91.06 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) ∆ (dB) Band Edge Field Strength (dBuV/m) Detector Horizontal 2483.5 104.432 43.26 61.172 Peak Horizontal 2483.5 94.082 52.22 41.862 Average Vertical 2483.5 101.3 43.26 58.04 Peak Vertical 2483.5 91.06 52.22 38.84 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - ∆ F = Fundamental field Strength (Peak or Average) ∆ = Conducted Band Edge Delta (Peak or Average) Report No. 101358R-RFUSP42V01 Page: 82 of 136 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 101358R-RFUSP42V01 Page: 83 of 136 Product : Tablet PC MC-C5 / MC-F5 Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 4: Transmitter - 802.11n-20BW_13Mbps(2.4G Band) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2412 31.771 75.1 106.872 Peak Horizontal 2412 31.771 62.67 94.442 Average Vertical 2412 30.248 72.29 102.539 Peak Vertical 2412 30.248 60.21 90.459 Average Note: 1:Spectrum Analyzer setting: Peak detector: RBW=1MHz, VBW=1MHz Average detector: RBW=1MHz, VBW=10Hz Band Edge Test Data Antenna Pole Test Frequency (MHz) Fundamental (dBuV/m) ∆ (dB) Band Edge Field Strength (dBuV/m) Detector Horizontal 2390 106.872 48.56 58.312 Peak Horizontal 2390 94.442 51.2 43.242 Average Vertical 2390 102.539 48.56 53.979 Peak Vertical 2390 90.459 51.2 39.259 Average Note: The Band Edge Field Strength was calculated using the Fundamental and Conducted Band Edge measurements per the Marker-Delta Method with the following formula: Band Edge field Strength = F - ∆ F = Fundamental field Strength (Peak or Average) ∆ = Conducted Band Edge Delta (Peak or Average) Report No. 101358R-RFUSP42V01 Page: 84 of 136 Peak Detector of conducted Band Edge Delta Average Detector of conducted Band Edge Delta Report No. 101358R-RFUSP42V01 Page: 85 of 136 Product : Tablet PC MC-C5 / MC-F5 Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 4: Transmitter - 802.11n-20BW_13Mbps(2.4G Band) Fundamental Filed Strength Antenna Pole Frequency [MHz] Correction Factor [dB/m] Reading Level [dBuV] Emission Level [dBuV/m] Detector Horizontal 2462 31.892 75.64 107.532 Peak Horizontal 2462 31.892 62.74 94.632 Average Vertical 2462 30.48 71 101.48 Peak Vertical 2462 30.48 56.68 87.16 Average Note: 1:Spectrum Analyzer setting:…

Text truncated - open the document above for the full version.
