Q3QUHFRFIDRFID Module

C5/F5-Series EasyConnect RFID Long Range Reader User’s Guide PN 024-02-0420-A00 © 2013 Motion Computing, Inc. All rights reserved. This document contains information protected by copyright. No part of this document may be reproduced in any form without written consent from Motion. The information in this document is provided “as is” and is subject to change without notice. Motion is not liable for errors or omissions in this document. Motion Computing, Inc. has made every effort to identify trademarked properties and owners on this page. All brands and product names used in this document are for identification purposes only and may be trademarks or registered trademarks of their respective companies. The warranties for Motion products are set forth in the express limited warranty statements accompanying such products. Nothing in this document constitutes an additional warranty. Motion Computing products and services may be covered by one or more patent-protected inventions. Additional patents may also be pending. For more information, see www.motioncomputing.com/info/patents.asp. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Important Safety Instructions • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not attempt to open the C5/F5-Series EasyConnect RFID Long Range Reader. • Do not tamper with your C5/F5-Series EasyConnect RFID Long Range Reader. • Do not attempt to disassemble your C5/F5-Series EasyConnect RFID Long Range Reader; it does not contain serviceable components. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. The following information is provided on the device or devices covered in this document in compliance with FCC regulations: C5/F5-Series EasyConnect RFID Long Range Reader: UHF-001 and UHF 002 Company name: Motion Computing, Incorporated 8601 Ranch Road 2222, Bldg 2 Austin, TX 78730 Telephone: 512-637-1100 Fax: (512) 637-1199 Manufacturer name: Sinbon Electronics Co., Ltd. 4F-13, No 79, Sec. 1 Hsin Tai Wu Rd. Hsi-Chih Dist., New Taipei City 221, Taiwan TEL: +886-2-26989999 FAX: +886-2-26989660 This device meets the body SAR limits for uncontrolled exposure. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC CAUTION: Any changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Operation of this wireless communication device is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation FCC CAUTION: This device was tested for SAR (Specific Absorption Rate) in a mobile configuration. Maximum measured SAR levels for the Motion RFID Reader were: Any changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. IC notice (Canada only) Intentional Emitter per ICES-003 The Motion C5/F5-Series EasyConnect RFID Long Range Reader is classified by the Industry Canada (IC) Interference-Causing Equipment Standard #3 (ICES- 003) as a Class B digital device. This classification is located on the label inside your Motion C5/F5-Series EasyConnect RFID Long Range Reader. Look for a statement on the label similar to the following: Canada ICES-003, Class/Classe B. This Class B (or Class A, if so indicated on the registration label) digital apparatus meets the requirements of the Canadian Interference-Causing Equipment Regulations. Conformité Européne (CE) European Union Intentional Emitter The Conformité Européne symbol found on the Motion Computing C5/F5- Series EasyConnect RFID Long Range Reader indicates compliance to the R&TTE Directive and the Low Voltage Directive of the European Union. This means that the Motion Computing C5/F5-Series EasyConnect RFID Long Range Reader meets the following technical standards: • EN60950-1 • EN 301 489-1 • EN 301 489-3 • EN 302 208-2 • IEC62209-2 The CE mark shown here is a device ID, which means the product complies with the essential requirements of the R&TTE Directive 1999/5/EC with essential test suites. Embedded in your Motion Computing C5/F5-Series EasyConnect RFID Long Range Reader is a Radio Frequency (RF) radio device. ModeFrequency Band (MHz) FCC SAR Limit For Mobile/ Portable Equipment Reported SAR FCC ID: Q3QUHFRFID EMEA865-868MHz1.6 W/kgTBD US/Canada/ AU/NZ 902-928MHz2 W/10kgTBD Contentsiii Contents Chapter 1Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Tools/supplies needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

8601 RR 2222 ● Building II ● Austin, Texas 78730 ● 512-637-1100 (main) ● 512-637-1199 (fax) ● www.MotionComputing.com 11/4/13 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR C5/F5-Series EasyConnect RFID Long Range Reader/UHF-001/4587A-XUHFRFID To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the EasyConnect RFID Long Range Reader required to be submitted with this application be permanently withheld from public review. This includes the Block Diagrams, Schematics, BOMs, and Operational Descriptions. The above documents are company proprietary information that could never get into the possession of our competition Please contact me if there is any information you may need. Sincerely, John A. Nagy Motion Computing [email protected] 512 627-3787 (Mobile) 512 637-1143 (Desk)

8601 RR 2222 ● Building II ● Austin, Texas 78730 ● 512-637-1100 (main) ● 512-637-1199 (fax) ● www.MotionComputing.com December 6, 2013 To whom it may concern: The M9 RFID reader transmitter incorporates a frequency hopping algorithm based on a pseudo random sequence assuring that each of the 128 frequencies are used equally. The hopping algorithm and sequence is not optimized based on RF conditions in a particular channel, or the need to complete a data transaction while on one frequency. The frequency hopping algorithm is random, and no intelligence is incorporated to avoid simultaneous occupancy or to synchronize multiple systems to avoid interference. Thanks, Ross Weems Sr. Product Manager

8601 RR 2222 ● Building II ● Austin, Texas 78730 ● 512-637-1100 (main) ● 512-637-1199 (fax) ● www.MotionComputing.com 11/12/13 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For the C5/F5-Series EasyConnect RFID Long Range Reader, Model # UHF-001, FCC ID # Q3QUHFRFID To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, Motion Computing, requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. Test setup photos External photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which Motion Computing considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Motion Computing feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, John A. Nagy Motion Computing [email protected] 512 627-3787 (Mobile) 512 637-1143 (Desk)

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ● BALTIMORE, MARYLAND 21230-3432 ● PHONE (410) 354-3300 ● FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 MET Report: EMC40305-SAR Rev. 1 © 2013, MET Laboratories, Inc. Page 1 of 32 Dosimetric Assessment Test Report for the Motion Computing Tablet Tested and Evaluated In Accordance With FCC OET 65 Supplement C: 01-01 Prepared for Motion Computing 8601 Ranch Road 2222, Bldg #2 Austin, TX 78730 Engineering Statement: The measurements shown in this report were made in accordance with the procedures specified in Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] and Industry Canada RSS-102 for uncontrolled exposure. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment evaluated is capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1999. Motion Computing SAR Report MET Report: EMC40305-SAR Rev. 1 © 2013, MET Laboratories, Inc. Page 2 of 32 SAR Evaluation Certificate of Compliance APPLICANT: Motion Computing Applicant Name and Address: John Nagy Motion Computing 8601 Ranch Road 2222, Bldg #2 Austin, TX 78730 Test Location: MET Laboratories, Inc. 3162 Belick Street Santa Clara, CA 95054 USA EUT: CS/FS UHF RFID Reader Date of Receipt: November 14-15, 2013 RF exposure environment: Uncontrolled Exposure/General Population RF exposure category: Portable Power supply: Internal battery and AC Antenna: Internal Production/prototype: Production Modulation: FSK Duty Cycle: 100% TX Range: 902MHz – 928MHz Max SAR Measured SAR 1g (mW/g) Mid Channel (915MHz): Face side Back side Bottom edge 0.397 0.784 1.42 Shawn McMillen Motion Computing SAR Report MET Report: EMC40305-SAR Rev. 1 © 2013, MET Laboratories, Inc. Page 3 of 32 INTRODUCTION ......................................................................................................................................................... 4 SAR DEFINITION ........................................................................................................................................................ 4 DESCRIPTION OF DEVICE UNDER TEST (EUT) ................................................................................................... 5 SAR MEASUREMENT SYSTEM ............................................................................................................................... 6 MEASUREMENT SUMMARY .................................................................................................................................... 7 FLOW CHART OF THE RECOMMENDED PRACTICES AND PROCEDURES .................................................... 9 DATA EVALUATION PROCEDURES ...................................................................................................................... 15 SYSTEM PERFORMANCE CHECK......................................................................................................................... 17 SIMULATED EQUIVALENT TISSUES .................................................................................................................... 18 SAR SAFETY LIMITS ............................................................................................................................................... 19 ROBOT SYSTEM SPECIFICATIONS ....................................................................................................................... 20 1.1. Specifications ............................................................................................................................................. 20 1.2. Data Acquisition Electronic (DAE) System: .............................................................................................. 20 1.3. Phantom(s): ................................................................................................................................................ 20 1.4. RX90BL Robot .......................................................................................................................................... 21 1.5. Robot Controller ........................................................................................................................................ 21 1.6. Light Beam Switch ..................................................................................................................................... 21 1.7. Data Acquisition Electronics ...................................................................................................................... 21 1.8. Electo-Optical Converter (EOC) ................................................................................................................ 22 1.9. Measurement Server ................................................................................................................................... 22 1.10. Dosimetric Probe ................................................................................................................................... 22 1.11. SAM Phantom ....................................................................................................................................... 22 1.12. Planar Phantom ...................................................................................................................................... 22 1.13. Validation Planar Phantom .................................................................................................................... 22 1.14. Device Holder .................................…

Text truncated - open the document above for the full version.

Motion Computing SAR Report MET Report: EMC40305-SAR Rev. 1 © 2013, MET Laboratories, Inc. APPENDIX A - SAR MEASUREMENT DATA bottom edge mid ch Date/Time: 11/14/2013 3:41:56 PM DUT: Motion computing; Communication System: 900MHz FHSS; ; Frequency: 916.1 MHz;Duty Cycle: 1:1 Medium: M900 Medium parameters used: f = 900 MHz; σ = 0.99 mho/m; εr = 52.5; ρ = 1 000 kg/m 3 Phantom section: Flat Section - Probe: EX3DV4 - SN3722; ConvF(8.72, 8.72, 8.72); Calibrated: 7/29/2013 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn584; Calibrated: 7/18/2013 - Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 - Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 Area Scan (41x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.69 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.5 V/m; Power Drift = 0.049 dB Peak SAR (extrapolated) = 1.98 W/kg SAR(1 g) = 1.42 mW/g; SAR(10 g) = 0.964 mW/g Maximum value of SAR (measured) = 1.52 mW/g 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 -0.020.000.020.040.060 Mid ch bottom side SAR; Z Scan:Value Along Z, X=0, Y=0 mW/g m bottom edge low ch Date/Time: 11/15/2013 10:04:57 AM DUT: Motion computing; Communication System: 900MHz FHSS; ; Frequency: 902.1 MHz;Duty Cycle: 1:1 Medium: M900 Medium parameters used: f = 900 MHz; σ = 0.99 mho/m; εr = 52.5; ρ = 1000 kg/m 3 Phantom section: Flat Section - Probe: EX3DV4 - SN3722; ConvF(8.72, 8.72, 8.72); Calibrated: 7/29/2013 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn584; Calibrated: 7/18/2013 - Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 - Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 Area Scan (41x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.14 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 22.6 V/m; Power Drift = 0.018 dB Peak SAR (extrapolated) = 1.25 W/kg SAR(1 g) = 0.901 mW/g; SAR(10 g) = 0.615 mW/g Maximum value of SAR (measured) = 0.961 mW/g bottom edge high ch Date/Time: 11/15/2013 10:37:04 AM DUT: Motion computing; Communication System: 900MHz FHSS; ; Frequency: 927.1 M H z ;D u ty Cycle: 1:1 Medium: M900 Medium parameters used: f = 900 MHz; σ = 0.99 mho/m; εr = 52.5; ρ = 1000 kg/m 3 Phantom section: Flat Section 5 Probe: EX3DV4 5 SN3722; ConvF(8.72, 8.72, 8.72); Calibrated: 7/29/2013 5 Sensor5Surface: 4mm (Mechanical Surface Detection) 5 Electronics: DAE3 Sn584; Calibrated: 7/18/2013 5 Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 5 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 Area Scan (41x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.30 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.1 V/m; Power Drift = 50.035 dB Peak SAR (extrapolated) = 1.57 W/kg SAR(1 g) = 1.12 mW/g; SAR(10 g) = 0.761 mW/g Maximum value of SAR (measured) = 1.20 mW/g back side mid ch Date/Time: 11/14/2013 2:52:37 PM DUT: Motion computing; Communication System: 900MHz FHSS; ; Frequency: 916.1 MH z ;Duty Cycle: 1:1 Medium: M900 Medium parameters used: f = 900 MHz; σ = 0.99 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Pha n tom section: Flat Section 1 Probe: EX3DV4 1 SN3722; ConvF(8.72, 8.72, 8.72); Calibrated: 7/29/2013 1 Se nsor1Surface: 4mm (Mechanical Surface Detection) 1 Electronics: DAE3 Sn584; Calibrated: 7/18/2013 1 Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 1 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 Area S can (61x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.884 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.6 V/m; Power Drift = 0.028 dB Peak SAR (extrapolated) = 1.08 W/kg SAR(1 g) = 0.784 mW/g; SAR(10 g) = 0.512 mW/g Maximum value of SAR (measured) = 0.844 mW/g face side mid ch Date/Time: 11/14/2013 2:24:30 PM DUT: Motion computing; Communication System: 900MHz FHSS; ; Frequency: 916.1 M Hz;Duty Cycle: 1:1 Medium: M900 Medium parameters used: f = 900 MHz; σ = 0.99 mho/m; εr = 52.5; ρ = 1000 kg/m 3 Phantom section: Flat Section 0 Probe: EX3DV4 0 SN3722; ConvF(8.72, 8.72, 8.72); Calibrated: 7/29/2013 0 Sensor0Surface: 4mm (Mechanical Surface Detection) 0 Electronics: DAE3 Sn584; Calibrated: 7/18/2013 0 Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 0 Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 Ar ea Scan (61x171x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.463 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.9 V/m; Power Drift = 00.533 dB Peak SAR (extrapolated) = 0.578 W/kg SAR(1 g) = 0.397 mW/g; SAR(10 g) = 0.250 mW/g Maximum value of SAR (measured) = 0.430 mW/g Motion Computing SAR Report MET Report: EMC40305-SAR Rev. 1 © 2013, MET Laboratories, Inc. APPENDIX B - SYSTEM PERFORMANCE CHECK 835MHz validation Date/Time: 11/14/2013 8:50:53 AM DUT: Dipole 835 MHz; Communication System: CW; ; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: M835 Medium parameters used: f = 835 MHz; σ = 0.93 mho/m; ε r = 53.1; ρ = 1000 kg/m 3 Phantom section: Flat Section / Probe: EX3DV4 / SN3722; ConvF(8.72, 8.72, 8.72); Calibrated: 7/29/2013 / Sensor/Surface: 4mm (Mechanical Surface Detection) / Electronics: DAE3 Sn584; Calibrated: 7/18/2013 / Phantom: SAM with CRP; Type: SAM; Serial: TP 1310 / Measurement SW: DASY4, V4.7 Build 71; Postprocessing SW: SEMCAD, V1.8 Build 184 d=15mm, Pin=250mW/Area Scan (61x81x1): Measurement grid: dx=15mm, dy=15mm Ma ximum value of SAR (interpolated) = 2.58 mW/g d=15mm, Pin=250mW/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, d y=5mm, dz=5mm Reference Value = 52.8 V/m; Power Drift = 0.033 dB Peak SAR (extrapolated) = 3.58 W/kg SAR(1 g) = 2.4 mW/g; SAR(10 g) = 1.58 mW/g Maximum value of SAR (measur…

Text truncated - open the document above for the full version.

Motion Computing SAR Report MET Report: EMC40305-SAR Rev. 1 © 2013, MET Laboratories, Inc. APPENDIX C – PROBE CALIBRATION CERTIFICATE

Motion Computing SAR Report MET Report: EMC40305-SAR Rev. 1 © 2013, MET Laboratories, Inc. APPENDIX D – DIPOLE CALIBRATION CERTIFICATE

Motion Computing SAR Report MET Report: EMC40305-SAR Rev. 1 © 2013, MET Laboratories, Inc. APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS Title SubTitle November 14, 2013 07:56 AM Frequency 800.000000 MHz 803.000000 MHz 806.000000 MHz 809.000000 MHz 812.000000 MHz 815.000000 MHz 818.000000 MHz 821.000000 MHz 824.000000 MHz 827.000000 MHz 830.000000 MHz 833.000000 MHz 836.000000 MHz 839.000000 MHz 842.000000 MHz 845.000000 MHz 848.000000 MHz 851.000000 MHz 854.000000 MHz 857.000000 MHz 860.000000 MHz 863.000000 MHz 866.000000 MHz 869.000000 MHz 872.000000 MHz 875.000000 MHz 878.000000 MHz 881.000000 MHz 884.000000 MHz 887.000000 MHz 890.000000 MHz 893.000000 MHz 896.000000 MHz 899.000000 MHz 902.000000 MHz e'e'' 53.473520.1925 53.428820.1918 53.388220.2009 53.334120.1701 53.311620.2121 53.284920.1774 53.257720.1875 53.199620.2031 53.166320.1932 53.148720.2109 53.121320.2154 53.094320.2198 53.074320.2272 53.037120.2462 53.000820.2213 52.980620.2395 52.928920.2150 52.901220.2252 52.908320.2117 52.887120.2086 52.856920.2089 52.829420.1868 52.815120.1706 52.795220.1672 52.778020.1416 52.741220.0917 52.747620.0996 52.710420.1029 52.674520.0532 52.692920.0355 52.634920.0364 52.627819.9920 52.592719.9689 52.586619.9399 52.568019.9314 905.000000 MHz 908.000000 MHz 911.000000 MHz 914.000000 MHz 917.000000 MHz 920.000000 MHz 923.000000 MHz 926.000000 MHz 929.000000 MHz 932.000000 MHz 935.000000 MHz 938.000000 MHz 941.000000 MHz 944.000000 MHz 947.000000 MHz 950.000000 MHz 52.540219.8852 52.515619.8997 52.489819.8839 52.474019.8796 52.451519.8575 52.390519.8404 52.384319.8325 52.367819.8489 52.349819.8355 52.307719.8619 52.271219.8509 52.261119.8294 52.238219.8633 52.188019.8529 52.151219.8623 52.116519.8758 Motion Computing SAR Report MET Report: EMC40305-SAR Rev. 1 © 2013, MET Laboratories, Inc. APPENDIX F – PHANTOM CERTIFICATE OF CONFORMITY

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE • BALTIMORE, MARYLAND 21230-3432 • PHONE (410) 354-3300 • FAX (410) 354-3313 33439 WESTERN AVENUE • UNION CITY, CALIFORNIA 94587 • PHONE (510) 489-6300 • FAX (510) 489-6372 3162 BELICK STREET • SANTA CLARA, CA 95054 • PHONE (408) 748-3585 • FAX (510) 489-6372 13301 MCCALLEN PASS • AUSTIN, TEXAS 78753 • PHONE (512) 287-2500 • FAX (512) 287-2513 The Nation’s First Licensed Nationally Recognized Testing Laboratory December 11, 2013 Motion Computing, Inc. 8601 Ranch Road 2222, Bldg #2 Austin, TX 78730 Dear Ross Weems, Enclosed is the EMC Wireless test report for compliance testing of the Motion Computing, Inc., UHF-001 (915 MHz) as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B and ICES- 003, Issue 5 August 2012 for a Class B Digital Device, and FCC Part 15 Subpart C and RSS-210, Issue 8, Dec. 2010 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Motion Computing, Inc.\EMC40305-FCC247 Rev. 2) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Motion Computing, Inc. Cover Page UHF-001 (915 MHz) CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC40305-FCC247 Rev. 2 © 2013, MET Laboratories, Inc. Page ii of viii DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Motion Computing, Inc. UHF-001 (915 MHz) Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 8, Dec. 2010 for Intentional Radiators MET Report: EMC40305-FCC247 Rev. 2 December 11, 2013 Prepared For: Motion Computing, Inc. 8601 Ranch Road 2222, Bldg #2 Austin, TX 78730 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 Electromagnetic Compatibility Motion Computing, Inc. Cover Page UHF-001 (915 MHz) CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC40305-FCC247 Rev. 2 © 2013, MET Laboratories, Inc. Page iii of viii DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Motion Computing, Inc. UHF-001 (915 MHz) Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 8, Dec. 2010 for Intentional Radiators Benjamin Taylor, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 5 August 2012, RSS-210, Issue 8, Dec. 2010 under normal use and maintenance. Asad Bajwa, Director, Electromagnetic Compatibility Lab Electromagnetic Compatibility Motion Computing, Inc. Report Status UHF-001 (915 MHz) CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC40305-FCC247 Rev. 2 © 2013, MET Laboratories, Inc. Page iv of viii DOC-EMC702 6/18/2009 Report Status Sheet Revision Report Date Reason for Revision  December 4, 2013 Initial Issue. 1 December 9, 2013 Revised to add customer’s declaration statement. 2 December 11, 2013 Editorial correction. Electromagnetic Compatibility Motion Computing, Inc. Table of Contents UHF-001 (915 MHz) CFR Title 47, Part 15B, 15.247; RSS-210, Issue 8, Dec. 2010 & ICES-003 MET Report: EMC40305-FCC247 Rev. 2 © 2013, MET Laboratories, Inc. Page v of viii DOC-EMC702 6/18/2009 Table of Contents I. Executive Summary ................................................................................................................................................. 1 A. Purpose of Test ................................................................................................................................................... 2 B. Executive Summary ............................................................................................................................................ 2 II. Equipment Configuration ....................................................................................................................................... 3 A. Overview ............................................................................................................................................................. 4 B. References ........................................................................................................................................................... 5 C. Test Site .............................................................................................................................................................. 5 D. Description of Test Sample ................................................................................................................................. 6 E. Equipment Configuration .................................................................................................................................... 7 F. Support Equipment ....................................................................................................................................…

Text truncated - open the document above for the full version.

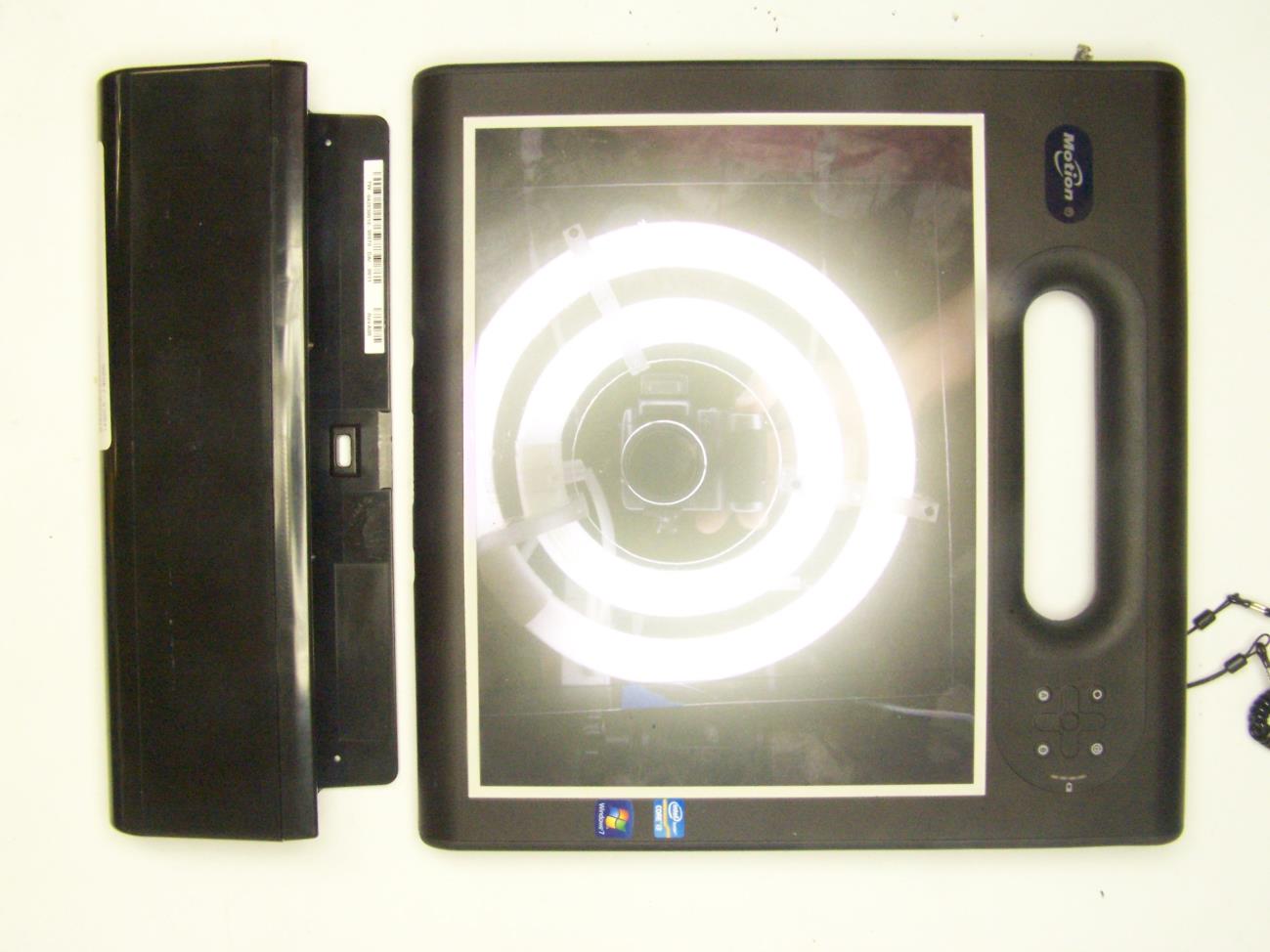

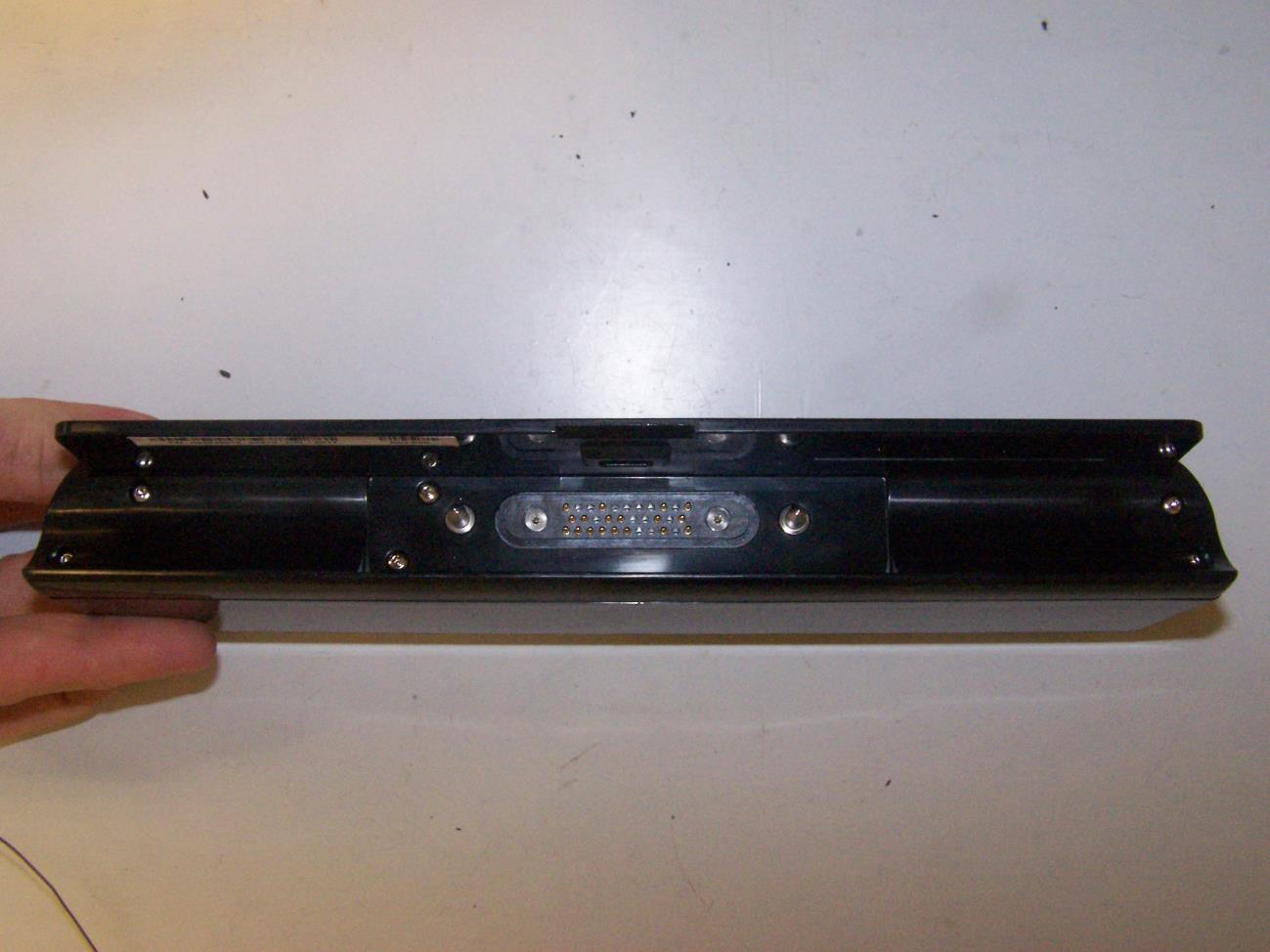

EUT TEST SETUP PHOTOS Photograph 1. Back Side of the Unit against Phantom Photograph 2. Bottom Edge of the Unit against Phantom Photograph 3. Bottom Edge of the Unit against Phantom Photograph 4. Face of the Unit against Phantom Photograph 5. Face of the Unit against Phantom Photograph 6. Fluid Depth EUT INTERNAL AND EXTERNAL PHOTOS Photograph 6. EUT Antenna Housing Photograph 7. Integral Antenna Element Photograph 8. Antenna Elements in Housing

Photograph 1. Conducted Emissions, Test Setup Photograph 2. Radiated Emissions, Test Setup Photograph 3. Conducted Emissions, 15.207(a), Test Setup Photograph 4. Radiated Spurious Emissions, Test Setup, 30 MHz – 1 GHz Photograph 5. Radiated Spurious Emissions, Test Setup, Above 1 GHz
