1 Creatix 802.11g Adapter CTX405 Vx User Manual 2 Safety instructions for Creatix 802.11g Adapter This equipment has been designed and tested in accordance with the requirements of Standard EN60950. Extracts from these requirements according Standard EN60950: 2000 • The Creatix 802.11g Adapter was evaluated for use in maximum ambient temperature of 40 °C. • The Creatix 802.11g Adapter may only be used in countries where the modem is certified. Regulatory Statements FCC Certification The United States Federal Communication Commission and the Canadian Department of Communication have established certain rules governing the use of electronic equipment. Part 15, Class B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device must not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Caution: 1. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. 2. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 3. Changes or modifications made to this equipment not expressly approved by Creatix Polymedia GmbH may void the FCC authorization to operate this equipment. 3 4 5 International Notification of the Creatix 802.11g Adapter (CTX405 Vx) The Creatix Wireless LAN Card can be used with the provided antenna (=2,4 GHz Swivel Antenna Type IW-241RS-332) in the following countries: Austria Belgium Denmark Finland France Germany Greece Iceland Ireland Italy Liechtenstein Luxembourg Netherlands Norway Spain Sweden Switzerland United Kingdom 6 Table of Contents Safety Instructions .................................................................. 2 Regulatory Statement .................................................................. 2 Introduction .................................................................. 7 Options - Peer to Peer .................................................................. 7 - Access Point .................................................................. 8 Installation Windows XP .................................................................. 9 Installation Windows 2000 .................................................................. 11 Configuration Windows Utility .................................................................. 14 Configuration Driver Utility .................................................................. 15 Uninstall .................................................................. 20 7 INTRODUCTION The Creatix 802.11g Adapter is a powerful 32-bit PCI Card that plugs quickly and easily into your Desktop PC for wireless network applications without wires or cables. Based on the IEEE 802.11g standard, it offers a transfer data rate up to 54Mbps in a wireless LAN environment. Once connected with other networked PC’s, it allows you to share hard disk drives, DVD drives, CD drives, printers and the likes. The Creatix 802.11g Adapter allows you to take full advantage of your PC’s mobility with access to real-time information and online services anytime and anywhere. Plus, with the network installation simplicity and flexibility, you can eliminate the need to pull cable through walls and ceilings. FEATURES: - Compliant with IEEE 802.11g standard for 2.4GHz Wireless LAN - Compliant with PCI Standard - Capable of up to 128-Bit WEP Encryption Protocol - Up to 54 Mbps High-Speed Transfer Rate - Easy to install and configure OPTIONS: The Peer-to-Peer (ad-hoc mode) Network This network installation lets you set a small wireless workgroup easily and quickly. Equipped with wireless PCI or wireless PC Cards, you can share files and printers between each PC and laptop. 8 Or you can use one computer as an Internet Server to connect to a wired global network and share files and information with other PCs via a wireless LAN. The Access Point Network (infrastructure mode) The network installation allows you to share files, printers and Internet access much more conveniently. With wireless PCI Cards, you can connect wireless LAN to a wired global network via an Access Point. 9 INSTALLATION Windows XP Step-by-step installation of the Creatix 802.11g Adapter • Power off your PC, unplug the power cord and open the cover. Install the Creatix Wireless LAN PCI Card in an available PCI slot, close the cover and plug back the power cord. • The Windows will auto-detect the Creatix Wireless LAN PCI Card and a “Found New Hardware Wizard” window will show up. Select “Install from a list or specific (Advanced)” to install the driver. • Insert the Product CD-ROM into the appropriate drive. Click on “Next>” to install the driver. 10 • The wizard will find “Creatix 802.11g Adapter” and start copying corresponding files into the system. Cl…

Text truncated - open the document above for the full version.

CONFIDENTIALLY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 September 01, 2004 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Company requests confidentiality for the following products: FCC ID Number Product Title/Model Q6DCTX405 CTX405 V.2 For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” The above exhibits contain Company trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Frank von Ehren Product Manager Creatix Polymedia GmbH 3 Heinrich Barth Strasse Saarbruecken, 66115 Germany

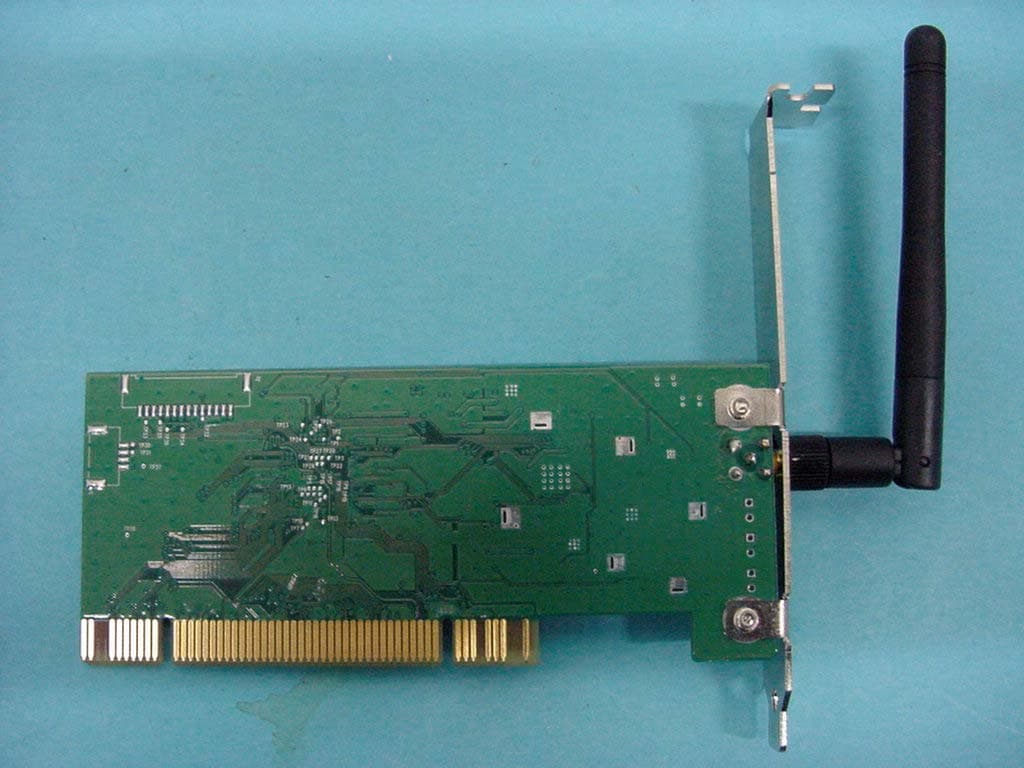

CETECOM ICT Services GmbH Test report no.:4-1164-01-03/03Issue date:2003-12-02Page 61 (63) Photographs of the equipment CETECOM ICT Services GmbH Test report no.:4-1164-01-03/03Issue date:2003-12-02Page 63 (63) Photographs

CTX 405 V.2 P/N: 20020774 IC:2280-CTX0405 Ratings: +3,3V 350mA FCC ID:Q6DCTX405 Label location CTX405 V.2 The label is located as below:

CETECOM ICT Services GmbH Test report no.:4-1164-01-03/03Issue date:2003-12-02Page 62 (63) Photographs CETECOM ICT Services GmbH Test report no.:4-1164-01-03/03Issue date:2003-12-02Page 63 (63) Photographs

CETECOM ICT Services GmbH Test report nr.:4-1164-01-03/03Issue date: 2003-12-02Page 25 (63) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 MPE calculation These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 where S = power density ( in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) or, S = EIRP/4πR 2 where EIRP = equivalent isotropically radiated power Calculation: (Calculated for max. EIRP) EIRP: 22.8 dBm (190.5 mW) calculated at distance of 20 cm power density = 190.5/4π20 2 = 0.038 mW/ cm 2 Limit: 1mW/ cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-0Telefax: -9075 RSC14issued test report consists of 63 PagesPage 1 (63) Recognized by the Federal Communications Commission Anechoic chamber registration no: 90462 (FCC) Anechoic chamber registration no: 3436 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test Report No.: 4-1164-01-03/03 FCC Part 15.247 / CANADA RSS-210 CTX 405 V.2 FCC ID: Q6DCTX405 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 598-9075 CETECOM ICT Services GmbH Test report nr.:4-1164-01-03/031Issue date: 2003-12-02Page 2 (63) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom.de Accredited testing laboratory DAR-registration number : TTI-P-G-166/98-30 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no.:4-1164-01-03/03Issue date:2003-12-02Page 3 (63) 1.3Details of applicant Name :Creatix Polymedia Gesellschaft für Kommunikationssysteme GmbH Street :Heinrich-Barth-Str. 3 City :66115 Saarbrücken Country :Germany Telephone:+49 (0) 681 98 11-3 00 Telefax :+49 (0) 681 98 11-3 90 Contact :Herr Frank von Ehren Telephone:+49 (0) 681 98 11-4 13 1.4Application details Date of receipt of application : 2003-10-06 Date of receipt of test item : 2003-10-06 Date of test : 2003-10-21 to 2003-10-24 1.5Test item Type of equipment : 2.4 GHz WLAN PCI card 802.11b/g Type designation: CTX 405 V.2 Manufacturer: -applicant - Street: City: Country: Serial number: FCC ID: Q6DCTX405 Hardware:V.1 Software :V.1 Additional information : Frequency:2412 – 2462 MHz Type of modulation:22M0P7D (DSSS) / (OFDM) Ch. Sep. : 5 MHz Number of channels :11 Antenna:Dedicated antenna connected via reverse SMA coax adaptor Power supply:3.3 V via PCI PC slot Output power cond./rad.:DSSS System: 19.74 dBm / 22.8 dBm EIRP OFDM System: 20.60 dBm / 22.40 dBm EIRP Type of equipment:Class B Temperature range :0°C - +40°C Field strength peak:104 dBμV/m Occupied bandwidth:DSSS: 12174 kHz OFDM: 16583 kHz Temperature range:0°C - +40°C 1.6Test standards: FCC Part 15 §15.247 / CANADA RSS-210 CETECOM ICT Services GmbH Test report no.:4-1164-01-03/03Issue date:2003-12-02Page 4 (63) Test set-ups: We measured at 11 Mbit/s (DSSS) and 54 Mbit/s (OFDM) where necessary. The tests were performed with a special shielded PC with extender card to get free radiation of the test sample. We also used special test software to set the samples in the required modes. We also made a conducted measurement with the test pc to show the influence of the sample on the AC line. 2 Technical test 2.1 Summary of test results The radiated measurements are performed in vertical and horizontal plane in the frequency range from 9 kHz to 25 GHz in semi-anechoic chambers. The EUT is positioned on a non- conductive support with a height of 0.80 m above a conductive ground plane that covers the whole chamber. The receiving antennas are conform with specifications ANSI C63.2-1987 clause 15 and ANSI C63.4-1992 clause 4.1.5. These antennas can be moved over the height range between 1.0 m and 4.0 m in order to search for maximum field strength emitted from EUT. The measurement distances between EUT and receiving antennas are indicated in the test setups for the various frequency ranges. For each measurement, the EUT is rotated in all three axes until the maximum field strength is received. The wanted and unwanted emissions are received by spectrum analyzers where the detector modes and resolution bandwidths over various frequency ranges are set according to requirement ANSI C63-4-1992 clause 4.2. CETECOM ICT Services GmbH Test report no.:4-1164-01-03/03Issue date:2003-12-02Page 5 (63) Antennas are conform with ANSI C63.2-1996 item 15. 9 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna >1GHz: Average, RBW 1MHz, VBW 10 Hz, wave-guide horn All measurement settings are according to FCC 15.35, 15.205, 15.209, 15.247 and the „Measurement guidelines for DSSS systems“. No deviations from the technical specification(s) were ascertained in the course of the tests performed. The product fulfills also the requirements for CANADA RSS-210. FINAL VERDICT : PASS Technical responsibility for area of testing : 2003-12-04RSC 8414 Ames H. DateSectionNameSignature Technical responsibility for area of testing : 2003-12-04RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report no.:4-1164-01-03/03Issue date:2003-12-02Page 6 (63) 2.2Test report TEST REPORT Test report no. : 4-1164-01-03/03 CETECOM ICT Services GmbH Test report no.:4-1164-01-03/03Issue date:2003-12-02Page 7 (…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report no.:4-1164-01-03/03Issue date:2003-12-02Page 59 (63) Test site RADIATED EMISSIONS CETECOM ICT Services GmbH Test report no.:4-1164-01-03/03Issue date:2003-12-02Page 60 (63) Test site CONDUCTED EMISSIONS
