Q6K1000-7253ATM SECURITY SYSTEM

JUN-27-2003 13:47 FROM:UERIFlBER 6784824022 TO: 770 831 8598 P.OO1/00l 486 XhaDa5 Jooea way ESt.OD, PA 193tl (610)-280-2005 (~io) (800)-513-1430 (610)-280-2077 (foK) CONFIDENTIALITY REQUEST Date: 3/25/03 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: 3Si Security Systemsrespectfully requests confidentiality of certain materials provided with the submission of the OctODUS CSU ATM Securitv Svstem under FCC 10: 06K 1000-7253- in accordance with FCC Regulations 0.459. The confidentiality request applies to the Bill of Material Schematics. & ODerators Manual_contained in this filing. OctoDUS CSU A 1M Securitv Svstem has been developed at considerable effort and expense 3§i Security System_so These items are considered as Trade Secrets and therefore public access to the proprietary material could possible result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Sincerely, ~ Name: Joel Bartholf Title: EnQ!Q~etlDg Manaaer Date: 6:/ 2C::;- / ~ 'it Post.lt'- brand tax transmittal memo I l ,(. l4Ito.., .,. z: (" .. Co. Al -..,.. co. I Ii. I ; VI -.n (> 1""/-1 ve-t.'f' .«... ~pl PlIone' .I' t...> ~ -Of Yt- ..", z., ...a.710~ ¥~J- 'd'S"<1f;j""#

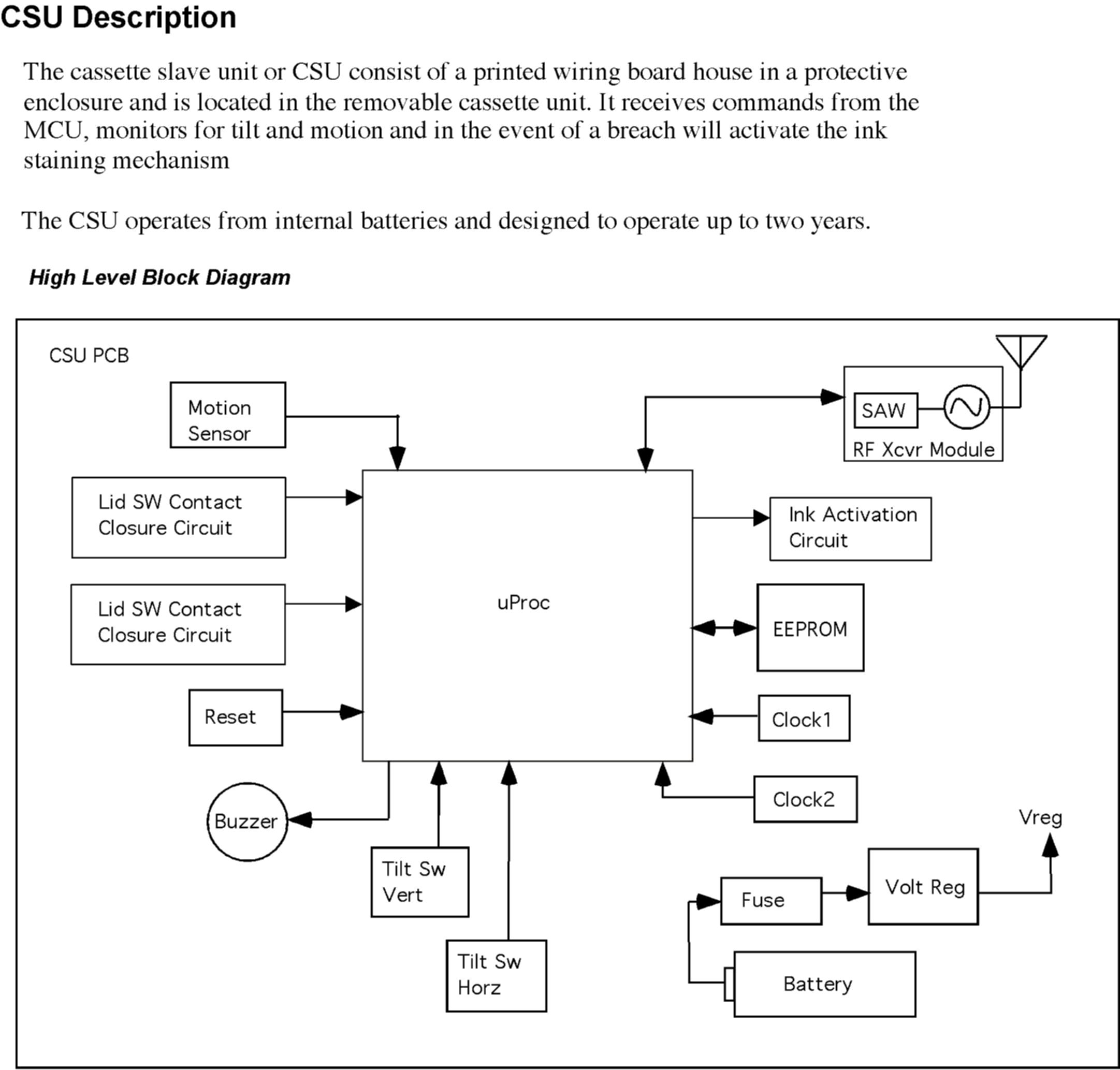

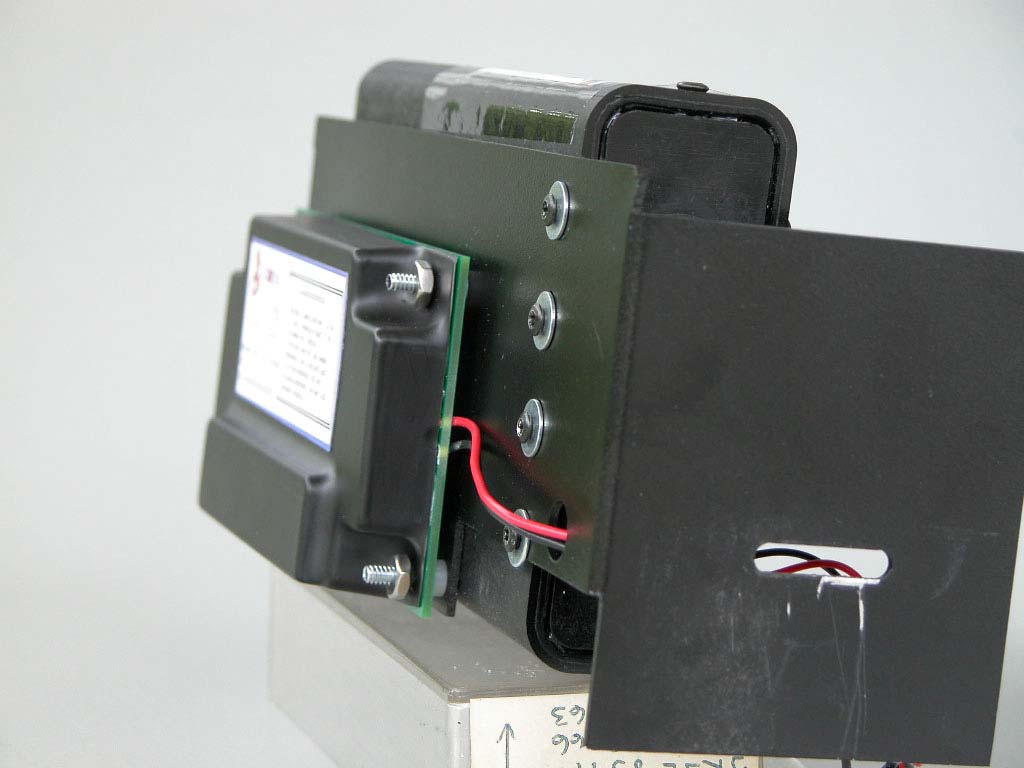

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Certification Test Report 433 MHz Alarm System FCC ID: Q6K 1000-7253 FCC Rule Part: 15.231 ACS Report Number: 03-0111-15C231 Manufacturer: 3SI Security Systems Model: 1000-7253 External Photographs Model: 1000-7253 Advanced Compliance Solutions FCC ID: Q6K 1000-7253 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: External – Front View Model: 1000-7253 Advanced Compliance Solutions FCC ID: Q6K 1000-7253 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: External – Bottom View Model: 1000-7253 Advanced Compliance Solutions FCC ID: Q6K 1000-7253 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: External – Side View Model: 1000-7253 Advanced Compliance Solutions FCC ID: Q6K 1000-7253 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: External – Side View

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Certification Test Report 433 MHz Alarm System FCC ID: Q6K 1000-7253 FCC Rule Part: 15.231 ACS Report Number: 03-0111-15C231 Manufacturer: 3SI Security Systems Model: 1000-7253 Label Information Model: 1000-7253 Advanced Compliance Solutions FCC ID: Q6K 1000-7253 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1 shows the sample label example provided. Figure 2 demonstrates how the Label shown in Figure 1 shall be mounted. Figure 1: Sample Label Figure 2: CSU Unit with Sample Label

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Certification Test Report 433 MHz Alarm System FCC ID: Q6K 1000-7253 FCC Rule Part: 15.231 ACS Report Number: 03-0111-15C231 Manufacturer: 3SI Security Systems Model: 1000-7253 Internal Photographs Model: 1000-7253 Advanced Compliance Solutions FCC ID: Q6K 1000-7253 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Internal – Front View Model: 1000-7253 Advanced Compliance Solutions FCC ID: Q6K 1000-7253 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Internal – Side View Model: 1000-7253 Advanced Compliance Solutions FCC ID: Q6K 1000-7253 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 3: Internal – Rear View Model: 1000-7253 Advanced Compliance Solutions FCC ID: Q6K 1000-7253 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 4: Internal – Side View Model: 1000-7253 Advanced Compliance Solutions FCC ID: Q6K 1000-7253 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 5: Circuit Board – Top View Model: 1000-7253 Advanced Compliance Solutions FCC ID: Q6K 1000-7253 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 6: Circuit Board – Bottom View Model: 1000-7253 Advanced Compliance Solutions FCC ID: Q6K 1000-7253 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 7: RF Circuitry

ACS Report: 03-0091-90TA Page 1 FCC Part 15 Certification Test Report 433 MHz Alarm System FCC ID: Q6K 1000-7253 FCC Rule Part: 15.231 ACS Report Number: 03-0111-15C231 Manufacturer: 3SI Security Systems Model: 1000-7253 RF Exposure Information Model: 1000-7253 Advanced Compliance Solutions FCC ID: Q6K 1000-7253 ACS Report: 03-0091-90TA Page 2 General Information: Applicant: 3Si ACS Project: 03-0111 FCC ID: Q6K 1000-7253 Device Category: Fixed Mount Environment: General Population/Uncontrolled Exposure Technical Information: Antenna Type: Resonant Tank Circuit Antenna Gain: 0dBi Transmitter Conducted Power: -15dBm Maximum System EIRP: -15dBm Operating Configuration: Mounted inside armored automated teller machine Exposure Conditions: Greater than 20 centimeters MPE Calculation The minimum separation distance is calculated as follows: E(V/m) = xPxG30 Power Density: P d =(mW/cm 2 ) = d MPE Distance MPE Calculator for 433MHz Periodic Operated Transmitter Limits for General Population/Uncontrolled Exposure* Transmit Freq. Radio Power Antenna Gain System EIRP MPE Limit MPE Distance (MHz) (dBm) (dBi) (mW) (mW/cm2) (cm) 433 -15 0 0.03 0.29 0.03 Installation Guidelines The installation manual contains the following text advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: “RF Exposure (Intentional Radiators Only) In accordance with FCC requirements of human exposure to radiofrequency fields, the radiating element shall be installed such that a minimum separation distance of (20cm).” Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population. E 2 3770

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Certification Test Report 433 MHz Alarm System FCC ID: Q6K 1000-7253 FCC Rule Part: 15.231 ACS Report Number: 03-0111-15B Manufacturer: 3SI Security Systems Model: 1000-7253 with variants Test Begin Date: June 3, 2003 Test End Date: June 6, 2003 Report Issue Date: July 14, 2003 Prepared by: Reviewed by: R. Sam Wismer Engineering Manager ACS, Inc. Richard Bianco EMI/EMC Approvals Engineer ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 10 pages Table of Contents 1.0 General 3 1.1 Introduction 3 1.2 Product Description 3 1.2.1 Intended Use 3 1.2.2 Technical Specifications 3 2.0 Location of Test Facility 3 2.1 Description of Test Facility 3 2.1.2 Open Area Test Site 4 2.1.2 Conducted Emissions Test Site 4 3.0 Applicable Standards and References 5 4.0 List of Test Equipment 6 5.0 EUT Setup Block Diagram 7 6.0 Summary of Tests 7 6.1 Section 15.207 - Power Line Conducted Emissions 7 6.1.1 Test Methodology 7 6.1.2 Test Results 7 6.2 Section 15.209 - Radiated Emissions (Unintentional Radiation) 7 6.2.1 Test Methodology 7 6.2.2 Test Results 8 6.3 Sections 15.231(a) – Transmission Duration 9 6.3.1 Test Requirement 9 6.3.2 Test Methodology 9 6.3.3 Test Results 9 6.4 Section 15.231(b) – Field Strength of Emisisons 9 6.4.1 Test Requirement 10 6.4.1 Test Methodology 10 6.4.2 Test Results 10 6.5 Section 15.231(c) – Bandwidth Limitation 10 6.5.1 Test Requirement 10 6.5.1 Test Methodology 10 6.5.2 Test Results 10 7.0 CONCLUSION 10 Additional Exhibits Included In Filing Internal Photographs External Photographs Test Setup Photographs Product Labeling RF Exposure – MPE Calculations Technical Documentation Installation/Users Guide Theory of Operation and System Block Diagram Model: 1000-7253 FCC ID: Q6K 1000-7253 ACS Report: 03-0091-15C231 Advanced Compliance Solutions Page 3 1.0 GENERAL 1.1 Introduction The purpose of this report is to demonstrate compliance with 15.231 of the FCC’s Code of Federal Regulations. 1.2 Product Description The EUT is a 433 MHz alarm system classified under Part 15.231 as a periodic transmitter. The cassette slave unit or CSU consist of a printed wiring board housed in a protective enclosure and is located in the removable cassette unit. It receives commands from the MCU, monitors for tilt and motion and in the event of a breach will activate the ink staining mechanism. The EUT is offered in multiple variants as given below: • CSU for DeLaRue MDDM 1000-7281 • CSU for DeLaRue NMD 1000-7282 • CSU for Diebold MMD 1000-7283 • CSU for NCR Wide Body 1000-7275 • CSU for Perto Long 1000-7284 The CSU operates from internal batteries and is designed to operate for up to two years. Detailed photographs of the EUT are filed separately with this filing. 1.2.1 Intended Use The 3Si 1000-7253 Cassette Slave unit is intended to be installed into ATM machines for theft prevention. To be installed only by trained professionals. 2.0 LOCATION OF TEST FACILTY All testing was performed by qualified ACS personnel located at the following address: ACS, Inc. 5015 B.U. Bowman Drive Buford, GA 30518 2.1 DESCRIPTION OF TEST FACILITY Both the Open Area Test Site(OATS) and Conducted Emissions site have been fully described, submitted to, and accepted by the FCC, Industry Canada and the Japanese Voluntary Control Council for Interference by information technology equipment. The following certification numbers have been issued in recognition of these accreditations and certifications: FCC Registration Number: 89450 Industry Canada Lab Code: IC 4175 VCCI Member Number: 1831 ƒ VCCI OATS Registration Number R-1526 ƒ VCCI Conducted Emissions Site Registration Number: C-1608 2.1.1 Open Area Test Site The open area test site consists of a 40’ x 66’ concrete pad covered with a perforated electro-plated galvanized sheet metal. The perforations in the sheet metal are 1/8” holes that are staggered every 3/16”. The individual sheets are placed to overlap each other by 1/4” and are riveted together to provide a continuous seam. Rivets are spaced every 3” in a 3 x 20 meter perimeter around the antenna mast and EUT area. Rivets in the remaining area are spaced as necessary to properly secure the ground plane and maintain the electrical continuity. Model: 1000-7253 FCC ID: Q6K 1000-7253 ACS Report: 03-0091-15C231 Advanced Compliance Solutions Page 4 The entire ground plane extends 12’ beyond the turntable edge and 16’ beyond the antenna mast when set to a 10 meter measurement distance. The ground plane is grounded via 4 - 8’ copper ground rods, each installed at a corner of the ground plane and bound to the ground plane using 3/4" stainless steel braided cable. The turntable is an all aluminum 10’ flush mounted table installed in an all aluminum frame. The table is remotely operated from inside the control room located 40’ from the range. The turntable is electrically bonded to the surrounding ground plane via steel fingers installed on the edge of the turn table. The steel fingers make constant contact with the ground plane during operation. Adjacent to the turntable is a 7’ x 7’ square and 4’ deep concrete pit used for support equipment if necessary. The pit is equipped with 5 - 4” PVC chases from the pit to the control room that allow for cabling to the EUT if necessary. The underside of the turntable can be accessed from the pit so cables can be supplied to the EUT from the pit. The pit is covered with 2 sheets of 1/4" diamond style re-enforced steel sheets. The sheets are painted to match the perforated steel ground plane, however the underside edges have been masked off to maintain the electrical continuity of the ground plane. All reflecting objects are located outside of the ellipse defined in ANSI C63.4. A diagr…

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 FCC Part 15 Certification Test Report 433 MHz Alarm System FCC ID: Q6K 1000-7253 FCC Rule Part: 15.231 ACS Report Number: 03-0111-15C231 Manufacturer: 3SI Security Systems Model: 1000-7253 Test Setup Photographs Model: 1000-7253 Advanced Compliance Solutions FCC ID: Q6K 1000-7253 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 1: Radiated Emissions – Front View Model: 1000-7253 Advanced Compliance Solutions FCC ID: Q6K 1000-7253 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Figure 2: Radiated Emissions – Rear View
