ZM-1100-PA/ZM-3100-PA User’s Manual, Ver. 1.0 Page 1 ZM-1100-PA/ZM-3100-PA User’s Manual Warranty All products manufactured by ICP DAS are warranted against defective materials for a period of one year from the date of delivery to the original purchaser. Warning ICP DAS assumes no liability for damages consequent to the use of this product. ICP DAS reserves the right to change this manual at any time without notice. The information furnished by ICP DAS is believed to be accurate and reliable. However, no responsibility is assumed by ICP DAS for its use, or for any infringements of patents or other rights of third parties resulting from its use. Copyright Copyright 2013 by ICP DAS. All rights are reserved. Trademark The names used for identification only may be registered trademarks of their respective companies. ZM-1100-PA/ZM-3100-PA User’s Manual, Ver. 1.0 Page 2 1. Introduction The ZM-1100-PA/ZM-3100-PA is a FCC certified design and a small-sized wireless-UART converter solution consisting of a micro controller unit with RF transceiver and a RF power amplifier front-end, or often called the low-noise amplifier (LNA), and it offers excellent the sensitivity. ZM module is based on the 2.4 GHz IEEE 802.15.4 standard, and it contains ZigBee firmware and can be controlled through an external host/system microcontroller or external evaluation software through the UART interface. We use the same hardware but the different firmware to achieve the ZigBee Coordinator or Router. 2. Models ZM-1100-PA/ZM-3100-PA module is intended for OEM integrator. The modules includes PA/LNA, Dipole Antenna Connector. It depends on market positioning to install firmware. 3. Features • 48.1 mm x 29 mm PCB • 7x2 mm spacing pin connector • Utilizes globally available 2.4 GHz ISM band • Control and Configuration with specific commands via [email protected]. • Programmable Transmit Power Output, Max 1 2.4 dBm. • Typical Receiver Sensitivity -97dBm. • Typical Data Rate 250Kbps. • Complete IEEE 802.15.4 Spec. compliant. • ZigBee 2007 Pro installed. • 65527 unique node addresses. • Typical transmission range 700 meters(Line of Sight). • Required Supply Voltage: 2 to 3.6VDC. • Operating Temperature: -25°C to +75°C • Storage temperature: -40 to +80°C • RoHS. 4. Protocol Overview The bidirectional data exchange between an external host/system microcontroller and the ZM-1100-PA/ZM-3100-PA uses the hardware UART and follows the RS232 protocol. This RS232 protocol is summarized in Table 1. Table 1. Host RS232 Serial Interface Communication Parameters PARAMETER PARAMETERS DESCRIPTION Baud Rate 115.2Kbps Start Bits 1 Data Bits 8 8 Stop Bits 1 1 Parity None None ZM-1100-PA/ZM-3100-PA User’s Manual, Ver. 1.0 Page 3 FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE: F CC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. ZM-1100-PA/ZM-3100-PA User’s Manual, Ver. 1.0 Page 4 IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of…

Text truncated - open the document above for the full version.

ICP DAS Co., Ltd. No. 111, Guangfu N. Rd., Hukou Township, Hsinchu Country 30351, Taiwan, R.O.C. Tel: +886-7-215-7688 Ext.34 / Fax: +886-7-216-2602 Confidential Letter Date: 2013/3/4 Federal Communications Commission Authorization and Evaluation Division FCC ID：Q6M-ZM31001100-PA Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Note: The registered grantee contact is not available, Kennis, Tsai is signing for grantee contact. He/She can be reached at email: [email protected]. Sincerely, Applicant’s company name : ICP DAS Co., Ltd. Applicant’s company address : No. 111, Guangfu N. Rd., Hukou Township, Hsinchu Country 30351, Taiwan, R.O.C. Signature : _____________________________ Signed for King Fu Job Title and Dept. : King Fu / Engineer E-Mail : [email protected] Tel. : +886-7-215-7688 Ext.34

Page No. : 22 Module Approval Request Letter Subject: Module Approval Date: 2013/3/4 FCC ID: Q6M-ZM31001100-PA Dear Reviewer, We, Sporton International Inc., are authorized by ICP DAS Co., Ltd. to have their state-of-the-art Wireless Module approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip MCUQFN-40. 3. The requirement of power supply regulation: The power regulator has been integrated in chip MCUQFN-40. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

ICP DAS Co., Ltd. No. 111, Guangfu N. Rd., Hukou Township, Hsinchu Country 30351, Taiwan, R.O.C. Tel: +886-7-215-7688 Ext.34 / Fax: +886-7-216-2602 Power of Attorney Date: 2013/3/4 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: ICP DAS / ZM-1100-PA/ZM-3100-PA FCC ID: Q6M-ZM31001100-PA Product name: Wireless Module Note: The registered grantee contact is not available, Kennis, Tsai is signing for grantee contact. He/She can be reached at email: [email protected]. FCC Grantee contact person information. Applicant’s company name : ICP DAS Co., Ltd. Applicant’s company address : No. 111, Guangfu N. Rd., Hukou Township, Hsinchu Country 30351, Taiwan, R.O.C. Signature : _____________________________ Signed for King Fu Job Title and Dept. : King Fu / Engineer E-Mail : [email protected] Tel. : +886-7-215-7688 Ext.34

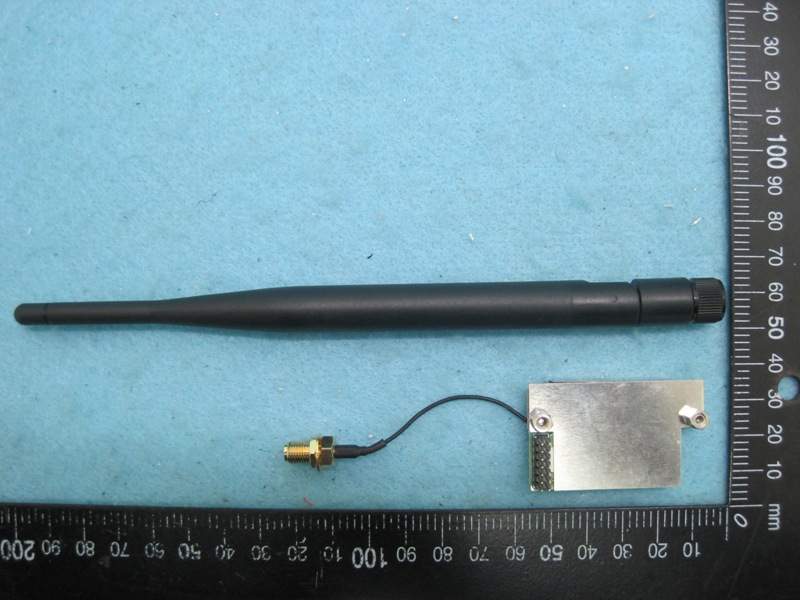

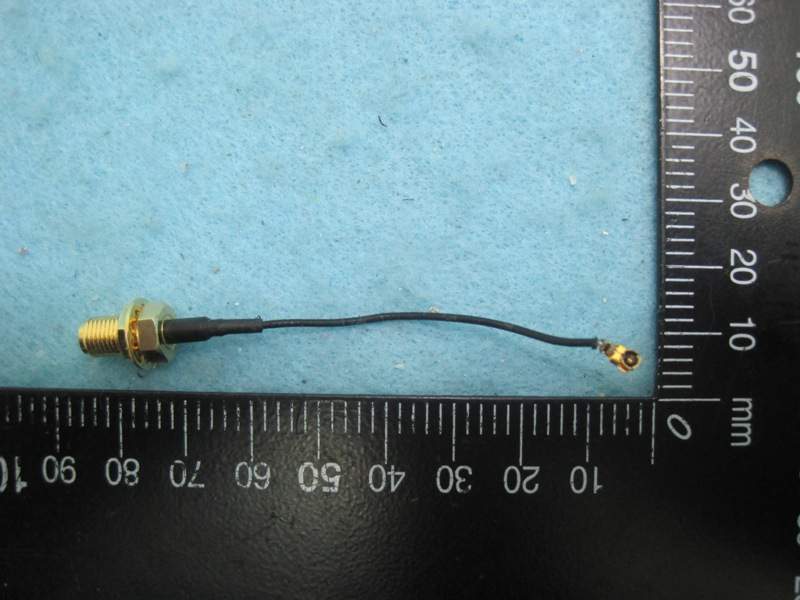

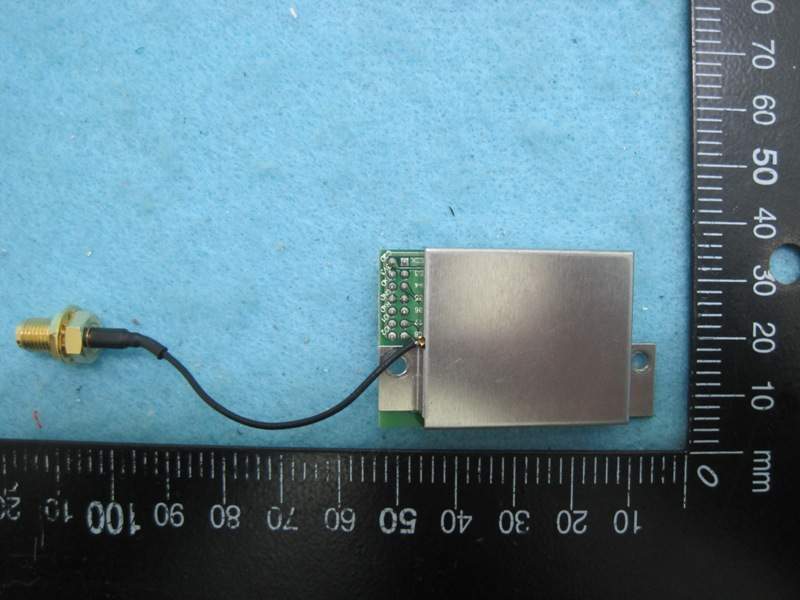

Report No.:2N2910 SPORTON International Inc. PAGE NUMBER : 1 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.:2N2910 SPORTON International Inc. PAGE NUMBER : 2 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255 Report No.:2N2910 SPORTON International Inc. PAGE NUMBER : 3 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255 Report No.:2N2910 SPORTON International Inc. PAGE NUMBER : 4 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255 Report No.:2N2910 SPORTON International Inc. PAGE NUMBER : 5 OF 5 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255

35mm 10.5mm

Report No.:2N2910 SPORTON International Inc. PAGE NUMBER : 1 OF 4 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255 Photographs of EUT Report No.:2N2910 SPORTON International Inc. PAGE NUMBER : 2 OF 4 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255 Report No.:2N2910 SPORTON International Inc. PAGE NUMBER : 3 OF 4 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255 Report No.:2N2910 SPORTON International Inc. PAGE NUMBER : 4 OF 4 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 15, 2013 FAX : 886-2-2696-2255

Report No.: FR2N2910 FCC ID: Q6M-ZM31001100-PA Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR2N2910 FCC ID: Q6M-ZM31001100-PA Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR2N2910 FCC ID: Q6M-ZM31001100-PA Page No. : B3 of B3 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power: 12.4 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.70 3.7154 12.4000 17.3780 0.012851 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company ICP DAS Co., Ltd. Applicant Address No. 111, Guangfu N. Rd., Hukou Township, Hsinchu Country 30351, Taiwan, R.O.C. FCC ID Q6M-ZM31001100-PA Manufacturer’s company ICP DAS Co., Ltd. Manufacturer Address No. 111, Guangfu N. Rd., Hukou Township, Hsinchu Country 30351, Taiwan, R.O.C. Product Name Wireless Module Brand Name ICP DAS Model Name ZM-1100-PA/ZM-3100-PA Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2405~ 2475MHz Received Date Nov. 29, 2012 Final Test Date Mar. 12, 2013 Submission Type Original Equipment Multiple Listing Please refer to section 3.7 Statement Test result included is only for the IEEE 802.15.4 ZigBee part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v02 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR2N2910 Report Format Version: 01 Page No. : i of ii FCC ID: Q6M-ZM31001100-PA Issued Date :Mar. 13, 2013 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 3 3.3. Table for Filed Antenna ............................................................................................................................................................................. 3 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 3 3.5. Table for Test Modes .................................................................................................................................................................................. 4 3.6. Table for Testing Locations........................................................................................................................................................................ 4 3.7. Table for Multiple Listing ............................................................................................................................................................................ 4 3.8. Table for Supporting Units ......................................................................................................................................................................... 5 3.9. Table for Parameters of Test Software Setting ....................................................................................................................................... 5 3.10. Test Configurations..................................................................................................................................................................................... 6 4. TEST RESULT........................................................................................................................................................... 8 4.1. AC Power Line Conducted Emissions Measurement ........................................................................................................................... 8 4.2. Maximum Conducted Output Power Measurement......................................................................................................................... 12 4.3. Power Spectral Density Measurement.................................................................................................................................................. 14 4.4. 6dB Spectrum Bandwidth Measurement ............................................................................................................................................. 18 4.5. Radiated Emissions Measurement......................................................................................................................................................... 21 4.6. Emissions Measurement........................................................................................................................................................................... 30 4.7. Antenna Requirements ........................................................................................................................................................................... 35 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................... 36 6. TEST LOCATION.................................................................................................................................................. 38 APPENDIX A. TEST PHOTOS.......................................................................................…
