Q6MZBUPS0001ZigBee Module

Page No. : 21 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2010/4/16 FCC ID: Q6MZBUPS0001 Dear Reviewer, We, Sporton International Inc., are authorized by ICP DAS CO., LTD. to have their state-of-the-art ZigBee Module approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip C8051F340. 3. The requirement of power supply regulation: No power regulator can provide stability power source. But specific of hosts have 3.3Vdc regulator to provide stability power via mini-PCI interface to EUT. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: N/A as exempted due to low output power. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

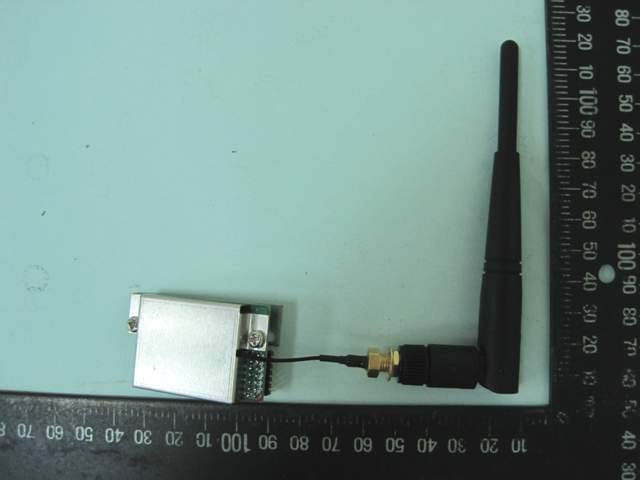

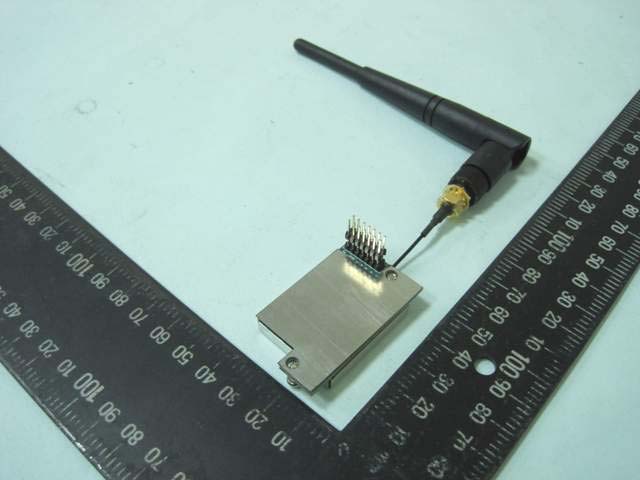

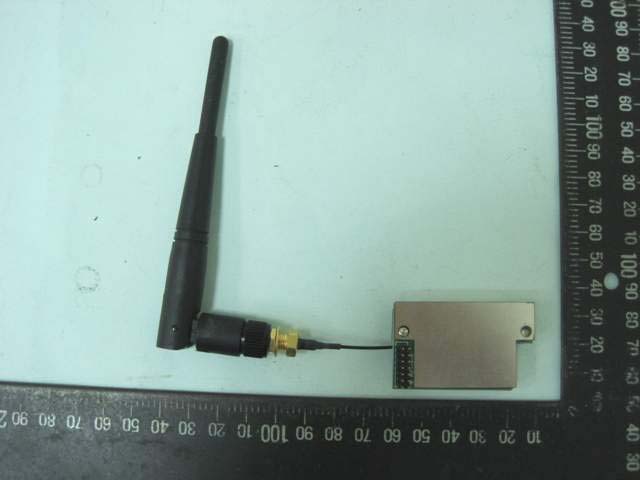

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 06, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 06, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 06, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 06, 2010 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 06, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 06, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 06, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 06, 2010 FAX : 886-2-2696-2255

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company ICP DAS CO., LTD. Applicant Address No. 111, Kuangfu N. Rd., Hukon Shiang, Hsinchu, Taiwan 303, R.O.C. FCC ID Q6MZBUPS0001 Manufacturer’s company ICP DAS CO., LTD. Manufacturer Address No. 111, Kuangfu N. Rd., Hukon Shiang, Hsinchu, Taiwan 303, R.O.C. Product Name ZigBee Module Brand Name ICP DAS Model Name ZB-UPS01 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2405 ~ 2475MHz Received Date Apr. 02, 2010 Final Test Date May 06, 2010 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.15.4 ZigBee part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR040224 Report Format Version: 01 Page No. : i of ii FCC ID: Q6MZBUPS0001 Issued Date : May 07, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................3 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................4 3.7. Table for Supporting Units ...................................................................................................................................................................4 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................4 3.9. Test Configurations .............................................................................................................................................................................5 4. TEST RESULT ..................................................................................................................................................... 7 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................7 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................11 4.3. Power Spectral Density Measurement ..............................................................................................................................................15 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................19 4.5. Radiated Emissions Measurement ....................................................................................................................................................23 4.6. Band Edge Emissions Measurement .................................................................................................................................................32 4.7. Antenna Requirements .....................................................................................................................................................................35 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 36 TEST LOCATION ................................................................................................................................................. 38 6. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 39 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A8 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B6 Report No.: FR040224 Report Format Version: 01 Page No. : ii of ii FCC ID: Q6MZBUPS0001 Issued Date : May 07, 2010 History of T…

Text truncated - open the document above for the full version.

Report No.: FR040224 FCC ID: Q6MZBUPS0001 Page No. : 1 of 6 Appendix B. Test Photos Report No.: FR040224 FCC ID: Q6MZBUPS0001 Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR040224 FCC ID: Q6MZBUPS0001 Page No. : 3 of 6 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR040224 FCC ID: Q6MZBUPS0001 Page No. : 4 of 6 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR040224 FCC ID: Q6MZBUPS0001 Page No. : 5 of 6 SIDE VIEW Report No.: FR040224 FCC ID: Q6MZBUPS0001 Page No. : 6 of 6 Above 1GHz FRONT VIEW REAR VIEW
