Linksys AE3000 Regulatory Information 1 Regulatory Information/Conformité aux normes Linksys AE3000 1 Regulatory Information/ Conformité aux normes Safety Notices WARNING: Do not use this product near water, for example, in a wet basement or near a swimming pool. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. WARNING: This product contains lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. NOTE: In the US/Canada region, recommended to be used with UL- listed computers only. NOTICE: This product meets applicable international SAR limits of 2.0W/kg or FCC SAR limit of 1.6W/kg for FCC. The specific maximum SAR values can be found in the regulatory compliance section of this user guide. Avis de sécurité AVERTISSEMENT : Ne pas utiliser ce produit à proximité de l’eau, par exemple dans un soussol humide ou près d’une piscine. AVERTISSEMENT : Éviter l’utilisation de ce produit pendant un orage. Les éclairs peuvent provoquer des décharges électriques à distance. AVERTISSEMENT : Ce produit contient du plomb, réputé dans l’État de Californie pour causer le cancer, des anomalies congénitales ou d’autres troubles de la reproduction. Se laver les mains après manipulation. AVIS : Pour les États-Unis et le Canada, utiliser uniquement avec un ordinateur figurant sur la liste UL. AVIS : Ce produit est conforme aux limites SAR applicables internationalement de 2 W/kg ou aux limites SAR de la FCC de 1,6 W/kg. Les valeurs SAR maximum spécifiques sont indiquées dans la section de conformité aux normes du présent guide de l’utilisateur. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: 2 Regulatory Information/Conformité aux normes Linksys AE3000 •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. Déclaration de la FCC Cet équipement a été testé et déclaré conforme aux normes des équipements numériques de catégorie B, conformément à la section 15 des règlements FCC. L’objectif de ces normes est de fournir une protection raisonnable contre toute interférence nuisible dans une installation résidentielle. Cet équipement génère, utilise et peut émettre de l’énergie à hautes fréquences nuisible et, s’il n’est pas installé et utilisé selon les instructions, peut provoquer des interferences gênantes pour les communications radio. Toutefois, il n’est pas garanti que son fonctionnement ne provoque pas d’interférences dans une installation donnée. Si cet équipement provoque des interférences gênantes pour la reception des ondes de radio ou de télévision (détectables par la mise hors tension et sous tension de l’équipement), l’utilisateur peut tenter d’y remédier de différentes façons : •Réorientation ou déplacement de l’antenne de réception. •Augmentation de la distance entre cet équipement et les appareils. •Branchement de l’équipement sur une prise différente de celle du récepteur. •Demande d’aide à un revendeur ou technicien radio/télévision expérimenté. AVERTISSEMENT : Tout changement ou toute modification non expressément autorisé(e) par la partie responsable du respect des termes du présent contrat peut annuler la possibilité de l’utilisateur de se servir de l’équipement Cet équipement a été testé et déclaré conforme aux normes des équipements numériques de catégorie B, conformément à la section 15 des règlements FCC. L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes : 1. il ne doit pas produire de brouillage et 2. l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. La disponibilité de certains canaux spécifiques et / ou bandes de fréquences de fonctionnement est définie par pays. Ces canaux et / ou bandes de fréquences sont programmés dans le firmware en usine pour correspondre à la destination prévue. Le réglage du firmware n’est pas accessible par l’utilisateur final. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must maintain 0.50 cm distance away from the USB device. Please refer to “Generic Discussion on RF Exposure” below for further detail. This transmitter must not be co-located or operat…

Text truncated - open the document above for the full version.

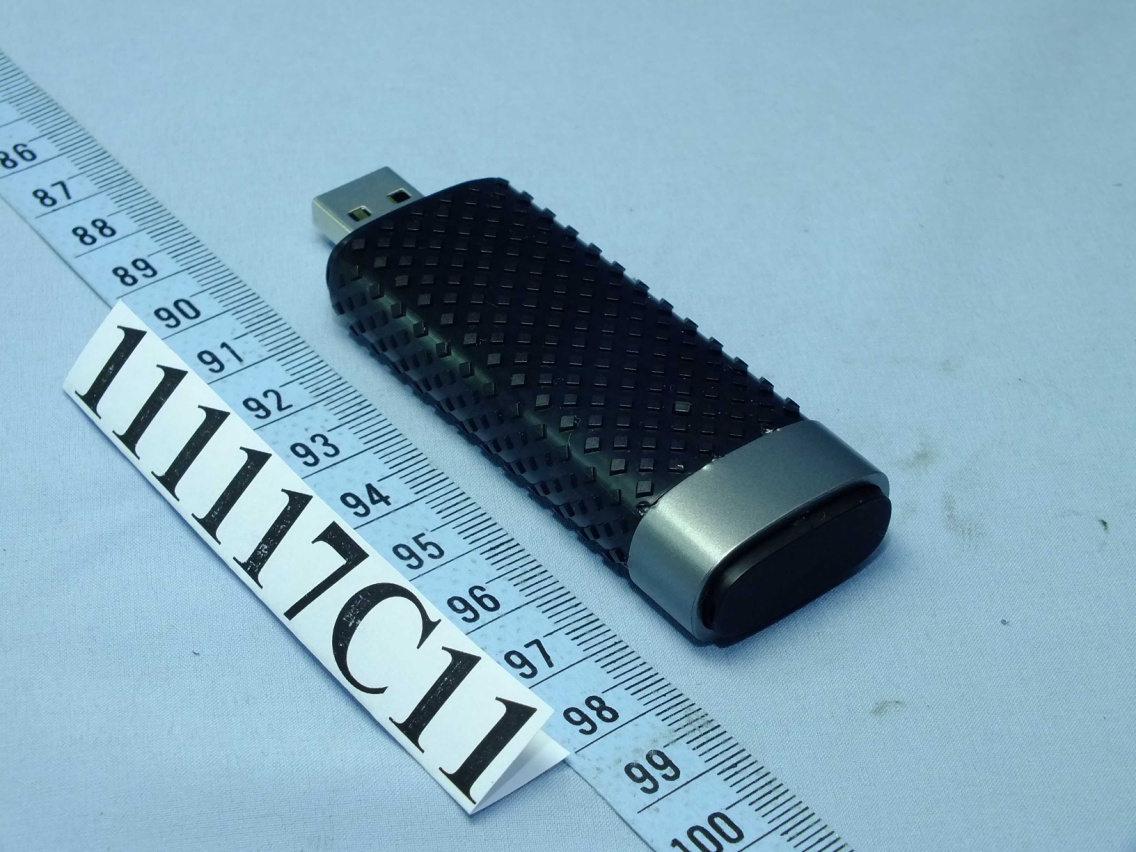

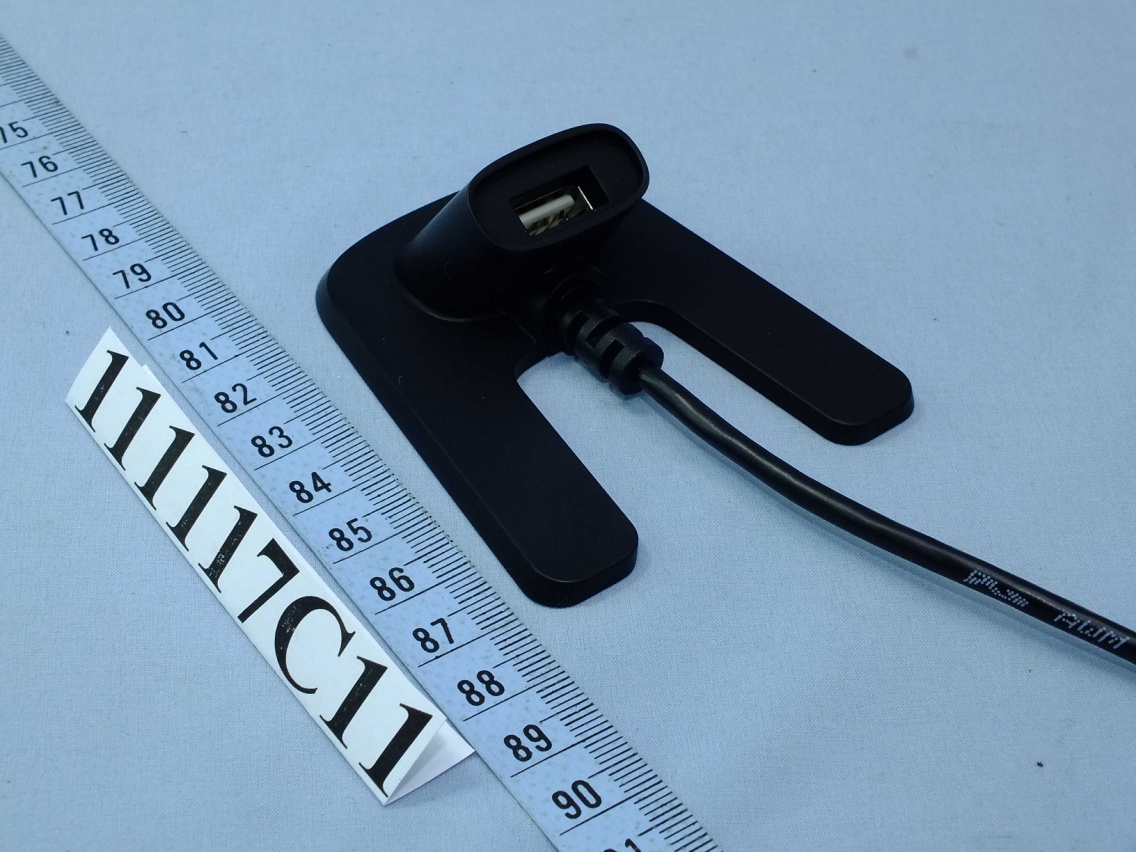

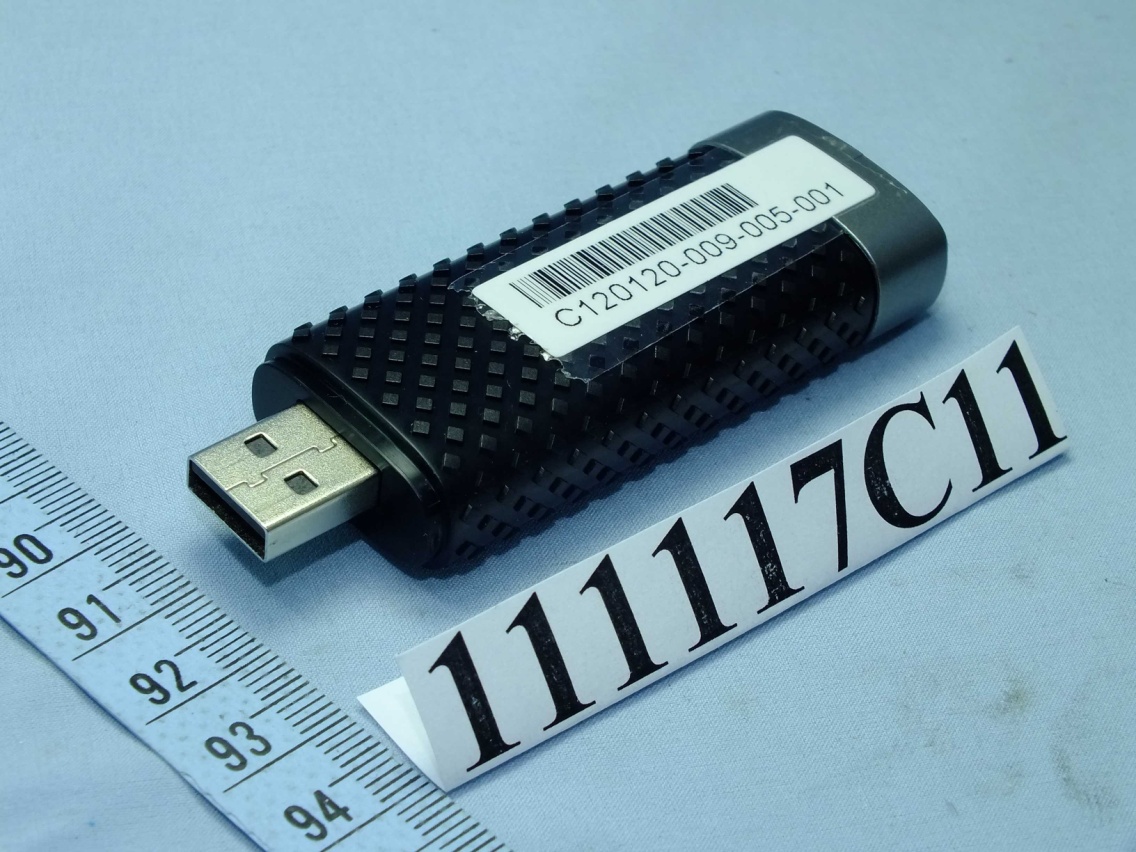

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

CDFE1FB12672 AE3000 FCC ID: Q87-AE3000 IC:3839A-AE3000 AE3000_Pad printing20111121

Page 5 Page 6 Page 7 Page 8 Page 9

FCC SAR Test Report Report Format Version 4.1.0 Page No. : 1 of 27 Report No. : SA111117C11 Issued Date : Mar. 12, 2012 Revision : R01 FCC SAR Test Report Report No. : SA111117C11 Applicant : Cisco Consumer Products LLC Address : 121 Theory Drive Irvine California 92617 United States Product : 802.11 a/b/g/n dongle FCC ID : Q87-AE3000 Brand : CISCO Model No. : AE3000 Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1991 / IEEE 1528:2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) KDB 248227 D01 v01r02 / KDB 447498 D01 v04 / KDB 447498 D02 v02 Date of Testing : Feb. 23, 2012 ~ Mar. 07, 2012 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch - Taiwan HwaYa Lab, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. This test report consists of 27 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Prepared By : Andrea Hsia / Specialist Approved By : Roy Wu / Manager FCC SAR Test Report Report Format Version 4.1.0 Page No. : 2 of 27 Report No. : SA111117C11 Issued Date : Mar. 12, 2012 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement System ................................................................................................................................................... 6 3.1 Definition of Specific Absorption Rate (SAR) ................................................................................................................ 6 3.2 SPEAG DASY System ................................................................................................................................................. 6 3.2.1 Robot.................................................................................................................................................................. 7 3.2.2 Probes ................................................................................................................................................................ 8 3.2.3 Data Acquisition Electronics (DAE) .................................................................................................................... 8 3.2.4 Phantoms ........................................................................................................................................................... 9 3.2.5 Device Holder ................................................................................................................................................... 10 3.2.6 System Validation Dipoles ................................................................................................................................ 10 3.2.7 Tissue Simulating Liquids ................................................................................................................................. 11 3.3 SAR System Verification ............................................................................................................................................ 14 3.4 SAR Measurement Procedure ................................................................................................................................... 15 3.4.1 Area & Zoom Scan Procedure ......................................................................................................................... 15 3.4.2 Volume Scan Procedure................................................................................................................................... 15 3.4.3 Power Drift Monitoring ...................................................................................................................................... 15 3.4.4 Spatial Peak SAR Evaluation ........................................................................................................................... 16 3.4.5 SAR Averaged Methods ................................................................................................................................... 16 4. SAR Measurement Evaluation ............................................................................................................................................ 17 4.1 EUT Configuration and Setting ................................................................................................................................... 17 4.2 EUT Testing Position .................................................................................................................................................. 17 4.3 Tissue Verification ...................................................................................................................................................... 18 4.4 System Verification ..................................................................................................................................................... 18 4.5 Conducted Power Results .........................................…

Text truncated - open the document above for the full version.

Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/03/01 System Check_B2450_120301 DUT: Dipole 2450 MHz; Type: D2450V2; SN: 737 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: B2450_0301 Medium parameters used: f = 2450 MHz; σ = 1.976 mho/m; ε r = 50.932; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3661; ConvF(7.5, 7.5, 7.5); Calibrated: 2012/01/27 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2011/09/23 - Phantom: SAM Phantom_Left; Type: SAM; Serial: 1202 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 19.535 mW/g Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 99.379 V/m; Power Drift = -0.0068 dB Peak SAR (extrapolated) = 25.6100 SAR(1 g) = 12.4 mW/g; SAR(10 g) = 5.74 mW/g Maximum value of SAR (measured) = 18.638 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/02/23 System Check_B5200_120223 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1018 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: B5G_0223 Medium parameters used: f = 5200 MHz; σ = 5.163 mho/m; ε r = 47.766; ρ = 1000 kg/m 3 Ambient Temperature：21.5 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3661; ConvF(4.24, 4.24, 4.24); Calibrated: 2012/01/27 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2011/09/23 - Phantom: SAM Phantom_Front; Type: SAM; Serial: TP-1485 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=100mW, f=5200 MHz/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 15.895 mW/g Pin=100mW, f=5200 MHz/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 59.865 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 26.9520 SAR(1 g) = 7.54 mW/g; SAR(10 g) = 2.23 mW/g Maximum value of SAR (measured) = 15.572 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/02/24 System Check_B5200_120224 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1018 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: B5G_0224 Medium parameters used: f = 5200 MHz; σ = 5.208 mho/m; ε r = 50.972; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3661; ConvF(4.24, 4.24, 4.24); Calibrated: 2012/01/27 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2011/09/23 - Phantom: SAM Phantom_Front; Type: SAM; Serial: TP-1485 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=100mW, f=5200 MHz/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 15.819 mW/g Pin=100mW, f=5200 MHz/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 59.517 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 26.8440 SAR(1 g) = 7.55 mW/g; SAR(10 g) = 2.24 mW/g Maximum value of SAR (measured) = 15.629 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/02/29 System Check_B5200_120229 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1018 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: B5G_0229 Medium parameters used: f = 5200 MHz; σ = 5.194 mho/m; ε r = 50.928; ρ = 1000 kg/m 3 Ambient Temperature：22.0 °C; Liquid Temperature：21.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN3661; ConvF(4.62, 4.62, 4.62); Calibrated: 2012/01/27 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2011/09/23 - Phantom: SAM Phantom_Front; Type: SAM; Serial: TP-1485 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=100mW, f=5200 MHz/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 15.991 mW/g Pin=100mW, f=5200 MHz/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 59.865 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 27.1150 SAR(1 g) = 7.59 mW/g; SAR(10 g) = 2.24 mW/g Maximum value of SAR (measured) = 15.666 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/03/07 System Check_B5200_120307 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1018 Communication System: CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: B5G_0307 Medium parameters used: f = 5200 MHz; σ = 5.185 mho/m; ε r = 50.911; ρ = 1000 kg/m 3 Ambient Temperature：21.4 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3650; ConvF(4.28, 4.28, 4.28); Calibrated: 2011/10/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn861; Calibrated: 2011/08/29 - Phantom: SAM Phantom_Front; Type: SAM; Serial: TP-1485 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Pin=100mW, f=5200 MHz/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 13.088 mW/g Pin=100mW, f=5200 MHz/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2.5mm Reference Value = 55.355 V/m; Power Drift = -0.158 dB Peak SAR (extrapolated) = 20.2810 SAR(1 g) = 6.71 mW/g; SAR(10 g) = 1.92 mW/g Maximum value of SAR (measured) = 12.861 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/02/23 System Check_B5500_120223 DUT: Dipole 5 GHz; Type: D5GHzV2; SN: 1018 Communication System: CW; Frequency: 5500 MHz;Duty Cycle: 1:1 Medium: B5G_0223 Medium parameters used: f = 5500 MHz; σ = 5.663 mho/m; ε r = 47.654; ρ = 1000 kg/m 3 Ambient Temperature：21.5 °C; Liquid Temperature：20.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3661; ConvF(4.24, 4.24, 4.24); Calibrated: 2012/01/27 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2011/09/23 - Phantom: SAM Phantom_Front;…

Text truncated - open the document above for the full version.

Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/03/01 P01 802.11b_Horizontal Up_0.5cm_Ch11_Ch0 DUT: 111117C11 Communication System: WLAN 2450; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: B2450_0301 Medium parameters used: f = 2462 MHz; σ = 1.993 mho/m; ε r = 50.881; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3661; ConvF(7.5, 7.5, 7.5); Calibrated: 2012/01/27 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2011/09/23 - Phantom: SAM Phantom_Left; Type: SAM; Serial: 1202 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Ch11/Area Scan (31x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.198 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.108 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.3050 SAR(1 g) = 0.146 mW/g; SAR(10 g) = 0.067 mW/g Maximum value of SAR (measured) = 0.207 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/03/01 P02 802.11b_Horizontal Down_0.5cm_Ch11_Ch0 DUT: 111117C11 Communication System: WLAN 2450; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: B2450_0301 Medium parameters used: f = 2462 MHz; σ = 1.993 mho/m; ε r = 50.881; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3661; ConvF(7.5, 7.5, 7.5); Calibrated: 2012/01/27 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2011/09/23 - Phantom: SAM Phantom_Left; Type: SAM; Serial: 1202 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Ch11/Area Scan (31x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.214 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.561 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.4090 SAR(1 g) = 0.193 mW/g; SAR(10 g) = 0.087 mW/g Maximum value of SAR (measured) = 0.279 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/03/01 P03 802.11b_Vertical Front_0.5cm_Ch11_Ch0 DUT: 111117C11 Communication System: WLAN 2450; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: B2450_0301 Medium parameters used: f = 2462 MHz; σ = 1.993 mho/m; ε r = 50.881; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3661; ConvF(7.5, 7.5, 7.5); Calibrated: 2012/01/27 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2011/09/23 - Phantom: SAM Phantom_Left; Type: SAM; Serial: 1202 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Ch11/Area Scan (31x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.059 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.623 V/m; Power Drift = 0.132 dB Peak SAR (extrapolated) = 0.1050 SAR(1 g) = 0.051 mW/g; SAR(10 g) = 0.024 mW/g Maximum value of SAR (measured) = 0.074 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/03/01 P04 802.11b_Vertical Back_0.5cm_Ch11_Ch0 DUT: 111117C11 Communication System: WLAN 2450; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: B2450_0301 Medium parameters used: f = 2462 MHz; σ = 1.993 mho/m; ε r = 50.881; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3661; ConvF(7.5, 7.5, 7.5); Calibrated: 2012/01/27 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2011/09/23 - Phantom: SAM Phantom_Left; Type: SAM; Serial: 1202 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Ch11/Area Scan (31x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.142 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.947 V/m; Power Drift = 0.142 dB Peak SAR (extrapolated) = 0.2850 SAR(1 g) = 0.132 mW/g; SAR(10 g) = 0.060 mW/g Maximum value of SAR (measured) = 0.189 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/03/01 P05 802.11b_HT20_Tip Mode_0.5cm_Ch11_Ch0 DUT: 111117C11 Communication System: WLAN 2450; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: B2450_0301 Medium parameters used: f = 2462 MHz; σ = 1.993 mho/m; ε r = 50.881; ρ = 1000 kg/m 3 Ambient Temperature：21.7 °C; Liquid Temperature：20.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3661; ConvF(7.5, 7.5, 7.5); Calibrated: 2012/01/27 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2011/09/23 - Phantom: SAM Phantom_Left; Type: SAM; Serial: 1202 - Measurement SW: DASY52, Version 52.8 (0); SEMCAD X Version 14.6.4 (4989) Ch11/Area Scan (31x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.038 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.829 V/m; Power Drift = 0.143 dB Peak SAR (extrapolated) = 0.0540 SAR(1 g) = 0.026 mW/g; SAR(10 g) = 0.014 mW/g Maximum value of SAR (measured) = 0.039 mW/g Test Laboratory: Bureau Veritas ADT SAR/HAC Testing Lab Date: 2012/02/24 P08 802.11a_Horizontal Up_0.5cm_Ch40_Ch0 DUT: 111117C11 Communication System: WLAN 5G; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: B5G_0224 Medium parameters used: f = 5200 MHz; σ = 5.208 mho/m; ε r = 50.972; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3661; ConvF(4.62, 4.62, 4.62); Calibrated: 2012/01/27 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2011/09/23 - Phantom: SAM Phantom_Front; Type: SAM; Serial: TP-1485 - Measurement SW: DASY5…
