Q87-CG2P2WB2.4 GHz Wireless Mini-PCI Card

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: : ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) For the following equipment: Product Name: 2.4GHz wireless Mini PCI card Model Number: CG2P2WB, CG2P2W / CG2P2WB-XX, CG2P2W (XX where XX is any combination of alphanumeric characters (0 to 9, a to z, A to Z)) Is herewith confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number D930820L04 And this compliance is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation. The following local Manufacturer/Importer is responsible for this declaration: Cisco-Linksys, LLC (Company Name) 121 Theory Drive Irvine, CA 92612 (USA) (Company Address) TEL：( 949 ) 823-3188 FAX： ( 949 ) 261-8868 Jennifer Yu/ Associate Engineer (Name) / (Title) (Signature) / (Date)

54Mbps 802.11g Wireless LAN Card User’s Manual Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of the seller. The seller provides this documenta tion without warranty, term, or condition of any kind. The seller may make improvements or changes in the product( s) and/or the program(s) described in this documentation at any time. Other product and company names herein may be trademarks of their respective owners.  2002 All rights reserved. Rev: 01 January 2003 I Contents About This Manual.............................................................................................................. .......................................... V Chapter 1 In troduct ion........................................................................................................ ....................................... 1 Wireless LAN Basics ............................................................................................................ ....................................... 2 Local Area Ne twork (LAN)....................................................................................................... .................................................2 Ad-Hoc Mode .................................................................................................................... ........................................................3 Infrastructu re Mode ............................................................................................................ ......................................................4 Roaming ........................................................................................................................ ............................................................5 Chapter 2 Installing the Wireless LAN Card.................................................................................... ........................ 7 System Requirements ............................................................................................................ ..................................... 7 Installing Wireless LA N Driver and Software .................................................................................... .......................... 8 Chapter 3 Using Broadcom Wi reless Configur ation Utility ....................................................................... .......... 11 Accessing Broadcom Wireless Configurat ion Utility .............................................................................. ................... 12 Notice When Assessing Broadc om Utility unde r Windows XP........................................................................ ........................12 Wireless Netw orks Tab .......................................................................................................... ................................... 15 Connecting to an Exis ting Wireless Network ..................................................................................... .....................................15 Configuring a New Wirele ss Network Co nnection.................................................................................. ................................17 54Mbps 802.11g Wireless LAN Card II Configuring an Existing Wire less Network Connection ............................................................................ ..............................20 Specifying a Network Type to Access ............................................................................................ ..........................................21 Link Status Tab ................................................................................................................ ......................................... 22 Statistics ..................................................................................................................... ............................................... 25 Site Monitor ................................................................................................................... ............................................ 26 Advanced Site Monitor .......................................................................................................... ..................................................29 Diagnostics Tab................................................................................................................ ......................................... 32 Informati on Tab ................................................................................................................ ......................................... 35 Chapter 4 Windows XP Wirel ess Zero Configur ation Utility ...................................................................... ......... 37 Connecting to an Access Poin t or Wireless LAN Card ............................................................................. ..............................37 Viewing Wireless C onnection Status ............................................................................................. ..........................................39 Configuring Your Wi reless Prop erties ........................................................................................... .........................................40 Chapter 7 Tr oubleshoo ting ..................................................................................................... ................................ 47 Radio Inte rference............................................................................................................. ........................................ 47 Card Not Detected.............................................................................................................. ....................................... 48 Cannot Connect to Anot her Wireless LAN…

Text truncated - open the document above for the full version.

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: Q87-CG2P2WB Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Phone: 949-823-3188 Fax: 949-261-8868 [email protected]

FCC ID: Q87-CG2P2WB2 Report No:RF930820L04A Modular Approval Request Letter Advance Data Technology 01 December, 2004 Dear Application Examiner, Cisco-Linksys, LLC, It’s 2.4GHz wireless Mini PCI card, FCC ID: Q87-CG2P2WB2, would like to have your authorization as a full modular approval specific to the mobile device such as Access Point. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM4306. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 1.80V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is LP298518. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: Q87-CG2P2WB2 Report No:RF930820L04A 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Cody Chang Deputy Manager Advance Data Technology

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: September 1, 2004 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 261-1288 Fax: ( 949 ) 261-8868 [email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 1, 2004 RE: Cisco-Linksys, LLC. FCC ID: Q87-CG2P2WB After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please provide a higher resolution label exhibit. The FCC ID could not be read. 2) There appears to be a problem with presentation of data for data point 1 on page 25, vertical polarity (Frequency and emissions level). Please review and correct as necessary. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Dear Tim The test report and label have been revised and uploaded to website. Please check. If no other comment, would you please send the grant today? Thanks for your assistance! Best Regards Wendy Liao Page 1 of 1In 11/3/2004Printed for "Timothy R. Johnson" <[email protected]>

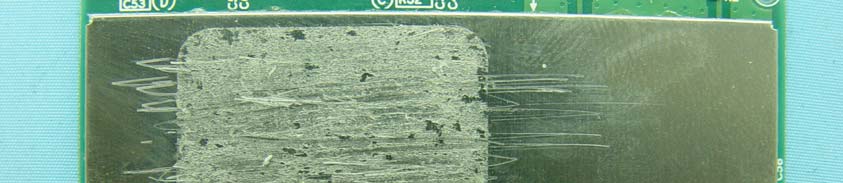

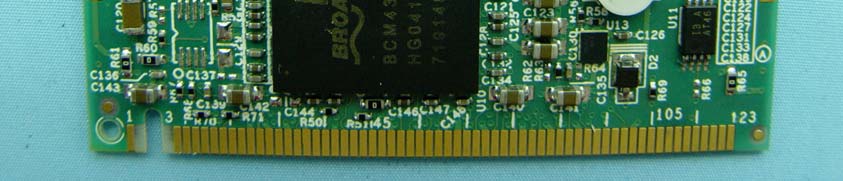

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID Label Location

CG2P2WB label Rev B curved.jpg (839 x 354 x 24)

Page 4 Page 5

FCC ID: Q87-CG2P2WB Report No.: RF930820L04A Operational Description This device is a 2.4GHz wireless Mini PCI card which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment and connected with managing equipment through Mini PCI interface. The antenna is Dipole antenna with UFL connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: Q87-CG2P2WB Report No: RF930820L04A 1 RF EXPOSURE REPORT REPORT NO.: SA930820L04A MODEL NO.: CG2P2W, CG2P2WB, CG2P2W-XX, CG2P2WB- XX ( XX is any combination of alphanumeric characters (0 to 9, a to z, A to z) ) ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Thenory Drive, Irvine, CA 92612, U. S. A. ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: Q87-CG2P2WB Report No: RF930820L04A 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-CG2P2WB Report No: RF930820L04A 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in access point which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-CG2P2WB Report No: RF930820L04A 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 3.5dBi or 2.239 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 2.4GHz: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.2350.0111.0 6243725.3510.0111.0 11246225.1770.0111.0

FCC ID: Q87-CG2P2WB Report No.: RF930820L04A1Issued: Oct. 13, 2004 Reference No.: RF930820L04 FCC TEST REPORT REPORT NO.: RF930820L04A MODEL NO.: CG2P2W ( refer to page 6 for other models ) RECEIVED: NA TESTED: Aug. 27 ~ Aug. 31, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612, U. S. A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 69 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: Q87-CG2P2WB Report No.: RF930820L04A2Issued: Oct. 13, 2004 Reference No.: RF930820L04 Table of Contents 1CERTIFICATION .......................................................................................................4 2SUMMARY OF TEST RESULTS ...............................................................................5 2.1MEASUREMENT UNCERTAINTY.............................................................................5 3GENERAL INFORMATION........................................................................................6 3.1GENERAL DESCRIPTION OF EUT ..........................................................................6 3.2DESCRIPTION OF TEST MODES ............................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................7 3.4DESCRIPTION OF SUPPORT UNITS ......................................................................8 3.5 CONFIGURATION OF SYSTEM UNDER TEST .......................................................8 4TEST TYPES AND RESULTS ...................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT ............................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................9 4.1.2TEST INSTRUMENTS...............................................................................................9 4.1.3TEST PROCEDURES .............................................................................................10 4.1.4DEVIATION FROM TEST STANDARD ...................................................................10 4.1.5TEST SETUP........................................................................................................... 11 4.1.6EUT OPERATING CONDITIONS ............................................................................ 11 4.1.7TEST RESULTS ......................................................................................................12 4.2RADIATED EMISSION MEASUREMENT ...............................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................18 4.2.2TEST INSTRUMENTS.............................................................................................19 4.2.3TEST PROCEDURES .............................................................................................20 4.2.4DEVIATION FROM TEST STANDARD ...................................................................20 4.2.5TEST SETUP...........................................................................................................21 4.2.6EUT OPERATING CONDITIONS ............................................................................21 4.2.7TEST RESULTS ......................................................................................................22 4.2.8TEST RESULTS (A) ................................................................................................23 4.2.9TEST RESULTS (B) ................................................................................................26 4.36dB BANDWIDTH MEASUREMENT.......................................................................29 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................29 4.3.2TEST INSTRUMENTS.............................................................................................29 4.3.3TEST PROCEDURE................................................................................................30 4.3.4DEVIATION FROM TEST STANDARD ...................................................................30 4.3.5TEST SETUP...........................................................................................................30 4.3.6EUT OPERATING CONDITIONS ............................................................................30 4.3.7TEST RESULTS (A) ................................................................................................31 4.3.8TEST RESULTS (B) ................................................................................................35 4.4MAXIMUM PEAK OUTPUT POWER ......................................................................39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................39 4.4.2TEST INSTRUMENTS.............................................................................................39 4.4.3TEST PROCEDURES .............................................................................................40 4.4.4DEVIATION FROM TEST STANDARD ...................................................................40 4.4.5TEST SETUP...........................................................................................................40 FCC ID: Q87-CG2P2WB Report No.: RF930820L04A3Issued: Oct. 13, 2004 Reference No.: RF930820L04 4.4.6EUT OPERATING CONDITIONS ..........................................................................…

Text truncated - open the document above for the full version.

FCC ID: Q87-CG2P2WB Report No.: RF930820L04A65Issued: Oct. 13, 2004 Reference No.: RF930820L04 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-CG2P2WB Report No.: RF930820L04A66Issued: Oct. 13, 2004 Reference No.: RF930820L04 FCC ID: Q87-CG2P2WB Report No.: RF930820L04A67Issued: Oct. 13, 2004 Reference No.: RF930820L04 RADIATED EMISSION TEST FCC ID: Q87-CG2P2WB Report No.: RF930820L04A68Issued: Oct. 13, 2004 Reference No.: RF930820L04
