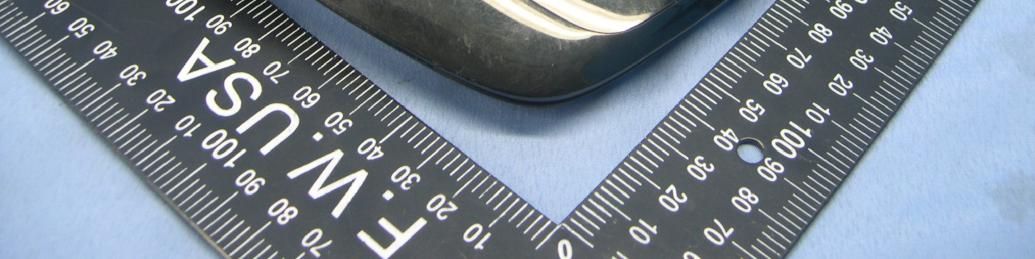

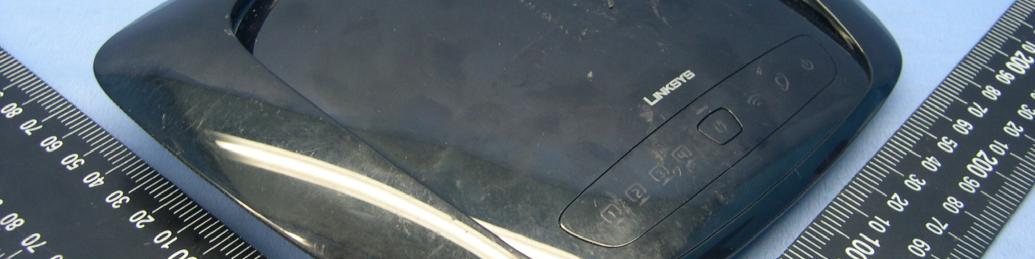

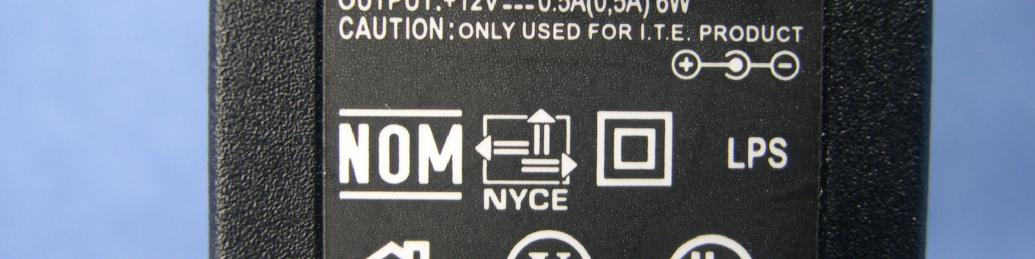

Page 1 CONSTRUCTION PHOTOS OF EUT EUT With on/off switch Page 2 EUT Without on/off switch Page 3 Adapter: EA0061WAA Page 4 Page 5 Adapter: MU08-6120050-A1 Page 6

FCC ID：Q87-E1000V21 LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 7 EUT With on/off switch Page 8 Page 9 Page 10 EUT Without on/off switch Page 11 Page 12

FCC ID: Q87-E1000V21 Report No.: RF990802E05 Operational Description This device is a Wireless-N Broadband Router, which operates in 2.4GHz band, the maximum data rate could be up to 270Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 270Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 12Vdc from a power adapter. The antenna is PIFA antenna without antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA990802E05 Report Format Version 3.0.1 1 RF EXPOSURE REPORT REPORT NO.: SA990802E05 MODEL NO.: E1000 VERSION: 2.1 FCC ID: Q87-E1000V21 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA990802E05 Report Format Version 3.0.1 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA990802E05 Report Format Version 3.0.1 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device Report No.: SA990802E05 Report Format Version 3.0.1 4 6. TEST RESULTS 6.1 Antenna Gain There are two antennas provided to this EUT, please refer to the following table: No. Chain Antenna Type Antenna Connector Antenna Gain (dBi) Cable loss(dB) Net Gain (dBi) Cable Length (mm) Frequency range (MHz) 1 Chain (0) PIFA NA 2.7 0.7 2 248 2400~2483.5 2 Chain(1) PIFA NA 2.1 0.1 2 55 2400~2483.5 Report No.: SA990802E05 Report Format Version 3.0.1 5 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 147.9 0.047 1.0 6 2437 128.8 0.041 1.0 11 2462 151.4 0.048 1.0 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 218.8 0.069 1.0 6 2437 218.8 0.069 1.0 11 2462 204.2 0.064 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 360.9 0.114 1.0 6 2437 442.9 0.140 1.0 11 2462 408.5 0.129 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 224.9 0.071 1.0 4 2437 360.4 0.114 1.0 7 2452 239.0 0.075 1.0 --- END ---

Report No.: RF990802E05 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990802E05 MODEL NO.: E1000 VERSION: 2.1 FCC ID: Q87-E1000V21 RECEIVED: July 23, 2010 TESTED: Aug. 20 to 25, 2010 ISSUED: Sep. 01, 2010 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 80 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990802E05 2 Report Format Version 3.0.1 Table of Contents 1. CERTIFICATION....................................................................................................4 2. SUMMARY OF TEST RESULTS............................................................................5 2.1 MEASUREMENT UNCERTAINTY..........................................................................6 3. GENERAL INFORMATION.....................................................................................7 3.1 GENERAL DESCRIPTION OF EUT.......................................................................7 3.2 DESCRIPTION OF TEST MODES.........................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................13 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................14 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................15 4. TEST TYPES AND RESULTS..............................................................................17 4.1 CONDUCTED EMISSION MEASUREMENT........................................................17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................17 4.1.2 TEST INSTRUMENTS..........................................................................................17 4.1.3 TEST PROCEDURES..........................................................................................18 4.1.4 DEVIATION FROM TEST STANDARD.................................................................18 4.1.5 TEST SETUP.......................................................................................................19 4.1.6 EUT OPERATING CONDITIONS.........................................................................19 4.1.7 TEST RESULTS-MODE 1....................................................................................20 4.1.8 TEST RESULTS-MODE 2....................................................................................22 4.2 RADIATED EMISSION MEASUREMENT.............................................................24 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................24 4.2.2 TEST INSTRUMENTS..........................................................................................25 4.2.3 TEST PROCEDURES..........................................................................................26 4.2.4 DEVIATION FROM TEST STANDARD.................................................................26 4.2.5 TEST SETUP.......................................................................................................27 4.2.6 EUT OPERATING CONDITIONS.........................................................................27 4.2.7 TEST RESULTS...................................................................................................28 4.3 6dB BANDWIDTH MEASUREMENT....................................................................57 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................57 4.3.2 TEST INSTRUMENTS..........................................................................................57 4.3.3 TEST PROCEDURE.............................................................................................57 4.3.4 DEVIATION FROM TEST STANDARD.................................................................57 4.3.5 TEST SETUP.......................................................................................................57 4.3.6 EUT OPERATING CONDITIONS.........................................................................57 4.3.7 TEST RESULTS...................................................................................................58 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................62 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................62 4.4.2 INSTRUMENTS....................................................................................................62 4.4.3 TEST PROCEDURES..........................................................................................62 Report No.: RF990802E05 3 Report Format Version 3.0.1 4.4.4 DEVIATION FROM TEST STANDARD.................................................................62 4.4.5 TEST SETUP.......................................................................................................62 4.4.6 EUT OPERATING CONDITIONS.........................................................................62 4.4.7 TEST RESULTS...................................................................................................63 4.5 POWER SPECTRAL DENSITY MEASUREMENT................................................65 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.............................65 4.5.2 TEST INSTRUMENTS..........................................................................................65 4.…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST(MODE 1) 2 CONDUCTED EMISSION TEST(MODE 2) 3 RADIATED EMISSION TEST
