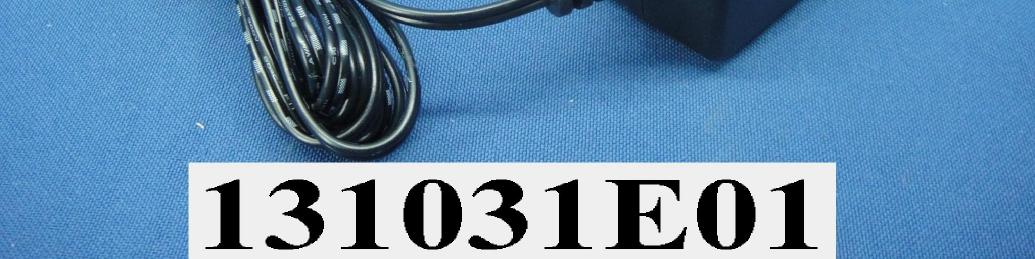

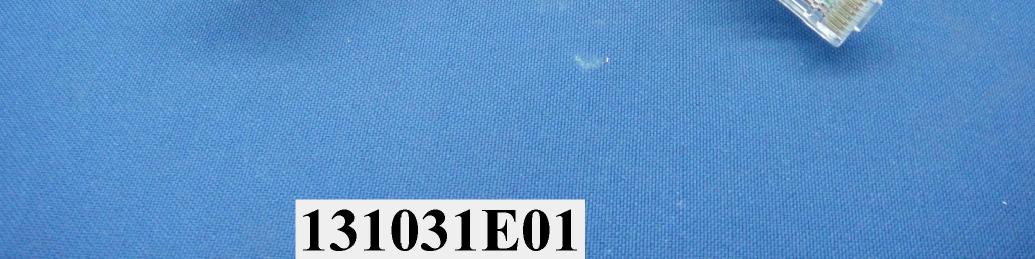

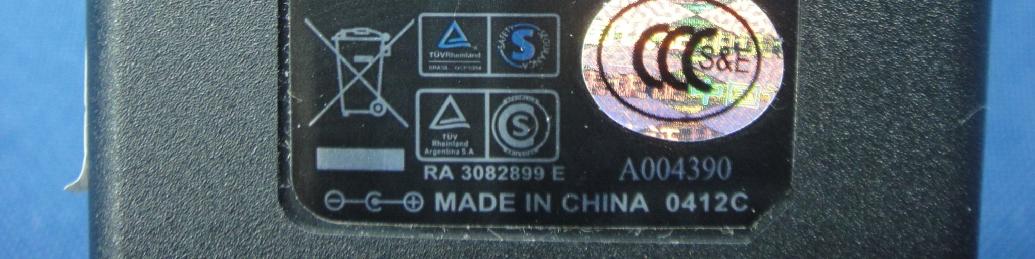

Report No.: 131031E01 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 131031E01 Page 2 Report No.: 131031E01 Page 6 Adapter: HK-T112-A120 Report No.: 131031E01 Page 7 Report No.: 131031E01 Page 8 Adapter: HK-Q106-A12 Report No.: 131031E01 Page 9 Report No.: 131031E01 Page 10 Adapter: HK-U-120A050-CP < Universal, USA> Report No.: 131031E01 Page 11 Report No.: 131031E01 Page 12

Date E1700Product Label 8830-18292A00 FileName Agile PN EMEA and APAC Region Black black Serial No. MAC Address FCC ID: Q87-E1700 Model No.: E1700 Rating: 12V 0.5A Made in Taiwan OCT 09th, 2013 N10117 Z528 32.06 mm 49.5 mm

Report No.: 131031E01 Page 3 Report No.: 131031E01 Page 4 Report No.: 131031E01 Page 5

FCC ID: Q87-E1700 Report No.: RF131031E01 Operational Description This device is a Single-Band Wireless-N Router with Gigabit Ports, which operates in 2.4GHz band; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by DC 12V from power adapter. The antennas provided to the EUT, please refer to the following table: The other instruction, please have a look at the users manual.

Report No.: SA131031E01 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA131031E01 MODEL NO.: E1700 FCC ID: Q87-E1700 RECEIVED: Oct. 31, 2013 TESTED: Nov. 04, 2013 ISSUED: Nov. 19, 2013 APPLICANT: Linksys LLC ADDRESS: 131 Theory Drive, Irvine, CA 92617, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA131031E01 2 of 6 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA131031E01 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA131031E01 Original release Nov. 19, 2013 Report No.: SA131031E01 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Single-Band Wireless-N Router with Gigabit Ports BRAND NAME: Linksys MODEL NO.: E1700 TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Linksys LLC TESTED DATE: Nov. 04, 2013 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: E1700) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Nov. 19, 2013 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: Nov. 19, 2013 ( May Chen, Manager ) Report No.: SA131031E01 5 of 6 Report Format Version 5.0.0 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA131031E01 6 of 6 Report Format Version 5.0.0 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 494.331 3.5 20 0.22016 1 --- END ---

Report No.: RF131031E01 1 of 68 Report Format Version 5.2.0 FCC TEST REPORT REPORT NO.: RF131031E01 MODEL NO.: E1700 FCC ID: Q87-E1700 RECEIVED: Oct. 31, 2013 TESTED: Nov. 04 to 11, 2013 ISSUED: Nov. 19, 2013 APPLICANT: Linksys LLC ADDRESS: 131 Theory Drive, Irvine, CA 92617, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF131031E01 2 of 68 Report Format Version 5.2.0 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 4 1. CERTIFICATION .................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................ 6 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 7 3. GENERAL INFORMATION ..................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ....................................................................... 8 3.2 DESCRIPTION OF TEST MODES ....................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 14 3.4 DUTY CYCLE OF TEST SIGNAL ......................................................................... 15 3.5 DESCRIPTION OF SUPPORT UNITS .................................................................. 16 3.6 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 17 4. TEST TYPES AND RESULTS .............................................................................. 18 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 18 4.1.2 TEST INSTRUMENTS .......................................................................................... 18 4.1.3 TEST PROCEDURES .......................................................................................... 19 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 19 4.1.5 TEST SETUP ....................................................................................................... 19 4.1.6 EUT OPERATING CONDITIONS ......................................................................... 20 4.1.7 TEST RESULTS (MODE 1) .................................................................................. 21 4.1.8 TEST RESULTS (MODE 2) .................................................................................. 23 4.1.9 TEST RESULTS (MODE 3) .................................................................................. 25 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 27 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 27 4.2.2 TEST INSTRUMENTS .......................................................................................... 28 4.2.3 TEST PROCEDURES .......................................................................................... 29 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 29 4.2.5 TEST SETUP ....................................................................................................... 30 4.2.6 EUT OPERATING CONDITIONS ......................................................................... 30 4.2.7 TEST RESULTS ................................................................................................... 31 4.3 6DB BANDWIDTH MEASUREMENT ................................................................... 44 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT ................................................. 44 4.3.2 TEST INSTRUMENTS .......................................................................................... 44 4.3.3 TEST PROCEDURE ............................................................................................. 44 4.3.4 DEVIATION FROM TEST STANDARD ..................…

Text truncated - open the document above for the full version.

Report No.: 120702E04 1 of 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST(Mode 1) Report No.: 120702E04 2 of 5 CONDUCTED EMISSION TEST(Mode 2) Report No.: 120702E04 3 of 5 CONDUCTED EMISSION TEST(Mode 3) Report No.: 120702E04 4 of 5 RADIATED EMISSION TEST (Below 1GHz) Report No.: 120702E04 5 of 5 RADIATED EMISSION TEST (Above 1GHz)
