USER GUIDE Wireless-N Broadband Router with Storage Link Model: WRT160NL Model: E2100L About This Guide i Wireless-N Broadband Router with Storage Link About This Guide Icon Descriptions While reading through the User Guide you may see various icons that call attention to specific items. Below is a description of these icons: NOTE: This check mark indicates that there is a note of interest and is something that you should pay special attention to while using the product. WARNING: This exclamation point indicates that there is a caution or warning and it is something that could damage your property or product. WEB: This globe icon indicates a noteworthy website address or e-mail address. Online Resources Website addresses in this document are listed without http:// in front of the address because most current web browsers do not require it. If you use an older web browser, you may have to add http:// in front of the web address. ResourceWebsite Linksyswww.linksysbycisco.com Linksys International www.linksysbycisco.com/international Glossary www.linksysbycisco.com/glossary Network Security www.linksysbycisco.com/security Copyright and Trademarks Linksys, Cisco and the Cisco Logo are registered trademarks or trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2009 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. Table of Contents ii Wireless-N Broadband Router with Storage Link Chapter 1: Product Overview 1 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Bottom Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Chapter 2: Wireless Security Checklist 3 General Network Security Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Additional Security Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Chapter 3: Advanced Configuration 4 Setup > Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Setup > DDNS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Setup > MAC Address Clone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Setup > Advanced Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Wireless > Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Wireless > Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Wireless > Wireless MAC Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Wireless > Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Security > Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Security > VPN Passthrough . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Storage > Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Storage > Media Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Storage > Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Access Restrictions > Internet Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Applications and Gaming > Single Port Forwarding. . . . . . . . . . . . . . . . . . . . . . . .18 Applications and Gaming > Port Range Forwarding . . . . . . . . . . . . . . . . . . . . . . .18 Applications & Gaming > Port Range Triggering . . . . . . . . . . . . . . . . . . . . . . . . . .19 Applications and Gaming > DMZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Applications and Gaming > QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Administration > Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Administration > Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Administration > Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Administration > Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Administration > Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Status > Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Status > Local Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Status > Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Appendix A: Troubleshooting 27 Table of Contents iii Wireless-N Broadband Router with Storage Link Appendix B: How to Install and Access USB Storage 29 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Install the USB Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Access the USB Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Create a Shortcut to a Shared Folder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Advanced Configuration (Advanced Users Only) . . . . . . . . . . . . . . . . . . . . . . . . . .32 Appendix C: Specifications 36 Appendix D: Warranty Information 37 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Appendix E: Regulatory Information 39 FCC Statement . . . . . . . . . …

Text truncated - open the document above for the full version.

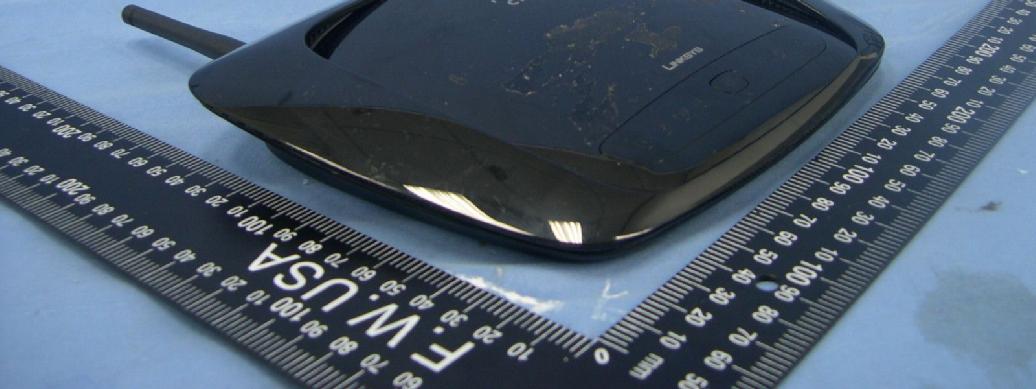

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: Q87-E2100L FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

E2100L

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 NA0181WAA adapter Page 8 Page 9 MU18-D120150-A1 adapter Page 10

FCC ID: Q87-E2100L Report No. : RF980119H03A Reference No. : 981208H06 Technical Description This device is a Wireless-N Broadband Router with Storage Link, which operates in the 2.4GHz frequency spectrum with throughput of up to 135Mbps which OFDM technique will be applied. If the signal to noise rate is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. NOTE: 1. There are two antennas provided to this EUT, please refer to the following table: No. Antenna Type Gain (dBi) Antenna Connector 1 Dipole 1.8 SAM male reverse 2 Dipole 1.8 SAM male reverse 2. The EUT must be supplied with a power adapter and following different models could be chosen: Adapter 1 Brand: Bestec Model No.: NA0181WAA Input power : AC100-240V, 1A, 50-60Hz Output power : DC 12V, 1.5A DC output cable (Unshielded, 1.8m) Adapter 2 Brand: LEI Model No.: MU18-D120150-A1 Input power : AC100-240V, 0.6A, 50-60Hz Output power : DC 12V, 1.5A DC output cable (Unshielded, 1.8m) From the above adapters, adapter 1 is the worse case one, Therefore only the test data of the adapter was recorded in this report individually. 3. The EUT was pre-tested in chamber under the following modes: Test Mode Description Mode A Level-set (Put on tabletop) Mode B Tower-set (Wall-mounted) From the above modes, the worst case was found in Mode A. Therefore only the test data of the modes were recorded in this report. 4. The EUT incorporates a MIMO function with draft 802.11n. Physically, the card provides two completed transmitters and two completed receivers. FCC ID: Q87-E2100L Report No. : RF980119H03A Reference No. : 981208H06 5. The EUT is 2 * 2 spatial MIMO without beam forming function. The antenna configurations are two transmitter antennas and two receiver antennas, as there are 2 dipole antennas. Spatial multiplexing modes for simultaneous transmission using 2 antennas, and for simultaneous receiver using 2 antennas. 6. When the EUT operating in draft 802.11n, the software operation, which is defined by manufacturer, MCS (Modulation and Coding Schemes) from 0 to 15. 7. The EUT complies with draft 802.11n standards and backwards compatible with 802.11b, 802.11g products. 8. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or user's manual.

Report No.: SA980119H03A 1 RF EXPOSURE REPORT REPORT NO.: SA980119H03A MODEL NO.: E2100L ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 PREPARED BY: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA980119H03A 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA980119H03A 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA980119H03A 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.8dBi or 1.513561 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 107.2 0.032 1.0 6 2437 112.2 0.034 1.0 11 2462 112.2 0.034 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 213.8 0.064 1.0 6 2437 208.9 0.063 1.0 11 2462 208.9 0.063 1.0 DRAFT 802.11n (20MHz) : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 355.7 0.107 1.0 6 2437 363.9 0.110 1.0 11 2462 376.8 0.113 1.0 DRAFT 802.11n (40MHz) : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 302.7 0.091 1.0 4 2437 299.3 0.090 1.0 7 2452 299.3 0.090 1.0

Report No.: IC980119H03A 1 Report Format Version 3.0.0 CANADA TEST REPORT REPORT NO.: IC980119H03A MODEL NO.: E2100L RECEIVED: Jan. 14, 2009 TESTED: Jan. 14 to Feb. 05, 2009 ISSUED: Dec. 17, 2009 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 124 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: IC980119H03A 2 Report Format Version 3.0.0 TABLE OF CONTENTS 1. CERTIFICATION...........................................................................................4 2. SUMMARY OF TEST RESULTS..................................................................5 2.1 MEASUREMENT UNCERTAINTY.....................................................................6 3. GENERAL INFORMATION...........................................................................7 3.1 GENERAL DESCRIPTION OF EUT........................................................7 3.2 DESCRIPTION OF TEST MODES..........................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.........10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS........................13 3.4 DESCRIPTION OF SUPPORT UNITS...................................................14 3.5 CONFIGURATION OF SYSTEM UNDER TEST....................................15 4. TEST TYPES AND RESULTS....................................................................17 4.1 CONDUCTED EMISSION MEASUREMENT.........................................17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................17 4.1.2 TEST INSTRUMENTS...........................................................................18 4.1.3 TEST PROCEDURES...........................................................................19 4.1.4 DEVIATION FROM TEST STANDARD..................................................19 4.1.5 TEST SETUP.........................................................................................20 4.1.6 EUT OPERATING CONDITIONS...........................................................20 4.1.7 TEST RESULTS-ADAPTER 1...............................................................21 4.1.8 TEST RESULTS-ADAPTER 2...............................................................23 4.2 RADIATED EMISSION MEASUREMENT..............................................25 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................25 4.2.2 TEST INSTRUMENTS...........................................................................26 4.2.3 TEST PROCEDURES...........................................................................27 4.2.4 DEVIATION FROM TEST STANDARD..................................................27 4.2.5 TEST SETUP.........................................................................................28 4.2.6 EUT OPERATING CONDITIONS...........................................................28 4.2.7 TEST RESULTS (FOR TRANSMITTER PART).....................................29 4.2.8 TEST RESULTS – Above 1GHz............................................................30 4.2.9 TEST RESULTS (FOR RECEIVER PART)............................................58 4.2.10 TEST RESULTS – Above 1GHz............................................................59 4.3 6dB BANDWIDTH MEASUREMENT.....................................................62 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT...................................62 4.3.2 TEST INSTRUMENTS...........................................................................62 4.3.3 TEST PROCEDURE..............................................................................62 4.3.4 DEVIATION FROM TEST STANDARD..................................................62 4.3.5 TEST SETUP.........................................................................................63 Report No.: IC980119H03A 3 Report Format Version 3.0.0 4.3.6 EUT OPERATING CONDITIONS...........................................................63 4.3.7 TEST RESULTS....................................................................................64 4.4 20dB BANDWIDTH MEASUREMENT...................................................76 4.4.1 TEST INSTRUMENTS...........................................................................76 4.4.2 TEST PROCEDURE..............................................................................77 4.4.3 TEST SETUP.........................................................................................77 4.4.4 EUT OPERATING CONDITIONS...........................................................77 4.4.5 TEST RESULTS....................................................................................78 4.5 MAXIMUM PEAK OUTPUT POWER.....................................................90 4.5.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......90 4.5.2 INSTRUMENTS.....................................................................................90 4.4.3 TEST PROCEDURES...........................................................................90 4.4.4 DEVIATION FROM TEST STANDARD..................................................90 4.4.5 TEST SETUP.........................................................................................91 4.4.6 EUT OPERATING CONDITIONS...........................................................91 4.4.7 TEST RESULTS....................................................................................92 4.6 POWER SPECTRAL DENSITY MEASUREMENT................................94 4.6.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.....…

Text truncated - open the document above for the full version.

Report No.: RF980119H03A 1 Report Format Version 3.0.0 FCC TEST REPORT REPORT NO.: RF980119H03A MODEL NO.: E2100L RECEIVED: Jan. 14, 2009 TESTED: Jan. 14 to Feb. 05, 2009 ISSUED: Dec. 17, 2009 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 105 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF980119H03A 2 Report Format Version 3.0.0 TABLE OF CONTENTS 1. CERTIFICATION...........................................................................................4 2. SUMMARY OF TEST RESULTS..................................................................5 2.1 MEASUREMENT UNCERTAINTY.....................................................................5 3. GENERAL INFORMATION...........................................................................6 3.1 GENERAL DESCRIPTION OF EUT........................................................6 3.2 DESCRIPTION OF TEST MODES..........................................................8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...........9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS........................12 3.4 DESCRIPTION OF SUPPORT UNITS...................................................13 3.5 CONFIGURATION OF SYSTEM UNDER TEST....................................14 4. TEST TYPES AND RESULTS....................................................................16 4.1 CONDUCTED EMISSION MEASUREMENT.........................................16 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................16 4.1.2 TEST INSTRUMENTS...........................................................................17 4.1.3 TEST PROCEDURES...........................................................................18 4.1.4 DEVIATION FROM TEST STANDARD..................................................18 4.1.5 TEST SETUP.........................................................................................19 4.1.6 EUT OPERATING CONDITIONS...........................................................19 4.1.7 TEST RESULTS (SUBCONTRACT ITEM)............................................20 4.2 RADIATED EMISSION MEASUREMENT..............................................24 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................24 4.2.2 TEST INSTRUMENTS...........................................................................25 4.2.3 TEST PROCEDURES...........................................................................26 4.2.4 DEVIATION FROM TEST STANDARD..................................................26 4.2.5 TEST SETUP.........................................................................................27 4.2.6 EUT OPERATING CONDITIONS...........................................................27 4.2.7 TEST RESULTS – Below 1GHz.............................................................28 4.2.8 TEST RESULTS – Above 1GHz............................................................29 4.3 6dB BANDWIDTH MEASUREMENT.....................................................57 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT...................................57 4.3.2 TEST INSTRUMENTS...........................................................................57 4.3.3 TEST PROCEDURE..............................................................................57 4.3.4 DEVIATION FROM TEST STANDARD..................................................57 4.3.5 TEST SETUP.........................................................................................58 4.3.6 EUT OPERATING CONDITIONS...........................................................58 4.3.7 TEST RESULTS....................................................................................59 4.4 MAXIMUM PEAK OUTPUT POWER.....................................................71 Report No.: RF980119H03A 3 Report Format Version 3.0.0 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......71 4.4.2 INSTRUMENTS.....................................................................................71 4.4.3 TEST PROCEDURES...........................................................................71 4.4.4 DEVIATION FROM TEST STANDARD..................................................71 4.4.5 TEST SETUP.........................................................................................72 4.4.6 EUT OPERATING CONDITIONS...........................................................72 4.4.7 TEST RESULTS....................................................................................73 4.5 POWER SPECTRAL DENSITY MEASUREMENT................................75 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............75 4.5.2 TEST INSTRUMENTS...........................................................................75 4.5.3 TEST PROCEDURE..............................................................................75 4.5.4 DEVIATION FROM TEST STANDARD..................................................75 4.5.5 TEST SETUP.........................................................................................76 4.5.6 EUT OPERATING CONDITION.............................................................76 4.5.7 TEST RESULTS....................................................................................77 4.6 CONDUCTED EMISSION AND BAND EDGES MEASUREMENT........89 4.6.1 LIMITS OF CONDTCTED EMISSION AND BAND EDGES MEASUREMENT...................................................................................89 4.6.2 TEST INSTRUMENTS...........................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
