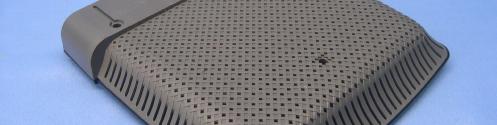

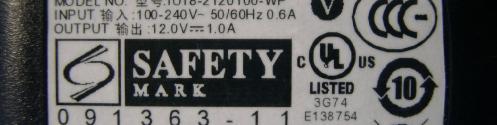

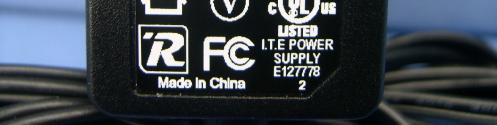

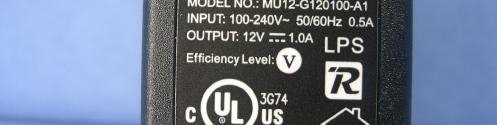

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 11 Adapter: EA0121WAA Page 12 Page 13 Adapter: MU12-G120100-A1 Page 14 Page 15 Adapter: IU18-2120100-WP Page 16 Page 17

Serial No. / Nº de série MAC Address / Adresse MAC E2500_Product Label rev.NC 12.03.2010 FileName Date Black Black Label FCC ID: Q87-E2500 IC: 3839A-E2500 CANADA ICES/NMB003, RSS210 Class/ Classe B Model No./Modèle: E2500 Rating/Régime nominal: 12V 1A Made in China/Fabriqué en Chine 32.06 mm 49.5 mm

FCC ID：Q87-E2500 LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: Q87-E2500 Report No.: RF110117E06 Operational Description This device is a Linksys E2500 Advanced Dual-Band N Router, which operates in both of the 5GHz and 2.4GHz bands, the maximum data rate could be up to 270Mbps which OFDM technique. If the signal to noise ratio is too poor which could not support 270Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by a 12Vdc power adapter. The antenna is a PIFA antenna without antenna connector. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA110117E06 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA110117E06 MODEL NO.: E2500 FCC ID: Q87-E2500 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco Consumer Products LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA110117E06 Report Format Version 4.0.0 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA110117E06 Report Format Version 4.0.0 3 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 26.4 3.5 20 0.195 1.00 For 15.247(5GHz): FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745-5825 25.9 5 20 0.245 1.00 For 15.407(5GHz): FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180-5240 16.5 5 20 0.028 1.00 CONCLUSION: Both of the 2.4GHz and 5GHz can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.195 / 1 + 0.245 / 1= 0.44, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. --- END ---

Report No.: RF110117E06 1 Report Format Version 4.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF110117E06 MODEL NO.: E2500 FCC ID: Q87-E2500 RECEIVED: Jan. 17, 2011 TESTED: Jan. 24 to Feb. 16, 2011 ISSUED: Feb. 24, 2011 APPLICANT: Cisco Consumer Products LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 129 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110117E06 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD..............................................................................5 1. CERTIFICATION...........................................................................................6 2. SUMMARY OF TEST RESULTS...................................................................7 2.1 MEASUREMENT UNCERTAINTY................................................................9 3. GENERAL INFORMATION.........................................................................10 3.1 GENERAL DESCRIPTION OF EUT............................................................10 3.2 DESCRIPTION OF TEST MODES..............................................................13 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............14 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................18 3.4 DESCRIPTION OF SUPPORT UNITS........................................................19 3.5 CONFIGURATION OF SYSTEM UNDER TEST.........................................20 4. TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band).....21 4.1 CONDUCTED EMISSION MEASUREMENT..............................................21 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................21 4.1.2 TEST INSTRUMENTS................................................................................21 4.1.3 TEST PROCEDURES.................................................................................22 4.1.4 DEVIATION FROM TEST STANDARD.......................................................22 4.1.5 TEST SETUP..............................................................................................23 4.1.6 EUT OPERATING CONDITIONS................................................................23 4.1.7 TEST RESULTS (With adapter 1)...............................................................24 4.1.8 TEST RESULTS (With adapter 2)...............................................................26 4.1.9 TEST RESULTS (With adapter 3)...............................................................28 4.2 RADIATED EMISSION MEASUREMENT...................................................30 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................30 4.2.2 TEST INSTRUMENTS................................................................................31 4.2.3 TEST PROCEDURES.................................................................................33 4.2.4 DEVIATION FROM TEST STANDARD.......................................................33 4.2.5 TEST SETUP..............................................................................................34 4.2.6 EUT OPERATING CONDITIONS................................................................35 4.2.7 TEST RESULTS..........................................................................................36 4.3 6dB BANDWIDTH MEASUREMENT..........................................................65 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................65 4.3.2 TEST INSTRUMENTS................................................................................65 4.3.3 TEST PROCEDURE...................................................................................65 4.3.4 DEVIATION FROM TEST STANDARD.......................................................65 4.3.5 TEST SETUP..............................................................................................65 4.3.6 EUT OPERATING CONDITIONS................................................................65 Report No.: RF110117E06 3 Report Format Version 4.0.0 4.3.7 TEST RESULTS..........................................................................................66 4.4 MAXIMUM PEAK OUTPUT POWER..........................................................70 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........70 4.4.2 INSTRUMENTS..........................................................................................70 4.4.3 TEST PROCEDURES.................................................................................70 4.4.4 DEVIATION FROM TEST STANDARD.......................................................70 4.4.5 TEST SETUP..............................................................................................70 4.4.6 EUT OPERATING CONDITIONS................................................................70 4.4.7 TEST RESULTS..........................................................................................71 4.5 POWER SPECTRAL DENSITY MEASUREMENT......................................73 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................73 4.5.2 TEST INSTRUMENTS................................................................................73 4.5.3 TEST PROCEDURE..............................…

Text truncated - open the document above for the full version.

Report No.: RF110117E06-1 1 Report Format Version 4.0.0 FCC TEST REPORT (15.407) REPORT NO.: RF110117E06-1 MODEL NO.: E2500 FCC ID: Q87-E2500 RECEIVED: Jan. 17, 2011 TESTED: Jan. 24 to Feb. 08, 2011 ISSUED: Feb. 24, 2011 APPLICANT: Cisco Consumer Products LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 84 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110117E06-1 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD........................................................................................4 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................7 3. GENERAL INFORMATION.....................................................................................8 3.1 GENERAL DESCRIPTION OF EUT.......................................................................8 3.2 DESCRIPTION OF TEST MODES.......................................................................11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.......................12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................15 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................16 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................17 4. TEST TYPES AND RESULTS..............................................................................18 4.1 CONDUCTED EMISSION MEASUREMENT........................................................18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................18 4.1.2 TEST INSTRUMENTS..........................................................................................18 4.1.3 TEST PROCEDURES..........................................................................................19 4.1.4 DEVIATION FROM TEST STANDARD.................................................................19 4.1.5 TEST SETUP.......................................................................................................20 4.1.6 EUT OPERATING CONDITIONS.........................................................................20 4.1.7 TEST RESULTS (WITH ADAPTER 1)..................................................................21 4.1.8 TEST RESULTS (WITH ADAPTER 2)..................................................................23 4.1.9 TEST RESULTS (WITH ADAPTER 3)..................................................................25 4.2 RADIATED EMISSION MEASUREMENT.............................................................27 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................27 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS..........28 4.2.3 TEST INSTRUMENTS..........................................................................................29 4.2.4 TEST PROCEDURES..........................................................................................31 4.2.5 DEVIATION FROM TEST STANDARD.................................................................31 4.2.6 TEST SETUP.......................................................................................................32 4.2.7 EUT OPERATING CONDITION............................................................................33 4.2.8 TEST RESULTS...................................................................................................34 4.3 PEAK TRANSMIT POWER MEASUREMENT......................................................55 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT....................................55 4.3.2 TEST INSTRUMENTS..........................................................................................55 4.3.3 TEST PROCEDURE.............................................................................................56 4.3.4 DEVIATION FROM TEST STANDARD.................................................................56 4.3.5 TEST SETUP.......................................................................................................56 4.3.6 EUT OPERATING CONDITIONS.........................................................................56 4.3.7 TEST RESULTS...................................................................................................57 4.4 PEAK POWER EXCURSION MEASUREMENT...................................................63 Report No.: RF110117E06-1 3 Report Format Version 4.0.0 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT.................................63 4.4.2 TEST INSTRUMENTS..........................................................................................63 4.4.3 TEST PROCEDURE.............................................................................................63 4.4.4 DEVIATION FROM TEST STANDARD.................................................................63 4.4.5 TEST SETUP.......................................................................................................64 4.4.6 EUT OPERATING CO…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST(With adapter 1) 2 CONDUCTED EMISSION TEST(With adapter 2) 3 CONDUCTED EMISSION TEST(With adapter 3) 4 RADIATED EMISSION TEST(Below 1GHz) 5 RADIATED EMISSION TEST(Above 1GHz)
