Q87-E3000Simultaneous Dual-Band Wireless-N Gigabit Router

USER GUIDE Simultaneous Dual-Band Wireless-N Gigabit Router Model: WRT610N Model: E3000 About This Guide i Simultaneous Dual-Band Wireless-N Gigabit Router About This Guide Icon Descriptions While reading through the User Guide you may see various icons that call attention to specific items. Below is a description of these icons: NOTE: This check mark indicates that there is a note of interest and is something that you should pay special attention to while using the product. WARNING: This exclamation point indicates that there is a caution or warning and it is something that could damage your property or product. WEB: This globe icon indicates a noteworthy website address or e-mail address. Online Resources Website addresses in this document are listed without http:// in front of the address because most current web browsers do not require it. If you use an older web browser, you may have to add http:// in front of the web address. ResourceWebsite Linksyswww.linksysbycisco.com Linksys International www.linksysbycisco.com/international Glossary www.linksysbycisco.com/glossary Network Security www.linksysbycisco.com/security Copyright and Trademarks © 2009 Cisco Systems, Inc. All rights reserved. Cisco, the Cisco logo, and Linksys are trademarks or registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries. All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. Table of Contents i Simultaneous Dual-Band Wireless-N Gigabit Router Chapter 1: Product Overview 3 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Chapter 2: Wireless Security Checklist 5 General Network Security Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Additional Security Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Chapter 3: Advanced Configuration 6 Setup > Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Setup > MAC Address Clone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Setup > Advanced Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Wireless > Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Wireless > Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Wireless > Wireless MAC Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Wireless > Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Security > Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Security > VPN Passthrough . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Storage > Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Storage > Media Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Storage > FTP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Storage > Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Access Restrictions > Internet Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Applications and Gaming > Port Range Forwarding . . . . . . . . . . . . . . . . . . . . . . .26 Applications & Gaming > Port Range Triggering . . . . . . . . . . . . . . . . . . . . . . . . . .27 Applications and Gaming > DMZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Applications and Gaming > QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Administration > Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Administration > Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Administration > Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Administration > Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Administration > Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Status > Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Status > Local Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Status > Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 Appendix A: Troubleshooting 35 Appendix B: How to Install and Access USB Storage 37 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Install the USB Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Access the USB Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Create a Shortcut to a Shared Folder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 Advanced Configuration (Advanced Users Only) . . . . . . . . . . . . . . . . . . . . . . . . . .40 Table of Contents ii Simultaneous Dual-Band Wireless-N Gigabit Router Appendix C: Specifications 43 Appendix D: Warranty Information 44 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44 Appendix E: Regulatory Information 46 FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 FCC Radiation…

Text truncated - open the document above for the full version.

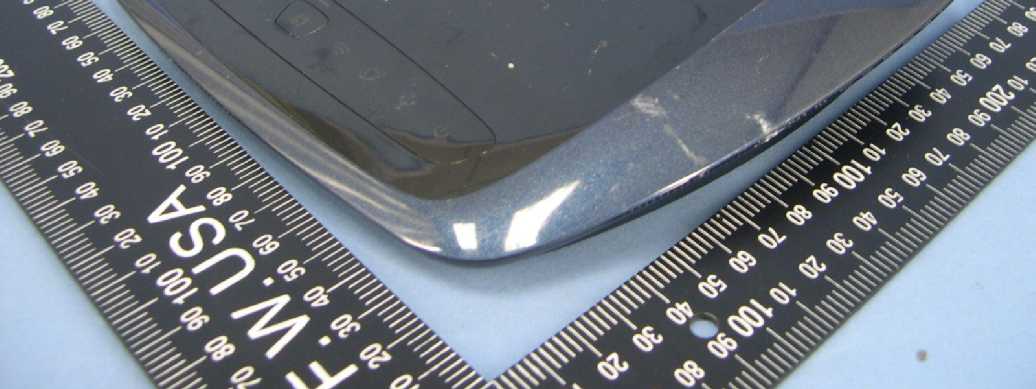

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: Q87-E3000 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Adapter Model No.: NA0241WAA Page 9 Adapter Model No.: MU24-B120200-A1 Page 10

FCC ID: Q87-E3000 Report No. : RF980606H02A Reference No. : 981208H04 Technical Description This device is a Simultaneous Dual-Band Wireless-N Gigabit Router with Dual-Band operates in both the 5GHz and 2.4GHz Bands with DSSS and OFDM technique. The transmitter rate could be 11Mbps for 11b; 54Mbps for 11a/g; 130Mbps for Draft 802.11n (20MHz); 270Mbps for Draft 802.11n (40MHz). The transmitter of the EUT is powered from power adapter. NOTE: 1. There are three antennas provided to this EUT, please refer to the following table: Antenna Gain Transmitter / Circuit For 2.4GHz Gain (dBi) For 5GHz Gain (dBi) Antenna Type Connector Chain(0) 4 3.5 PIFA NA Chain(1) 4 3.5 PIFA NA Chain(2) 4 3.5 PIFA NA 2. There are two power adapters provided to this EUT, please refer to the following table: Adapter Brand Model No. Spec. Adapter 1 Bestec NA0241WAA Input: 100-240V, 0.5A, 50-60Hz Output: DC12V, 2A DC output cable (unshielded, 1.5m) Adapter 2 LEADER MU24-B120200-A1 Input: 100-240V, 0.5A, 50-60Hz Output: DC12V, 2A DC output cable (unshielded, 1.5m) 3. The EUT incorporates a MIMO function with draft 802.11n. Physically, the EUT provides two completed transmit and three completed receivers. 4. The EUT is 2 * 3 spatial MIMO (2Tx & 3Rx) without beam forming function. The antenna configurations are two transmitter antennas and three receiver antennas, as there are 3 PIFA antennas. Spatial multiplexing modes for simultaneous transmission using 2 antennas, and for simultaneous receiver using 3 antennas. The 11a and 11bg legacy mode is limited to single transmitter only. FCC ID: Q87-E3000 Report No. : RF980606H02A Reference No. : 981208H04 5. When the EUT operating in draft 802.11n, the software operation, which is defined by manufacturer, MCS (Modulation and Coding Schemes) from 0 to 15. 6. The EUT complies with draft 802.11n standards and backwards compatible with 802. 11a, 802.11b, 802.11g products. 7. Per a request of the FCC, the access point radio was tested for radiated emissions in restricted bands while transmitting on both 2.4 GHz and 5 GHz at simultaneously. 8. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or user's manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA980606H02A 1 Report Format Version 3.0.0 RF EXPOSURE REPORT REPORT NO.: SA980606H02A MODEL NO.: E3000 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA980606H02A 2 Report Format Version 3.0.0 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA980606H02A 3 Report Format Version 3.0.0 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA980606H02A 4 Report Format Version 3.0.0 6. Test Results 6.1 Antenna Gain There are three antennas provided to this EUT, please refer to the following table: Antenna Gain Transmitter / Circuit For 2.4GHz Gain (dBi) For 5GHz Gain (dBi) Antenna Type Connector Chain(0) 4 3.5 PIFA NA Chain(1) 4 3.5 PIFA NA Chain(2) 4 3.5 PIFA NA Report No.: SA980606H02A 5 Report Format Version 3.0.0 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 15.247(2.4GHz) : For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 398.100 0.199 1.0 6 2437 398.100 0.199 1.0 11 2462 309.000 0.154 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 162.200 0.081 1.0 6 2437 691.800 0.346 1.0 11 2462 100.000 0.050 1.0 DRAFT 802.11n (20MHz) OFDM Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 670.300 0.335 1.0 6 2437 979.800 0.490 1.0 11 2462 284.400 0.142 1.0 DRAFT 802.11n (40MHz) OFDM Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 328.100 0.164 1.0 4 2437 583.800 0.292 1.0 7 2452 260.800 0.130 1.0 Report No.: SA980606H02A 6 Report Format Version 3.0.0 For 15.247(5GHz) : For Part 802.11a: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 149 5745 398.1 0.177 1.0 157 5785 389.0 0.173 1.0 165 5825 363.1 0.162 1.0 For DRAFT 802.11n (20MHz) OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 149 5745 789.7 0.352 1.0 157 5785 737.0 0.328 1.0 165 5825 687.8 0.306 1.0 DRAFT 802.11n (40MHz) OFDM Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 151 5755 743.9 0.331 1.0 159 5795 695.1 0.310 1.0 Report No.: SA980606H02A 7 Report Format Version 3.0.0 For 15.407(5GHz) : For Part 802.11a: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 36 5180 30.9 0.014 1.0 40 5200 31.6 0.014 1.0 48 5240 32.4 0.014 1.0 For DRAFT 802.11n (20MHz) OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 36 5180 30.6 0.014 1.0 40 5200 32.9 0.015 1.0 48 5240 32.9 0.015 1.0 DRAFT 802.11n (40MHz) OFDM Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 38 5190 42.3 0.019 1.0 46 5230 40.2 0.018 1.0 CONCULSION: Both of the 11g and 11a can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, th…

Text truncated - open the document above for the full version.

Report No.: RF980606H02A 1 Report Format Version 3.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF980606H02A MODEL NO.: E3000 RECEIVED: June 06, 2009 TESTED: June 23 to July 03, 2009 ISSUED: Dec. 16, 2009 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch TEST LOCATION: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 154 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF980606H02A 2 Report Format Version 3.0.0 Table of Contents 1. CERTIFICATION................................................................................................6 2. SUMMARY OF TEST RESULTS.........................................................................7 2.1 MEASUREMENT UNCERTAINTY.......................................................................9 3. GENERAL INFORMATION................................................................................10 3.1 GENERAL DESCRIPTION OF EUT..................................................................10 3.2 DESCRIPTION OF TEST MODES....................................................................13 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:......................14 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................18 3.4 DESCRIPTION OF SUPPORT UNITS...............................................................19 3.5 CONFIGURATION OF SYSTEM UNDER TEST.................................................20 4. TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz BAND).............22 4.1 CONDUCTED EMISSION MEASUREMENT......................................................22 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................22 4.1.2 TEST INSTRUMENTS......................................................................................22 4.1.3 TEST PROCEDURES.......................................................................................23 4.1.4 DEVIATION FROM TEST STANDARD..............................................................23 4.1.5 TEST SETUP...................................................................................................24 4.1.6 EUT OPERATING CONDITIONS......................................................................24 4.1.7 TEST RESULTS-ADAPTER 1...........................................................................25 4.1.8 TEST RESULTS-ADAPTER 2...........................................................................27 4.2 RADIATED EMISSION MEASUREMENT..........................................................29 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.........................................29 4.2.2 TEST INSTRUMENTS......................................................................................30 4.2.3 TEST PROCEDURES.......................................................................................31 4.2.4 DEVIATION FROM TEST STANDARD..............................................................31 4.2.5 TEST SETUP...................................................................................................32 4.2.6 EUT OPERATING CONDITIONS......................................................................32 BELOW 1GHz TEST DATA..........................................................................................33 4.2.7 TEST RESULTS...............................................................................................33 ABOVE 1GHz TEST DATA...........................................................................................34 4.2.8 TEST RESULTS...............................................................................................34 4.3 6dB BANDWIDTH MEASUREMENT.................................................................62 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT................................................62 4.3.2 TEST INSTRUMENTS......................................................................................62 Report No.: RF980606H02A 3 Report Format Version 3.0.0 4.3.3 TEST PROCEDURE.........................................................................................63 4.3.4 DEVIATION FROM TEST STANDARD..............................................................63 4.3.5 TEST SETUP...................................................................................................63 4.3.6 EUT OPERATING CONDITIONS......................................................................63 4.3.7 TEST RESULTS...............................................................................................64 4.4 MAXIMUM PEAK OUTPUT POWER.................................................................72 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT....................72 4.4.2 INSTRUMENTS................................................................................................72 4.4.3 TEST PROCEDURES.......................................................................................73 4.4.4 DEVIATION FROM TEST STANDARD..............................................................73 4.4.5 TEST SETUP...................................................................................................73 4.4.6 EUT OPERATING CONDITIONS......................................................................73 4.4.7 TEST RESULTS...............................................................................................74 4.5 POWER SPECTRAL DENSITY MEASUREMENT..............................................76 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT............................76 4.5.2 T…

Text truncated - open the document above for the full version.

Report No.: RF980606H02A-1 1 Report Format Version 3.0.0 FCC TEST REPORT (15.407) REPORT NO.: RF980606H02A-1 MODEL NO.: E3000 RECEIVED: June 06, 2009 TESTED: June 23 to July 03, 2009 ISSUED: Dec. 16, 2009 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch TEST LOCATION: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 105 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF980606H02A-1 2 Report Format Version 3.0.0 Table of Contents 1. CERTIFICATION................................................................................................5 2. SUMMARY OF TEST RESULTS.........................................................................6 2.1 MEASUREMENT UNCERTAINTY.......................................................................7 3. GENERAL INFORMATION..................................................................................8 3.1 GENERAL DESCRIPTION OF EUT....................................................................8 3.2 DESCRIPTION OF TEST MODES....................................................................11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:......................12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................15 3.4 DESCRIPTION OF SUPPORT UNITS...............................................................16 3.5 CONFIGURATION OF SYSTEM UNDER TEST.................................................17 4. TEST TYPES AND RESULTS...........................................................................19 4.1 CONDUCTED EMISSION MEASUREMENT......................................................19 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................19 4.1.2 TEST INSTRUMENTS......................................................................................19 4.1.3 TEST PROCEDURES.......................................................................................20 4.1.4 DEVIATION FROM TEST STANDARD..............................................................20 4.1.5 TEST SETUP...................................................................................................21 4.1.6 EUT OPERATING CONDITIONS......................................................................21 4.1.7 TEST RESULTS-ADAPTER 1...........................................................................22 4.1.8 TEST RESULTS-ADAPTER 2...........................................................................24 4.2 RADIATED EMISSION MEASUREMENT..........................................................26 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.........................................26 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS.........27 4.2.3 TEST INSTRUMENTS......................................................................................28 4.2.4 TEST PROCEDURES.......................................................................................29 4.2.5 DEVIATION FROM TEST STANDARD..............................................................29 4.2.6 TEST SETUP...................................................................................................30 4.2.7 EUT OPERATING CONDITION.........................................................................30 BELOW 1GHz TEST DATA..........................................................................................31 4.2.8 TEST RESULTS...............................................................................................31 ABOVE 1GHz TEST DATA...........................................................................................32 4.2.9 TEST RESULTS...............................................................................................32 4.3 PEAK TRANSMIT POWER MEASUREMENT....................................................52 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT..................................52 Report No.: RF980606H02A-1 3 Report Format Version 3.0.0 4.3.2 TEST INSTRUMENTS......................................................................................52 4.3.3 TEST PROCEDURE.........................................................................................53 4.3.4 DEVIATION FROM TEST STANDARD..............................................................53 4.3.5 TEST SETUP...................................................................................................53 4.3.6 EUT OPERATING CONDITIONS......................................................................53 4.3.7 TEST RESULTS...............................................................................................54 4.4 PEAK POWER EXCURSION MEASUREMENT.................................................70 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT...............................70 4.4.2 TEST INSTRUMENTS......................................................................................70 4.4.3 TEST PROCEDURE.........................................................................................71 4.4.4 DEVIATION FROM TEST STANDARD..............................................................71 4.4.5 TEST SETUP...................................................................................................71 4.4.6 EUT OPERATING CONDITIONS......................................................................71 4.4.7 TEST RESULTS...............................................................................................72 4.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT....................................80 4.5.1…

Text truncated - open the document above for the full version.

Report No.: RF980606H02A-1 59 Report Format Version 3.0.0 DRAFT 802.11n (20MHz) OFDM modulation: MODULATION TYPE BPSK TRANSFER RATE 6.5Mbps INPUT POWER 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg.C, 60%RH, 965hPa TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) PEAK POWER LIMIT (dBm) 26dBc Occupied Bandwidth (MHz) PASS/ FAIL 36 5180 11.7 12.0 30.6 14.9 17.00 25.00 PASS 40 5200 11.8 12.5 32.9 15.2 17.00 25.17 PASS 48 5240 11.9 12.4 32.9 15.2 17.00 25.33 PASS NOTE: The 26dBc Occupied Bandwidth plot, please refer to the following pages. Report No.: RF980606H02A-1 60 Report Format Version 3.0.0 Peak Power Output: For Chain (0) :CH36 CH40 Report No.: RF980606H02A-1 61 Report Format Version 3.0.0 CH48 Report No.: RF980606H02A-1 62 Report Format Version 3.0.0 For Chain (1) :CH36 CH40 Report No.: RF980606H02A-1 63 Report Format Version 3.0.0 CH48 Report No.: RF980606H02A-1 64 Report Format Version 3.0.0 26dB Occupied Bandwidth: CH36 CH40 Report No.: RF980606H02A-1 65 Report Format Version 3.0.0 CH48 Report No.: RF980606H02A-1 66 Report Format Version 3.0.0 DRAFT 802.11n (40MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 13.5Mbps INPUT POWER 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25deg.C, 60%RH, 965hPa TESTED BY Rex Huang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) PEAK POWER LIMIT (dBm) 26dBc Occupied Bandwidth (MHz) PASS/ FAIL 38 5190 13.0 13.5 42.3 16.3 17.00 44.67 PASS 46 5230 12.5 13.5 40.2 16.0 17.00 44.17 PASS NOTE: The 26dBc Occupied Bandwidth plot, please refer to the following pages. Report No.: RF980606H02A-1 67 Report Format Version 3.0.0 Peak Power Output: For Chain (0) :CH38 CH46 Report No.: RF980606H02A-1 68 Report Format Version 3.0.0 For Chain (1) :CH38 CH46 Report No.: RF980606H02A-1 69 Report Format Version 3.0.0 26dB Occupied Bandwidth: CH38 CH46 Report No.: RF980606H02A-1 70 Report Format Version 3.0.0 4.4 PEAK POWER EXCURSION MEASUREMENT 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT Frequency Band Limit 5.15 – 5.25 GHz 13dB 5.25 – 5.35 GHz 13dB 5.47 – 5.725GHz 13dB 5.725 – 5.825 GHz 13dB 4.4.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURER MODEL NO. SERIAL NO. CALIBRATED DATE CALIBRATED UNTIL R&S SPECTRUM ANALYZER FSP40 100037 Aug. 09, 2008 Aug. 08, 2009 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. Report No.: RF98…

Text truncated - open the document above for the full version.
