Q87-E3200Advanced Dual-Band N Router

Linksys E3200 High Performance Dual-Band N Router User Guide Linksys E3200Table of Contents i High Performance Dual-Band N Router Contents Chapter 3: Cisco Connect 3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Computers and Other Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Guest Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Router Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 How to Exit Cisco Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 How to Access Cisco Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Chapter 4: Advanced Configuration 13 How to Access the Browser-Based Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Setup > Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Setup > DDNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Setup > MAC Address Clone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Setup > Advanced Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Wireless > Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Wireless > Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Wireless > Wireless MAC Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Wireless > Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Security > Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Security > VPN Passthrough . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Storage > Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Storage > Media Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Storage > FTP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Storage > Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Access Restrictions > Internet Access Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Applications and Gaming > Single Port Forwarding . . . . . . . . . . . . . . . . . . . . . . . .34 Applications and Gaming > Port Range Forwarding . . . . . . . . . . . . . . . . . . . . . . .35 Applications & Gaming > Port Range Triggering . . . . . . . . . . . . . . . . . . . . . . . . . .35 Applications and Gaming > DMZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Applications and Gaming > QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Administration > Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 Administration > Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Administration > Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Administration > Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 Administration > Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 Status > Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Status > Local Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Status > Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 Linksys E3200Table of Contents ii High Performance Dual-Band N Router Appendix A: Troubleshooting 44 Appendix B: How to Install and Access USB Storage 46 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 Windows 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 Windows Vista . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 Windows XP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 Mac OS X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 Advanced Configuration (Advanced Users Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56 Appendix C: Specifications 58 3 High Performance Wireless-N Router Linksys E3200Chapter 4: Advanced Configuration Chapter 4: Advanced Configuration After setting up the Router with the setup software (located on the CD-ROM), the Router will be ready for use . If you would like to change its advanced settings, use the Router’s browser-based utility . This chapter describes each web page of the utility and each page’s key functions . You can access the utility via a web browser on a computer connected to the Router . The browser-based utility has these main tabs: Setup, Wireless, Security, Storage, Access Restrictions, Applications & Gaming, Administration, and Status . Additional tabs will be available after you click one of the main tabs . How to Access the Browser-Based Utility To access the browser-based utility, launch the web browser on your computer, and enter the Router’s default IP address, 192.168.1.1 in the Address field . Then press Enter . NOTE: You can also access…

Text truncated - open the document above for the full version.

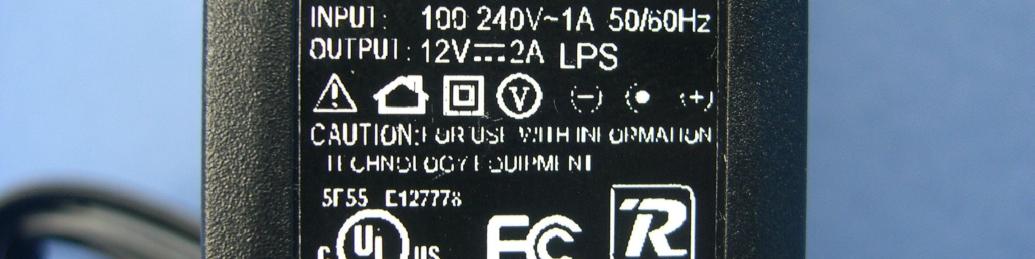

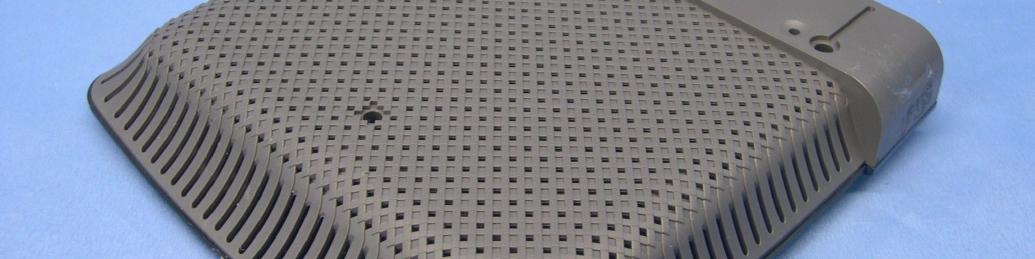

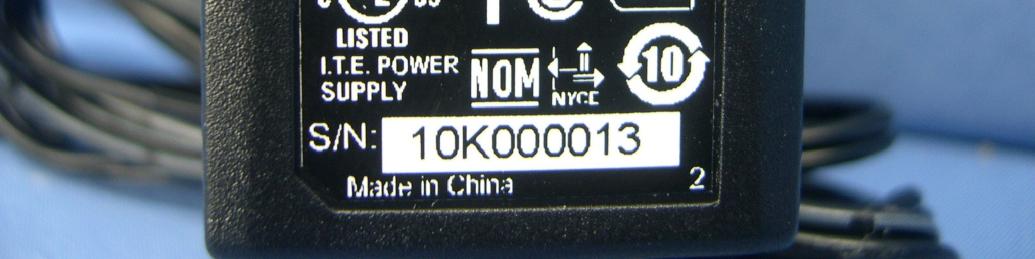

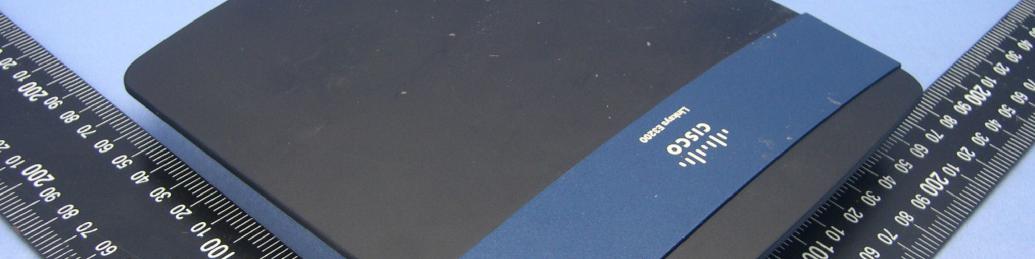

Page 1 CONSTRUCTION PHOTOS OF EUT Page 9 Adapter: NA0241WAA Page 10 Page 11 Adapter: MU24-B120200-A1 Page 12 Page 13 Adapter: IU24-2120200-WP

FCC ID：Q87-E3200 LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: Q87-E3200 Report No.: RF110117E07 Operational Description This device is an Advanced Dual-Band N Router, which operates in both of the 5GHz and 2.4GHz bands, the maximum data rate could be up to 270Mbps which OFDM technique. If the signal to noise ratio is too poor which could not support 270Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by a 12Vdc power adapter. The antenna is a Dipole antenna without antenna connector. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA110117E07 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA110117E07 MODEL NO.: E3200 FCC ID: Q87-E3200 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco Consumer Products LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA110117E07 Report Format Version 4.0.0 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA110117E07 Report Format Version 4.0.0 3 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 914.4 4.0 20 0.457 1.00 For 15.247(5GHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745-5825 957.5 4.5 20 0.537 1.00 For 15.407(5GHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180-5240 43.3 4.5 20 0.024 1.00 CONCLUSION: Both of the 2.4GHz and 5GHz can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.457 / 1 + 0.537 / 1= 0.994, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. --- END ---

Report No.: RF110117E07 1 Report Format Version 4.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF110117E07 MODEL NO.: E3200 FCC ID: Q87-E3200 RECEIVED: Jan. 17, 2011 TESTED: Mar. 07 to 17, 2011 ISSUED: Mar. 28, 2011 APPLICANT: Cisco Consumer Products LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 130 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110117E07 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD........................................................................................5 1. CERTIFICATION....................................................................................................6 2. SUMMARY OF TEST RESULTS............................................................................7 2.1 MEASUREMENT UNCERTAINTY..........................................................................9 3. GENERAL INFORMATION...................................................................................10 3.1 GENERAL DESCRIPTION OF EUT.....................................................................10 3.2 DESCRIPTION OF TEST MODES.......................................................................13 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................14 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................18 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................19 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................20 4. TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band)...............22 4.1 CONDUCTED EMISSION MEASUREMENT........................................................22 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................22 4.1.2 TEST INSTRUMENTS..........................................................................................22 4.1.3 TEST PROCEDURES..........................................................................................23 4.1.4 DEVIATION FROM TEST STANDARD.................................................................23 4.1.5 TEST SETUP.......................................................................................................24 4.1.6 EUT OPERATING CONDITIONS.........................................................................24 4.1.7 TEST RESULTS (With adapter 1).........................................................................25 4.1.8 TEST RESULTS (With adapter 2).........................................................................27 4.1.9 TEST RESULTS (With adapter 3).........................................................................29 4.2 RADIATED EMISSION MEASUREMENT.............................................................31 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................31 4.2.2 TEST INSTRUMENTS..........................................................................................32 4.2.3 TEST PROCEDURES..........................................................................................34 4.2.4 DEVIATION FROM TEST STANDARD.................................................................34 4.2.5 TEST SETUP.......................................................................................................35 4.2.6 EUT OPERATING CONDITIONS.........................................................................36 4.2.7 TEST RESULTS...................................................................................................37 4.3 6dB BANDWIDTH MEASUREMENT....................................................................66 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................66 4.3.2 TEST INSTRUMENTS..........................................................................................66 4.3.3 TEST PROCEDURE.............................................................................................66 4.3.4 DEVIATION FROM TEST STANDARD.................................................................66 4.3.5 TEST SETUP.......................................................................................................66 4.3.6 EUT OPERATING CONDITIONS.........................................................................66 4.3.7 TEST RESULTS...................................................................................................67 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................71 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................71 Report No.: RF110117E07 3 Report Format Version 4.0.0 4.4.2 INSTRUMENTS....................................................................................................71 4.4.3 TEST PROCEDURES..........................................................................................71 4.4.4 DEVIATION FROM TEST STANDARD.................................................................71 4.4.5 TEST SETUP.......................................................................................................71 4.4.6 EUT OPERATING CONDITIONS.................................................................…

Text truncated - open the document above for the full version.

Report No.: RF110117E07-1 1 Report Format Version 4.0.0 FCC TEST REPORT (15.407) REPORT NO.: RF110117E07-1 MODEL NO.: E3200 FCC ID: Q87-E3200 RECEIVED: Jan. 17, 2011 TESTED: Mar. 07 to 17, 2011 ISSUED: Mar. 28, 2011 APPLICANT: Cisco Consumer Products LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 85 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110117E07-1 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD........................................................................................4 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY................................................................................7 3. GENERAL INFORMATION.....................................................................................8 3.1 GENERAL DESCRIPTION OF EUT.......................................................................8 3.2 DESCRIPTION OF TEST MODES.......................................................................11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.......................12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................15 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................16 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................17 4. TEST TYPES AND RESULTS..............................................................................19 4.1 CONDUCTED EMISSION MEASUREMENT........................................................19 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................19 4.1.2 TEST INSTRUMENTS..........................................................................................19 4.1.3 TEST PROCEDURES..........................................................................................20 4.1.4 DEVIATION FROM TEST STANDARD.................................................................20 4.1.5 TEST SETUP.......................................................................................................21 4.1.6 EUT OPERATING CONDITIONS.........................................................................21 4.1.7 TEST RESULTS (WITH ADAPTER 1)..................................................................22 4.1.8 TEST RESULTS (WITH ADAPTER 2)..................................................................24 4.1.9 TEST RESULTS (WITH ADAPTER 3)..................................................................26 4.2 RADIATED EMISSION MEASUREMENT.............................................................28 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................28 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS..........29 4.2.3 TEST INSTRUMENTS..........................................................................................30 4.2.4 TEST PROCEDURES..........................................................................................32 4.2.5 DEVIATION FROM TEST STANDARD.................................................................32 4.2.6 TEST SETUP.......................................................................................................33 4.2.7 EUT OPERATING CONDITION............................................................................34 4.2.8 TEST RESULTS...................................................................................................35 4.3 OUTPUT TRANSMIT POWER MEASUREMENT.................................................56 4.3.1 LIMITS OF OUTPUT TRANSMIT POWER MEASUREMENT...............................56 4.3.2 TEST INSTRUMENTS..........................................................................................56 4.3.3 TEST PROCEDURE.............................................................................................57 4.3.4 DEVIATION FROM TEST STANDARD.................................................................57 4.3.5 TEST SETUP.......................................................................................................57 4.3.6 EUT OPERATING CONDITIONS.........................................................................57 4.3.7 TEST RESULTS...................................................................................................58 4.4 PEAK POWER EXCURSION MEASUREMENT...................................................64 Report No.: RF110117E07-1 3 Report Format Version 4.0.0 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT.................................64 4.4.2 TEST INSTRUMENTS..........................................................................................64 4.4.3 TEST PROCEDURE.............................................................................................64 4.4.4 DEVIATION FROM TEST STANDARD.................................................................64 4.4.5 TEST SETUP.......................................................................................................65 4.4.6 EUT OPERATING CONDITI…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST(With adapter 1) 2 CONDUCTED EMISSION TEST(With adapter 2) 3 CONDUCTED EMISSION TEST(With adapter 3) 4 RADIATED EMISSION TEST(Below 1GHz) 5 RADIATED EMISSION TEST(Above 1GHz)
