Q87-EA6300Linksys Smart WiFi Router AC1200

Linksys Dual-Band Routers and Bridges Regulatory Information Table of Contents i Linksys Regulatory Information Table of Contents Wireless Regulatory Information 1 FCC Statement 1 FCC Radiation Exposure Statement 1 Safety Notices 1 Industry Canada Statement 1 Avis d’Industrie Canada 2 Wireless Disclaimer 2 Avis de non-responsabilité concernant les appareils sans fil 2 Declaration of Conformity with Regard to EU Directive 1999/5/EC (R&TTE Directive) 2 Wireless Equipment (Wireless-AC/N/G/A/B Products) 3 National Restrictions 3 Product Usage Restrictions 4 Technical Documents on www myciscohome com 4 WEEE Information 5 User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE) 5 1 Linksys Regulatory InformationWireless Regulatory Information Wireless Regulatory Information FCC Statement This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna •Increase the separation between the equipment or devices •Connect the equipment to an outlet other than the receiver’s •Consult a dealer or an experienced radio/TV technician for assistance FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment IEEE 802 11b or 802 11g operation of this product in the USA is firmware-limited to channels 1 through 11 The device for the band 5150-5250 MHz is only for indoor usage to reduce the potential for harmful interference to co-channel mobile satellite systems FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter Safety Notices WARNING: Do not use this product near water, for example, in a wet basement or near a swimming pool WARNING: Avoid using this product during an electrical storm There may be a remote risk of electric shock from lightning WARNING: This product contains lead, known to the State of California to cause cancer, and birth defects or other reproductive harm Wash hands after handling Industry Canada Statement This Class B digital apparatus complies with Canadian ICES-003 and RSS210 Operation is subject to the following two conditions: 1 This device may not cause interference and 2 This device must accept any interference, including interference that may cause undesired operation of the device The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. The maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate. Industry Canada Radiation Exposure Statement This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter Restrictions in the 5 GHz Band The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co- channel mobile satellite systems 2 Linksys Regulatory InformationWireless Regulatory Information Avis d’Industrie Canada Cet appareil numérique de la classe B est conforme aux normes NMB-003 et RSS210 du Canada L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes : 1 il ne doit pas produire de brouillage et 2 il doit accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif Avis d’Industrie Canada concernant l’exposition aux radiofréquences Ce matériel est conforme aux limites établies par IC en matière d’exposition aux radiofréquences dans un environnement non contrôlé Ce matériel doit être installé et utilisé à une distance d’au moins 20 cm entre l’antenne et le corps de l’utilisateur L’émetteur ne doit pas être placé près d’une autre antenne ou d’un autre émetteur, ou fonctionner avec une autre antenne ou un autre émetteur Le dispositif pourrait automatiquement cesser d'émettre en cas d'absence d'informations à transmettre, ou une défaillance opérationnelle. Notez que ce n'est pas l'intention d'interdire la transmission des informations de contrôle ou de signalisation ou l'utilisation de codes répétitifs lorsque requis par la technologie. Le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5725-5825 MHz) doit se conformer à la limite de p.i.r.e. spécifiée p…

Text truncated - open the document above for the full version.

User Guide Linksys EA-Series i Table of Contents Linksys EA-Series i Product Overview EA2700/EA3500 1 EA00 2 EA6500 3 Setting Up Your EA-Series Router Where to find more help 4 How to install your router 4 Ho w to use Cisco Connect Cloud 5 How to connect to Cisco Connect Cloud 5 How to change router settings 5 Troubleshooting Your router was not successfully set up 9 Windows XP Service Pack update 10 Y our Internet cable is not plugged in message 10 C annot access your router message 11 Specifications Linksys EA2700 13 Linksys EA3500 14 Linksys EA 00 15 Linksys EA6500 16 Table of Contents 1 Product Overview Linksys EA-Series 1 EA2700/EA3500 Back view Ethernet portsWi-Fi Protected Setup button Internet port Power port Power indicatorUSB port (EA3500 only) Your router’s appearance may vary •USB port (EA3500 only)—To easily share disk storage with other users on your network or on the Internet, connect a USB drive to this port •Ethernet ports—Connect Ethernet cables (also called network cables) to these Gigabit (10/100/1000) ports, color coded blue, and to other wired Ethernet network devices on your network •Internet port—Connect an Ethernet cable (also called a network or Internet cable) to this port, color coded yellow, and to your modem •Wi-Fi Protected Setup™ button—Press this button to easily configure wireless security on Wi-Fi Protected Setup-enabled network devices •Power indicator—Stays on steadily while power is connected and following a successful Wi-Fi Protected Setup connection Flashes slowly during bootup, during firmware upgrades, and during a Wi-Fi Protected Setup connection Flashes quickly when there is a Wi-Fi Protected Setup error •Power port—Connect the included AC power adapter to this port CAUTIOn Use only the adapter that came with your router •Power button—Press | (on) to turn on the router Bottom view Your router’s appearance may vary •Reset button—Press and hold this button for 5-15 seconds (until the port lights flash at the same time) to reset the router to its factory defaults You can also restore the defaults using Cisco Connect Cloud Product Overview 3 Product Overview Linksys EA-Series EA6500 Top view Indicator light •Indicator light—Stays on steadily while power is connected and following a successful Wi-Fi Protected Setup connection Pulses slowly during bootup, during firmware upgrades, and during a Wi-Fi Protected Setup connection Flashes quickly when there is a Wi-Fi Protected Setup error Back view Ethernet ports Wi-Fi Protected Setup button Internet port Power port Reset button USB ports •Wi-Fi Protected Setup™ button—Press this button to easily configure wireless security on Wi-Fi Protected Setup-enabled network devices •Ethernet ports—Connect Ethernet cables (also called network cables) to these Gigabit (10/100/1000) ports, color coded blue, and to wired Ethernet network devices on your network nOTE For best performance, use CAT5E or higher rated cables on the Ethernet ports •Internet port—Connect an Ethernet cable (also called a network or Internet cable) to this port, color coded yellow, and to your modem •USB ports—To easily share disk storage with other users on your network or on the Internet, connect a USB drive to one of these ports You can also connect a USB printer and share it across your network •Reset button—Press and hold this button for 5-15 seconds (until the port lights flash at the same time) to reset the router to its factory defaults You can also restore the defaults using Cisco Connect Cloud •Power port—Connect the included AC power adapter to this port •Power button—Press | (on) to turn on the router 4 Setting Up Your EA-Series Router Linksys EA-Series 4 Where to find more help In addition to this User Guide, you can find help at these locations: •Linksys.com/support (documentation, downloads, FAQs, technical support, live chat, forums) •Cisco Connect Cloud help (connect to Cisco Connect Cloud, then click Help at the top of the screen) How to install your router nOTE: If you lose your setup CD, you can download the software from Linksys.com/support To install your router: 1. Insert the CD into your CD or DVD drive 2. Click Set up your Linksys Router If you do not see this: •For Windows, click Start, Computer, then double-click the CD drive and the Setup icon •For Mac, double-click the CD icon on your desktop, then double-click the Setup icon 3. Follow the on-screen instructions to complete your router setup At the end of setup, follow the on-screen instructions to set up your Cisco Connect Cloud account Use Cisco Connect Cloud to easily manage your router’s settings, such as: •Change your router’s name and password •Set up guest access •Configure parental controls •Connect devices to your network •Test your Internet connection speed nOTE: As part of Cisco Connect Cloud account setup, you will be sent a verification e-mail Make sure that you open the e-mail from Cisco and click the provided link Setting Up Your EA-Series Router 5 Setting Up Your EA-Series Router Linksys EA-Series How to use Cisco Connect Cloud How to connect to Cisco Connect Cloud You can use Cisco Connect Cloud to configure your router from any computer that has an Internet connection To open Cisco Connect Cloud: 1. Click the Cisco Connect Cloud icon on your desktop - OR - Open a web browser and go to www.ciscoconnectcloud.com 2. Enter the e-mail address and password you set up earlier, then click Log in How to change router settings Use Cisco Connect Cloud to change settings on your router and set up special features such as parental controls and guest access To change router settings: nOTE: For additional help on any menu, click Help at the top of the screen 1. Open Cisco Connect Cloud and log into your account 2. In the menu on the left, click an option: •Device List lets you display and manage all network devices connected to your router You can view devices on your main network and your guest network, disconnect the devices, or display information about e…

Text truncated - open the document above for the full version.

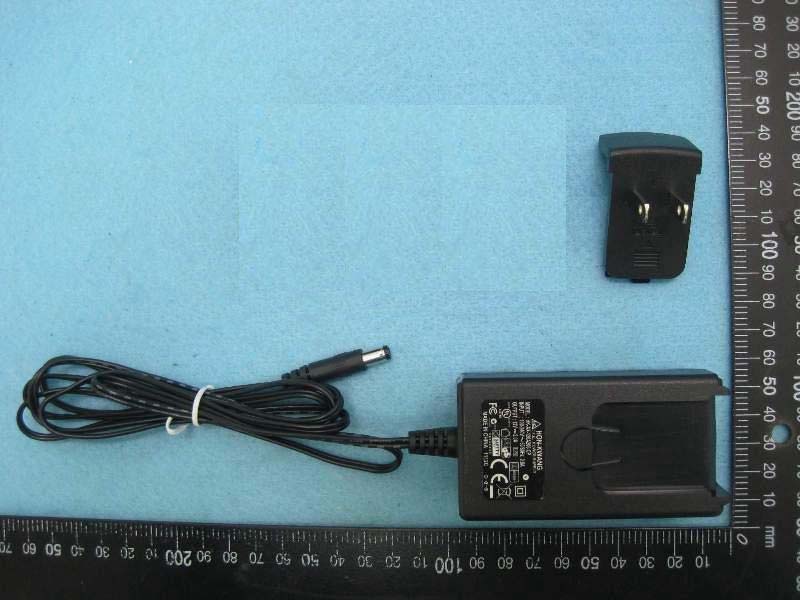

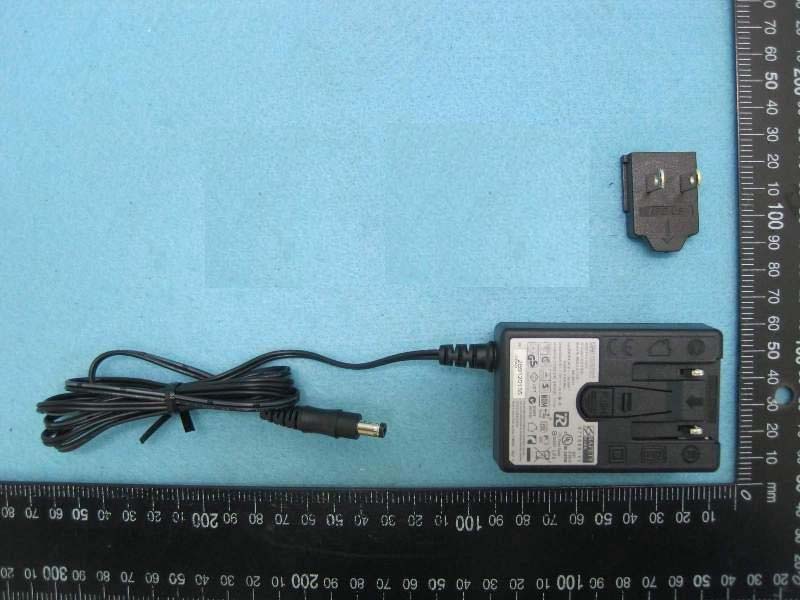

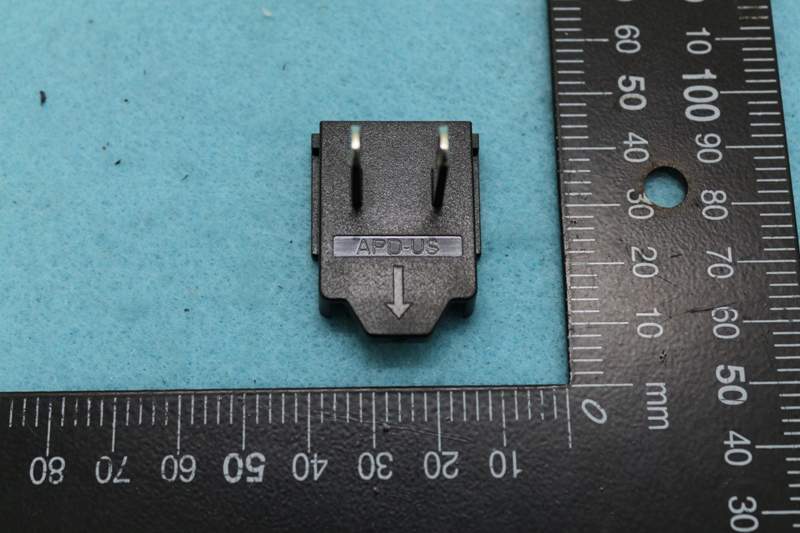

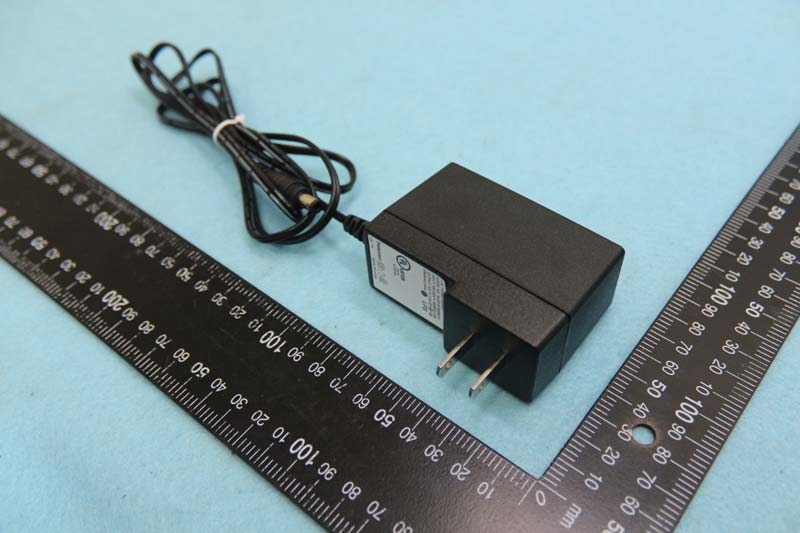

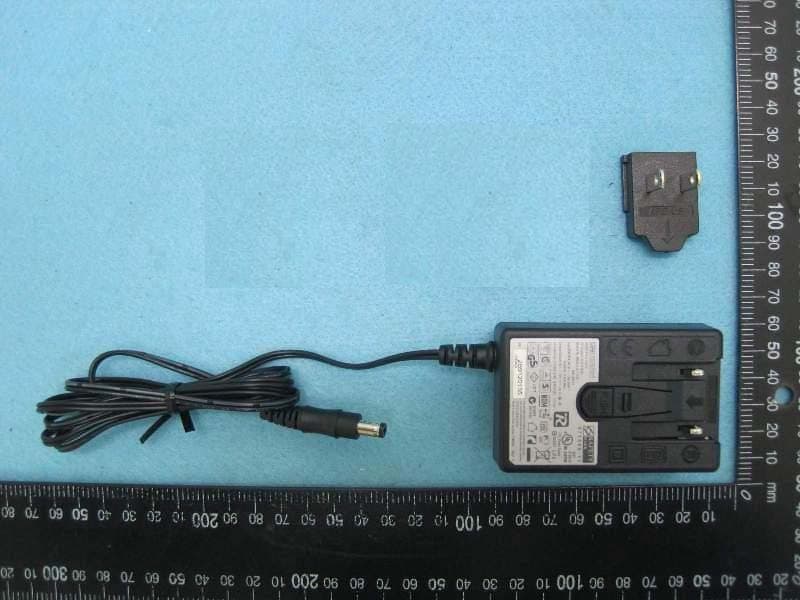

Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A1 OFA15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A2 OFA15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A3 OFA15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Adapter 1 Brand Holder: APD Model No.: WA-24E12FU Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A4 OFA15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Adapter 2 Brand Holder: APD Model No.: WA-24E12 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A5 OFA15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A6 OFA15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A7 OFA15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A8 OFA15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Adapter 3 Brand Holder: HON-KWANG Model No.: HK-AX-120A200-US Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A9 OFA15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Adapter 4 Brand Holder: HON-KWANG Model No.: HK-AX-120A200-CP Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A10 OFA15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A11 OFA15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A12 OFA15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Adapter 5 Brand Holder: SOLYTECH Model No.: CAD2412 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A13 OFA15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A14 OFA15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Adapter 6 Brand Holder: LEI Model No.: MU24-S120200-A1 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A15 OFA15 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255

Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A1 OFA12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A2 OFA12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A3 OFA12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A4 OFA12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A5 OFA12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A6 OFA12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A7 OFA12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A8 OFA12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A9 OFA12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A10 OFA12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A11 OFA12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255 Report No.: 2N1647 SPORTON International Inc. PAGE NUMBER : A12 OFA12 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 10, 2012 FAX : 886-2-2696-2255

Report No.: FR2N1647 FCC ID: Q87-EA6300 Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR2N1647 FCC ID: Q87-EA6300 Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR2N1647 FCC ID: Q87-EA6300 Page No. : C3 of C3 1.3. Calculated Result and Limit For 5GHz UNII Band: (15.407) Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11ac MCS0 VHT 80MHz : 16.96 dBm lAntenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.47 3.5237 16.9607 49.6674 0.034835 1 Complies For 5GHz ISM Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11a : 21.76 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.47 3.5237 21.7604 149.9824 0.105194 1 Complies For 2.4GHz Band: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11b/g : 21.15 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.32 2.7040 21.1523 130.3870 0.070175 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.070175 / 1 + 0.105194 / 1 = 0.175369, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR2N1647 FCC ID: Q87-EA6300 Page No. : D1 of D3 Appendix D. Co-location Report No.: FR2N1647 FCC ID: Q87-EA6300 Page No. : D2 of D3 1. Results of Radiated Emissions for Co-located Temperature 24.5°C Humidity 57% Test Engineer Wen Chao Configurations 2.4G + 5G TX Horizontal Report No.: FR2N1647 FCC ID: Q87-EA6300 Page No. : D3 of D3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Cisco Consumer Products LLC Applicant Address 121 Theory Drive, Irvine, CA 92617, USA FCC ID Q87-EA6300 Product Name Linksys Smart WiFi Router AC1200 Brand Name Cisco Model Name EA6300 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Nov. 16, 2012 Final Test Date Dec. 05, 2012 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v02 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR2N1647AA Report Format Version: 01 Page No. : i of ii FCC ID: Q87-EA6300 Issued Date :Dec. 10, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ........................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT ............................................................................................................................ 2 3. GENERAL INFORMATION..................................................................................................................................... 3 3.1. Product Details ........................................................................................................................................................................................... 3 3.2. Accessories ................................................................................................................................................................................................. 7 3.3. Table for Filed Antenna ............................................................................................................................................................................. 8 3.4. Table for Carrier Frequencies ................................................................................................................................................................... 9 3.5. Table for Test Modes ................................................................................................................................................................................ 10 3.6. Table for Testing Locations...................................................................................................................................................................... 12 3.7. Table for Supporting Units ....................................................................................................................................................................... 12 3.8. Table for Parameters of Test Software Setting ..................................................................................................................................... 13 3.9. Test Configurations................................................................................................................................................................................... 15 4. TEST RESULT......................................................................................................................................................... 18 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 18 4.2. Maximum Conducted Output Power Measurement......................................................................................................................... 30 4.3. Power Spectral Density Measurement.................................................................................................................................................. 34 4.4. 6dB Spectrum Bandwidth Measurement ............................................................................................................................................. 48 4.5. Radiated Emissions Measurement......................................................................................................................................................... 57 4.6. Band Edge Emissions Measurement...................................................................................................................................................... 97 4.7. Antenna Requirements ......................................................................................................................................................................... 117 5. LIST OF MEASURING EQUIPMENTS .................................................................................................................. 118 6. TEST LOCATION................................................................................................................................................ 120 7. TAF CERTIFICATE OF ACCREDITATION............................................................................................................ 121 APPENDIX A. PHOTOGRAPHS OF EUT ........................................................................................................ A1 ~ A26 APPENDIX B. TEST PHOTOS ............................................................................................................................ B1 ~ B5 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE .....…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Cisco Consumer Products LLC Applicant Address 121 Theory Drive, Irvine, CA 92617, USA FCC ID Q87-EA6300 Product Name Linksys Smart WiFi Router AC1200 Brand Name Cisco Model Name EA6300 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Nov. 16, 2012 Final Test Date Dec. 20, 2012 Submission Type Original Equipment Statement Test result included is for the IEEE 802.11n and IEEE 802.11a (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart E and KDB 789033 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR2N1647AB Report Format Version: 01 Page No. : i of ii FCC ID: Q87-EA6300 Issued Date : Dec. 21, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................6 3.3. Table for Filed Antenna.......................................................................................................................................................................7 3.4. Table for Carrier Frequencies .............................................................................................................................................................8 3.5. Table for Test Modes ...........................................................................................................................................................................9 3.6. Table for Testing Locations................................................................................................................................................................10 3.7. Table for Supporting Units .................................................................................................................................................................10 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................11 3.9. Test Configurations ...........................................................................................................................................................................12 4. TEST RESULT ................................................................................................................................................... 15 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................15 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................27 4.3. Maximum Conducted Output Power Measurement .…

Text truncated - open the document above for the full version.
