Q87-EA6400Linksys Smart Wi-Fi Routers AC1600 and AC1200

User Guide SMART Wi-Fi Routers with Wireless-AC Linksys i Table of Contents Linksys EA-Series i Product Overview EA6300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 EA6400/EA6700 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Setting Up Your EA-Series Router Where to find more help. . . . . . . . . . . . . . . . . . . . . . . . . .3 How to install your router . . . . . . . . . . . . . . . . . . . . . . . . .3 How to use Linksys Smart Wi-Fi. . . . . . . . . . . . . . . . . . . . . .4 How to connect to Linksys Smart Wi-Fi 4 How to change router settings 4 Troubleshooting Your router was not successfully set up . . . . . . . . . . . . . . . .8 Windows XP Service Pack update . . . . . . . . . . . . . . . . . . . .8 Your Internet cable is not plugged in message . . . . . . . . . . . . .9 Cannot access your router message . . . . . . . . . . . . . . . . . . .9 Specifications Linksys EA6300. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Linksys EA6400. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Linksys EA6700. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Table of Contents 1 Product Overview Linksys EA-Series 1 EA6300 Top view Indicator light •Indicator light—Stays on steadily while power is connected and following a successful Wi-Fi Protected Setup connection. Pulses slowly during bootup, during firmware upgrades, and during a Wi-Fi Protected Setup connection. Flashes quickly when there is a Wi-Fi Protected Setup error. Back view Ethernet ports Wi-Fi Protected Setup button Internet port Power port Reset button USB port •USB port—To easily share disk storage with other users on your network or on the Internet, connect a USB drive to this port. •Ethernet ports—Connect Ethernet cables (also called network cables) to these Gigabit (10/100/1000) ports, color coded blue, and to other wired Ethernet network devices on your network. •Internet port—Connect an Ethernet cable (also called a network or Internet cable) to this port, color coded yellow, and to your modem. •Wi-Fi Protected Setup™ button—Press this button to easily configure wireless security on Wi-Fi Protected Setup-enabled network devices. •Reset button—Press and hold this button for 5-15 seconds (until the port lights flash at the same time) to reset the router to its factory defaults. You can also restore the defaults using Linksys Smart Wi-Fi. •Power port—Connect the included AC power adapter to this port. CAUTION Use only the adapter that came with your router. •Power button—Press | (on) to turn on the router. (EU models only) Product Overview 2 Product Overview Linksys EA-Series EA6400/EA6700 Top view Indicator light •Indicator light—Stays on steadily while power is connected and following a successful Wi-Fi Protected Setup connection. Pulses slowly during bootup, during firmware upgrades, and during a Wi-Fi Protected Setup connection. Flashes quickly when there is a Wi-Fi Protected Setup error. Back view Ethernet ports Wi-Fi Protected Setup button Internet port Power port Reset button USB port(s) •Wi-Fi Protected Setup™ button—Press this button to easily configure wireless security on Wi-Fi Protected Setup-enabled network devices. •USB ports—To easily share disk storage with other users on your network or on the Internet, connect a USB drive to one of these ports. You can also connect a USB printer and share it across your network. (EA6400 has 1 port, EA6700 has 2 ports.) •Ethernet ports—Connect Ethernet cables (also called network cables) to these Gigabit (10/100/1000) ports, color coded blue, and to wired Ethernet network devices on your network. NOTE For best performance, use CAT5E or higher rated cables on the Ethernet ports. •Internet port—Connect an Ethernet cable (also called a network or Internet cable) to this port, color coded yellow, and to your modem. •Reset button—Press and hold this button for 5-15 seconds (until the port lights flash at the same time) to reset the router to its factory defaults. You can also restore the defaults using Linksys Smart Wi-Fi. •Power port—Connect the included AC power adapter to this port. •Power button—Press | (on) to turn on the router. (EU models only) 3 Setting Up Your EA-Series Router Linksys EA-Series 3 Where to find more help In addition to this User Guide, you can find help at these locations: •Linksys.com/support (documentation, downloads, FAQs, technical support, live chat, forums) •Linksys Smart Wi-Fi help (connect to Linksys Smart Wi-Fi, then click Help at the top of the screen) How to install your router To install your router: 1. Power on your new router. If replacing an existing router, disconnect it. 2. Connect the Internet cable from your modem to the yellow Internet port on your router. Wait until the power light on the front of the router is solid. 3. Connect to the secure wireless name shown in the Quick Start Guide that came with your router. (You can change the network name and password later during router setup.) If you need help connecting to the network, refer to your device documentation. Note: You will not have Internet access until router setup is complete. 4. Open a web browser and follow the instructions to complete your router’s setup. If instructions do not appear in the web browser, enter linksyssmartwifi.com in the browser’s address bar. 5. At the end of setup, follow the on-screen instructions to set up your Linksys Smart Wi-Fi account. Use Linksys Smart Wi-Fi to easily manage your router’s settings, such as: •Change your router’s name and password •Set up guest access •Configure parental controls •Connect devices to your network •Test your Internet connection speed NOTE: As part of Linksys Smart Wi-Fi account setup, you will be sent a verification e-mail. Make sure that you open the e-mail from Cisco and click the provided link. Setting Up Your EA-Series Router 4 Setting Up Your EA-Series Router Linksys EA-Series How to use Linksys Smart Wi-Fi How to connect to…

Text truncated - open the document above for the full version.

Linksys Dual-Band Routers and Bridges Regulatory Information Table of Contents i Linksys Regulatory Information Table of Contents Wireless Regulatory Information 1 FCC Statement 1 FCC Radiation Exposure Statement 1 Safety Notices 1 Industry Canada Statement 1 Avis d’Industrie Canada 2 Wireless Disclaimer 2 Avis de non-responsabilité concernant les appareils sans fil 2 Declaration of Conformity with Regard to EU Directive 1999/5/EC (R&TTE Directive) 2 Wireless Equipment (Wireless-AC/N/G/A/B Products) 3 National Restrictions 3 Product Usage Restrictions 4 Technical Documents on www myciscohome com 4 WEEE Information 5 User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE) 5 1 Linksys Regulatory InformationWireless Regulatory Information Wireless Regulatory Information FCC Statement This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna •Increase the separation between the equipment or devices •Connect the equipment to an outlet other than the receiver’s •Consult a dealer or an experienced radio/TV technician for assistance FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment IEEE 802 11b or 802 11g operation of this product in the USA is firmware-limited to channels 1 through 11 The device for the band 5150-5250 MHz is only for indoor usage to reduce the potential for harmful interference to co-channel mobile satellite systems FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter Safety Notices WARNING: Do not use this product near water, for example, in a wet basement or near a swimming pool WARNING: Avoid using this product during an electrical storm There may be a remote risk of electric shock from lightning WARNING: This product contains lead, known to the State of California to cause cancer, and birth defects or other reproductive harm Wash hands after handling Industry Canada Statement This Class B digital apparatus complies with Canadian ICES-003 and RSS210 Operation is subject to the following two conditions: 1 This device may not cause interference and 2 This device must accept any interference, including interference that may cause undesired operation of the device The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology. The maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate. For products available in the US/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Industry Canada Radiation Exposure Statement This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter Restrictions in the 5 GHz Band The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co- channel mobile satellite systems 2 Linksys Regulatory InformationWireless Regulatory Information Avis d’Industrie Canada Cet appareil numérique de la classe B est conforme aux normes NMB-003 et RSS210 du Canada L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes : 1 il ne doit pas produire de brouillage et 2 il doit accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif Avis d’Industrie Canada concernant l’exposition aux radiofréquences Ce matériel est conforme aux limites établies par IC en matière d’exposition aux radiofréquences dans un environnement non contrôlé Ce matériel doit être installé et utilisé à une distance d’au moins 20 cm entre l’antenne et le corps de l’utilisateur L’émetteur ne doit pas être placé près d’une autre antenne ou d’un autre émetteur, ou fonctionner avec une autre antenne ou un autre émetteur Le dispositif pourrait automatiquement cesser d'émettre en cas d'absence d'informations à transmettre, ou une défaillance opérationnelle. Notez que ce n'est pas l'intention d'interdire la transmission des informations de contrôle ou de signalisation ou l'utilisation de codes répétitifs lorsque requis par la technologie. Le gain maxima…

Text truncated - open the document above for the full version.

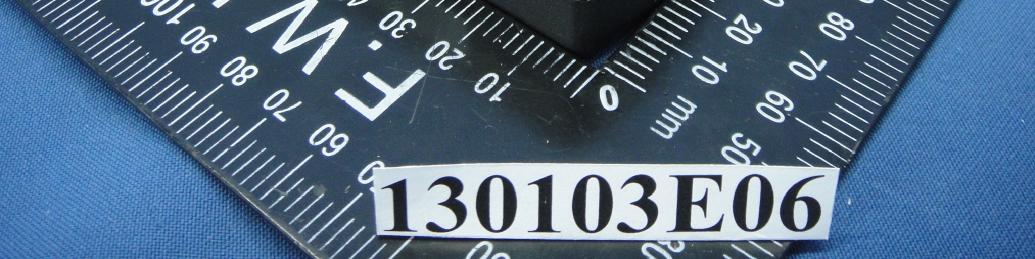

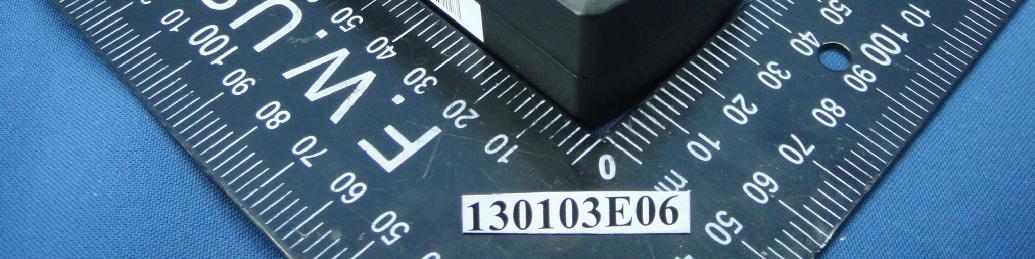

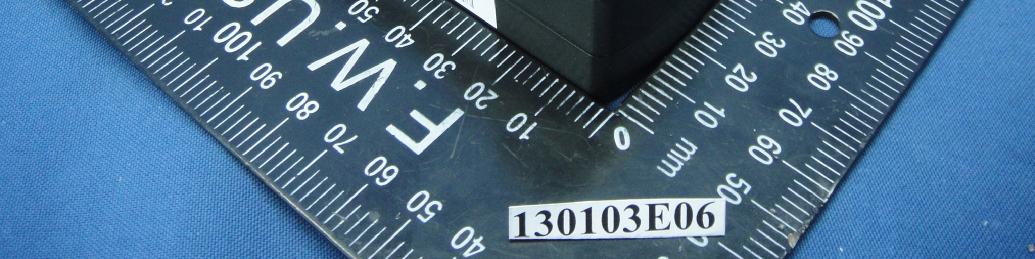

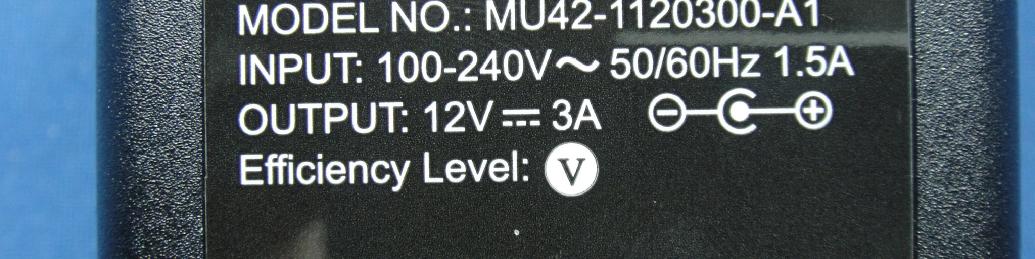

Reference No.: 130103E06 Page 1 CONSTRUCTION PHOTOS OF EUT Reference No.: 130103E06 Page 15 Adapter: CAD3612CW-1 Reference No.: 130103E06 Page 16 Reference No.: 130103E06 Page 17 Adapter: CAD3612LW-1 Reference No.: 130103E06 Page 18 Reference No.: 130103E06 Page 19 Reference No.: 130103E06 Page 20 Reference No.: 130103E06 Page 21 Adapter: MU42-1120300-A1 Reference No.: 130103E06 Page 22 Reference No.: 130103E06 Page 23 Adapter: IU42-1120300-WP Reference No.: 130103E06 Page 24 Reference No.: 130103E06 Page 25

41.2 1.95 3.8 55.6 17.0 R 1.0, 8 PLS COLOR: P8402C-01

(Fig.1) FCC ID: Q87-EA6400 Label FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Reference No.: 130103E06 Page 2 Reference No.: 130103E06 Page 3 Reference No.: 130103E06 Page 4 Reference No.: 130103E06 Page 5 Reference No.: 130103E06 Page 6 Reference No.: 130103E06 Page 7 Reference No.: 130103E06 Page 8 Reference No.: 130103E06 Page 9 Reference No.: 130103E06 Page 10 Reference No.: 130103E06 Page 11 Reference No.: 130103E06 Page 12 Reference No.: 130103E06 Page 13 Reference No.: 130103E06 Page 14

Report No.: SA130103E06 1 of 6 Report Format Version 5.0.0 Reference No.: RF EXPOSURE REPORT REPORT NO.: SA130103E06 MODEL NO.: EA6400, EA6300V1 FCC ID: Q87-EA6400 RECEIVED: Jan. 03, 2013 TESTED: Jan. 07, 2013 ISSUED: Feb. 26, 2013 APPLICANT: Cisco Consumer Products LLC ADDRESS: 121 Theory Drive Irvine California 92617 United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA130103E06 2 of 6 Report Format Version 5.0.0 Reference No.: TABLE OF CONTENTS RELEASE CONTROL RECORD .................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA130103E06 3 of 6 Report Format Version 5.0.0 Reference No.: RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA130103E06 Original release Feb. 26, 2013 Report No.: SA130103E06 4 of 6 Report Format Version 5.0.0 Reference No.: 1. CERTIFICATION PRODUCT: Linksys Smart Wi-Fi Router AC1600, Linksys Smart Wi-Fi Router AC1200 BRAND NAME: Cisco MODEL NO.: EA6400, EA6300V1 TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Cisco Consumer Products LLC TESTED DATE: Jan. 07, 2013 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: EA6400) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Feb. 26, 2013 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: Feb. 26, 2013 ( May Chen, Deputy Manager ) Report No.: SA130103E06 5 of 6 Report Format Version 5.0.0 Reference No.: 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA130103E06 6 of 6 Report Format Version 5.0.0 Reference No.: 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 195.489 3.745 20 0.09223 1 For 15.247(5GHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 521.139 5.314 20 0.35211 1 For 15.407(5GHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180 ~ 5240 28.170 4.339 20 0.01522 1 CONCLUSION: Both of the 2.4GHz and 5GHz WLAN can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.09223 / 1 + 0.35211 / 1 = 0.444, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. --- END ---

Report No.: RF130103E06 1 of 110 Report Format Version 5.1.0 Cancels and replaces the report No.: IC120322E03 dated Apr. 10, 2012 FCC TEST REPORT (15.247) REPORT NO.: RF130103E06 MODEL NO.: EA6400, EA6300V1 FCC ID: Q87-EA6400 RECEIVED: Jan. 03, 2013 TESTED: Jan. 05 to 15, 2013 ISSUED: Feb. 26, 2013 APPLICANT: Cisco Consumer Products LLC ADDRESS: 121 Theory Drive Irvine California 92617 United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF130103E06 2 of 110 Report Format Version 5.1.0 Cancels and replaces the report No.: IC120322E03 dated Apr. 10, 2012 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 5 1. CERTIFICATION .................................................................................................... 6 2. SUMMARY OF TEST RESULTS ............................................................................ 7 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 8 3. GENERAL INFORMATION ..................................................................................... 9 3.1 GENERAL DESCRIPTION OF EUT ....................................................................... 9 3.2 DESCRIPTION OF TEST MODES ....................................................................... 14 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 15 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 18 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 19 3.5 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 20 4. TEST TYPES AND RESULTS (fOR 2.4GHz, 2.400 ~ 2.4835GHz Band) .............. 22 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 22 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 22 4.1.2 TEST INSTRUMENTS .......................................................................................... 22 4.1.3 TEST PROCEDURES .......................................................................................... 23 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 23 4.1.5 TEST SETUP ....................................................................................................... 23 4.1.6 EUT OPERATING CONDITIONS ......................................................................... 24 4.1.7 TEST RESULTS(MODE 1) ................................................................................... 25 4.1.8 TEST RESULTS(MODE 2) ................................................................................... 27 4.1.9 TEST RESULTS(MODE 3) ................................................................................... 29 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 31 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 31 4.2.2 TEST INSTRUMENTS .......................................................................................... 32 4.2.3 TEST PROCEDURES .......................................................................................... 34 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 34 4.2.5 TEST SETUP ....................................................................................................... 35 4.2.6 EUT OPERATING CONDITIONS ......................................................................... 35 4.2.7 TEST RESULTS ................................................................................................... 36 4.3 6dB BANDWIDTH MEASUREMENT .................................................................... 49 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 49 4.3.2 TEST INSTRUMENTS .......................................................................................... 49 4.3.3 TEST PROCEDURE ..........................................................................................…
