Q87-EA8500LINKSYS DUAL-BAND WIRELESS-AC ROUTER

AC2600 MU-MIMO GIGABIT ROUTER USER GUIDE Model# EA8500 ii Linksys EA8500 ii Table of Contents Product overview EA8500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Setting Up Your Router Where to find more help. . . . . . . . . . . . . . . . . . . . . . . . . .3 How to install your router . . . . . . . . . . . . . . . . . . . . . . . . .3 How to connect to Linksys Smart Wi-Fi 4 How to change router settings 4 Troubleshooting Your router was not successfully set up . . . . . . . . . . . . . . . .7 Windows XP Service Pack update . . . . . . . . . . . . . . . . . . . .7 Your Internet cable is not plugged in message . . . . . . . . . . . . .8 Cannot access your router message . . . . . . . . . . . . . . . . . . . .8 Specifications Linksys EA8500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 1 Linksys EA8500 Product overview EA8500 Front view •Power Indicator — The Linksys logo stays on steadily while connected to the Internet. It flashes or pulses slowly during bootup, self-testing and firmware upgrades. It flashes quickly when indicating connection errors. Back view •Adjustable external antennas—This router ships with four adjustable external antennas that should be connected to the router before powering it on. To connect the antennas, twist the antenna clockwise onto the antenna connector on the router. NOTE For best performance, position the side antennas vertically as shown in the picture. •USB 3.0 port—Connect and share a USB drive or USB printer on your network or on the Internet. •USB 2.0/eSATA combo port—Connect and share a USB/eSATA drive or a USB printer on your network or on the Internet. 1 Product overview Combo USB 2.0/ eSATA Port Power Indicator USB 3.0 PortInternet PortPower Port Wi-Fi On/Off Button Ethernet Ports Wi-Fi Protected Setup Button Reset Button Power Switch 4x Adjustable External Antennas <line drawing of top view page 1> <line drawing of rear panel page 1> <antenna-power drawing page 3> <install INTERNET cable drawing page 3> manual Combo USB 2.0/ eSATA Port Power Indicator USB 3.0 PortInternet PortPower Port Wi-Fi On/Off Button Ethernet Ports Wi-Fi Protected Setup Button Reset Button Power Switch 4x Adjustable External Antennas <line drawing of top view page 1> <line drawing of rear panel page 1> <antenna-power drawing page 3> <install INTERNET cable drawing page 3> manual 2 Linksys EA8500 Product overview •Ethernet ports—Connect Ethernet cables (also called network or Internet cables) to these Gigabit Ethernet (10/100/1000) ports and to other wired devices on your network. •Ethernet activity indicators—Green light is on when there is a wired connection. Yellow light blinks while the router is sending or receiving data. •Internet port—Connect an Ethernet cable to this port and to your modem. •Internet activity indicators—Green light is on when there is a wired connection. Yellow light blinks while the router is sending or receiving data. •Wi-Fi button—Press to enable/disable the wireless function. •Wi-Fi indicator—Lights up green when wireless function is on. •Wi-Fi Protected Setup™ (WPS) button—Press to easily configure wireless security on Wi-Fi Protected Setup-enabled network devices. For more information, see “Wireless Security” on page 6. •Wi-Fi Protected Setup™ (WPS) indicator—LED blinks slowly while accepting Wi-Fi Protected Setup connections. LED blinks quickly when there is a Wi-Fi Protected Setup error. •Reset button—Press and hold until all port lights blink at the same time to reset the router to its factory defaults. •Power—Connect the included AC power adapter to this port. •Power switch—Press | (on) to power on the router. 3 Linksys EA8500 Setting Up Your Router Where to find more help • Linksys.com/support/EA8500 (documentation, downloads, FAQs, technical support, live chat, forums) • Linksys Smart Wi-Fi (linksyssmartwifi.com; click Help at the top of the screen) NOTE Licenses and notices for third party software used in this product may be viewed on http://support.linksys.com/en-us/license. Please contact http://support.linksys.com/en-us/gplcodecenter for questions or GPL source code requests. How to install your router Note: If replacing an existing router, disconnect that router first. 1. Connect the antennas (if included) and plug in the router to a power source. Press power switch to | (on) to power on the router. (Not all routers have power switches.) 2. Connect the Internet cable from your modem to the yellow Internet port on the back of your router. Wait until the power indicator on your router is solid. 3. Connect to the secure wireless name shown in the Quick Start Guide that came with your router. (You can change these details later.) Select the option to automatically connect to this network in the future. You will not have Internet access until you complete router setup (see Step 4). 4. Open a web browser to launch the Linksys Smart Wi-Fi Router setup instructions. If you don’t see the instructions, type linksyssmartwifi.com in the address bar. At the end of setup, follow the on-screen instructions to set up your Linksys Smart Wi-Fi account. Use Linksys Smart Wi-Fi to manage your router’s settings, including: • Change your router’s name and password • Set up guest access • Configure parental controls • Connect devices to your network • Test your Internet connection speed NOTE As part of Linksys Smart Wi-Fi account setup, you will be sent a verification e-mail. Make sure that you open the e-mail from Linksys and click the provided link, and log in from a device connected directly to the router. Setting Up Your Router 4 Linksys EA8500 Setting Up Your Router How to connect to Linksys Smart Wi-Fi 1. Open a web browser and go to www.linksyssmartwifi.com. 2. Enter the e-mail address and password you set up earlier and click Sign in. How to change router settings NOTE For additional help on any menu, click Help at the top of the screen. • Open Linksys Smart Wi-Fi and log in to your account. • In …

Text truncated - open the document above for the full version.

Page No. : 2 LINKSYS LLC 121 Theory Drive, Irvine, CA 92617, USA Tel: 310-751-2816 / Fax: 310-751-5100 Confidential Letter Date: 2015/3/18 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Confidentiality Request for FCC ID：Q87-EA8500 Gentlemen: The form 731 and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: 1. External Photos 2. Internal Photos 3. Test Setup photos 4. User’s Manual Permanent LINKSYS LLC requests that the material in the following files be withheld from public disclosure in accordance with Section 0.457 of the Commission’s Rules, 47 C.F.R. 0.459, following grant of the application. 1. Block Diagram 2. Circuit Diagram 3. Operational Description Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Applicant’s company name : LINKSYS LLC Applicant’s company address : 121 Theory Drive, Irvine, CA 92617, USA Signature : Name and Job Title : Daniel Wesey / Director of Global Requlatory Compliance E-Mail : [email protected] Tel. : 310-751-2816

Page No. : 4 LINKSYS LLC 121 Theory Drive, Irvine, CA 92617, USA Tel: 310-751-2816 / Fax: 310-751-5100 DoC Attestation Letter Date: 2015/3/18 We LINKSYS LLC, as the grantee of this project (FCC ID: Q87-EA8500 / Brand Name: LINKSYS / Model No.: EA8500), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sporton report No.: FD530324, FCC designation number : TW1024). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name : LINKSYS LLC Applicant’s company address : 121 Theory Drive, Irvine, CA 92617, USA Signature : Name and Job Title : Daniel Wesey / Director of Global Requlatory Compliance E-Mail : [email protected] Tel. : 310-751-2816

Page No. : 1 LINKSYS LLC 121 Theory Drive, Irvine, CA 92617, USA Tel: 310-751-2816 / Fax: 310-751-5100 Power of Attorney Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: LINKSYS / EA8500 FCC ID: Q87-EA8500 Product name: LINKSYS DUAL-BAND WIRELESS-AC ROUTER FCC Grantee contact person information. Applicant’s company name : LINKSYS LLC Applicant’s company address : 121 Theory Drive, Irvine, CA 92617, USA Signature : Name and Job Title : Daniel Wesey / Director of Global Requlatory Compliance E-Mail : [email protected] Tel. : 310-751-2816

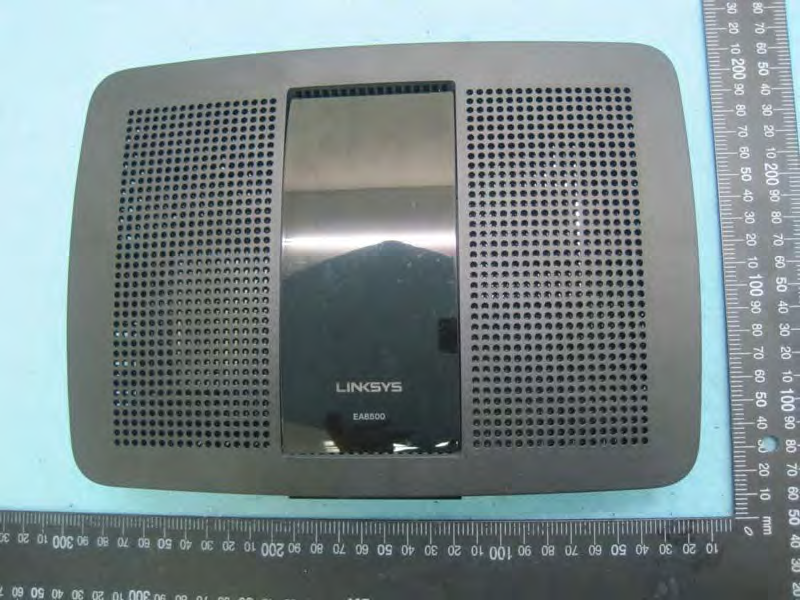

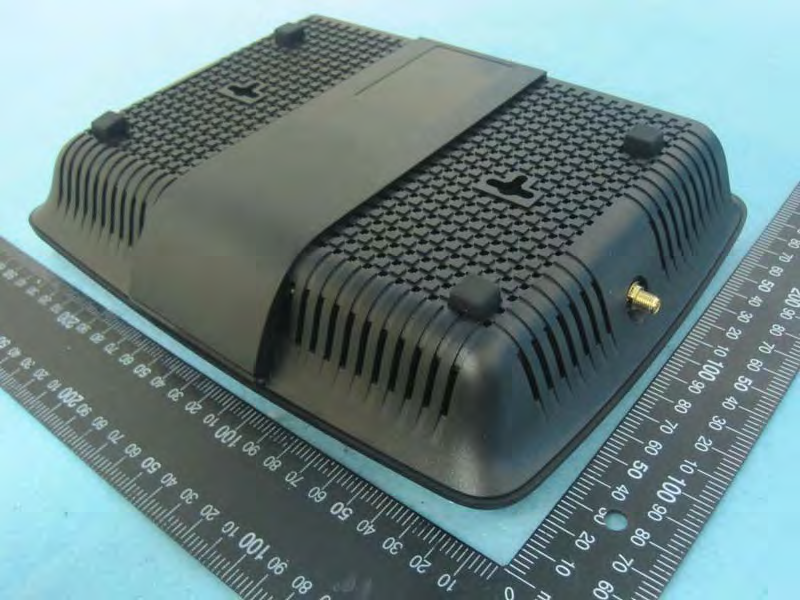

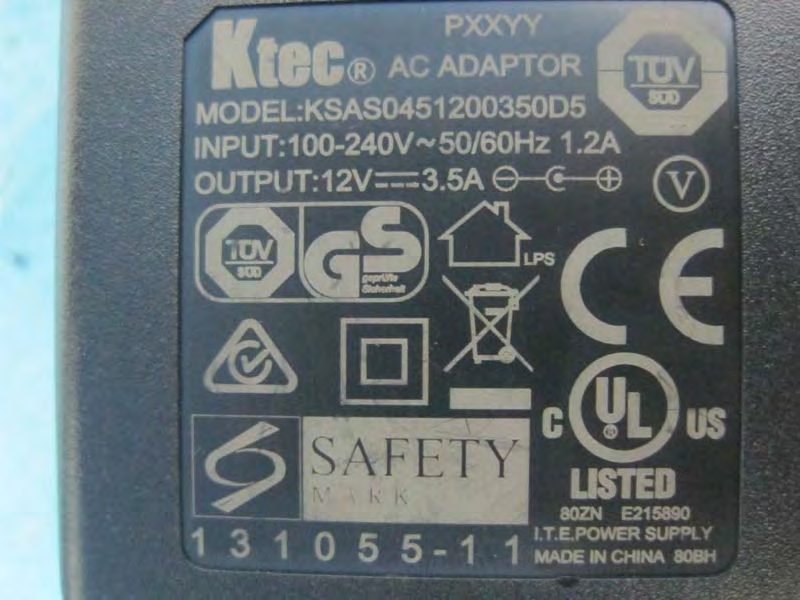

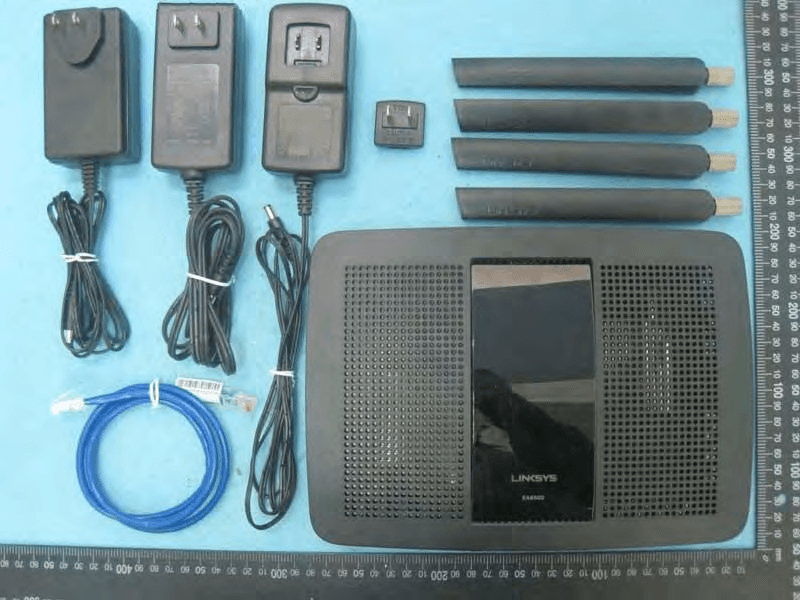

Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 1 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-327-0973 Photographs of EUT Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 2 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-327-0973 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 3 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-327-0973 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 4 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-327-0973 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 5 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-327-0973 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 6 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-327-0973 Adapter 1 (Fixed plug) Model No.: HK-X142-A12 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 7 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-327-0973 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 8 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-327-0973 Adapter 2 (Fixed plug) Model No.: KSAS0501200350HU Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 9 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-327-0973 Adapter 3 (Interchangeable plug) Model No.: KSAS0451200350D5 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 10 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-327-0973 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 11 OF 11 TEL : 886-3-327-3456 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-327-0973 Plug (Only for Adapter 3)

MAC: XXXXXXXXXXXX XXXX-XXXX S/N: XXX1060MYXXXX1 SCALE 1:1 DATE: 2015.02.23 REVISION: A00 Revision Notes: A00 INITIAL RELEASE DESIGNER: MW ALL DIMENSIONS IN MM. 8830-22031 LINKSYS EA8500 Router PRODUCT ID LABEL DO NOT MAKE CHANGES WITHOUT PERMISSION FROM BELKIN IDG. ELEMENTS IN ORANGE PRINTED IN PMS WHITE, MATTE FINISH ELEMENTS IN BLUE: PRINTED IN CARBON BLACK #SDBK0908_D01, MATTE FINISH ARTWORK TO PRINT ON LAYER ‘ARTWORK’ ELEMENTS IN ORANGE PRINTED IN PMS WHITE, MATTE FINISH ELEMENTS IN BLUE: PRINTED IN CARBON BLACK #SDBK0908_D01, MATTE FINISH 41mm 55.5mm 5mm 7mm R 2mm Label here

Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 1 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085 Photographs of EUT Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 2 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 3 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 4 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 5 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 6 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 7 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 8 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 9 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 10 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 11 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 12 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 13 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 14 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 15 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085 Report No.: 530324 SPORTON International Inc. PAGE NUMBER : 16 OF 16 TEL : 886-3-656-9065 ISSUED DATE : Mar. 30, 2015 FAX : 886-3-656-9085

Report No.: FA530324 Report Format Version: 02 Page No. : i of ii FCC ID : Q87-EA8500 Issued Date : Mar. 31, 2015 Table of Contents 1. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................................................... 1 1.1. Applicable Standard ..........................................................................................................................................................................1 1.2. MPE Calculation Method ....................................................................................................................................................................1 1.3. Calculated Result and Limit................................................................................................................................................................2 Report No.: FA530324 Report Format Version: 02 Page No. : ii of ii FCC ID : Q87-EA8500 Issued Date : Mar. 31, 2015 History of This Assessment Report REPORT NO. VERSION DESCRIPTION ISSUED DATE FA530324 Rev. 01 Initial issue of report. Mar. 30, 2015 FA530324 Rev. 02 Revising the minimum mobile separation distance to “0.26m” from “0.32m”. Mar. 31, 2015 Report No.: FA530324 Report Format Version: 02 Page No. : 1 of 2 FCC ID : Q87-EA8500 Issued Date : Mar. 31, 2015 1. MAXIMUM PERMISSIBLE EXPOSURE 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.26m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FA530324 Report Format Version: 02 Page No. : 2 of 2 FCC ID : Q87-EA8500 Issued Date : Mar. 31, 2015 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz Band (NII): Antenna Type : Dipole Antenna Conducted Power for 802.11ac MCS0/Nss1 VHT40: 29.01 dBm The maximum combined Average Output Power Distance (m) Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.26 6.91 4.9124 29.0073 795.6683 0.460348 1 Complies Note:               ANT Nss j N K kj N g GainlDirectiona ANT 2 11 , log10 For 5GHz Band (DTS): Antenna Type : Dipole Antenna Conducted Power for IEEE 802.11ac MCS0/Nss1 VHT40: 28.70 dBm The maximum combined Average Output Power Distance (m) Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.26 7.23 5.2818 28.7043 742.0405 0.461605 1 Complies Note:               ANT Nss j N K kj N g GainlDirectiona ANT 2 11 , log10 For 2.4GHz Band: Antenna Type : Dipole Antenna / PIFA Antenna Conducted Power for 802.11ac MCS0/Nss1 VHT20: 28.21 dBm The maximum combined Average Output Power Distance (m) Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.26 7.74 5.9448 28.2079 661.9024 0.463439 1 Complies Note:               ANT Nss j N K kj N g GainlDirectiona ANT 2 11 , log10 Conclusion: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.463439 / 1 + 0.461605 / 1 = 0.925044, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR530324 FCC ID: Q87-EA8500 Page No. : B1 of B3 Appendix B. Radiated Emission Co-location Report Report No.: FR530324 FCC ID: Q87-EA8500 Page No. : B2 of B3 1. Results of Radiated Emissions for Co-located Temperature 25°C Humidity 40% Test Engineer Mars Lin Configurations 2.4G + 5G Horizontal Report No.: FR530324 FCC ID: Q87-EA8500 Page No. : B3 of B3 Vertical

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company Linksys LLC Applicant Address 121 Theory Drive, Irvine, California 92617, United States FCC ID Q87-EA8500 Product Name LINKSYS DUAL-BAND WIRELESS-AC ROUTER Brand Name LINKSYS Model No. EA8500 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Feb. 25, 2015 Final Test Date Mar. 17, 2015 Submission Type Original Equipment Statement Test result included is for the IEEE 802.11n and IEEE 802.11a/ac of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2013, 47 CFR FCC Part 15 Subpart E, KDB789033 D02 v01, KDB662911 D01 v02r01, KDB644545 D03 v01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR530324AB Report Format Version: Rev. 01 Page No. : i of ii FCC ID: Q87-EA8500 Issued Date : Mar. 30, 2015 Table of Contents 1. VERIFICATION OF COMPLIANCE ....................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Supporting Units ...................................................................................................................................................................9 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................10 3.9. EUT Operation during Test .................................................................................................................................................................10 3.10. Duty Cycle ........................................................................................................................................................................................10 3.11. Test Configurations ...........................................................................................................................................................................11 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. 26dB Bandwidth and 99% Occupied Bandwidth Measurement......................................................................................................18 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................25 4.4. Power Spectral Density Measurement ..............................................................................................................................................28 4.5. Radiated Emissions Measurement ....................................................................................................................................................33 4.6. Band Edge Emissions Measurement .................................................................................................................................................49 4.7. Frequency Stability Measurement ....................................................................................................................................................54 4.8. Antenna Requirements .....................................................................................................................................................................58 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 59 6. MEASUREMENT UNCERTAINTY.......................................................................................................................... 61 APPENDIX A. TEST PHOTOS ..................…

Text truncated - open the document above for the full version.

Report No.: FR530324 FCC ID: Q87-EA8500 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR530324 FCC ID: Q87-EA8500 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 3 FRONT VIEW REAR VIEW Report No.: FR530324 FCC ID: Q87-EA8500 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 4 FRONT VIEW REAR VIEW Report No.: FR530324 FCC ID: Q87-EA8500 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz / Test Mode: Mode 4 FRONT VIEW REAR VIEW Report No.: FR530324 FCC ID: Q87-EA8500 Page No. : A5 of A5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
