EA9200 DUAL BAND GIGABIT Wi‑Fi ROUTER USER GUIDE Model#AC3200 ii Linksys EA9200 ii Table of Contents Product overview EA9200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Setting Up Your E-Series Router Where to find more help. . . . . . . . . . . . . . . . . . . . . . . . . .3 How to install your router . . . . . . . . . . . . . . . . . . . . . . . . .3 How to connect to Linksys Smart Wi-Fi 3 How to change router settings 3 Troubleshooting Your router was not successfully set up . . . . . . . . . . . . . . . .7 Windows XP Service Pack update . . . . . . . . . . . . . . . . . . . .7 Your Internet cable is not plugged in message . . . . . . . . . . . . .8 Cannot access your router message. . . . . . . . . . . . . . . . . . . .8 Specifications Linksys EA9200. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 1 Linksys EA9200 Product overview EA9200 Back view •Indicator light — The Linksys logo stays on steadily while power is connected and following a successful Wi-Fi Protected Setup connection. Flashes or pulses slowly during bootup, during firmware upgrades, and during a Wi-Fi Protected Setup connection. Flashes quickly when there is a Wi-Fi Protected Setup error. •The LED is the backlit Linksys logo Back view The ports/buttons from left to right are: USB 3.0, USB LED, USB 2.0, USB LED, Ethernet ports (1-4), Internet port, Power port, Power switch, Reset button •USB ports — Connect and share a USB drive or a USB printer. •USB LEDs — Illuminate when a USB drive is connected. Flash when data is being transferred. •Ethernet ports — Connect Ethernet cables to wired Ethernet network devices. NOTE For best performance, use CAT5E or higher rated cables on the Ethernet ports. •Internet port — Connect an Ethernet cable to your modem. •Power port — Connect the included AC power adapter. •Power switch — Press | (on) to turn on the router. •Reset button — Press and hold for 10 seconds (until the port lights flash at the same time) to reset the router to factory defaults. You can also do this using Linksys Smart Wi-Fi. 1 FPO FPO Product overview 2 Linksys EA9200 Product overview Side view •Wi-Fi Protected Setup™ button — Press to easily configure wireless security on Wi-Fi Protected Setup-enabled network devices. •Wi-Fi button — Press to disable the wireless networks (light comes on). Press again to enable the wireless networks (light goes out). Top view •Adjustable antenna ports — Three adjustable external antennas (included) should be connected to the router before powering it on. Twist antenna connectors clockwise onto ports. FPO FPO 3 Linksys EA9200 Setting Up Your E-Series Router Where to find more help Linksys.com/support (documentation, downloads, FAQs, technical support, live chat, forums) Linksys Smart Wi-Fi (linksyssmartwifi.com; click Help at the top of the screen) How to install your router If replacing an existing router, disconnect it. 1. Connect the antennas to the top of your router and power it on. 2. Connect the Internet cable from your modem to the yellow Internet port on the back of your router. Wait until the Linksys logo on the front of your router is solid. 3. Connect to the secure wireless name shown in the Quick Start Guide that came with your router. (You can change these details later.) Select the option to automatically connect to this network in the future. You will not have Internet access until you complete router setup (see Step 4). 4. Open a web browser to launch the Linksys Smart Wi-Fi Router setup instructions. If you don’t see the instructions, type linksyssmartwifi.com in the address bar. At the end of setup, follow the on-screen instructions to set up your Linksys Smart Wi-Fi account. Use Linksys Smart Wi-Fi to manage your router’s settings, inlcuding: • Change your router’s name and password • Set up guest access • Configure parental controls • Connect devices to your network • Test your Internet connection speed NOTE As part of Linksys Smart Wi-Fi account setup, you will be sent a verification e-mail. Make sure that you open the e-mail from Linksys and click the provided link, and log in from a device connected directly to the router. How to connect to Linksys Smart Wi-Fi 1. Configure your router from any computer with an Internet connection. 2. Open a web browser and go to www.linksyssmartwifi.com. 3. Enter the e-mail address and password you set up earlier and click Sign in. How to change router settings Use Linksys Smart Wi-Fi to change settings on your router and set up special features such as parental controls and guest access. NOTE For additional help on any menu, click Help at the top of the screen. Setting Up Your E-Series Router FPO 4 Linksys EA9200 Setting Up Your E-Series Router To change router settings: • Open Linksys Smart Wi-Fi and log in to your account. • In the menu on the left, click an option: Network Map — Lets you display and manage all network devices connected to your router. You can view devices on your main network and your guest network, or display information about each device. Guest Access — Lets you configure and monitor a network that guests can use without accessing all of your network resources. Parental Controls — Lets you block web sites and set Internet access times Media Prioritization — Lets you set which devices and applications have top priority for your network traffic. FPO FPO FPO FPO 5 Linksys EA9200 Setting Up Your E-Series Router Speed Test — Lets you test your network’s Internet connection speed. External Storage — Lets you access an attached USB drive (not included) and set up file sharing, a media server, and FTP access. (Available only on routers with USB ports.) Connectivity — Lets you configure basic and advanced network settings. Troubleshooting — Lets you diagnose problems with your router and check the status of the network. FPO FPOFPO FPO 6 Linksys EA9200 Setting Up Your E-Series Router Wireless — Lets you configure your router’s wireless network. Among the settings…

Text truncated - open the document above for the full version.

Regulatory Information EA9200 Table of Contents i Table of Contents Wireless Regulatory Information FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Mexico Regulatory Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 EAC Mark of Conformity for Russia, Kazakhstan and Belarus . . . . . . . . . . 1 Avis d’Industrie Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Declaration of Conformity with Regard to EU Directive 1999/5/EC (R&TTE Directive) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Wireless Equipment (Wireless-AC/N/G/A/B Products) . . . . . . . . . . . . . . . 8 National Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Product Usage Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Technical Documents on www .linksys .com . . . . . . . . . . . . . . . . . . . . . .9 WEEE Information User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE) . . . . . . 10 1 Wireless Regulatory Information Wireless Regulatory Information FCC Statement This device complies with Part 15 of the FCC Rules . Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation . This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules . These limits are designed to provide reasonable protection against harmful interference in a residential installation . This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications . However, there is no guarantee that interference will not occur in a particular installation . If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna •Increase the separation between the equipment and devices •Connect the equipment to an outlet other than the receiver’s •Consult a dealer or an experienced radio/TV technician for assistance FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment . IEEE 802 .11b or 802 .11g operation of this product in the USA is firmware-limited to channels 1 through 11 . The device for the band 5150-5250 MHz is only for indoor usage to reduce the potential for harmful interference to co-channel mobile satellite systems . Mexico Regulatory Statement La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada . EAC Mark of Conformity for Russia, Kazakhstan and Belarus FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This equipment should be installed and operated with minimum distance 27 cm between the radiator and your body . This device and it’s antennas(s) must not be co- located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures . Industry Canada Statement CAN ICES-3 (B)/NMB-3 (B) Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device . For product available in the USA/Canada market, only channel 1~11 can be operated . Selection of other channels is not possible . The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure . Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology . Industry Canada Radiation Exposure Statement This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment . This equipment should be installed and operated with minimum distance 27 cm between the radiator & your body . This device and it’s antennas(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with IC multi- transmitter product procedures . Restrictions in the 5 GHz Band The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems . This device has been designed to operate with an antenna having a maximum gain of 1 .81 dBi and 3 .2 dBi at 2 .4 GHz and 5 GHz respectively . Antenna having a higher gain is strictly prohibited per regulations of Industry Canada . The required antenna impedance is 50 ohms . The maximum antenna gain (Please see the table below) permitted (for devices in the bands 5250-5350 MHz and 5470-5725 MHz) to comply with the EIRP limit and because high power radars are allocated as primary users (meaning they have priority) in 5250-5350 MHz and 2 Wireless Regulatory Information 5650-5850 MHz, these radars could cause interference and/or damage to license exempt LAN devices . No. Antenna Type For 2.4 GHz Gain (dBi) For 5 GHz Gain (dBi) Antenna Connector 1 PCB Printed N/A3 .2N/A 2 PCB Printed N/A3 .2N/A 3 PCB Printed N/A3 .2N/A 4Dipole1 .813 .05RP-SMA 5Dipole1 .813 .05RP-S…

Text truncated - open the document above for the full version.

LINKSYS LLC 121 Theory Drive, Irvine, CA 92617, USA Tel: 310-751-2816 / Fax: 310-751-5100 DoC Attestation Letter Date: 2014/8/29 We LINKSYS LLC, as the grantee of this project (FCC ID: Q87-EA9200 / Brand Name: Linksys LLC / Model No.: EA9200), would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures (Sporton report No.: FD482206, FCC Test Firm Registration No.: 187376). The final product shall consequently comply with the FCC rule applied for DoC Procedure. Regards, FCC Grantee contact person information. Applicant’s company name : LINKSYS LLC Applicant’s company address : 121 Theory Drive, Irvine, CA 92617, USA Signature : Name and Job Title : Daniel Wesey / Director of Global Regulatory Compliance E-Mail : [email protected] Tel. : 310-751-2816

LINKSYS LLC 121 Theory Drive, Irvine, CA 92617, USA Tel: 310-751-2816 / Fax: 310-751-5100 Power of Attorney Date: 2014/8/29 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Linksys LLC / EA9200 FCC ID: Q87-EA9200 Product name: AC3200 Tri-Band Smart Wi-Fi Router FCC Grantee contact person information. Applicant’s company name : LINKSYS LLC Applicant’s company address : 121 Theory Drive, Irvine, CA 92617, USA Signature : Name and Job Title : Daniel Wesey / Director of Global Regulatory Compliance E-Mail : [email protected] Tel. : 310-751-2816

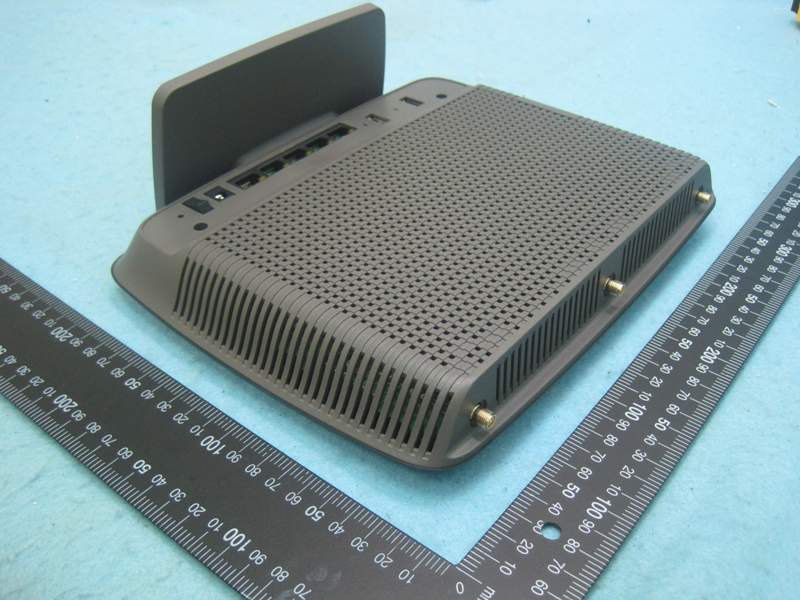

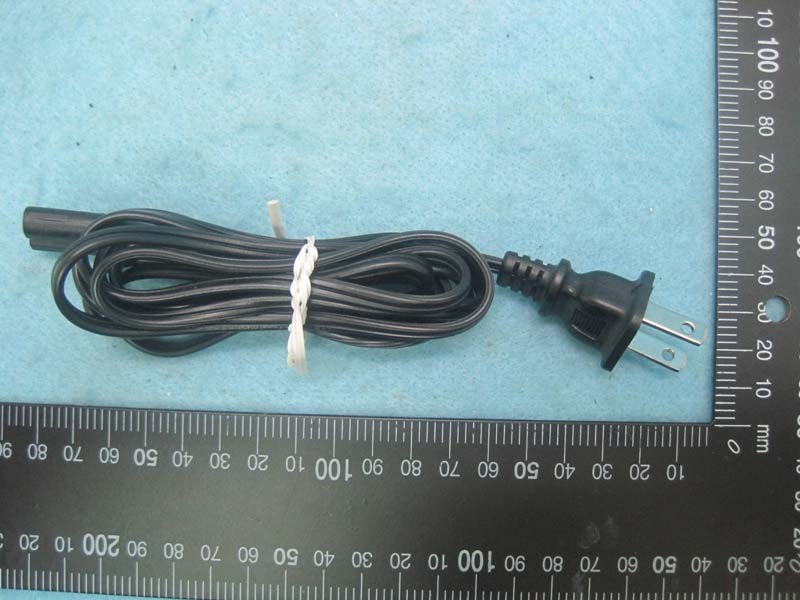

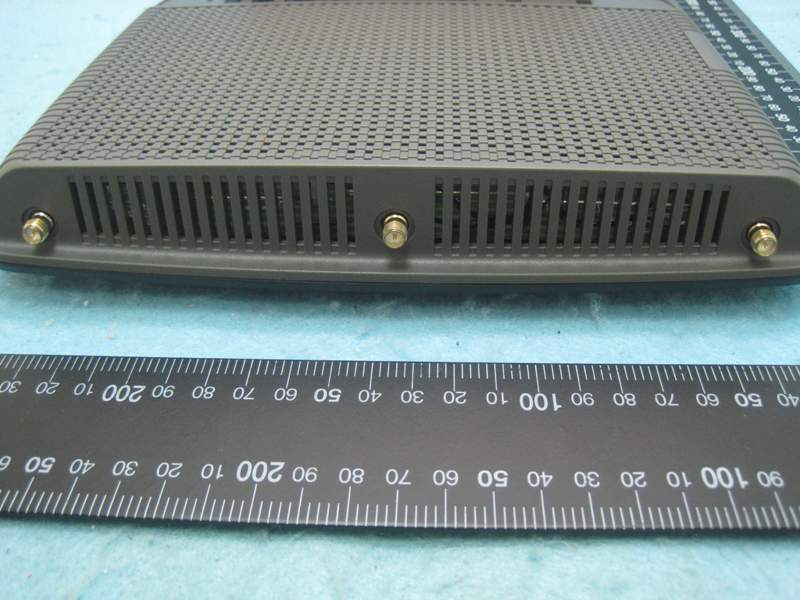

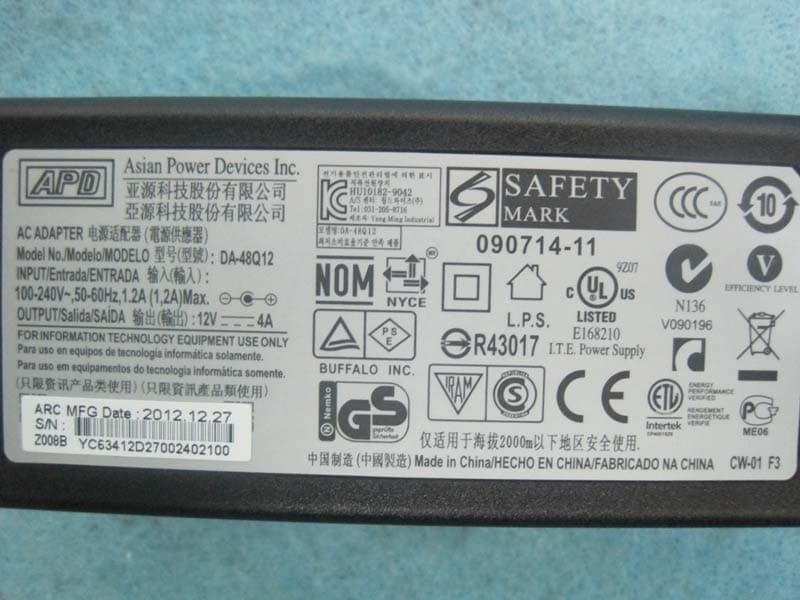

Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-3-327-3456 FAX : 886-3-327-0973 APPENDIX A. Photographs of EUT Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Dipole antenna Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Adapter Model No.: DA-48Q12 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Power Cable

S/N: XXX1060MYXXXX1 MAC: XXXXXXXXXXXX XXXX-XXXX LinksysXXXXX 1wm0qems1m To manage your router, enter http://linksyssmartwifi.com into your browser. SURFACE FINISH: MATTE 156.56 70.87 SCALE 1:1 DATE: 2014/08/13REVISION: DRAFT REV. 2 DESIGNER: mw EA9200 LINKSYS ROUTER PRODUCT IDENTIFICATION LABEL ALL DIMENSIONS IN MM. IDA-000357 DRAFT 001: BETA RELEASE ONLY DRAFT REV 2: REMOVED EAC MARK, SURFACE FINSH SPECIFIED [1] ITEMS IN GRAY: PRINTED IN MIDDLE GREY COLOR# SDGY1010_D40 [2] ITEMS IN WHITE: PRINTED IN WHITE ITEMS IN RED PRINTED BLACK INK Label Here

Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A1 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 APPENDIX A. Photographs of EUT Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A2 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A3 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A4 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A5 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A6 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A7 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A8 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A9 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A10 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A11 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A12 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A13 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A14 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A15 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 482206 SPORTON International Inc. PAGE NUMBER : A16 OF A16 TEL : 886-3-327-3456 FAX : 886-3-327-0973 \

Report No.: FR482206 FCC ID: Q87-EA9200 Page No. : D1 of D3 Appendix D. Radiated Emission Co-location Report Report No.: FR482206 FCC ID: Q87-EA9200 Page No. : D2 of D3 1. Results of Radiated Emissions for Co-located Temperature 26°C Humidity 68% Test Engineer Serway Li Configurations 2.4G + 5GHz Band 1 + 5GHz Band 4 Horizontal Report No.: FR482206 FCC ID: Q87-EA9200 Page No. : D3 of D3 Vertial

Report No.: FR482206 FCC ID: Q87-EA9200 Page No. : C1 of C4 Appendix C. Maximum Permissible Exposure Report No.: FR482206 FCC ID: Q87-EA9200 Page No. : C2 of C4 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.27m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR482206 FCC ID: Q87-EA9200 Page No. : C3 of C4 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz UNII Band: Antenna Type : PCB Antenna Conducted Power for IEEE 802.11ac MCS0/Nss1 VHT40: 24.69 dBm The maximum combined Average Output Power Distance (m) Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.27 7.87 6.1252 24.6851 294.1097 0.196749 1 Complies Note: Directional gain= For 5GHz ISM Band: Antenna Type : Dipole Antenna Conducted Power for IEEE 802.11ac MCS0/Nss1 VHT20: 26.95 dBm The maximum combined Average Output Power Distance (m) Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.27 7.82 6.0551 26.9505 495.5064 0.327683 1 Complies Note: Directional gain= For 2.4GHz Band: Antenna Type : Dipole Antenna Conducted Power for IEEE 802.11ac MCS0/Nss1 VHT20: 26.70 dBm The maximum combined Average Output Power Distance (m) Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.27 6.58 4.5512 26.6979 467.5039 0.232375 1 Complies Note: Directional gain= Report No.: FR482206 FCC ID: Q87-EA9200 Page No. : C4 of C4 CONCULSION: Both of the 2.4GHz WLAN function, 5GHz Band 1 WLAN function and 5GHz Band 4 WLAN function can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.196749 / 1 +0.327683 / 1 +0.232375 / 1 = 0.756807, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.
