Q87-HA1000Staples Connect Hub

LINKSYS LLC
Staples Connect Hub - FCC ID Q87-HA1000 - LINKSYS LLC
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Nov 14, 2013
Application Purpose
Original Equipment
Date of Application
Nov 14, 2013
Equipment Note
Staples Connect Hub
Frequency Range
908.40000000 - 916.00000000
Company
LINKSYS LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗

Attestation Statements

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 | Page Rev1.0 4/5/2013 1 HA1000- Staples Connect User Guide 2 | Page Rev1.0 4/5/2013 2 Table of Contents TABLE OF CONTENTS ............................................................................................................................... 2 OVERVIEW .................................................................................................................................................. 3 MAJOR FEATURES ..................................................................................................................................... 5 PORTS AND BUTTONS .............................................................................................................................. 5 REGISTRATION NUMBER .......................................................................................................................... 6 SPECIFICATIONS ........................................................................................................................................ 7 LED BEHAVIOR ........................................................................................................................................... 8 TOPOLOGY ................................................................................................................................................. 9 BOX CONTENTS ....................................................................................................................................... 11 QUICK SETUP GUIDE ............................................................................................................................... 12 CERTIFIED 3RD PARTY LIST ................................................................................................................... 13 3 | Page Rev1.0 4/5/2013 3 Overview Staples Connect hub is a home/office automation solution. With the Staples Connect hub a universal wireless hub to use with an application. Control automated lighting, environmental systems and Security & Monitoring equipment from any Smartphone, tablet or PC from wherever you are. 4 | Page Rev1.0 4/5/2013 4 5 | Page Rev1.0 4/5/2013 5 Major Features • Supports 3 Types of technology: o 802.11n o Z-Wave o Lutron Clear Connect • Security- WEP, WPA2 Personal, WPS • 1-10/100Mbps LAN port • Manages certified devices such as: Locks, Lights, Doorbell, Cameras, Outlets, Shades, Sensors, Fans, Appliances, Garage, Rooms • One application to manage and configure using your Smartphone or Tablet Ports and Buttons 6 | Page Rev1.0 4/5/2013 6 Power Reset Service Port LAN Wi-Fi Protected Setup Registration Number Registration Number for account creation 7 | Page Rev1.0 4/5/2013 7 Specifications • Three types of technology in one product. Meaning 3 different types of clients can connect to the Staple Hub o Z-Wave (900MHz)- Wireless communication designed for home automation to control apps. § Drawbacks: Same frequency as cordless phones and other consumer electronic like remote controls, smoke alarms, security sensors.etc..any product that uses this frequency. § Does not interfere with Wi-Fi or Bluetooth since they use the 2.4GHz or 5GHz band § Range approx. up to 100ft o Lutron Clear Connect- 433MHz o Wi-Fi 2.4GHz IEEE 802.11 b/g/n • WEP, WPA2 Personal, WPS • 1-10/100Mbps port to connect back to the existing network • Reset button • USB port has no function. For engineering purposes only • Power: DC 5V/2A • 800MHz ARMv5TE CPU based SoC utilizing Marvell 88F6192 • 1Gb (64Mb x 16bit) 400MHz DDR2 DRAM • Sigma Design ZM3102 Z-Wave Module • Freescale MC9S08 Micro Controller • Marvell 88W8782 Wi-Fi SoC • 3 PIFA antennas (WiFi, Z-Wave & ClearConnect) 8 | Page Rev1.0 4/5/2013 8 LED Behavior • During initial boot, LED will light up amber, one by one until all three LEDs are amber. All LEDs will turn blue once the system is up and running LED1 (Power) LED2 (ZWave LED) LED 3 (Cloud/Internet) Description Initial boot process, Filesystem & Update Status) Initial boot process, Diplomat Software Status) Initial boot process, Internet Connection / RAS Connection) Color Blue- Successful bootup Blue/Amber alternating – Firmware update in process Amber fast flashing – Micro Access Point starting Amber slow flashing – Micro Access Point enabled Blue-Successful bootup Amber- Z-Wave radio error Amber flashing – Z- Wave radio firmware error Blue- Successful Internet Connection Amber-Ethernet port not connected Amber slow flashing – No router detected Blue fast flashing – Has Internet access, need port forwarding 9 | Page Rev1.0 4/5/2013 9 Topology 10 | Page Rev1.0 4/5/2013 10 11 | Page Rev1.0 4/5/2013 11 Box Contents Item Comment HA1000 Included Setup CD Included Quick Start Guide Included Ethernet Cable 1 RJ-45 Cat5e Included Power Adapter Included Regulatory and Warranty Insert Included 12 | Page Rev1.0 4/5/2013 12 Quick Setup Guide 13 | Page Rev1.0 4/5/2013 13 Certified 3rd Party Device List Description Vendor Model / SKU # Belkin Hub Belkin D-­‐Link DSC 942L Day/Night D-­‐Link DSC2132L D-­‐Link 5020L Pan/Tilt/Zoom D-­‐Link DSC5020L D-­‐Link DSC 933L Day/Night D-­‐Link DSC9933L Ivee Ivee Philips Hue Kit Philips 431643 Philips Hue Blubs Philips Aeon Labs Z-­‐Wave Water Sensor Aeon Labs DSB45 Aeon Labs Z-­‐Wave Power strip Aeon Labs DSC11 Aeon Labs Z-­‐Wave Range Extender Aeon Labs DSD37 Switch AspireRF SP 15A 120V BK Cooper RF9501DBK Switch AspireRF SP 15A 120V LA Cooper RF9501DLA Switch AspireRF SP 15A 120V W Cooper RF9501DW Switch AspireRF Access 120V BK Cooper RF9517DBK Switch AspireRF Access 120V LA Cooper RF9517DLA Switch AspireRF Access 120V W Cooper RF9517DW Dim AspireRF Mst1000WIncMlv BK Cooper RF9536-­‐NDBK Dim AspireRF Mst1000WIncMlv LA Cooper RF9536-­‐NDLA Dim AspireRF Mst1000WIncMlv W Cooper RF9536-­‐NDW Dim AspireRF Mstr All-­‐Load BK Cooper RF9540-­‐NDBK Dim AspireRF Mstr All-­‐Load LA Cooper RF9540-­‐NDLA Dim AspireRF Mstr All-­‐Load W Cooper RF9540-­‐NDW Dim AspireRF RF Access Neut BK Cooper RF9542-­‐ZDBK Dim AspireRF RF Access Neut LA Coo…

Text truncated - open the document above for the full version.

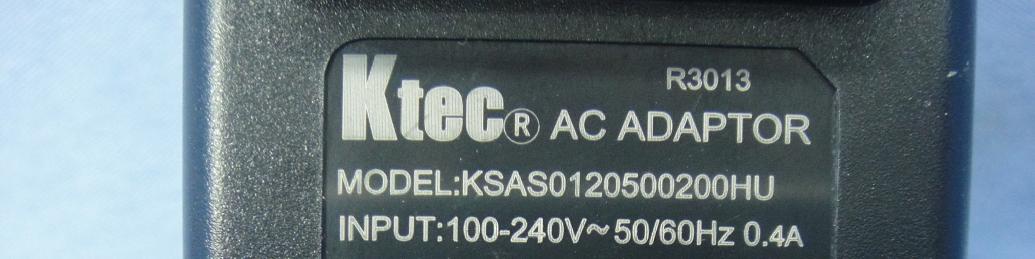

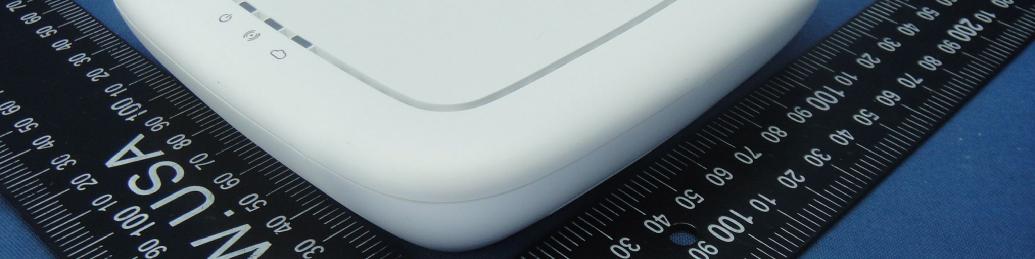

External Photos

Report No.: 131022E08 Page 1 CONSTRUCTION PHOTOS OF EUT Report No.: 131022E08 Page 2 Report No.: 131022E08 Page 10 Report No.: 131022E08 Page 11

ID Label/Location Info

(Fig.1) FCC ID: Q87-HA1000 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device.

Internal Photos

Report No.: 131022E08 Page 3 Report No.: 131022E08 Page 4 Report No.: 131022E08 Page 5 Report No.: 131022E08 Page 6 Report No.: 131022E08 Page 7 Report No.: 131022E08 Page 8 Report No.: 131022E08 Page 9

RF Exposure Info

Report No.: SA131022E08A 1 of 6 Report Format Version 5.0.0 Reference No.: 131108E06 RF EXPOSURE REPORT REPORT NO.: SA131022E08A MODEL NO.: HA1000 FCC ID: Q87-HA1000 RECEIVED: Oct. 22, 2013 TESTED: Oct. 30, 2013 ISSUED: Nov. 11, 2013 APPLICANT: Linksys LLC ADDRESS: 131 Theory Drive Irvine California 92617 United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA131022E08A 2 of 6 Report Format Version 5.0.0 Reference No.: 131108E06 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA131022E08A 3 of 6 Report Format Version 5.0.0 Reference No.: 131108E06 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA131022E08A Original release Nov. 11, 2013 Report No.: SA131022E08A 4 of 6 Report Format Version 5.0.0 Reference No.: 131108E06 1. CERTIFICATION PRODUCT: Staples Connect Hub BRAND NAME: Linksys MODEL NO.: HA1000 TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Linksys LLC TESTED DATE: Oct. 30, 2013 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: HA1000) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Nov. 11, 2013 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: Nov. 11, 2013 ( May Chen, Manager ) Report No.: SA131022E08A 5 of 6 Report Format Version 5.0.0 Reference No.: 131108E06 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA131022E08A 6 of 6 Report Format Version 5.0.0 Reference No.: 131108E06 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER There are WLAN, Z-Wave and CC Radio device technology used for the EUT. This report was only recorded at the WLAN technology. FREQUENCY (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 87.70 2.14 20 0.02856 1 --- END ---

Test Report

Report No.: RF131022E08-2 1 of 37 Report Format Version 5.0.0 FCC TEST REPORT(CC RADIO) REPORT NO.: RF131022E08-2 MODEL NO.: HA1000 FCC ID : Q87-HA1000 RECEIVED: Oct. 22, 2013 TESTED: Oct. 25 to Nov. 01, 2013 ISSUED: Nov. 08, 2013 APPLICANT : Linksys LLC ADDRESS : 131 Theory Drive Irvine California 92617 United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF131022E08-2 2 of 37 Report Format Version 5.0.0 Table of Contents RELEASE CONTROL RECORD ................................................................................. 4 1 CERTIFICATION .............................................................................................. 5 2 SUMMARY OF TEST RESULTS ..................................................................... 6 2.1 MEASUREMENT UNCERTAINTY ................................................................... 6 3 GENERAL INFORMATION .............................................................................. 7 3.1 GENERAL DESCRIPTION OF EUT ................................................................ 7 3.2 DESCRIPTION OF TEST MODES .................................................................. 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ................... 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................ 11 3.4 DESCRIPTION OF SUPPORT UNITS .......................................................... 12 3.5 CONFIGURATION OF SYSTEM UNDER TEST............................................ 13 4 TEST PROCEDURE AND RESULT ............................................................... 14 4.1 CONDUCTED EMISSION MEASUREMENT ................................................. 14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .............................. 14 4.1.2 TEST INSTRUMENTS ................................................................................... 14 4.1.3 TEST PROCEDURES ................................................................................... 15 4.1.4 DEVIATION FROM TEST STANDARD .......................................................... 15 4.1.5 TEST SETUP ................................................................................................. 16 4.1.6 EUT OPERATING CONDITIONS .................................................................. 16 4.1.7 TEST RESULTS ............................................................................................ 17 4.1 RADIATED EMISSION MEASUREMENT ...................................................... 19 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT ................................... 19 4.1.2 TEST INSTRUMENT ..................................................................................... 20 4.1.3 TEST PROCEDURE ...................................................................................... 21 4.1.4 DEVIATION FROM TEST STANDARD .......................................................... 21 4.1.5 TEST SETUP ................................................................................................. 22 4.1.6 EUT OPERATING CONDITION ..................................................................... 22 4.1.7 TEST RESULTS ............................................................................................ 23 4.2 20dB OCCUPIED BANDWIDTH MEASUREMENT ....................................... 31 4.2.1 LIMITS OF EMISSION BANDWIDTH MEASUREMENT ............................... 31 4.2.2 TEST INSTRUMENT ..................................................................................... 31 4.2.3 TEST PROCEDURE ...................................................................................... 31 4.2.4 DEVIATION FROM TEST STANDARD .......................................................... 32 4.2.5 TEST SETUP ................................................................................................. 32 4.2.6 TEST RESULTS ............................................................................................ 32 4.3 DEACTIVATION TIME ................................................................................... 33 4.3.1 LIMITS OF DEACTIVATION TIME MEASUREMENT .................................... 33 4.3.2 TEST INSTRUMENTS ..…

Text truncated - open the document above for the full version.

Test Report

Report No.: RF131022E08 1 of 59 Report Format Version 5.2.0 FCC TEST REPORT(WLAN) REPORT NO.: RF131022E08 MODEL NO.: HA1000 FCC ID: Q87-HA1000 RECEIVED: Oct. 22, 2013 TESTED: Oct. 24 to 30, 2013 ISSUED: Nov. 08, 2013 APPLICANT: Linksys LLC ADDRESS: 131 Theory Drive Irvine California 92617 United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF131022E08 2 of 59 Report Format Version 5.2.0 Table of Contents RELEASE CONTROL RECORD ........................................................................................ 4 1. CERTIFICATION .................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................ 6 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 7 3. GENERAL INFORMATION ..................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ....................................................................... 8 3.2 DESCRIPTION OF TEST MODES ....................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 14 3.4 DUTY CYCLE OF TEST SIGNAL ......................................................................... 15 3.5 DESCRIPTION OF SUPPORT UNITS .................................................................. 16 3.6 CONFIGURATION OF SYSTEM UNDER TEST ................................................... 17 4. TEST TYPES AND RESULTS .............................................................................. 18 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................ 18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................... 18 4.1.2 TEST INSTRUMENTS .......................................................................................... 18 4.1.3 TEST PROCEDURES .......................................................................................... 19 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 19 4.1.5 TEST SETUP ....................................................................................................... 19 4.1.6 EUT OPERATING CONDITIONS ......................................................................... 20 4.1.7 TEST RESULTS ................................................................................................... 21 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 23 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 23 4.2.2 TEST INSTRUMENTS .......................................................................................... 24 4.2.3 TEST PROCEDURES .......................................................................................... 25 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 25 4.2.5 TEST SETUP ....................................................................................................... 26 4.2.6 EUT OPERATING CONDITIONS ......................................................................... 26 4.2.7 TEST RESULTS ................................................................................................... 27 4.3 6dB BANDWIDTH MEASUREMENT .................................................................... 40 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT ................................................. 40 4.3.2 TEST INSTRUMENTS .......................................................................................... 40 4.3.3 TEST PROCEDURE ............................................................................................. 40 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 40 4.3.5 TEST SETUP ....................................................................................................... 40 4.3.6 EUT OPERATING C…

Text truncated - open the document above for the full version.

Test Report

Report No.: RF131022E08-1 1 of 31 Report Format Version 5.0.0 Reference no.:130418E08 FCC TEST REPORT(Z-Wave) REPORT NO.: RF131022E08-1 MODEL NO.: HA1000 FCC ID: Q87-HA1000 RECEIVED: Oct. 22, 2013 TESTED: Oct. 16 to Nov. 01, 2013 ISSUED: Nov. 08, 2013 APPLICANT: Linksys LLC ADDRESS: 131 Theory Drive Irvine California 92617 United States ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF131022E08-1 2 of 31 Report Format Version 5.0.0 Reference no.:130418E08 Table of Contents RELEASE CONTROL RECORD ......................................................................................................... 3 1. CERTIFICATION .................................................................................................................... 4 2. SUMMARY OF TEST RESULTS ............................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY .......................................................................................... 5 3. GENERAL INFORMATION ..................................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................ 6 3.2 DESCRIPTION OF TEST MODES .......................................................................................... 8 3.3 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL............................................ 8 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................................. 10 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................................... 11 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................ 12 4. TEST TYPES AND RESULTS ............................................................................................... 13 4.1 CONDUCTED EMISSION MEASUREMENT ......................................................................... 13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ....................................................... 13 4.1.2 TEST INSTRUMENTS .......................................................................................................... 13 4.1.3 TEST PROCEDURES .......................................................................................................... 14 4.1.4 DEVIATION FROM TEST STANDARD.................................................................................. 14 4.1.5 TEST SETUP ....................................................................................................................... 14 4.1.6 EUT OPERATING CONDITIONS .......................................................................................... 15 4.1.7 TEST RESULTS ................................................................................................................... 16 4.2 RADIATED EMISSION AND BAND EDGE MEASUREMENT ................................................ 18 4.2.1 LIMITS OF RADIATED EMISSION AND BAND EDGE MEASUREMENT .............................. 18 4.2.2 TEST INSTRUMENTS .......................................................................................................... 19 4.2.3 TEST PROCEDURES .......................................................................................................... 21 4.2.4 DEVIATION FROM TEST STANDARD.................................................................................. 21 4.2.5 TEST SETUP ....................................................................................................................... 22 4.2.6 EUT OPERATING CONDITIONS .......................................................................................... 22 4.2.7 TEST RESULTS ................................................................................................................... 23 5. PHOTOGRAPHS OF THE TEST CONFIGURATION ............................................................. 29 6. INFORMATION ON THE TESTING LABORATORIES ........................................................... 30 7. APPENDIX A – MODIFICATION RECORDERS FOR ENGINEERING CHANGES TO THE EU…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: 131022E08 Page 1 Reference No.: PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 131022E08 Page 2 Reference No.: RADIATED EMISSION TEST (Below 1GHz) Report No.: 131022E08 Page 3 Reference No.: RADIATED EMISSION TEST (Above 1GHz)
