Q87-HGA5S-2WET54GS5 Wireless-G Ethernet Bridge 5-port switch

A Division of Cisco Systems, Inc. ® Model No. Ethernet Bridge Wireless- G WET54GS5 User Guide WIRELESS GHz 2.4 802.11g Wireless-G Ethernet BridgeCopyright and TrademarksSpecifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.How to Use this GuideYour guide to the Wireless-G Ethernet Bridge has been designed to make understanding networking with the Wireless-G Ethernet Bridge easier than ever. Look for the following items when reading this guide:In addition to these symbols, there are definitions for technical terms that are presented like this:Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this:Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a Caution or warning and is something that could damage your property or the Wireless-G Ethernet Bridge. word: definition. This checkmark means there is a Note of interest and is something you should pay special attention to while using the Wireless-G Ethernet Bridge. This question mark provides you with a reminder about something you might need to do while using the Wireless-G Ethernet Bridge. Figure 0-1: Sample Figure Description WET54GS5-UG-403011A BW Wireless-G Ethernet BridgeTable of ContentsChapter 1: Introduction 1 Welcome 1 What’s in this Guide? 2 Chapter 2: Planning Your Wireless Network 4 Network Topology 4 Network Layout 5 Chapter 3: Getting to Know the Wireless-G Ethernet Bridge 6 The Back Panel 6 The Front Panel 7 Chapter 4: Connecting the Wireless-G Ethernet Bridge for Setup 8 Chapter 5: Setting Up the Wireless-G Ethernet Bridge 9 Chapter 6: Connecting the Wireless-G Ethernet Bridge for Network Use 14 Connection to a Network Device 14 Placement Options 14 Chapter 7: Using the Wireless-G Ethernet Bridge Web-based Utility 16 Overview 16 Starting the Web-based Utility 16 Setup 17 Password 24 Advanced Settings 24 Status 26 Help 27 Appendix A: Troubleshooting 28 Common Problems and Solutions 28 Frequently Asked Questions 29 Appendix B: Wireless Security 32 Security Precautions 32 Security Threats Facing Wireless Networks 32 Appendix C: Upgrading Firmware 35 Appendix D: Windows Help 36 Wireless-G Ethernet BridgeAppendix E: Glossary 37 Appendix F: Specifications 43 Appendix G: Warranty Information 45 Appendix H: Regulatory Information 46 Appendix I: Contact Information 48 Wireless-G Ethernet BridgeList of FiguresFigure 2-1: Infrastructure Network 4 Figure 2-2: Ad-Hoc Network 5 Figure 2-3: Network Using Wireless Bridging 5 Figure 3-1: Back Panel 6 Figure 3-2: Front Panel 7 Figure 4-1: Connect to the Network 8 Figure 4-2: Connect the Power 8 Figure 5-1: Welcome 9 Figure 5-2: Connection 9 Figure 5-3: List of Bridges 10 Figure 5-4: Password 10 Figure 5-5: Mode Settings 10 Figure 5-6: Wireless Settings 11 Figure 5-7: IP Settings 11 Figure 5-8: Security Settings-WEP 12 Figure 5-9: Security Settings-WPA-PSK 12 Figure 5-10: Confirmation 13 Figure 5-11: Congratulations 13 Figure 6-1: Horizontal Placement 14 Figure 6-2: Vertical Placement 15 Figure 7-1: Password Screen 16 Figure 7-2: Setup Tab 17 Figure 7-3: Site Survey 18 Figure 7-4: Security Settings 18 Figure 7-5: WEP 19 Figure 7-6: WPA Pre-Shared Key 20 Figure 7-7: Log Table 20 Figure 7-8: RADIUS-MD5 21 Figure 7-9: RADIUS-TLS 22 Wireless-G Ethernet BridgeFigure 7-10: RADIUS-TTLS 23 Figure 7-11: Password Tab 24 Figure 7-12: Advanced Settings Tab 24 Figure 7-13: Status Tab 26 Figure 7-14: Help Tab 27 Figure 7-15: Firmware Upgrade 27 Figure C-1: Firmware Upgrade 35 1 Chapter 1: IntroductionWelcomeWireless-G Ethernet BridgeChapter 1: IntroductionWelcomeThank you for choosing the Wireless-G Ethernet Bridge. The versatile Wireless-G Ethernet Bridge can make any wired Ethernet-equipped device a part of your wireless network. At home, use the Bridge to connect game consoles, set-top boxes, or computers to your Wireless-G network and its shared high-speed Internet connection. In the office, convert your Ethernet-wired printer, camera, notebook or desktop into a wireless networked device.It's completely driver-free, so it works on any platform and under any operating system! Since there's no drivers to load, setup is a snap—configure the network settings through your PC's web browser, then plug it into your device and go. And physical installation is simplified by support for Power Over Ethernet. With an optional POE Adapter, you can mount the Bridge wherever you want—power and data are both supplied through the Category 5 Ethernet cable.You can also use the Wireless-G Ethernet Bridge as a kind of “cable-less cable” to connect remote areas together. Maybe Shipping is all the way across the warehouse from Receiving. Or maybe you want to set up a home office in your detached garage. With a Wireless-G Ethernet Bridge in the garage, and another one (or a Wireless-G Access Point) in the house, you're connected—no digging trenches, and no overhead wires. Let the Wireless-G Ethernet Bridge from Linksys open up exciting new possibilities for your wireless network.Use the instructions in this Guide to help you set up and connect the Bridge. These instructions should be all you need to get the most out of the Wireless-G Ethernet Bridge. Ethernet : an IEEE standard network protocol that specifies how data is placed on and retrieved from a common transmission medium. 802.11g : an IEEE wireless networking standard that specifies a maximum data transfer rate of 54Mbps, an operating frequency of 2.4GHz, and backward compatibility with 802.11b devices. 2 Chapter 1: IntroductionWhat’s in this Guide?Wireless-G Ethernet BridgeWhat’s in this Guide?This user guide covers the steps for s…

Text truncated - open the document above for the full version.

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: Q87-HGA5S-2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Phone: 949-823-3188 Fax: 949-261-8868 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: : ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) For the following equipment: Product Name: WET54GS5 Linksys Wireless-G Ethernet Bridge with 5-Port Switch Model No.: WET54GS5 Trade Name: Linksys Is herewith confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number D931005H04. And this compliance is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation. The following local Manufacturer/Importer is responsible for this declaration: Cisco-Linksys, LLC (Company Name) 121 Theory Drive Irvine, CA 92612 (USA) (Company Address) TEL：( 949 ) 823-3188 FAX： ( 949 ) 261-8868 Jennifer Yu/ Associate Engineer (Name) / (Title) (Signature) / (Date)

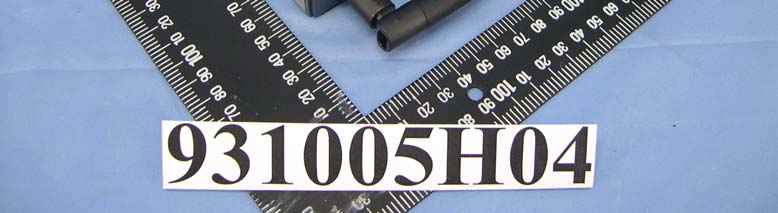

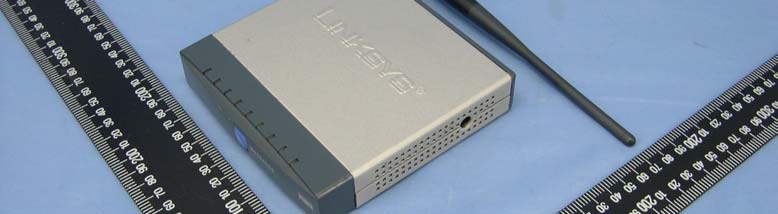

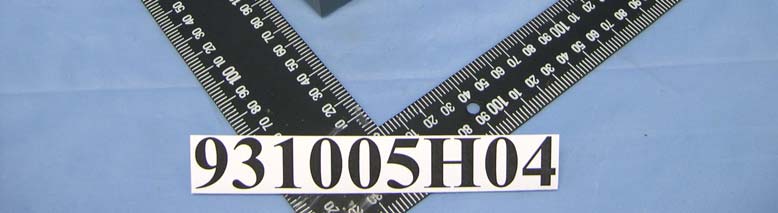

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

(Fig. 1) FCC ID: Q87-HGA5S-2 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

WET54GS5 Bottom label 93/2/13 Phoebe 74 mm 1 6 m m 4xR1.0

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15

FCC ID: Q87-HGA5S-2 Report No. 931005H04 Operational Description This device is a WET54GS5 Linksys Wireless-G Ethernet Bridge with 5-Port Switch, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (WET54GS5 Linksys Wireless-G Ethernet Bridge with 5- Port Switch) is powered by from power adapter. The antenna type used in this product is Dipole Antenna with Reverse SMA connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-HGA5S-2 ADT No.: 931005H04 1 FCC TEST REPORT REPORT NO.: RF931005H04 MODEL NO.: WET54GS5 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Cisco-Linksys, LLC ADDRESS:121 Theory Drive Irvine, CA 92612 (USA) ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: Q87-HGA5S-2 ADT No.: 931005H04 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-HGA5S-2 ADT No.: 931005H04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This is a stand alone radio device. So under normal use condition, it is easy to be re- located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-HGA5S-2 ADT No.: 931005H04 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 5dBi or 3.16228(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm : For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241251.52286450.0324137391.0 6243752.84452520.0332452141.0 11246254.07543230.0340195941.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241220.65380160.0129935891.0 6243720.84490880.0131138171.0 11246220.32357010.0127858361.0

FCC ID: Q87-HGA5S-2 Report No.: RF931005H041 Issued: Oct. 12, 2004 FCC TEST REPORT REPORT NO.:RF931005H04 MODEL NO.:WET54GS5 RECEIVED:Oct. 05, 2004 TESTED:Oct. 07 to 08, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive Irvine, CA 92612 (USA) ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 59 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: Q87-HGA5S-2 Report No.: RF931005H042 Issued: Oct. 12, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST ........................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS.......................................................................................... 12 4.2Radiated Emission Measurement ............................................................... 14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 14 4.2.2TEST INSTRUMENTS ................................................................................ 15 4.2.3TEST PROCEDURES................................................................................. 16 4.2.4TEST SETUP .............................................................................................. 17 4.2.5EUT OPERATING CONDITIONS................................................................ 17 4.2.6TEST RESULTS.......................................................................................... 18 4.2.7TEST RESULTS - DSSS............................................................................. 19 4.2.8TEST RESULTS -OFDM ............................................................................. 22 4.36dB BANDWIDTH MEASUREMENT .......................................................... 25 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 25 4.3.2TEST INSTRUMENTS ................................................................................ 25 4.3.3TEST PROCEDURE ................................................................................... 26 4.3.4TEST SETUP .............................................................................................. 26 4.3.5EUT OPERATING CONDITIONS................................................................ 26 4.3.6TEST RESULTS-DSSS............................................................................... 27 4.3.7TEST RESULTS-OFDM .............................................................................. 31 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 35 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 35 FCC ID: Q87-HGA5S-2 Report No.: RF931005H043 Issued: Oct. 12, 2004 4.4.2TEST INSTRUMENTS ................................................................................ 35 4.4.3TEST PROCEDURES................................................................................. 36 4.4.4TEST SETUP .............................................................................................. 36 4.4.5EUT OPERATING CONDITIONS................................................................ 36 4.4.6TEST RESULTS - DSSS............................................................................. 37 4.4.7TEST RESULTS - OFDM ............................................................................ 38 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 39 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 39 4.5.2TEST INSTRUMENTS ................................................................................ 39 4.5.3TEST PROCEDURE ................................................................................... 40 4.5.4TEST SETUP .............................................................................................. 40 4.5.5EUT OPERATING CONDITIONS................................................................ 40 4.5.6TEST RESULTS-DSSS............................................................................... 41 4.5.7TEST RESULTS-OFDM .............................................................................. 45 4.6BAND EDGES MEASUREMENT .............................................................…

Text truncated - open the document above for the full version.

FCC ID: Q87-HGA5S-2 Report No.: RF931005H0457 Issued: Oct. 12, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-HGA5S-2 Report No.: RF931005H0458 Issued: Oct. 12, 2004 RADIATED EMISSION TEST
