Q87-HGA5S-4Wireless-G PCI Adapter

A Division of Cisco Systems, Inc. ® Model No. PCI Adapter Wireless-G WMP54Gv4 User Guide WIRELESS GHz 2.4 802.11g Wireless-G PCI Adapter Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use This User Guide This User Guide has been designed to make understanding networking with the Wireless-G PCI Adapter easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a caution or warning and is something that could damage your property or the Wireless-G PCI Adapter. This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-G PCI Adapter. This question mark provides you with a reminder about something you might need to do while using the Wireless-G PCI Adapter. word: definition. Figure 0-1: Sample Figure Description WMP54G v4-UG-40412NC KL Wireless-G PCI Adapter with SpeedBooster Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Planning your Wireless Network4 Network Topology4 Roaming4 Network Layout5 Chapter 3: Software Installation and Configuration for Windows 2000, 98, and ME 6 Chapter 4: Connecting the PCI Adapter11 Chapter 5: Driver Installation for Windows XP13 Windows XP Wireless Zero Configuration14 Chapter 6: Using the Wireless Network Monitor16 Overview16 Accessing the Wireless Network Monitor16 The Link Information Tab16 The Site Survey Tab19 The Profiles Tab20 Creating a New Profile22 Appendix A: Troubleshooting26 Common Problems and Solutions26 Frequently Asked Questions27 Appendix B: Wireless Security30 Security Precautions30 Security Threats Facing Wireless Networks30 Appendix C: Windows Help33 Appendix D: Glossary34 Appendix E: Specifications38 Appendix F: Warranty Information39 Appendix G: Regulatory Information40 Appendix H: Contact Information42 Wireless-G PCI Adapter with SpeedBooster List of Figures Figure 3-1: The Setup Wizard’s Welcome Screen6 Figure 3-2: The License Agreement Screen7 Figure 3-3: The Wireless Mode Screen7 Figure 3-4: The Ad-Hoc Mode Settings Screen8 Figure 3-5: The Wireless Security Screen8 Figure 3-6: The Check Settings Screen9 Figure 3-7: The Windows Digital Signature Screen9 Figure 3-8: The Congratulations Screen10 Figure 4-1: Your Computer’s PCI slot with Adapter installed11 Figure 4-2: Proper Positioning of the Antenna12 Figure 5-1: XP Setup Welcome Screen13 Figure 5-2: Windows logo testing screen13 Figure 5-3: New Hardware Found screen13 Figure 5-4: Windows XP Wireless Zero Configuration icon14 Figure 5-5: Network Connection - No WEP14 Figure 5-6: Network Connection - WEP15 Figure 5-7: Optional Settings15 Figure 6-1: The Link Information Tab16 Figure 6-2: The Link Information Tab - More Information17 Figure 6-3: The Link Information Tab - Statistics18 Figure 6-4: The Site Survey Tab19 Figure 6-5: The Profiles Tab20 Figure 6-6: Importing a Profile21 Figure 6-7: Exporting a Profile21 Figure 6-8: The Profiles Tab22 Figure 6-9: Create Connection Profile22 Figure 6-10: Profiles - Network Settings23 Figure 6-11: Profiles - Wireless Mode23 Figure 6-12: Profiles - Ad-Hoc Settings24 Figure 6-13: Profiles - Security Settings24 Wireless-G PCI Adapter with SpeedBooster Figure 6-14: Profiles - Confirm New Settings25 Figure 6-15: Profiles - Congratulations25 1 Chapter 1: Introduction Welcome Wireless-G PCI Adapter Chapter 1: Introduction Welcome Thank you for choosing the Wireless-G PCI Adapter. With this Adapter, your wireless networking experience will be faster and easier than ever. Like all wireless products, the Adapter allows for greater range and mobility within your wireless network. This adapter communicates over the 54Mbps 802.11g wireless standard, which is almost five times faster than 802.11b. But since they share the same 2.4GHz radio band, the Adapter can also communicate with the widely used 11Mbps 802.11b standard. PCs equipped with wireless cards and adapters can communicate without cumbersome cables. By sharing the same wireless settings, within their transmission radius, they form a wireless network. The included Setup Wizard will walk you through configuring the adapter to your network's settings, step by step. Then just slide it into your computer's PCI Card slot and enjoy network access with the freedom of wireless. Once you're connected, you can keep in touch with your e-mail, access the Internet, and share files and other resources such as printers and network storage with other computers on the network. At home, you can surf the web or use instant messaging to chat with friends while sitting out on the patio. Your wireless connection is protected by the new, industrial-strength security of Wireless Protected Access (WPA). Get connected to current-standard 802.11b networks today, and be prepared for the future with the Wireless-G PCI Adapter from Linksys. 802.11b: an IEEE wireless networking standard that specifies a maximum data transfer rate of 11Mbps and an operating frequency of 2.4GHz adapter: a device that adds network functionality to your PC. network: a series of computers or devices connected for the purpose of data sharing, storage, and/or transmission between users. 802.11g an IEEE wireless networking standard that specifies a maximum data transfer rate of 54Mbps, an operating frequency of 2.4GHz, and backward compatibility…

Text truncated - open the document above for the full version.

26 Appendix A: Troubleshooting Common Problems and Solutions Wireless-G PCI Adapter Appendix A: Troubleshooting This appendix consists of two parts: “Common Problems and Solutions” and “Frequently Asked Questions.” This appendix provides solutions to problems that may occur during the installation and operation of the Wireless-G PCI Adapter. Read the description below to solve your problems. If you can't find an answer here, check the Linksys website at www.linksys.com. Common Problems and Solutions 1. The Wireless-G PCI Adapter does not work properly. •Reinsert the Wireless-G PCI Adapter into your PC’s PCI slot. •Right click on My Computer and select Properties. Select the device manager and click on the Network Adapter. You will find the Wireless-G PCI Adapter if it is installed successfully. If you see the yellow exclamation mark, the resources are conflicting. You will see the status of the Wireless-G PCI Adapter. If there is a yellow question mark, please check the following: •Make sure that your PC has a free IRQ (Interrupt ReQuest, a hardware interrupt on a PC.) •Make sure that you have inserted the right adapter and installed the proper driver. If the Wireless-G PCI Adapter does not function after attempting the above steps, remove the adapter and do the following: •Uninstall the driver software from your PC. •Restart your PC and repeat the hardware and software installation as specified in this User Guide. 2. I cannot communicate with the other computers linked via Ethernet in the Infrastructure configuration. •Make sure that the PC to which the Wireless-G PCI Adapter is associated is powered on. •Make sure that your Wireless-G PCI Adapter is configured on the same channel and with the same security options as with the other computers in the Infrastructure configuration. 27 Appendix A: Troubleshooting Frequently Asked Questions Wireless-G PCI Adapter Frequently Asked Questions Can I run an application from a remote computer over the wireless network? This will depend on whether or not the application is designed to be used over a network. Consult the application’s user guide to determine if it supports operation over a network. Can I play computer games with other members of the wireless network? Yes, as long as the game supports multiple players over a LAN (local area network). Refer to the game’s user guide for more information. What is the IEEE 802.11b standard? It is one of the IEEE standards for wireless networks. The 802.11b standard allows wireless networking hardware from different manufacturers to communicate, provided that the hardware complies with the 802.11b standard. The 802.11b standard states a maximum data transfer rate of 11Mbps and an operating frequency of 2.4GHz. What IEEE 802.11b features are supported? The product supports the following IEEE 802.11b functions: •CSMA/CA plus Acknowledge protocol •Multi-Channel Roaming •Automatic Rate Selection •RTS/CTS feature •Fragmentation •Power Management What is ad-hoc mode? When a wireless network is set to ad-hoc mode, the wireless-equipped computers are configured to communicate directly with each other. The ad-hoc wireless network will not communicate with any wired network. What is infrastructure mode? When a wireless network is set to infrastructure mode, the wireless network is configured to communicate with a wired network through a wireless access point. What is roaming? Roaming is the ability of a portable computer user to communicate continuously while moving freely throughout an area greater than that covered by a single access point. Before using the roaming function, the workstation must make sure that it is the same channel number with the access point of dedicated coverage area. To achieve true seamless connectivity, the wireless LAN must incorporate a number of different functions. Each node and access point, for example, must always acknowledge receipt of each message. Each node must 28 Appendix A: Troubleshooting Frequently Asked Questions Wireless-G PCI Adapter maintain contact with the wireless network even when not actually transmitting data. Achieving these functions simultaneously requires a dynamic RF networking technology that links access points and nodes. In such a system, the user’s end node undertakes a search for the best possible access to the system. First, it evaluates such factors as signal strength and quality, as well as the message load currently being carried by each access point and the distance of each access point to the wired backbone. Based on that information, the node next selects the right access point and registers its address. Communications between end node and host computer can then be transmitted up and down the backbone. As the user moves on, the end node’s RF transmitter regularly checks the system to determine whether it is in touch with the original access point or whether it should seek a new one. When a node no longer receives acknowledgment from its original access point, it undertakes a new search. Upon finding a new access point, it then re-registers, and the communication process continues. What is ISM band? The FCC and their counterparts outside of the U.S. have set aside bandwidth for unlicensed use in the ISM (Industrial, Scientific and Medical) band. Spectrum in the vicinity of 2.4 GHz, in particular, is being made available worldwide. This presents a truly revolutionary opportunity to place convenient high-speed wireless capabilities in the hands of users around the globe. What is Spread Spectrum? Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade-off produces a signal that is, in effect, louder and thus easier to detect, provided that the receiver knows…

Text truncated - open the document above for the full version.

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Agency Authorization Letter Date: October 20, 2004 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, _________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: October 20, 2004 FCC ID: Q87-HGA5S-4 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: October 20, 2004 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Cisco-Linksys, LLC declares that the equipment described in this document is within the requirements of the Code of Federal Regulations listed below: Product Name: Wireless-G PCI Adapter Model Number: WMP54Gv4 This device complies with the limits for a Class B digital device pursuant to IEEE ANSI C63.4 and FCC Part 15 subpart B of the Rules and Regulations. The test result has been shown in the ADT test report with numbered FD931009L02 Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. The Part 15 radio device operates on a non-interference basis with other devices operation at this frequency. Any change or modification to the product not expressly approved by Linksys could void the user’s authority to operate the device. Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

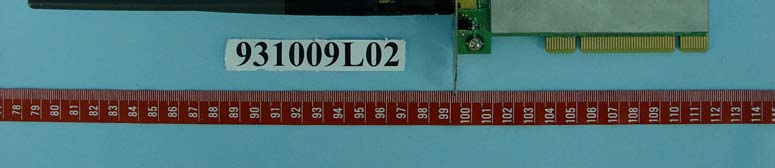

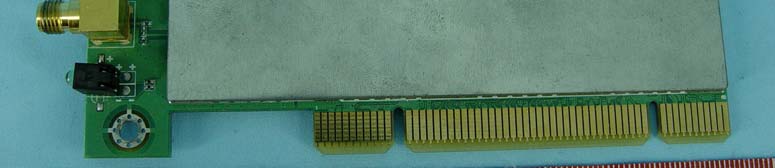

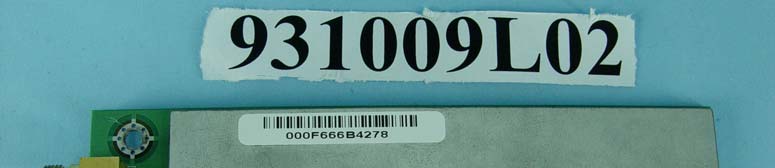

Model No.: WMP54Gv4 Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID Label Location

Page 4 Page 5 Page 6

FCC ID: Q87-HGA5S-4 Report No.: RF931009L02 Operational Description This device is a Wireless-G PCI Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCMCIA interface. The antenna is Dipole antenna with RSMA connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-HGA5S-4 Report No: SA931009L02 1 RF EXPOSURE REPORT REPORT NO.: SA931009L02 MODEL NO.: WMP54Gv4 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612, U.S.A. ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-HGA5S-4 Report No: SA931009L02 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-HGA5S-4 Report No: SA931009L02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-HGA5S-4 Report No: SA931009L02 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 5dBi or 3.16 (numeric) for 2.4GHz 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 2.4GHz Band: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241220.4170.0131.0 6243719.9530.0131.0 11246220.8930.0131.0

FCC ID: Q87-HGA5S-4 Report No.: RF931009L021Issued: Oct. 15, 2004 FCC TEST REPORT REPORT NO.: RF931009L02 MODEL NO.: WMP54Gv4 RECEIVED: Oct. 11, 2004 TESTED: Oct. 12 ~ Oct. 14, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 66 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: Q87-HGA5S-4 Report No.: RF931009L022Issued: Oct. 15, 2004 Table of Contents 1 CERTIFICATION ..........................................................................................................4 2 SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY ...............................................................................5 3 GENERAL INFORMATION ..........................................................................................6 3.1GENERAL DESCRIPTION OF EUT.............................................................................6 3.2DESCRIPTION OF TEST MODES...............................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..............................................7 3.4DESCRIPTION OF SUPPORT UNITS .........................................................................8 3.5 CONFIGURATION OF SYSTEM UNDER TEST .........................................................8 4 TEST TYPES AND RESULTS ......................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT ...............................................................9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................................9 4.1.2 TEST INSTRUMENTS..................................................................................................9 4.1.3 TEST PROCEDURES ................................................................................................10 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................10 4.1.5 TEST SETUP ............................................................................................................. 11 4.1.6 EUT OPERATING CONDITIONS ............................................................................... 11 4.1.7 TEST RESULTS .........................................................................................................12 4.2RADIATED EMISSION MEASUREMENT ..................................................................18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................18 4.2.2 TEST INSTRUMENTS................................................................................................19 4.2.3 TEST PROCEDURES ................................................................................................20 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................20 4.2.5 TEST SETUP .............................................................................................................21 4.2.6 EUT OPERATING CONDITIONS ...............................................................................21 4.2.7 TEST RESULTS .........................................................................................................22 4.2.8 TEST RESULTS (A) ...................................................................................................24 4.2.9 TEST RESULTS (B)....................................................................................................27 4.36dB BANDWIDTH MEASUREMENT .........................................................................30 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................30 4.3.2 TEST INSTRUMENTS................................................................................................30 4.3.3 TEST PROCEDURE...................................................................................................31 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................31 4.3.5 TEST SETUP .............................................................................................................31 4.3.6 EUT OPERATING CONDITIONS ...............................................................................31 4.3.7 TEST RESULTS (A) ...................................................................................................32 4.3.8 TEST RESULTS (B) ...................................................................................................32 4.4MAXIMUM PEAK OUTPUT POWER .........................................................................40 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................40 4.4.2 TEST INSTRUMENTS................................................................................................40 4.4.3 TEST PROCEDURES ................................................................................................41 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................41 4.4.5 TEST SETUP .............................................................................................................41 FCC ID: Q87-HGA5S-4 Report No.: RF931009L023Issued: Oct. 15, 2004 4.4.6 EUT OPERATING CONDITIONS ...............…

Text truncated - open the document above for the full version.

FCC ID: Q87-HGA5S-4 Report No.: RF931009L0264Issued: Oct. 15, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-HGA5S-4 Report No.: RF931009L0265Issued: Oct. 15, 2004 RADIATED EMISSION TEST
