® Access Point G User Guide WIRELESS 2.4 802.11g A Division of Cisco Systems, Inc. Model No. Wireless- WAP54G v2 GHz Wireless-G Access Point Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this Guide Your guide to the Wireless-G Access Point has been designed to make understanding networking with the Access Point easier than ever. Look for the following items when reading this guide: This checkmark means there is a Note of interest and is something you should pay special attention to while using the Access Point. This exclamation point means there is a Caution or warning and is something that could damage your property or the Access Point. This question mark provides you with a reminder about something you might need to do while using the Access Point. In addition to these symbols, there are definitions for technical terms that are presented like this: word: definition. Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure 0-1: Sample Figure Description Figure numbers and descriptions can also be found in the "List of Figures" section in the “Table of Contents”. wap54g v2-UG-40419 BW Wireless-G Access Point Table of Contents Chapter 1: Introduction1 Welcome 1 What’s in this Guide? 2 Chapter 2: Planning your Wireless Network4 Network Topology 4 Roaming 4 Network Layout 5 Chapter 3: Getting to Know the Wireless-G Access Point6 The Back Panel 6 The Front Panel 7 Chapter 4: Connecting the Wireless-G Access Point8 Hardware Installation 8 Chapter 5: Setting Up the Wireless-G Access Point9 Setup Wizard 9 Linksys Wireless Guard Setup 15 Chapter 6: Linksys Wireless Guard 18 Client Software Installation 18 Network Access 21 Your Account 22 Chapter 7: Configuring the Wireless-G Access Point29 Overview 29 Navigating the Utility 30 Accessing the Utility 31 The Setup Tab 32 The Status Tab 40 The Advanced Tab 41 The Help Tab 45 Appendix A: Troubleshooting 46 Frequently Asked Questions 46 Appendix B: Wireless Security 50 Security Precautions 50 Security Threats Facing Wireless Networks 50 Wireless-G Access Point Appendix C: Upgrading Firmware 53 Appendix D: Windows Help 54 Appendix E: Glossary 55 Appendix F: Specifications 59 Appendix G: Warranty Information 61 Appendix H: Regulatory Information 62 Appendix I: Contact Information 64 Wireless-G Access Point List of Figures Figure 3-1: The Access Point’s Back Panel 6 Figure 3-2: Front Panel 7 Figure 5-1: The Setup Wizard’s Welcome Screen 9 Figure 5-2: Connecting the Access Point 10 Figure 5-3: Select an Access Point 10 Figure 5-4: Enter the Password 11 Figure 5-5: The Configure Network Address Settings Screen 11 Figure 5-6: The Wireless Settings Screen 12 Figure 5-7: The Security Settings Screen 12 Figure 5-8: The WEP Settings Screen 13 Figure 5-9: The WPA-PSK Screen 13 Figure 5-10: The Congratulations Screen 14 Figure 5-11: The Attention Screen 15 Figure 5-12: The Linksys Wireless Guard Setup Screen 15 Figure 5-13: The Securing your Access Point Screen 16 Figure 5-14: Note the New Password Screen 16 Figure 5-15: The Adding Authorized Users Screen 17 Figure 5-16: The Congratulations Screen 17 Figure 6-1: Note 18 Figure 6-2: Configuring Windows Installer 18 Figure 6-3: Exit Applications 19 Figure 6-4: License Agreement 19 Figure 6-5: Destination Location 20 Figure 6-6: Copying Files 20 Figure 6-7: Restart your Computer 21 Figure 6-8: The Network Access Screen 21 Figure 6-9: Member Login 22 Figure 6-10: Home 23 Wireless-G Access Point Figure 6-11: Network Administration 23 Figure 6-12: Modify Access Control 24 Figure 6-13: Add Guest 24 Figure 6-14: Add Member 25 Figure 6-15: Welcome 25 Figure 6-16: Subscriber Information 26 Figure 6-17: Account Finances 26 Figure 6-18: Credentials Information 27 Figure 6-19: Congratulations 27 Figure 7-1: Password Screen 31 Figure 7-2: The Basic Setup Screen 32 Figure 7-3: WPA Pre-Shared Key Settings 34 Figure 7-4: WPA Radius Settings 34 Figure 7-5: Radius Settings 35 Figure 7-6: WEP Settings 35 Figure 7-7: The Password Screen 36 Figure 7-8: The AP Mode Screen 37 Figure 7-9: The Site Survey screen 37 Figure 7-10: Wireless Repeater diagram 38 Figure 7-11: Wireless Bridge diagram 38 Figure 7-12: The Log screen 39 Figure 7-13: The Status Screen 40 Figure 7-14: The Filters Screen 41 Figure 7-15: The Advanced Wireless screen 42 Figure 7-16: The SNMP screen 44 Figure 7-17: The Help screen 45 Figure C-1: Upgrade Firmware 53 Wireless-G Access Point Chapter 1: Introduction Welcome Thank you for choosing the Wireless-G Access Point. This Access Point will allow you to network wirelessly better than ever. How does the Access Point do all of this? An access point allows for greater range and mobility within your wireless network while also allowing you to connect the wireless network to a wired environment. Being a dual- band access point, not only does the Access Point bring you these benefits, it also allows two wireless standards, 802.11g and 802.11b, to communicate with each other. This means that PCs with different wireless standards can communicate with each other and with a wired network. But what does all of this mean? Networks are useful tools for sharing computer resources. You can access one printer from different computers and access data located on another computer's hard drive. Networks are even used for playing multiplayer video games. So, networks are not only useful in homes and offices, they can also be fun. PCs on a wired network create a LAN, or Local Area Network. They are connected with Ethernet cables, which is why the network is called "wired". PCs equipped with wireless cards and adapters can communicate without cumb…

Text truncated - open the document above for the full version.

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Agency Authorization Letter Date: October 20, 2004 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, _________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: October 20, 2004 FCC ID: Q87-HGA5T-2 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, _________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: October 20, 2004 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Cisco-Linksys, LLC declares that the equipment described in this document is within the requirements of the Code of Federal Regulations listed below: Product Name: Wireless-G Access Point Model Number: WAP54G v2 This device complies with the limits for a Class B digital device pursuant to IEEE ANSI C63.4 and FCC Part 15 subpart B of the Rules and Regulations. The test result has been shown in the ADT test report with numbered FD931009L04 Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. The Part 15 radio device operates on a non-interference basis with other devices operation at this frequency. Any change or modification to the product not expressly approved by Linksys could void the user’s authority to operate the device. Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

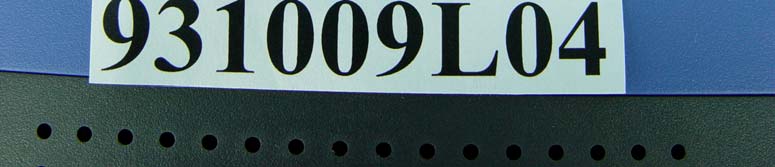

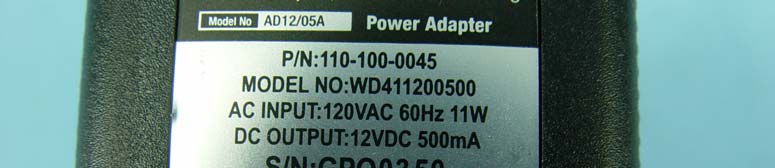

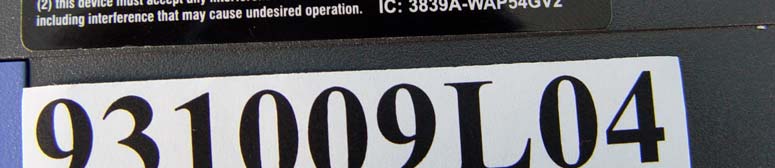

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

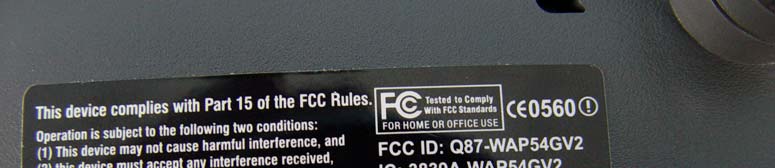

xxxxxxxxxxxx Wireless-G Access Point WAP54G v2 FCC ID: Q87-HGA5T-2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.

Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15

FCC ID: Q87-HGA5T-2 Report No.RF931009L04 Operational Description This device is a Wireless-G Access Point which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC adapter and connected with managing computer through RJ45 port. The antenna is dipole antenna with revers TNC antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: Q87-HGA5T-2 Report No: SA931009L04 1 RF EXPOSURE REPORT REPORT NO.: SA931009L04 MODEL NO.: WAP54G v2 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys, LLC. ADDRESS: 121 Theory Drive, Irvine, CA 92612 (USA) ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-HGA5T-2 Report No: SA931009L04 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-HGA5T-2 Report No: SA931009L04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: Q87-HGA5T-2 Report No: SA931009L04 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 5dBi or 3.1623 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241240.3650.0251.0 6243740.3650.0251.0 11246240.0870.0251.0

FCC ID: Q87-HGA5T-2 Report No.: RF931009L041Issued: Oct. 22, 2004 FCC TEST REPORT REPORT NO.: RF931009L04 MODEL NO.: WAP54G v2 RECEIVED: Oct. 11, 2004 TESTED: Oct. 11 ~ Oct. 21, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS:No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 66 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: Q87-HGA5T-2 Report No.: RF931009L042Issued: Oct. 22, 2004 Table of Contents 1 CERTIFICATION............................................................................................................4 2 SUMMARY OF TEST RESULTS...................................................................................5 2.1MEASUREMENT UNCERTAINTY................................................................................5 3 GENERAL INFORMATION............................................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................................6 3.2DESCRIPTION OF TEST MODES................................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..............................................7 3.4DESCRIPTION OF SUPPORT UNITS..........................................................................8 3.5 CONFIGURATION OF SYSTEM UNDER TEST..........................................................8 4 TEST TYPES AND RESULTS.......................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT................................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................................9 4.1.2TEST INSTRUMENTS...................................................................................................9 4.1.3TEST PROCEDURES.................................................................................................10 4.1.4DEVIATION FROM TEST STANDARD.......................................................................10 4.1.5TEST SETUP................................................................................................................11 4.1.6EUT OPERATING CONDITIONS.................................................................................11 4.1.7TEST RESULTS...........................................................................................................12 4.2RADIATED EMISSION MEASUREMENT...................................................................18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................................18 4.2.2TEST INSTRUMENTS.................................................................................................19 4.2.3TEST PROCEDURES.................................................................................................20 4.2.4DEVIATION FROM TEST STANDARD.......................................................................20 4.2.5TEST SETUP...............................................................................................................21 4.2.6EUT OPERATING CONDITIONS................................................................................21 4.2.7TEST RESULTS...........................................................................................................22 4.2.8TEST RESULTS (A).....................................................................................................24 4.2.9 TEST RESULTS (B).....................................................................................................27 4.36dB BANDWIDTH MEASUREMENT...........................................................................30 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................................30 4.3.2TEST INSTRUMENTS.................................................................................................30 4.3.3TEST PROCEDURE....................................................................................................31 4.3.4DEVIATION FROM TEST STANDARD.......................................................................31 4.3.5TEST SETUP...............................................................................................................31 4.3.6EUT OPERATING CONDITIONS................................................................................31 4.3.7TEST RESULTS (A).....................................................................................................32 4.3.8TEST RESULTS (B).....................................................................................................32 4.4MAXIMUM PEAK OUTPUT POWER..........................................................................40 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................40 4.4.2TEST INSTRUMENTS.................................................................................................40 4.4.3TEST PROCEDURES.................................................................................................41 4.4.4DEVIATION FROM TEST STANDARD.......................................................................41 4.4.5TEST SETUP...............................................................................................................41 FCC ID: Q87-HGA5T-2 Report No.: RF931009L043Issued: Oct. 22, 2004 4.4.6EUT OPERATING CONDITIONS.........................…

Text truncated - open the document above for the full version.

FCC ID: Q87-HGA5T-2 Report No.: RF931009L0440Issued: Oct. 22, 2004 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZER FSEK30100049Aug. 12, 2005 AGILENT SIGNAL GENERATOR E8257CMY43320668Dec. 31, 2004 TEKTRONIX OSCILLOSCOPE TDS 220C019167Feb. 1, 2005 NARDA DETECTOR4503AFSCM99899NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: Q87-HGA5T-2 Report No.: RF931009L0441Issued: Oct. 22, 2004 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to peak the response of the detector. 2. Replaced the EUT by the signal generator. The center frequency of the S.G was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same peak reading on oscilloscope. Record the power level. 4.4.4 DEVIATION FROM TEST STANDARD No deviation 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS Same as Item 4.3.6 EUT or S.G OSCILLOSCOPE DETECTOR FCC ID: Q87-HGA5T-2 Report No.: RF931009L0442Issued: Oct. 22, 2004 4.4.7 TEST RESULTS (A) EUTWireless-G Access PointMODEL WAP54G v2 INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 23 deg. C, 67% RH, 991 hPa TESTED BY Leo Hung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241240.36516.0630PASS 6243739.81116.0030PASS 11246239.90216.0130PASS 4.4.8 TEST RESULTS (B) EUT Wireless-G Access Point MODEL WAP54G v2 INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 23 deg. C, 67% RH, 991 hPa TESTED BYLeo Hung CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241240.36516.0630PASS 6243740.36516.0630PASS 11246240.08716.0330PASS FCC ID: Q87-HGA5T-2 Report No.: RF931009L0443Issued: Oct. 22, 2004 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2005 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: Q87-HGA5T-2 Report No.: RF931009L0444Issued: Oct. 22, 2004 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3kHz RBW and 30kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3kHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITIONS Same as 4.3.6 EUTSPECTRUM ANALYZER FCC ID: Q87-HGA5T-2 Report No.: RF931009L0445Issued: Oct. 22, 2004 4.5.7 TEST RESULTS (A) EUTWireless-G Access PointMODEL WAP54G v2 INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 23 deg. C, 67% RH, 991 hPa TESTED BY Leo Hung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-11.018PASS 62437-11.738PASS 112462-11.828PASS FCC ID: Q87-HGA5T-2 Report No.: RF931009L0446Issued: Oct. 22, 2004 CH1 FCC ID: Q87-HGA5T-2 Report No.: RF931009L0447Issued: Oct. 22, 2004 CH6 FCC ID: Q87-HGA5T-2 Report No.: RF931009L0448Issued: Oct. 22, 2004 CH11 FCC ID: Q87-HGA5T-2 Report No.: RF931009L0449Issued: Oct. 22, 2004 4.5.8 TEST RESULTS (B) EUTWireless-G Access PointMODEL WAP54G v2 INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 23 deg. C, 67% RH, 991 hPa TESTED BY Leo Hung CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-16.498PASS 62437-16.578PASS 112462-16.908PASS FCC ID: Q87-HGA5T-2 Report No.: RF931009L0450Issued: Oct. 22, 2004 CH1 FCC ID: Q87-HGA5T-2 Report No.: RF931009L0451Issued: Oct. 22, 2004 CH6 FCC ID: Q87-HGA5T-2 Report No.: RF931009L0452Issued: Oct. 22, 2004 CH11 FCC ID: Q87-HGA5T-2 Report No.: RF931009L0453Issued: Oct. 22, 2004 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2005 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 1MHz and 1kHz with suitable frequency span including 1MHz and 1kHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 FCC ID: Q87-HGA5T-2 Report No.: RF931009L0454Issued: Oct. 22, 2004 4.6.6 TEST RESULTS The spectrum plots are attached on the following 8 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). 4.6.7 TEST RESULTS(A) NOTE: The band edge emission plot of CCK technique on the following 1~2 pages show 55.68dB delta between carrier maximum power and local maximum emission in restrict band (2.3887GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.8 is 107.74dBuV/m, so the maximum field strength in restrict band is 107.74-55.68=52.06dBuV/m which is under 54dBuV/m limit. The band edge emission plot of CCK technique on the following 3~4 pages show 54.51dB delta between carrier maximum power and local maximum emission in restri…

Text truncated - open the document above for the full version.

FCC ID: Q87-HGA5T-2 Report No.: RF931009L0464Issued: Oct. 22, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-HGA5T-2 Report No.: RF931009L0465Issued: Oct. 22, 2004 RADIATED EMISSION TEST
