Q87-HGA5T-3Wireless-B Broadband Router

A Division of Cisco Systems, Inc. ® Model No. Broadband Router Wireless- B BEFW11S4 User Guide WIRELESS GHz 2.4 802.11b 62 Appendix J: Contact InformationWireless-B Broadband RouterAppendix J: Contact InformationNeed to contact Linksys?Visit us online for information on the latest products and updates to your existing products at: http://www.linksys.com or ftp.linksys.com Can't find information about a product you want to buyon the web? Do you want to know more about networkingwith Linksys products? Give our advice line a call at: 800-546-5797 (LINKSYS) Or fax your request in to: 949-261-8868 If you experience problems with any Linksys product,you can call us at: 800-326-7114 Don't wish to call? You can e-mail us at: [email protected] If any Linksys product proves defective during its warranty period,you can call the Linksys Return Merchandise Authorizationdepartment for obtaining a Return Authorization Number at: 949-261-1288 (Details on Warranty and RMA issues can be found in the WarrantyInformation section in this Guide.) •Federal Communication Commission Interference Statement•This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FC C Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will no t occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the followi ng measures:••-•Reorient or relocate the receiving antenna.•-•Increase the separation between the equipment and receiver.•-•Connect the equipment into an outlet on a circuit different from that•to which the receiver is connected.•-•Consult the dealer or an experienced radio/TV technician for help.••This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.••FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.••IMPORTANT NOTE:•FCC Radiation Exposure Statement:•This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.•This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.••Linksys declared that BEFW11S4 V4 is limited in CH1~11 by specified firmware controlled in USA. Wireless-B Broadband RouterCopyright and TrademarksSpecifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2003 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.How to Use this User GuideThis User Gudie has been designed to make understanding networking with the Wireless-B Broadband Router easier than ever. Look for the following items when reading this User Guide:In addition to these symbols, there are definitions for technical terms that are presented like this:Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this:Figure numbers and descriptions can also be found in the "List of Figures" section in the “Table of Contents”. This exclamation point means there is a caution or warning and is something that could damage your property or the Wireless-B Broadband Router. This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-B Broadband Router. This question mark provides you with a reminder about something you might need to do while using the Wireless-B Broadband Router. Figure 0-1: Sample Figure Description BEFW11S4-v4-UG-31015 BW word: definition. Wireless-B Broadband RouterTable of ContentsChapter 1: Introduction 1 Welcome 1 What’s in this Guide? 2 Chapter 2: Planning your Wireless Network 4 Network Topology 4 Roaming 4 Network Layout 5 Chapter 3: Getting to Know the Wireless-B Broadband Router 6 The Back Panel 6 The Front Panel 7 Chapter 4: Connecting the Wireless-B Broadband Router 8 Hardware Installation 8 Chapter 5: Configuring the Wireless-B Broadband Router 9 Overview 9 The Setup Tab - Basic Setup 10 The Setup Tab - MAC Address Clone 14 The Setup Tab - Advanced Routing 15 The Wireless Tab - Basic Wireless Settings 16 The Wireless Tab - Wireless Security 17 The Wireless Tab - Wireless Network Access 19 The Wireless Tab - Advanced Wireless Settings 20 The Security Tab - VPN Passthrough 22 The Applications and Gaming Tab - Port Range Forwarding 23 The Applications and Gaming Tab - Port Triggering 24 The Applications and Gaming Tab - UPnP Forwarding 24 The Applications and Gaming Tab - DMZ 25 The Administration Tab - Management 25 The Administration Tab - Log 26 The Administration Tab - Firmware Upgrade 27 The Administration Tab - Factory Defaults 28 The Status Tab - Router 29 The Status Tab - Local Network 30 Wireless-B Broadband RouterAppendix A:Troubleshooting 31 Common Problems and Solutions 31 Frequently Asked Questions 38 Appendix B: Wireless Security 45 Security Precautions 45 Security Threats Facing Wireless Networks 45 Appendix C: Upgrading Firmware 48 Appendix D: Windows Help 49 Appendix E: Finding th…

Text truncated - open the document above for the full version.

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: Q87-HGA5T-3 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Phone: 949-823-3188 Fax: 949-261-8868 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Power of Attorney To whom it may concern: We, the undersigned Cisco-Linksys, LLC hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 )261-8868 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: : ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) For the following equipment: Product Name: Wireless-B Broadband Router Model No.: BEFW11S4 V4 Trade Name: Linksys Is herewith confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number D931005H01. And this compliance is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation. The following local Manufacturer/Importer is responsible for this declaration: Cisco-Linksys, LLC (Company Name) 121 Theory Drive Irvine, CA 92612 (USA) (Company Address) TEL：( 949 ) 823-3188 FAX： ( 949 ) 261-8868 Jennifer Yu/ Associate Engineer (Name) / (Title) ________ (Signature) / (Date)

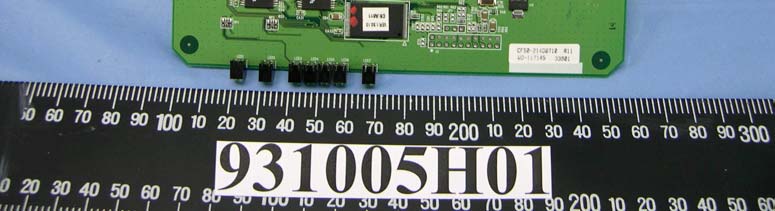

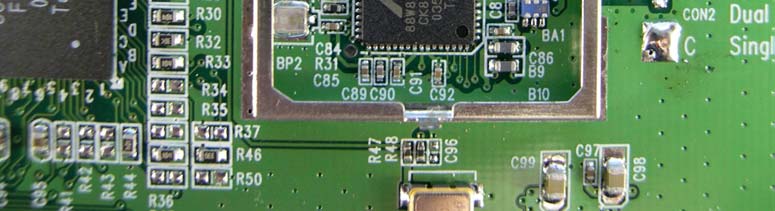

Page 1 CONSTRUCTION PHOTOS OF EU Page 2

(Fig. 1) FCC ID: Q87-HGA5T-3 LABEL LOCATION Label

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 For Adapter Model: D12-1A Page 11 Page 12 Page 13 For Adapter Model: AM-1201000D41 Page 14 Page 15

FCC ID: Q87-HGA5T-3 ADT No. 931005H01 Operational Description This device is a Wireless-B Broadband Router which operates in 2.4 GHz band with DSSS technique. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole Antenna with Reverse TNC connector. Under normal use condition, the user has to keep at least 20 cm separation distance between radiator and the body of the user. For more detailed instruction, please refer to the user’s manual. DSSS Information Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: Q87-HGA5T-3 ADT No.: 931005H01 1 FCC TEST REPORT REPORT NO.: RF931005H01 MODEL NO.: BEFW11S4 V4 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Cisco-Linksys, LLC ADDRESS:121 Theory Drive Irvine, CA 92612 (USA) ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: Q87-HGA5T-3 ADT No.: 931005H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-HGA5T-3 ADT No.: 931005H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This is a stand alone radio device. So under normal use condition, it is easy to be re- located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-HGA5T-3 ADT No.: 931005H01 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 5dBi or 3.16228(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241217.378008290.0109327431.0 6243716.788040180.0105615861.0 11246215.922087270.0100168031.0

FCC ID: Q87-HGA5T-3 Report No.: RF931005H011 Issued: Oct. 11, 2004 FCC TEST REPORT REPORT NO.: RF931005H01 MODEL NO.: BEFW11S4 V4 RECEIVED: Oct. 05, 2004 TESTED: Oct. 07 to 11, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive Irvine, CA 92612 (USA) ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 48 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: Q87-HGA5T-3 Report No.: RF931005H012 Issued: Oct. 11, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST ........................................... 9 4TEST TYPES AND RESULTS..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 10 4.1.2TEST INSTRUMENTS ................................................................................ 10 4.1.3TEST PROCEDURES..................................................................................11 4.1.4TEST SETUP ...............................................................................................11 4.1.5EUT OPERATING CONDITIONS................................................................ 12 4.1.6TEST RESULTS.......................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................... 17 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 17 4.2.2TEST INSTRUMENTS ................................................................................ 18 4.2.3TEST PROCEDURES................................................................................. 19 4.2.4TEST SETUP .............................................................................................. 20 4.2.5EUT OPERATING CONDITIONS................................................................ 20 4.2.6TEST RESULTS.......................................................................................... 21 4.36DB BANDWIDTH MEASUREMENT.......................................................... 26 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT ....................................... 26 4.3.2TEST INSTRUMENTS ................................................................................ 26 4.3.3TEST PROCEDURE ................................................................................... 27 4.3.4TEST SETUP .............................................................................................. 27 4.3.5EUT OPERATING CONDITIONS................................................................ 27 4.3.6TEST RESULTS.......................................................................................... 28 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 32 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 32 4.4.2TEST INSTRUMENTS ................................................................................ 32 4.4.3TEST PROCEDURES................................................................................. 33 4.4.4TEST SETUP .............................................................................................. 33 FCC ID: Q87-HGA5T-3 Report No.: RF931005H013 Issued: Oct. 11, 2004 4.4.5EUT OPERATING CONDITIONS................................................................ 33 4.4.6TEST RESULTS.......................................................................................... 34 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 35 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 35 4.5.2TEST INSTRUMENTS ................................................................................ 35 4.5.3TEST PROCEDURE ................................................................................... 36 4.5.4TEST SETUP .............................................................................................. 36 4.5.5EUT OPERATING CONDITIONS................................................................ 36 4.5.6TEST RESULTS.......................................................................................... 37 4.6BAND EDGES MEASUREMENT ................................................................ 41 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 41 4.6.2TEST INSTRUMENTS ................................................................................ 41 4.6.3TEST PROCEDURE ................................................................................... 41 4.6.4EUT OPERATING CONDITION .................................................................. 41 4.6.5TEST RESULTS.......................................................................................... 42 …

Text truncated - open the document above for the full version.

Report No. 931005H01 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G- 10SS SN4Jun. 08, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 931005H01 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 931005H01 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 931005H01 4 Ch1 Report No. 931005H01 5 Ch11

FCC ID: Q87-HGA5T-3 Report No.: RF931005H0146 Issued: Oct. 11, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-HGA5T-3 Report No.: RF931005H0147 Issued: Oct. 11, 2004 RADIATED EMISSION TEST
