Q87-HGA7S-5Wireless-G PCI Adapter with SpeedBooster

A Division of Cisco Systems, Inc. ® Model No. PCI Adapter Wireless-G WMP54GS User Guide WIRELESS GHz 2.4 802.11g with SpeedBooster Wireless-G PCI Adapter with SpeedBooster Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use This User Guide This User Guide has been designed to make understanding networking with the Wireless-G PCI Adapter easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a caution or warning and is something that could damage your property or the Wireless-G PCI Adapter. This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-G PCI Adapter. This question mark provides you with a reminder about something you might need to do while using the Wireless-G PCI Adapter. word: definition. Figure 0-1: Sample Figure Description WMP54GS-UG-40220NC KL Wireless-G PCI Adapter with SpeedBooster Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Planning your Wireless Network4 Network Topology4 Roaming4 Network Layout5 Chapter 3: Software Installation and Configuration for Windows 2000, 98, and ME 6 Chapter 4: Connecting the PCI Adapter11 Chapter 5: Driver Installation for Windows XP13 Windows XP Wireless Zero Configuration14 Chapter 6: Using the Wireless Network Monitor16 Overview16 Accessing the Wireless Network Monitor16 The Link Information Tab16 The Site Survey Tab19 The Profiles Tab20 Creating a New Profile22 Appendix A: Troubleshooting26 Common Problems and Solutions26 Frequently Asked Questions27 Appendix B: Wireless Security30 Security Precautions30 Security Threats Facing Wireless Networks30 Appendix C: Windows Help33 Appendix D: Glossary34 Appendix E: Specifications38 Appendix F: Warranty Information39 Appendix G: Regulatory Information40 Appendix H: Contact Information42 Wireless-G PCI Adapter with SpeedBooster List of Figures Figure 3-1: The Setup Wizard’s Welcome Screen6 Figure 3-2: The License Agreement Screen7 Figure 3-3: The Wireless Mode Screen7 Figure 3-4: The Ad-Hoc Mode Settings Screen8 Figure 3-5: The Wireless Security Screen8 Figure 3-6: The Check Settings Screen9 Figure 3-7: The Windows Digital Signature Screen9 Figure 3-8: The Congratulations Screen10 Figure 4-1: Your Computer’s PCI slot with Adapter installed11 Figure 4-2: Proper Positioning of the Antenna12 Figure 5-1: XP Setup Welcome Screen13 Figure 5-2: Windows logo testing screen13 Figure 5-3: New Hardware Found screen13 Figure 5-4: Windows XP Wireless Zero Configuration icon14 Figure 5-5: Network Connection - No WEP14 Figure 5-6: Network Connection - WEP15 Figure 5-7: Optional Settings15 Figure 6-1: The Link Information Tab16 Figure 6-2: The Link Information Tab - More Information17 Figure 6-3: The Link Information Tab - Statistics18 Figure 6-4: The Site Survey Tab19 Figure 6-5: The Profiles Tab20 Figure 6-6: Importing a Profile21 Figure 6-7: Exporting a Profile21 Figure 6-8: The Profiles Tab22 Figure 6-9: Create Connection Profile22 Figure 6-10: Profiles - Network Settings23 Figure 6-11: Profiles - Wireless Mode23 Figure 6-12: Profiles - Ad-Hoc Settings24 Figure 6-13: Profiles - Security Settings24 Wireless-G PCI Adapter with SpeedBooster Figure 6-14: Profiles - Confirm New Settings25 Figure 6-15: Profiles - Congratulations25 1 Chapter 1: Introduction Welcome Wireless-G PCI Adapter with SpeedBooster Chapter 1: Introduction Welcome Thank you for choosing the Wireless-G PCI Adapter. With this Adapter, your wireless networking experience will be faster and easier than ever. Like all wireless products, the Adapter allows for greater range and mobility within your wireless network. This adapter communicates over the 54Mbps 802.11g wireless standard, which is almost five times faster than 802.11b. But since they share the same 2.4GHz radio band, the Adapter can also communicate with the widely used 11Mbps 802.11b standard. PCs equipped with wireless cards and adapters can communicate without cumbersome cables. By sharing the same wireless settings, within their transmission radius, they form a wireless network. The included Setup Wizard will walk you through configuring the adapter to your network's settings, step by step. Then just slide it into your computer's PCI Card slot and enjoy network access with the freedom of wireless. Once you're connected, you can keep in touch with your e-mail, access the Internet, and share files and other resources such as printers and network storage with other computers on the network. At home, you can surf the web or use instant messaging to chat with friends while sitting out on the patio. Your wireless connection is protected by the new, industrial-strength security of Wireless Protected Access (WPA). Get connected to current-standard 802.11b networks today, and be prepared for the future with the Wireless-G PCI Adapter from Linksys. 802.11b: an IEEE wireless networking standard that specifies a maximum data transfer rate of 11Mbps and an operating frequency of 2.4GHz adapter: a device that adds network functionality to your PC. network: a series of computers or devices connected for the purpose of data sharing, storage, and/or transmission between users. 802.11g an IEEE wireless networking standard that specifies a maximum data transfer rate of 54Mbps, an operat…

Text truncated - open the document above for the full version.

20 Chapter 6: Using the Wireless Network Monitor The Profiles Tab Wireless-G PCI Adapter with SpeedBooster The Profiles Tab The Profiles screen lets you save different configuration profiles for different network setups. You can also import or export profiles. The default profile holds the initial configuration saved when you ran the Setup Wizard. Profile - Name of the connection profile. SSID - The wireless network’s unique name, as set in the connection profile. Profile Information Wireless Mode - The mode of the wireless network currently in use. Transfer Rate - The data transfer rate of the current connection. (In Auto mode, the Adapter dynamically shifts to the fastest data transfer rate possible at any given time.) Channel - The channel to which the wireless network devices are set. WEP - The status of the WEP encryption security feature. Authentication - The authentication setting for the network. Connect - To connect to a wireless network using a specific profile, select the profile, and click the Connect button. New - Click the New button to create a new profile. See the next section, “Creating a New Profile,” for detailed instructions. Edit - Select a profile, and click the Edit button to change an existing profile. Figure 6-5: The Profiles Tab 21 Chapter 6: Using the Wireless Network Monitor The Profiles Tab Wireless-G PCI Adapter with SpeedBooster Import - Click the Import button to import a profile that has been saved in another location. Select the appropriate file and click the Open button. Export - To save the profile(s) in a different location, click the Export button. Direct Windows to the appropriate folder and click the OK button. Delete - Click the Delete button to delete a profile. Click the X (Close) button in the upper right corner to exit the Wireless Network Monitor. Figure 6-7: Exporting a Profile Figure 6-6: Importing a Profile 22 Chapter 6: Using the Wireless Network Monitor Creating a New Profile Wireless-G PCI Adapter with SpeedBooster Creating a New Profile 1. On the Profiles tab, click the New button to create a new profile. 2. When the Create connection profile screen appears, enter a name for the new profile. Click OK to save the profile name or click Cancel to return to the previous screen. Figure 6-9: Create Connection Profile Figure 6-8: The Profiles Tab 23 Chapter 6: Using the Wireless Network Monitor Creating a New Profile Wireless-G PCI Adapter with SpeedBooster 3. Enter your network’s settings on the Network Settings screen, which appears next. If your network has a DHCP server (or Router), click the radio button next to Obtain an IP address automatically (DHCP) and click the Next button to continue. If your network does not have a DHCP server (or router), click the radio button next to Specify the IP address. Enter an IP Address, Subnet Mask, Default Gateway, and DNS appropriate for your network. Enter each address in this format: xxx.xxx.xxx.xxx (the x’s represent the numbers that make up each address). You must specify the IP Address and Subnet Mask on this screen. If you are unsure about the Default Gateway and DNS addresses, then leave these fields alone. IP Address - This IP Address must be unique to your network. Subnet Mask - The Adapter’s Subnet Mask must be the same as your wired network’s Subnet Mask. Default Gateway - Enter the IP address of your network’s Gateway here. DNS - Enter the DNS addresses of your network here. Click the Next button to continue or the Cancel button to return to the previous screen. 4. The Wireless Mode screen shows a choice of two wireless modes. Click the Infrastructure Mode radio button if you want your wireless computers to communicate with computers on your wired network via a wireless access point, and continue to Step 6. Click the Ad-Hoc Mode radio button if you want multiple wireless computers to communicate directly with each other. Click the Next button to continue or the Back button to return to the previous screen. SSID - The SSID is the unique name shared among all devices in your wireless network. The SSID must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 32 alphanumeric characters, which can be any keyboard character. Infrastructure Mode - This mode allows wireless and wired networks to communicate through an access point. Continue to Step 6 if selecting this mode. Ad-Hoc Mode - This mode allows wireless-equipped computers to communicate directly with each other. No access point is used. Figure 6-11: Profiles - Wireless Mode Figure 6-10: Profiles - Network Settings 24 Chapter 6: Using the Wireless Network Monitor Creating a New Profile Wireless-G PCI Adapter with SpeedBooster 5. The Ad-Hoc Mode Settings screen, for those who chose an Ad-hoc network, will appear next. Select the correct operating channel for your network from the Channel drop-down menu. Then, select the Network Mode from the drop-down menu. Click the Next button to continue or click the Back button to change any settings. Channel - The channel you choose should match the channel set on the other devices in your wireless network. If you are unsure about which channel to use, select the default channel (Channel 6). Network Mode - Select Mixed Mode, and both Wireless-G and Wireless-B computers will be allowed on the network, but the speed will be reduced. Select G-Only Mode for maximum speed, but no Wireless-B users will be allowed on the network. 6. The Security Settings screen allows you to set the security level for your network. Enable or disable Wired Equivalent Privacy (WEP) encryption for your wireless network. If you enable WEP, enter a Passphrase or WEP key. Click the Next button to continue or the Back button to return to the previous screen. For more information about the information on this screen, you can also click the Help button. WEP - If you do not want to use WEP encryption, choose Disabled. To use WEP encryption (recommended to increase network security), select 6…

Text truncated - open the document above for the full version.

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Agency Authorization Letter Date: June 23, 2004 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: June 23, 2004 FCC ID: Q87-HGA7S-5 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: June 23, 2004 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Cisco-Linksys, LLC declares that the equipment described in this document is within the requirements of the Code of Federal Regulations listed below: Product Name: Wireless-G PCI Adapter with SpeedBooster Model Number: WMP54GS This device complies with the limits for a Class B digital device pursuant to IEEE ANSI C63.4 and FCC Part 15 subpart B of the Rules and Regulations. The test result has been shown in the ADT test report with numbered D930615L08. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. The Part 15 radio device operates on a non-interference basis with other devices operation at this frequency. Any change or modification to the product not expressly approved by Linksys could void the user’s authority to operate the device. Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

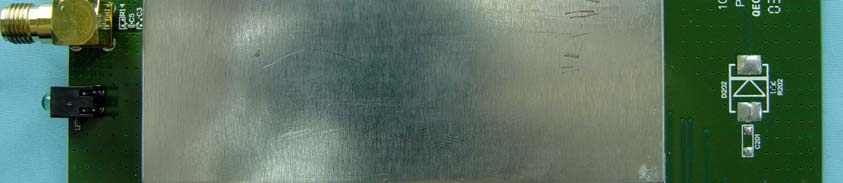

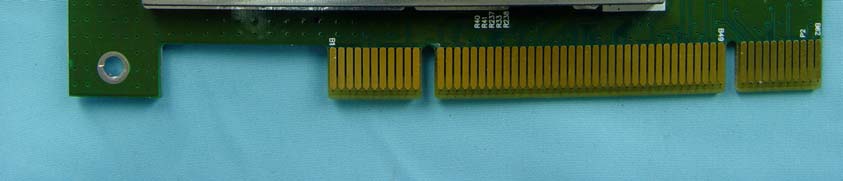

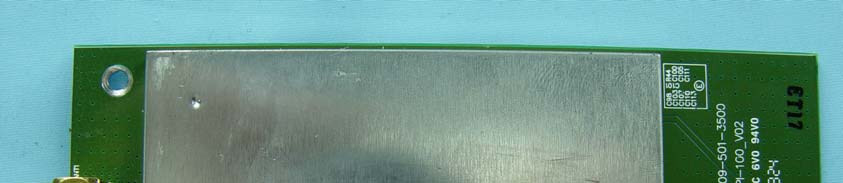

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

Page 7 Page 8 Page 9

FCC ID: Q87-HGA7S-5 Report No.RF930615L08 Operational Description This device is a Wireless-G PCI Adapter with SpeedBooster with SpeedBooster which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Dipole antenna with reversed SMA connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-HGA7S-5 Report No: SA930615L08 1 RF EXPOSURE REPORT REPORT NO.: SA930615L08 MODEL NO.: WMP54GS ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612 (USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-HGA7S-5 Report No: SA930615L08 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-HGA7S-5 Report No: SA930615L08 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-HGA7S-5 Report No: SA930615L08 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 7.0dBi or 5.012 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance: For 802.11b (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241211.2200.0111.0 6243730.5490.0301.0 11246211.4290.0111.0 For 802.11g (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241214.0600.0141.0 6243728.1840.0281.0 11246215.9590.0161.0

FCC ID: Q87-HGA7S-5 Report No.: RF930615L0840Issued: June 21, 2004 4.3.7 TEST RESULTS (A) EUT Wireless-G PCI Adapter with SpeedBooster MODEL WMP54GS INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25 deg. C, 63% RH, 991 hPa TESTED BY Allen Chang CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1241210.640.5PASS 6243711.120.5PASS 11246210.440.5PASS FCC ID: Q87-HGA7S-5 Report No.: RF930615L0841Issued: June 21, 2004 CH1 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0842Issued: June 21, 2004 CH6 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0843Issued: June 21, 2004 CH11 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0844Issued: June 21, 2004 4.3.8 TEST RESULTS (B) EUT Wireless-G PCI Adapter with SpeedBooster MODEL WMP54GS INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25 deg. C, 63% RH, 991 hPa TESTED BY Allen Chang CHANNEL CHANNEL FREQUENCY (MHz) 6 dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS/FAIL 1241216.360.5PASS 6243716.360.5PASS 11246216.360.5PASS FCC ID: Q87-HGA7S-5 Report No.: RF930615L0845Issued: June 21, 2004 CH1 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0846Issued: June 21, 2004 CH6 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0847Issued: June 21, 2004 CH11 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0848Issued: June 21, 2004 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 AGILENT SIGNAL GENERATOR E8257CMY43320668Dec. 31, 2004 TEKTRONIX OSCILLOSCOPETDS 220C019167Feb. 1, 2005 NARDA DETECTOR4503AFSCM99899NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: Q87-HGA7S-5 Report No.: RF930615L0849Issued: June 21, 2004 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to read the response of the detector. 2. Replaced the EUT by the signal generator. The center frequency of the S.G. was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same reading on oscilloscope. Record the power level. 4.4.4 DEVIATION FROM TEST STANDARD No deviation 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS Same as Item 4.3.6 Detector EUT or S.GOSCILLOSCOPE FCC ID: Q87-HGA7S-5 Report No.: RF930615L0850Issued: June 21, 2004 4.4.7 TEST RESULTS (A) EUT Wireless-G PCI Adapter with SpeedBooster MODEL WMP54GS INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25 deg. C, 63% RH, 991 hPa TESTED BY Allen Chang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241210.5029PASS 6243714.8529PASS 11246210.5829PASS Note: According to 15.247 (b)(4), the maximum antenna gain 7dBi is higher than 6dBi, so the limit of peak power shall be reduced by 1dBi. FCC ID: Q87-HGA7S-5 Report No.: RF930615L0851Issued: June 21, 2004 4.4.8 TEST RESULTS (B) EUT Wireless-G PCI Adapter with SpeedBooster MODEL WMP54GS INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25 deg. C, 63% RH, 991 hPa TESTED BY Allen Chang CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS/FAIL 1241211.4829PASS 6243714.5029PASS 11246212.0329PASS Note: According to 15.247 (b)(4), the maximum antenna gain 7dBi is higher than 6dBi, so the limit of peak power shall be reduced by 1dBi. FCC ID: Q87-HGA7S-5 Report No.: RF930615L0852Issued: June 21, 2004 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: Q87-HGA7S-5 Report No.: RF930615L0853Issued: June 21, 2004 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3 kHz RBW and 30 kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITIONS Same as 4.3.6 EUT SPECTRUM ANALYZER FCC ID: Q87-HGA7S-5 Report No.: RF930615L0854Issued: June 21, 2004 4.5.7 TEST RESULTS (A) EUT Wireless-G PCI Adapter with SpeedBooster MODEL WMP54GS INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25 deg. C, 63% RH, 991 hPa TESTED BY Allen Chang CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-15.928PASS 62437-9.998PASS 112462-15.688PASS FCC ID: Q87-HGA7S-5 Report No.: RF930615L0855Issued: June 21, 2004 CH1 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0856Issued: June 21, 2004 CH6 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0857Issued: June 21, 2004 CH11 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0858Issued: June 21, 2004 4.5.8 TEST RESULTS (B) EUT Wireless-G PCI Adapter with SpeedBooster MODEL WMP54GS INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25 deg. C, 63% RH, 991 hPa TESTED BY Allen Chang CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-20.468PASS 62437-13.068PASS 112462-17.008PASS FCC ID: Q87-HGA7S-5 Report No.: RF930615L0859Issued: June 21, 2004 CH1

FCC ID: Q87-HGA7S-5 Report No.: RF930615L0860Issued: June 21, 2004 CH6 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0861Issued: June 21, 2004 CH11 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0862Issued: June 21, 2004 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 1MHz and 1kHz with suitable frequency span including 100MHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0863Issued: June 21, 2004 4.6.6 TEST RESULTS (A) The spectrum plots are attached on the following 4 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). For test mode A NOTE: The band edge emission plot on the following 1~2 pages show 57.12dB delta between carrier maximum power and local maximum emission in restrict band (2.3898GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.8 is 105.50dBuV/m, so the maximum field strength in restrict band is 105.50-57.12=48.38dBuV/m which is under 54dBuV/m limit. The band edge emission plot on the following 3~4 pages show 56.94dB delta between carrier maximum power and local maximum emission in restrict band (2.4847GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.8 is 105.22BuV/m, so the maximum field strength in restrict band is 105.22-56.94=48.28dBuV/m which is under 54dBuV/m limit. For test mode B NOTE: The band edge emission plot on the following 1~2 pages show 57.12dB delta between carrier maximum power and local maximum emission in restrict band (2.3898GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.8 is 101.24dBuV/m, so the maximum field strength in restrict band is 101.24-57.12=44.12dBuV/m which is under 54dBuV/m limit. The band edge emission plot on the following 3~4 pages show 56.94dB delta between carrier maximum power and local maximum emission in restrict band (2.4847GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.8 is 101.12dBuV/m, so the maximum field strength in restrict band is 101.12-56.94=44.18dBuV/m which is under 54dBuV/m limit. FCC ID: Q87-HGA7S-5 Report No.: RF930615L0864Issued: June 21, 2004 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0865Issued: June 21, 2004 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0866Issued: June 21, 2004 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0867Issued: June 21, 2004 FCC ID: Q87-HGA7S-5 Report No.: RF930615L0868Issued: June 21, 2004 4.6.7 TEST RESULTS (B) The spectrum plots are attached on the following 4 pages. D2 line indicates the highest level and D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). For test mode A NOTE: The band edge emission plot on the following 1~2 pages show 49.72dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.9 is 101.60dBuV/m, so the maximum field strength in restrict band is 101.60-49.72=51.88dBuV/m which is under 54dBuV/m limit. The band edge emission plot on the following 3~4 pages show 49.69dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.9 is 103.00dBuV/m, so the maximum field strength in restrict band is 103.00-49.69=53.31dBuV/m which is under 54dBuV/m limit. For test mode B NOTE: The band edge emission plot on the following 1~2 pages show 49.72dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.9 is 99.17BuV/m, so the maximum field strength in restrict band is 99.17-49.72=49.45dBuV/m which is under 54dBuV/m limit. The band edge emission plot on the following 3~4 pages show 49.69B delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.9 is 97.23dBuV/m, so…
