Q87-HGA7T-2Wireless-G Access Point

A Division of Cisco Systems, Inc. ® Model No. Access Point Wireless-G WAP54G v2 User Guide WIRELESS GHz 2.4 802.11g Wireless-G Access Point Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this Guide Your guide to the Wireless-G Access Point has been designed to make understanding networking with the Access Point easier than ever. Look for the following items when reading this guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the "List of Figures" section in the “Table of Contents”. This exclamation point means there is a Caution or warning and is something that could damage your property or the Access Point. word: definition. This checkmark means there is a Note of interest and is something you should pay special attention to while using the Access Point. This question mark provides you with a reminder about something you might need to do while using the Access Point. Figure 0-1: Sample Figure Description wap54g v2-UG-40419 BW Wireless-G Access Point Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Planning your Wireless Network4 Network Topology4 Roaming4 Network Layout5 Chapter 3: Getting to Know the Wireless-G Access Point6 The Back Panel6 The Front Panel7 Chapter 4: Connecting the Wireless-G Access Point8 Hardware Installation8 Chapter 5: Setting Up the Wireless-G Access Point9 Setup Wizard9 Linksys Wireless Guard Setup15 Chapter 6: Linksys Wireless Guard18 Client Software Installation18 Network Access21 Your Account22 Chapter 7: Configuring the Wireless-G Access Point29 Overview29 Navigating the Utility30 Accessing the Utility31 The Setup Tab32 The Status Tab40 The Advanced Tab41 The Help Tab45 Appendix A: Troubleshooting46 Frequently Asked Questions46 Appendix B: Wireless Security50 Security Precautions50 Security Threats Facing Wireless Networks50 Wireless-G Access Point Appendix C: Upgrading Firmware53 Appendix D: Windows Help54 Appendix E: Glossary55 Appendix F: Specifications59 Appendix G: Warranty Information61 Appendix H: Regulatory Information62 Appendix I: Contact Information64 Wireless-G Access Point List of Figures Figure 3-1: The Access Point’s Back Panel6 Figure 3-2: Front Panel7 Figure 5-1: The Setup Wizard’s Welcome Screen9 Figure 5-2: Connecting the Access Point10 Figure 5-3: Select an Access Point10 Figure 5-4: Enter the Password11 Figure 5-5: The Configure Network Address Settings Screen11 Figure 5-6: The Wireless Settings Screen12 Figure 5-7: The Security Settings Screen12 Figure 5-8: The WEP Settings Screen13 Figure 5-9: The WPA-PSK Screen13 Figure 5-10: The Congratulations Screen14 Figure 5-11: The Attention Screen15 Figure 5-12: The Linksys Wireless Guard Setup Screen15 Figure 5-13: The Securing your Access Point Screen16 Figure 5-14: Note the New Password Screen16 Figure 5-15: The Adding Authorized Users Screen17 Figure 5-16: The Congratulations Screen17 Figure 6-1: Note18 Figure 6-2: Configuring Windows Installer18 Figure 6-3: Exit Applications19 Figure 6-4: License Agreement19 Figure 6-5: Destination Location20 Figure 6-6: Copying Files20 Figure 6-7: Restart your Computer21 Figure 6-8: The Network Access Screen21 Figure 6-9: Member Login22 Figure 6-10: Home23 Wireless-G Access Point Figure 6-11: Network Administration23 Figure 6-12: Modify Access Control24 Figure 6-13: Add Guest24 Figure 6-14: Add Member25 Figure 6-15: Welcome25 Figure 6-16: Subscriber Information26 Figure 6-17: Account Finances26 Figure 6-18: Credentials Information27 Figure 6-19: Congratulations27 Figure 7-1: Password Screen31 Figure 7-2: The Basic Setup Screen32 Figure 7-3: WPA Pre-Shared Key Settings34 Figure 7-4: WPA Radius Settings34 Figure 7-5: Radius Settings35 Figure 7-6: WEP Settings35 Figure 7-7: The Password Screen36 Figure 7-8: The AP Mode Screen37 Figure 7-9: The Site Survey screen37 Figure 7-10: Wireless Repeater diagram38 Figure 7-11: Wireless Bridge diagram38 Figure 7-12: The Log screen39 Figure 7-13: The Status Screen40 Figure 7-14: The Filters Screen41 Figure 7-15: The Advanced Wireless screen42 Figure 7-16: The SNMP screen44 Figure 7-17: The Help screen45 Figure C-1: Upgrade Firmware53 1 Chapter 1: Introduction Welcome Wireless-G Access Point Chapter 1: Introduction Welcome Thank you for choosing the Wireless-G Access Point. This Access Point will allow you to network wirelessly better than ever. How does the Access Point do all of this? An access point allows for greater range and mobility within your wireless network while also allowing you to connect the wireless network to a wired environment. Being a dual- band access point, not only does the Access Point bring you these benefits, it also allows two wireless standards, 802.11g and 802.11b, to communicate with each other. This means that PCs with different wireless standards can communicate with each other and with a wired network. But what does all of this mean? Networks are useful tools for sharing computer resources. You can access one printer from different computers and access data located on another computer's hard drive. Networks are even used for playing multiplayer video games. So, networks are not only useful in homes and offices, they can also be fun. PCs on a wired network create a LAN, or Local Area Network. They are connected with Ethernet cables, which is why the network is called "wired". PCs equipped with wireless cards and adapters can communicate without cumbersome cables. By sharing the same wireless settings, w…

Text truncated - open the document above for the full version.

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: May 10, 2004 FCC ID: Q87-HGA7T-2 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Agency Authorization Letter Date: May 10, 2004 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: May 10, 2004 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Cisco-Linksys, LLC declares that the equipment described in this document is within the requirements of the Code of Federal Regulations listed below: Product Name: Wireless-G Access Point Model Number: WAP54G v2 This device complies with the limits for a Class B digital device pursuant to IEEE ANSI C63.4 and FCC Part 15 subpart B of the Rules and Regulations. The test result has been shown in the ADT test report with numbered D930507L03. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. The Part 15 radio device operates on a non-interference basis with other devices operation at this frequency. Any change or modification to the product not expressly approved by Linksys could void the user’s authority to operate the device. Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

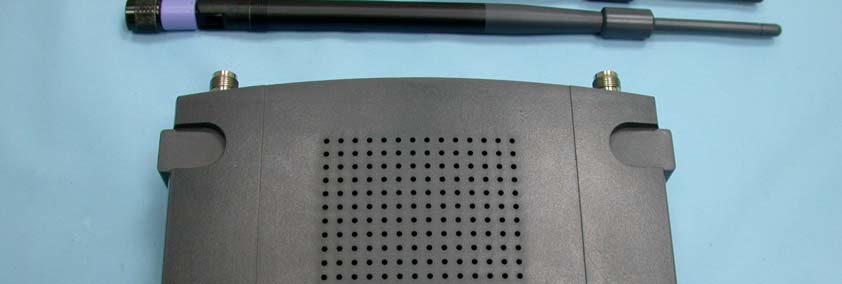

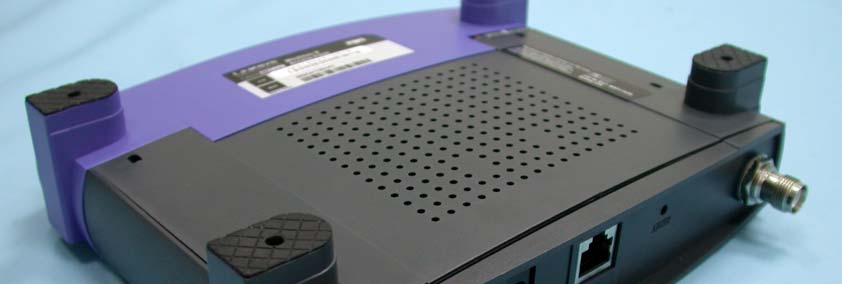

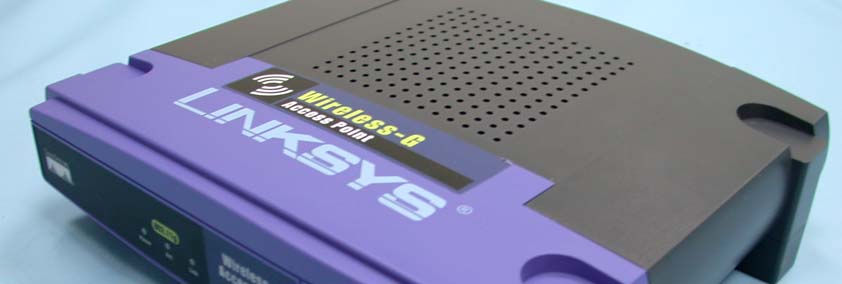

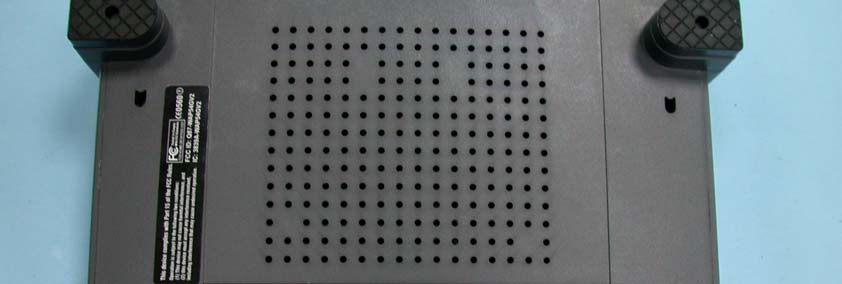

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

xxxxxxxxxxxx Wireless-G Access Point WAP54G v2 FCC ID: Q87-HGA7T-2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Part 15 of the FCC Rules. FCC ID: Q87-HGA7T-2 WAP54G v2 Access Point Wireless-G xxxxxxxxxxxx

Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: Q87-HGA7T-2 Report No.RF930507L03 Operational Description This device is a Wireless-G Access Point which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC adapter and connected with managing computer through RJ45 port. The antenna is dipole antenna with Reversed TNC antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID : Q87-HGA7T-2 Report No: SA930507L03 1 RF EXPOSURE REPORT REPORT NO.: SA930507L03 MODEL NO.: WAP54G v2 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys, LLC. ADDRESS: 121 Theory Drive, Irvine, CA 92612 (USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID : Q87-HGA7T-2 Report No: SA930507L03 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID : Q87-HGA7T-2 Report No: SA930507L03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID : Q87-HGA7T-2 Report No: SA930507L03 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 7dBi or 5.0119 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Antenna gain: 7dBi For CCK technique Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241219.9530.0201.0 6243719.9530.0201.0 11246214.1250.0141.0 For OFDM technique Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.1190.0251.0 6243719.9530.0201.0 11246214.1250.0141.0 Antenna gain: 4.5dBi For CCK technique Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241219.9530.0111.0 6243719.9530.0111.0 11246214.1250.0081.0 For OFDM technique Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.1190.0141.0 6243719.9530.0111.0 11246214.1250.0081.0

FCC ID: Q87-HGA7T-2 Report No.: RF930507L031Issued: May 14, 2004 FCC TEST REPORT REPORT NO.: RF930507L03 MODEL NO.: WAP54G v2 RECEIVED: April 13, 2004 TESTED: April 13, 2004 ~ May 13, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 103 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by any government agencies. The test results in the report only apply to the tested sample. FCC ID: Q87-HGA7T-2 Report No.: RF930507L032Issued: May 14, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 3.5 CONFIGURATION OF SYSTEM UNDER TEST .......................................... 9 4TEST TYPES AND RESULTS..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................ 10 4.1.2TEST INSTRUMENTS ................................................................................ 10 4.1.3TEST PROCEDURES..................................................................................11 4.1.4DEVIATION FROM TEST STANDARD ........................................................11 4.1.5TEST SETUP .............................................................................................. 12 4.1.6EUT OPERATING CONDITIONS................................................................ 13 4.1.7TEST RESULTS.......................................................................................... 14 4.2RADIATED EMISSION MEASUREMENT ................................................... 20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 20 4.2.2TEST INSTRUMENTS ................................................................................ 21 4.2.3TEST PROCEDURES................................................................................. 22 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 22 4.2.5TEST SETUP .............................................................................................. 23 4.2.6EUT OPERATING CONDITIONS................................................................ 23 4.2.7TEST RESULTS (A) .................................................................................... 24 4.2.8TEST RESULTS (B) .................................................................................... 32 4.36dB BANDWIDTH MEASUREMENT .......................................................... 40 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 40 4.3.2TEST INSTRUMENTS ................................................................................ 40 4.3.3TEST PROCEDURE ................................................................................... 41 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 41 4.3.5TEST SETUP .............................................................................................. 41 4.3.6EUT OPERATING CONDITIONS................................................................ 41 4.3.7TEST RESULTS (A) .................................................................................... 42 4.3.8TEST RESULTS (B) .................................................................................... 50 FCC ID: Q87-HGA7T-2 Report No.: RF930507L033Issued: May 14, 2004 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 58 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 58 4.4.2TEST INSTRUMENTS ................................................................................ 58 4.4.3TEST PROCEDURES................................................................................. 59 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 59 4.4.5TEST SETUP .............................................................................................. 59 4.4.6EUT OPERATING CONDITIONS................................................................ 59 4.4.7TEST RESULTS (A & B) ............................................................................. 60 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 61 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 61 4.5.2TEST INSTRUMENTS ................................................................................ 61 4.5.3TEST PROCEDURE ................................................................................... 62 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 62 4.5.5TEST SETUP .............................................................................................. 62 4.5.6EUT OPERATING CONDITIONS................................................................ 62 4.5.7TEST RESULTS (A) .................................................................................... 63 4.5.8TEST RESULTS (B) ...........................…

Text truncated - open the document above for the full version.

FCC ID: Q87-HGA7T-2 Report No.: RF930507L0399Issued: May 14, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Mode A) FCC ID: Q87-HGA7T-2 Report No.: RF930507L03100Issued: May 14, 2004 (Mode B) FCC ID: Q87-HGA7T-2 Report No.: RF930507L03101Issued: May 14, 2004 RADIATED EMISSION TEST (Mode A) FCC ID: Q87-HGA7T-2 Report No.: RF930507L03102Issued: May 14, 2004 (Mode B)
