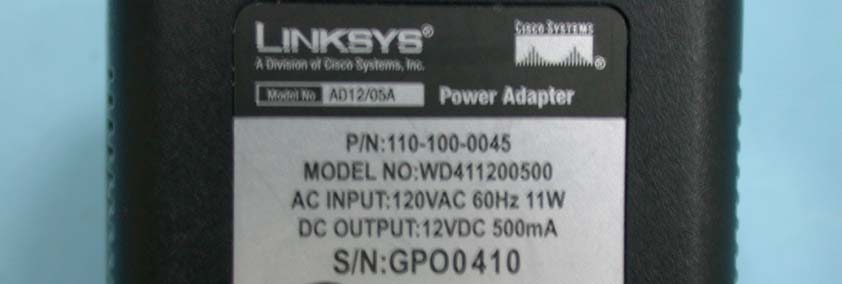

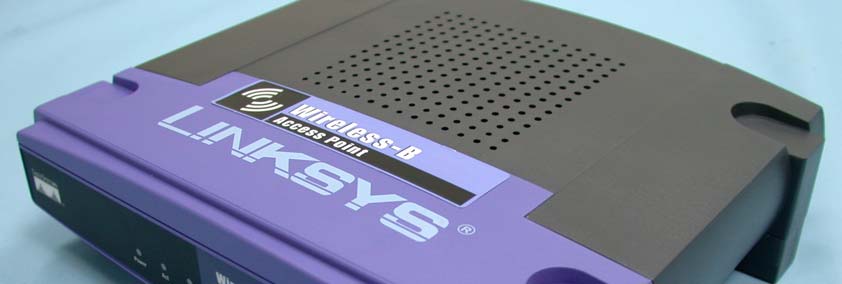

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

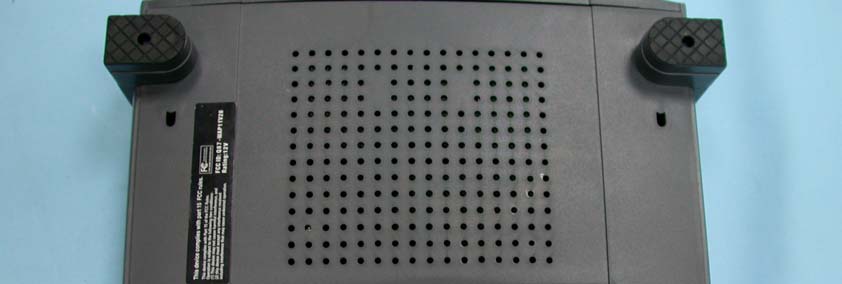

Access Point Wireless Network xxxxxxxxxxxx WAP11V28 Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: Q87-HGA7T-4 Rating: 12V This device complies with Part 15 of the FCC Rules.

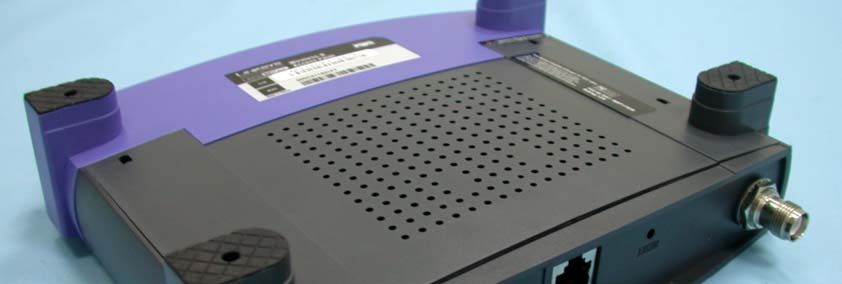

This device complies with Part 15 of the FCC Rules. Rating: 12V FCC ID: Q87-HGA7T-4 Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WAP11V28 xxxxxxxxxxxx Wireless Network Access Point

Page 7 Page 8 Page 9 Page 10

FCC ID: Q87-HGA7T-4 Report No.RF930507L01 Operational Description This device is a Wireless Network Access Point which operates in the 2.4GHz frequency spectrum with throughput of up to 11Mbps which CCK technique will be applied. The transmitter of the EUT is powered by AC adapter and connected with managing computer through RJ45 port. The antenna is dipole with reversed TNC antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID :Q87-HGA7T-4 Report No: SA930507L01 1 RF EXPOSURE REPORT REPORT NO.: SA930507L01 MODEL NO.: WAP11V28 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612 (USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID :Q87-HGA7T-4 Report No: SA930507L01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID :Q87-HGA7T-4 Report No: SA930507L01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID :Q87-HGA7T-4 Report No: SA930507L01 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 7dBi or 5.0119 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Antenna gain: 7dBi For CCK technique Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241212.8820.0131.0 6243724.9460.0251.0 1124629.3330.0091.0 Antenna gain: 4.5dBi For CCK technique Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241212.8820.0071.0 6243724.9460.0141.0 1124629.3330.0051.0

FCC ID: Q87-HGA7T-4 Report No.: RF930507L011Issued: May 13, 2004 FCC TEST REPORT REPORT NO.: RF930507L01 MODEL NO.: WAP11V28 RECEIVED: April 19, 2004 TESTED: April 19, 2004 ~ May 12, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 66 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by any government agencies. The test results in the report only apply to the tested sample. FCC ID: Q87-HGA7T-4 Report No.: RF930507L012Issued: May 13, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 3.5 CONFIGURATION OF SYSTEM UNDER TEST .......................................... 9 4TEST TYPES AND RESULTS..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................ 10 4.1.2TEST INSTRUMENTS ................................................................................ 10 4.1.3TEST PROCEDURES..................................................................................11 4.1.4DEVIATION FROM TEST STANDARD ........................................................11 4.1.5TEST SETUP .............................................................................................. 12 4.1.6EUT OPERATING CONDITIONS................................................................ 13 4.1.7TEST RESULTS.......................................................................................... 14 4.2RADIATED EMISSION MEASUREMENT ................................................... 20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 20 4.2.2TEST INSTRUMENTS ................................................................................ 21 4.2.3TEST PROCEDURES................................................................................. 22 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 22 4.2.5TEST SETUP .............................................................................................. 23 4.2.6EUT OPERATING CONDITIONS................................................................ 23 4.2.7TEST RESULTS (A) .................................................................................... 24 4.2.8TEST RESULTS (B) .................................................................................... 32 4.36dB BANDWIDTH MEASUREMENT .......................................................... 40 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 40 4.3.2TEST INSTRUMENTS ................................................................................ 40 4.3.3TEST PROCEDURE ................................................................................... 41 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 41 4.3.5TEST SETUP .............................................................................................. 41 4.3.6EUT OPERATING CONDITIONS................................................................ 41 4.3.7TEST RESULTS.......................................................................................... 42 4.3.8TEST RESULTS.......................................................................................... 42 FCC ID: Q87-HGA7T-4 Report No.: RF930507L013Issued: May 13, 2004 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 46 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 46 4.4.2TEST INSTRUMENTS ................................................................................ 46 4.4.3TEST PROCEDURES................................................................................. 47 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 47 4.4.5TEST SETUP .............................................................................................. 47 4.4.6EUT OPERATING CONDITIONS................................................................ 47 4.4.7TEST RESULTS.......................................................................................... 48 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 49 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 49 4.5.2TEST INSTRUMENTS ................................................................................ 49 4.5.3TEST PROCEDURE ................................................................................... 50 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 50 4.5.5TEST SETUP .............................................................................................. 50 4.5.6EUT OPERATING CONDITIONS................................................................ 50 4.5.7TEST RESULTS.......................................................................................... 51 4.6BAND EDGES MEASUREMENT ..................…

Text truncated - open the document above for the full version.

FCC ID: Q87-HGA7T-4 Report No.: RF930507L0162Issued: May 13, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Mode A) FCC ID: Q87-HGA7T-4 Report No.: RF930507L0163Issued: May 13, 2004 (Mode B) FCC ID: Q87-HGA7T-4 Report No.: RF930507L0164Issued: May 13, 2004 RADIATED EMISSION TEST (Mode A) FCC ID: Q87-HGA7T-4 Report No.: RF930507L0165Issued: May 13, 2004 (Mode B)
