Q87-HGA9NWAP54GPEWireless-G Exterior Access Point with POE

A Division of Cisco Systems, Inc. ® Model No. Exterior Access Point Wireless-G WAP54GPE User Guide WIRELESS GHz 2.4 802.11g Wireless-G Exterior Access Point Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this User Guide The user guide to the Wireless-G Exterior Access Point has been designed to make understanding networking with the Access Point easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section. This exclamation point means there is a caution or warning and is something that could damage your property or the Access Point. word: definition. This checkmark means there is a note of interest and is something you should pay special attention to while using the Access Point. This question mark provides you with a reminder about something you might need to do while using the Access Point. Figure 0-1: Sample Figure Description WAP54GPE-UG-41217NC JL WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G Exterior Access Point Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this User Guide?2 Chapter 2: Planning Your Wireless Network4 Network Topology4 Roaming4 Network Layout4 Chapter 3: Getting to Know the Wireless-G Exterior Access Point5 The LEDs5 The Ports6 The Reset Button and Ground7 Chapter 4: Connecting the Wireless-G Exterior Access Point8 Overview8 Hardware Installation8 Chapter 5: Setting Up the Wireless-G Exterior Access Point10 Setup Wizard10 Chapter 6: Configuring the Wireless-G Exterior Access Point17 Overview17 Navigating the Utility17 Accessing the Utility19 The Setup Tab19 The Wireless - Basic Wireless Settings Tab21 The Wireless - Wireless Security Tab22 The Wireless - Wireless Network Access Tab25 The Wireless - Advanced Wireless Settings Tab25 The AP Mode Tab27 The Administration - Management Tab30 The Administration - Log Tab31 The Administration - Factory Default Tab33 The Administration - Firmware Upgrade Tab33 The Administration - Language Upgrade Tab34 The Administration - Reboot Tab34 Wireless-G Exterior Access Point The Administration - Config Management Tab35 The Status - Local Network Tab35 The Status - Wireless Tab36 The Status - System Performance Tab37 Appendix A: Troubleshooting39 Frequently Asked Questions39 Appendix B: Wireless Security43 Security Precautions43 Security Threats Facing Wireless Networks43 Appendix C: Upgrading Firmware46 Appendix D: Windows Help47 Appendix E: Glossary48 Appendix F: Specifications55 Appendix G: Warranty Information57 Appendix H: Regulatory Information58 Appendix I: Contact Information60 Wireless-G Exterior Access Point List of Figures Figure 3-1: Front Panel5 Figure 3-2: Ethernet Network Port6 Figure 3-3: Antenna Port6 Figure 3-4: Reset Button7 Figure 4-1: Mark the Locations of the Two Wall-Mount Slots8 Figure 4-2: Attach the Mounting Plate8 Figure 4-3: Ground the Access Point9 Figure 4-4: Attach the Access Point to the Wall9 Figure 5-1: Setup Wizard’s Welcome Screen10 Figure 5-2: Connecting the Access Point11 Figure 5-3: Select an Access Point11 Figure 5-4: Login Screen12 Figure 5-5: Configure Network Address Settings Screen12 Figure 5-6: Wireless Settings Screen13 Figure 5-7: Wireless Security Settings - WEP Screen14 Figure 5-8: Wireless Security Settings - WPA-Personal Screen15 Figure 5-9: Wireless Power Management Screen15 Figure 5-10: Confirmation Screen16 Figure 5-11: Congratulations Screen16 Figure 6-1: Login Screen19 Figure 6-2: Setup - Automatic Configuration - DHCP Screen19 Figure 6-3: Setup - Static IP Address Screen20 Figure 6-4: Wireless - Basic Wireless Settings Screen21 Figure 6-5: Wireless - Wireless Security (WPA Pre-Shared Key) Screen22 Figure 6-6: Wireless Security - WPA RADIUS Screen23 Figure 6-7: Wireless Security - RADIUS Screen24 Figure 6-8: Wireless Settings - WEP Screen24 Figure 6-9: Wireless - Wireless Network Access Screen25 Wireless-G Exterior Access Point Figure 6-10: Wireless - Advanced Wireless Settings Screen25 Figure 6-11: AP Mode Screen27 Figure 6-12: Wireless Repeater Diagram28 Figure 6-13: Site Survey Screen28 Figure 6-14: Wireless Bridge Diagram29 Figure 6-15: Administration - Management Screen30 Figure 6-16: The Administration - Log Screen31 Figure 6-17: Administration - Factory Default Screen33 Figure 6-18: Administration - Firmware Upgrade Screen33 Figure 6-19: Administration - Language Upgrade Screen34 Figure 6-20: Administration - Reboot Screen34 Figure 6-21: Administration - Config Management Screen35 Figure 6-22: Status - Local Network Screen35 Figure 6-23: Status - Wireless Screen36 Figure 6-24: Status - System Performance Screen37 Figure C-1: Firmware Upgrade46 1 Chapter 1: Introduction Welcome Wireless-G Exterior Access Point Chapter 1: Introduction Welcome Thank you for choosing the Wireless-G Exterior Access Point. This Access Point will allow you to network wirelessly better than ever. How does the Access Point do all of this? An access point allows for greater range and mobility within your wireless network while also allowing you to connect the wireless network to a wired environment. In fact, the Wireless-G Exterior Access Point can support communications on up to eight wireless networks, using Virtual Local Area Network (VLAN) technology. The Wireless-G Exterior Access Point also of…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: September 11, 2006 FCC ID: Q87-HGA9NWAP54GPE Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Product Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: September 11, 2006 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Product Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Professional Installation Attestation Date: 09.11.2006 CKC Certification Service 4933 Sierra Pines Drive Mariposa, CA 95338 To Whom It May Concern: Please be advised that due to the unique function supplied by this product, this device is intended for use as a Wireless LAN bridge only and will be distributed through controlled distribution channel which has trained professional to install this product and will not be sold directly to the general public through retail store. Thank you for your attention. __________________________________________ Jennifer Yu / Product Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

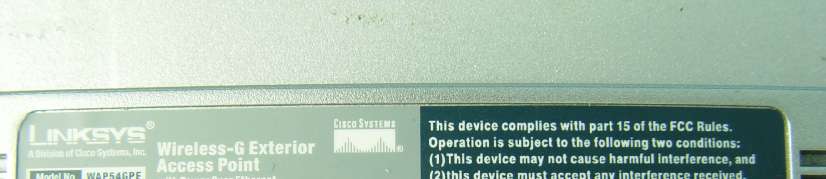

FCC ID .: Q87-HGA9NWAP54GPE Label Location

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15

FCC ID: Q87-HGA9NWAP54GPE Report No.: RF950622L23 Technical Description This device is a Wireless-G Exterior Access Point with Power Over Ethernet, which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by POE. The antenna is Outdoor Omni antenna with N-Type antenna connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-HGA9NWAP54GPE Report No.: SA950622L23 1 RF EXPOSURE REPORT REPORT NO.: SA950622L23 MODEL NO.: WAP54GPE ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-HGA9NWAP54GPE Report No.: SA950622L23 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-HGA9NWAP54GPE Report No.: SA950622L23 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-HGA9NWAP54GPE Report No.: SA950622L23 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 9dBi or 7.943 (numeric). 6.2 Output Power into Antenna & RF Exposure value at distance 20cm: For 802.11b DSSS MODULATION: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.9150.0501.0 6243732.2850.0511.0 11246210.0230.0161.0 For 802.11g OFDM MODULATION: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241235.9750.0571.0 6243744.8750.0711.0 11246210.0930.0161.0

Report No.: RF950622L231Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950622L23 MODEL NO.: WAP54GPE RECEIVED: Jun. 30, 2006 TESTED: Jun. 30 ~ Sep. 12, 2006 ISSUED: Sep. 14, 2006 APPLICANT:Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 61 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950622L232Report Format Version 2.0.4 Table of Contents 1CERTIFICATION..................................................................................................................4 2SUMMARY OF TEST RESULTS...........................................................................................5 2.1MEASUREMENT UNCERTAINTY........................................................................................5 3GENERAL INFORMATION...................................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST....................................................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.........................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS......................................................10 3.4DESCRIPTION OF SUPPORT UNITS................................................................................10 4TEST TYPES AND RESULTS..............................................................................................11 4.1CONDUCTED EMISSION MEASUREMENT.......................................................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................................11 4.1.2TEST INSTRUMENTS.........................................................................................................11 4.1.3TEST PROCEDURES........................................................................................................12 4.1.4DEVIATION FROM TEST STANDARD...............................................................................12 4.1.5TEST SETUP.....................................................................................................................13 4.1.6EUT OPERATING CONDITIONS........................................................................................13 4.1.7TEST RESULTS.................................................................................................................14 4.2RADIATED EMISSION MEASUREMENT...........................................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.........................................................20 4.2.2TEST INSTRUMENTS........................................................................................................21 4.2.3TEST PROCEDURES........................................................................................................22 4.2.4DEVIATION FROM TEST STANDARD...............................................................................22 4.2.5TEST SETUP.....................................................................................................................23 4.2.6EUT OPERATING CONDITIONS........................................................................................23 4.2.7TEST RESULTS.................................................................................................................24 4.36dB BANDWIDTH MEASUREMENT..................................................................................31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT.................................................................31 4.3.2TEST INSTRUMENTS........................................................................................................31 4.3.3TEST PROCEDURE...........................................................................................................32 4.3.4DEVIATION FROM TEST STANDARD...............................................................................32 4.3.5TEST SETUP.....................................................................................................................32 4.3.6EUT OPERATING CONDITIONS........................................................................................32 4.3.7TEST RESULTS.................................................................................................................33 4.4MAXIMUM PEAK OUTPUT POWER..................................................................................39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT....................................39 4.4.2TEST INSTRUMENTS........................................................................................................39 4.4.3TEST PROCEDURES........................................................................................................40 Report No.: RF950622L233Report Format Version 2.0.4 4.4.4DEVIATION FROM TEST STANDARD...............................................................................40 4.4.5TEST SETUP.....................................................................................................................40 4.4.6EUT OPERATING CONDITIONS........................................................................................40 4.4.7TEST RE…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
