Q87-MWA200Metro Wireless Internet Adapter

EarthLink, Inc. Quick Installation Guide Confidential 1 EarthLink MWA200 Quick Installation Guide 4/14/2006 Version 1.0 EarthLink, Inc. Quick Installation Guide Confidential 2 Chapter 1: MWA200 Default Configuration 3 Chapter 2: How to configure MWA200 4 Situation 1: AP’s configuration is matching with MWA200 5 Situation 2: AP’s configuration isn’t matching with MWA200. 8 Situation 3: No AP with the same SSID as MWA200’s in your environment. 9 Appendix A: How to Modify SSID 10 Appendix B: How to Upload Root Certificate 11 Appendix C: How to Modify WLAN’s Security Mode 12 EarthLink, Inc. Quick Installation Guide Confidential 3 Chapter 1: MWA200 Default Configuration MWA200’s default configuration are listed as below table: Item Default Value IP Address 192.168.1.1 SSID linksys Authentication Type WPA2 Enterprise Encryption Method AES EAP Type TTLS TTLS Authentication Protocol PAP Root Certificate (Empty) Email Address (Empty) Password (Empty) Note 1. If you want to modify the SSID, please refer to Appendix A: How to Modify SSID. 2. If you want to upload root certificate to MWA200, please refer to Appendix B: How to Upload Root Certificate . EarthLink, Inc. Quick Installation Guide Confidential 4 Chapter 2: How to configure MWA200 Generally speaking, according to AP’s configuration you want to connect, you’ll encounter several situations: 1. AP’s configuration is matching with MWA200. 2. AP’s configuration isn’t matching with MWA200. 3. No AP with the same SSID as MWA200’s in your environment. According to above situations, following sections will introduce what will happen in MWA200 and how to re-configure MWA200. Note MWA200 provides Web-based utility to configure all parameters. If you want to change the configuration of MWA200, please access the Web- based utility of MWA200 launch Internet Explorer or Netscape Navigator, and enter the default IP address, 192.168.1.1, in the Address field. EarthLink, Inc. Quick Installation Guide Confidential 5 Situation 1: AP’s configuration is matching with MWA200 Step 1: Launch to Web-base Utility. You’ll see the below screen. Press Next button. Step 2: Key in Email Address and Password for doing EAP TTLS authentication. EarthLink, Inc. Quick Installation Guide Confidential 6 Step 3: Wait the connecting result. Step 4: Success to connect to AP. Press Close button. EarthLink, Inc. Quick Installation Guide Confidential 7 Step 5: You can see the status of MWA200 currently. EarthLink, Inc. Quick Installation Guide Confidential 8 Situation 2: AP’s configuration isn’t matching with MWA200. Launch to Web-base Utility. You’ll see the below screen. If occur this situation, you need to double check your configuration is the same as the AP’s. To see whether have root certificate in MWA200 or AP enables WLAN authentication type to WPA2 enterprise or not. If all configurations are matching, maybe it’s because you give the wrong Email Address or Password. Please re-key again and press Connect button. EarthLink, Inc. Quick Installation Guide Confidential 9 Situation 3: No AP with the same SSID as MWA200’s in your environment. Step 1: Launch to Web-base Utility. You’ll see the below screen. Press Aim Antenna button. Step 2: If you see it has signal, press Connect button. And following actions are the same as Situation 1, please refer to Situation 1 introductions. EarthLink, Inc. Quick Installation Guide Confidential 10 Appendix A: How to Modify SSID Please use your browser to connect to this URL, http://192.168.1.1/ adv_config.html. Modify SSID to your desired value and press Save button. Then, connect to index page again, http://192.168.1.1 and follow Chapter 2- How to Configure MWA200 to do connecting action. EarthLink, Inc. Quick Installation Guide Confidential 11 Appendix B: How to Upload Root Certificate Step 1: Please use your browser to connect to this URL, http://192.168.1.1/ adminPage.html. System will require user to key in the correct password, please key in “admin” in Enter Password field and press Submit button. Step 2: Press Browser button to browser the file path of Root Certificate, and press Upload button. Then, connect to index page again, http://192.168.1.1 and follow Chapter 2- How to Configure MWA200 to do connecting action. EarthLink, Inc. Quick Installation Guide Confidential 12 Appendix C: How to Modify WLAN’s Security Mode Step 1: Please use your browser to connect to this URL, http://192.168.1.1/ adminPage.html. System will require user to key in the correct password, please key in “admin” in Enter Password field and press Submit button. Step 2: If want to modify Security Mode, please pull down relating menu, select the preferable mode. If use WPA2 Enterprise mode, also can pull down the TTL Authentication Protocol menu to select preferable protocol and press Save button. Then, connect to index page again, http://192.168.1.1 and follow Chapter 2- How to Configure MWA200 to do connecting action. EarthLink, Inc. Quick Installation Guide Confidential 13 MWA200 Product Spec. 1. Introduction The MWA200 High-Power Metro Wireless Internet Adapter is a CPE device that allows user’s PC or notebook to connect to the Internet. This device supports AP client mode, it also comes with a single 10/100Mbps auto-sensing Ethernet port. The built-in high-power wireless function lets the user securely get authenticated and connects to the Municipal Wi-Fi mesh network without hassle. The MWA200 High-Power Metro Wireless Internet Adapter is very easy to use and setup. It has three LED indicators to show the received signal strength. During power up, it will automatically determine the signal strength to the nearest AP with configured SSID and reflects on the LED accordingly. User can then move the device around until two more LEDs turn on. There is also a high gain omni directional antenna for user to get a better radio signal reception. Users connect their laptop/ PC via the RJ-45 Ethernet port on the MWA200 High-Power Metro Wireless Internet Adapter, and it wi…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: Q87-MWA200 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Power of Attorney To whom it may concern: We, the undersigned Cisco-Linksys LLC hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------------------- Jennifer Yu / Associate Engineer Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

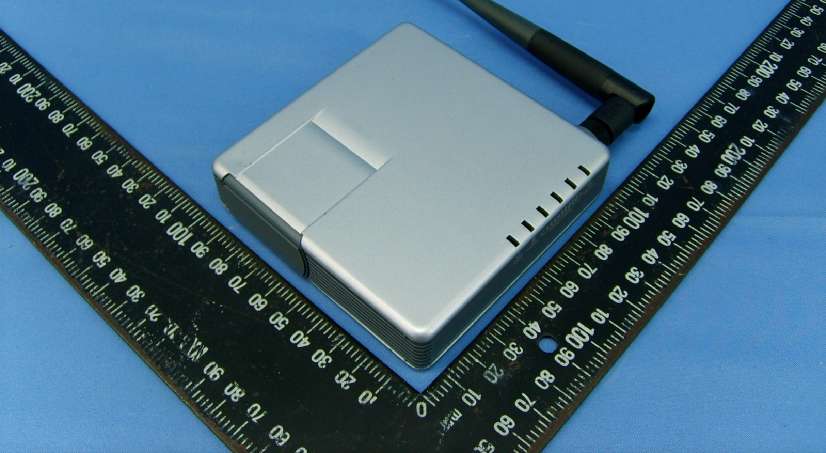

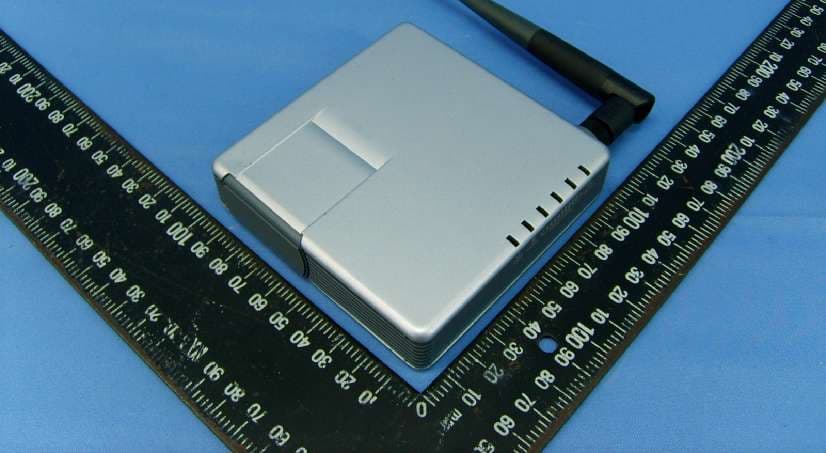

Model No.: MWA200 Page 1 CONSTRUCTION PHOTOS OF EUT With Adapter, Model: AM-1201000D41 With Adapter, Model: D12-1000 Page 2 Page 3

(Fig. 1) FCC ID: Q87-MWA200 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Adapter, Model: AM-1201000D41 Page 10 Page 11 Adapter, Model: D12-1000 Page 12

FCC ID: Q87-MWA200 Report No. RF950420H01 Operational Description This device is a Metro Wireless Internet Adapter, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Metro Wireless Internet Adapter) is powered by power adapter. The antenna used in this product is dipole antenna with Reverse SMA connector. The other instruction, please have a look at th e users manual.

Report No.: SA950420H01 1 RF EXPOSURE REPORT REPORT NO.: SA950420H01 MODEL NO.: MWA200 FCC ID: Q87-MWA200 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950420H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950420H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950420H01 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5dBi or 3.162278 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241292.0450.0581.0 62437103.0390.0651.0 11246297.4990.0611.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412235.5050.1481.0 62437272.2700.1711.0 112462206.5380.1301.0

Report No.: RF950420H011Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950420H01 MODEL NO.: MWA200 RECEIVED: April 20, 2006 TESTED: April 28 to May 12, 2006 ISSUED: May 16, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 70 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950420H012Report Format Version 2.0.4 Table of Contents 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 3GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:................8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS..............................10 3.5DESCRIPTION OF SUPPORT UNITS........................................................11 3.6CONFIGURATION OF SYSTEM UNDER TEST.........................................12 4TEST TYPES AND RESULTS.....................................................................13 4.1CONDUCTED EMISSION MEASUREMENT..............................................13 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................13 4.1.2TEST INSTRUMENTS.................................................................................13 4.1.3TEST PROCEDURES.................................................................................14 4.1.4TEST SETUP..............................................................................................14 4.1.5EUT OPERATING CONDITIONS................................................................15 4.1.6TEST RESULTS (Adapter 1).......................................................................16 4.1.7TEST RESULTS (Adapter 2).......................................................................18 4.2RADIATED EMISSION MEASUREMENT...................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................20 4.2.2TEST INSTRUMENTS.................................................................................21 4.2.3TEST PROCEDURES.................................................................................22 4.2.4TEST SETUP..............................................................................................23 4.2.5EUT OPERATING CONDITIONS................................................................23 4.2.6TEST RESULTS..........................................................................................24 4.2.7TEST RESULTS - DSSS.............................................................................26 4.2.8TEST RESULTS - OFDM............................................................................33 4.36dB BANDWIDTH MEASUREMENT...........................................................40 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................40 4.3.2TEST INSTRUMENTS.................................................................................40 4.3.3TEST PROCEDURE....................................................................................41 4.3.4TEST SETUP..............................................................................................41 4.3.5EUT OPERATING CONDITIONS................................................................41 4.3.6TEST RESULTS –DSSS..............................................................................42 4.3.7TEST RESULTS-OFDM..............................................................................45 4.4MAXIMUM PEAK OUTPUT POWER..........................................................48 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........48 4.4.2TEST INSTRUMENTS.................................................................................48 4.4.3TEST PROCEDURES.................................................................................49 Report No.: RF950420H013Report Format Version 2.0.4 4.4.4TEST SETUP..............................................................................................49 4.4.5EUT OPERATING CONDITIONS................................................................49 4.4.6TEST RESULTS – DSSS.............................................................................50 4.4.7TEST RESULTS –OFDM.............................................................................51 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................52 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................52 4.5.2TEST INSTRUMENTS.................................................................................52 4.5.3TEST PROCEDURE....................................................................................53 4.5.4TEST SETUP..............................................................................................53 4.5.5EUT OPERATING CONDITIONS................................................................53 4.5.6TEST RESULTS –DSSS..............................................................................54 4.5.7TEST RESULTS –OFDM.............................................................................57 4.6CONDUCTED EMISSION AND BAND EDG…

Text truncated - open the document above for the full version.

Report No.: RF950420H0167Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950420H0168Report Format Version 2.0.4 RADIATED EMISSION TEST
