Q87-WAG160NWireless-N ADSL2+ Gateway

USER GUIDE Wireless-N ADSL2+ Gateway Model: WAG160N About This Guide i Wireless-N ADSL2+ Gateway About This Guide Icon Descriptions While reading through the User Guide you may see various icons that call attention to speci fic items. Below is a description o f these icons: NOTE: This check mark indicates that there is a note o f interest and is something that you s hould pay special attention to while using the pro duct. WARNING: This exclamation point indicates t hat there is a caution or warning and it is somet hing that could damage your property or pro duct. WEB: This globe icon indicates a noteworthy we bsite address or e-mail address. Online Resources Website addresses in this document are listed without http:// in front of the address because most current web browsers do not require it. I f you use an older web browser, you may have to add http:// in front of the web address. ResourceWebsite Linksyswww.linksys.com Linksys Internationalwww.linksys.com/international Glossarywww.linksys.com/glossary Network Securitywww.linksys.com/security Copyright and Trademarks Linksys is a registered trademark or trademark o f Cisco Systems, Inc. and/or its a ffiliates in the U.S. and certain ot her countries. Copyright © 2007 Cisco Systems, Inc. A ll rights reserve d. Other brands and product names are tra demarks or registered trademarks o f their respective holders. Table of Contents ii Wireless-N ADSL2+ Gateway Chapter 1: Product Overview1 Front Panel.................................................. 1 Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Chapter 2: Wireless Security Checklist2 General Network Security Guidelines................................. 2 Additional Security Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Chapter 3: Installation3 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Chapter 4: Advanced Configuration4 Setup > Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Setup > DDNS................................................ 8 Setup > MAC Address Clone....................................... 9 Setup > Advanced Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Wireless > Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Wireless > Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Wireless > Wireless MAC Filter......................................13 Wireless > Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Security > Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Security > VPN Passthrough.......................................15 Access Restrictions > Internet Access Policy.............................16 Applications and Gaming > Single Port Forwarding........................17 Applications and Gaming > Port Range Forwarding . . . . . . . . . . . . . . . . . . . . . . .17 Applications & Gaming > Port Range Triggering . . . . . . . . . . . . . . . . . . . . . . . . . .18 Applications and Gaming > DMZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Applications and Gaming > QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Administration > Management.....................................20 Administration > Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Administration > Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Administration > Back Up & Restore..................................22 Administration > Factory Defaults...................................22 Administration > Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Status > Gateway..............................................23 Status > Local Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Status > Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Status > DSL Connection.........................................25 Appendix A: Troubleshooting26 Appendix B: Specifications27 Appendix C: Warranty Information28 Table of Contents iii Wireless-N ADSL2+ Gateway Appendix D: Regulatory Information29 FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Safety Notices................................................29 Industry Canada Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Avis d’Industrie Canada..........................................29 Wireless Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Avis de non-responsabilité concernant les appareils sans fil . . . . . . . . . . . . . . . . . .30 Declaration of Conformity with Regard to EU Directive 1999/5/EC (R&TTE Directive) . .31 CE Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 National Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Product Usage Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Technical Documents on www.linksys.com/international . . . . . . . . . . . . . . . . . . . .33 User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE)..............................34 Chapter 1 Product Overview 1 Wireless-N ADSL2+ Gateway Chapter1: Product Overview Thank you for choosing the Li…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: December 12, 2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: Q87-WAG160N Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Sincerely Yours, ___________________________ Jennifer Yu / Program Manager Cisco-Linksys LLC TEL: +1-949-823-3188 FAX: +1-949-823-3002 E-Mail: [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: December 21, 2007 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, ___________________________ Jennifer Yu / Program Manager Cisco-Linksys LLC TEL: +1-949-823-3188 FAX: +1-949-823-3002 E-Mail: [email protected]

1 Lucy Tsai From:gina.lo [[email protected]] on behalf of application [[email protected]] Sent:Thursday, January 03, 2008 5:47 PM To:Lucy Tsai Subject:Re:RE: FW: Cisco-Linksys LLC, FCC ID: Q87-WAG160N, Assessment NO.: AN07T7449, Notice#1 Attachments:WAG160N Appendix I for MPE revised 0102.pdf; WAG160N Block Diagram for module 0104.pdf Dear Lucy, Please see the revised the MPE & the RF module’s block diagram, thank you. Best Regards, Gina "Lucy Tsai" <[email protected]> 2008/01/01 01:33 AM "application" <[email protected]> Hi Gina, Regarding the RF module’s block diagram, it’s not enough. Please provide the function block of AR5416 and AR2122. Besides, the antenna gain for GALTRONICS shown on the MPE report still is 2.9dBi, please revise. Best Regards, Lucy Tsai Technical Review Engineer Compliance Certification Services 47173 Benicia Street Fremont, CA 94538 Cell phone: 886-910-133-235 Direct: (510) 771-1131 Fax: (510) 661-0888 Main: (510) 771-1000 Web Site and TCB Electronic Filing System :http://www.ccsemc.com From: gina.lo [mailto:[email protected]] On Behalf Of application Sent: Monday, December 31, 2007 2:15 AM To: Lucy Tsai Subject: Re:FW: Cisco-Linksys LLC, FCC ID: Q87-WAG160N, Assessment NO.: AN07T7449, Notice#1 2 "Lucy Tsai" <[email protected]> 2007/12/24 03:15 AM "application" <[email protected]> Hello Jessica, Please address following issues. Q#1: Please provide RF portion's functional block diagram. Ans:Onboard, the Module have is AR5416+AR2122, please see the left of the block diagram. Q#2: According the GALTRONICS antenna specificaition, the maximum antenna gain is 0.5dBi which doesn't agree with the one shown the test report. Please revise. Ans: Please see the page 6 of the revised Antenna Specification. Q#3: According to test report, EUT is a 2x2 configuration spatial MIMO (2Tx & 2Rx) with cyclic delay diversity function that operate in double TX chains and double RX chains. According to the MIMO test procedure, each individual chain should be investigated for all conducted test. However, test report only tested each individual transmitter chain in MIMO mode. Please address. Ans: Please see the revised test report. Q#4: Page 55 of test report shows the setting for measuring radiated band edge test in peak mode doesn't agree with the test procedure. Please address. Ans: Please see the page 65 of the revised test report-1. Q#5: Because this transmitter can support CDD mode, then during the non-MIMO mode, the total direction antenna gain equals to 2.9 dBi antenna = 2.9+(10log 2)= 5.9 dBi. So, please revise the MPE calculation with the maximum output power and antenna gain. Ans: Please see the revised the MPE. Q#6: Per page 10 of user manual, "for best performance in a network using Wireless-N, Wireless-G and Wireless-B devices, keep the default, Wide - 40MHz Channel. For Wireless-G and Wireless-B networking only, select Standard - 20MHz Channel." Please explain the definition of wireless-B mode firstly and if it's equal to 802.11b, then please explain why 40MHz bandwidth is applicable. Ans: Please see the revised user manual. Best Regards, Lucy 3 The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

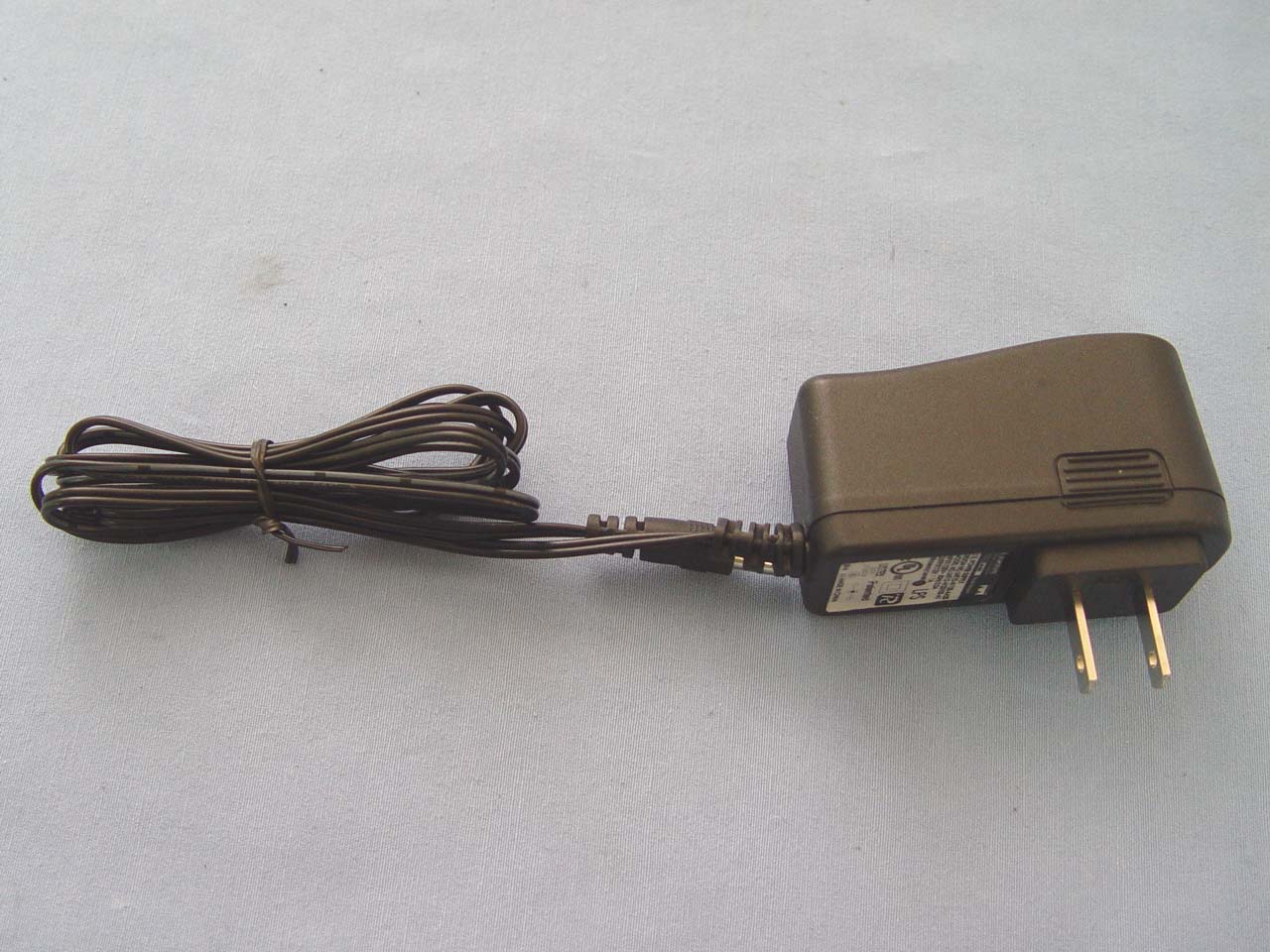

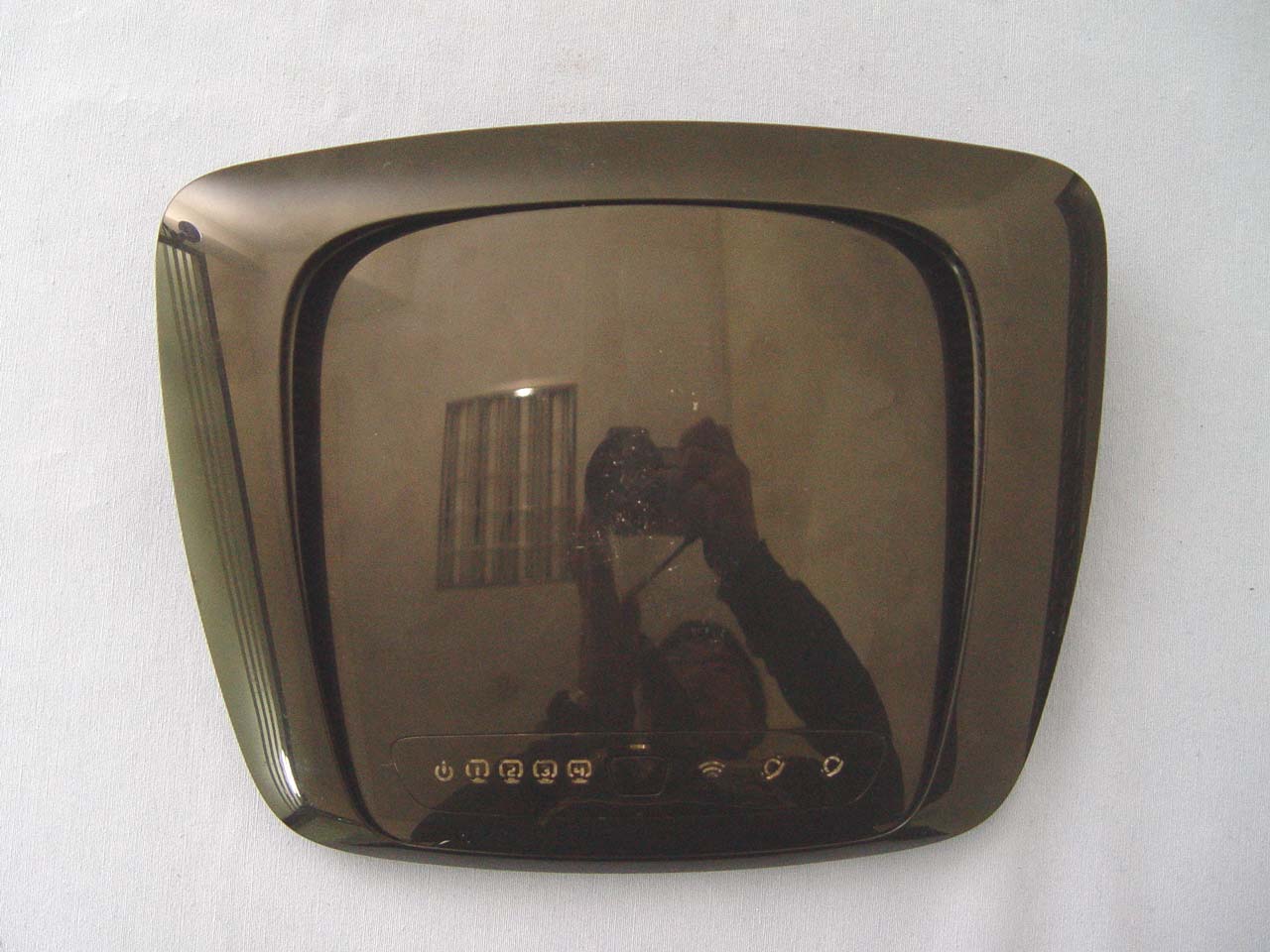

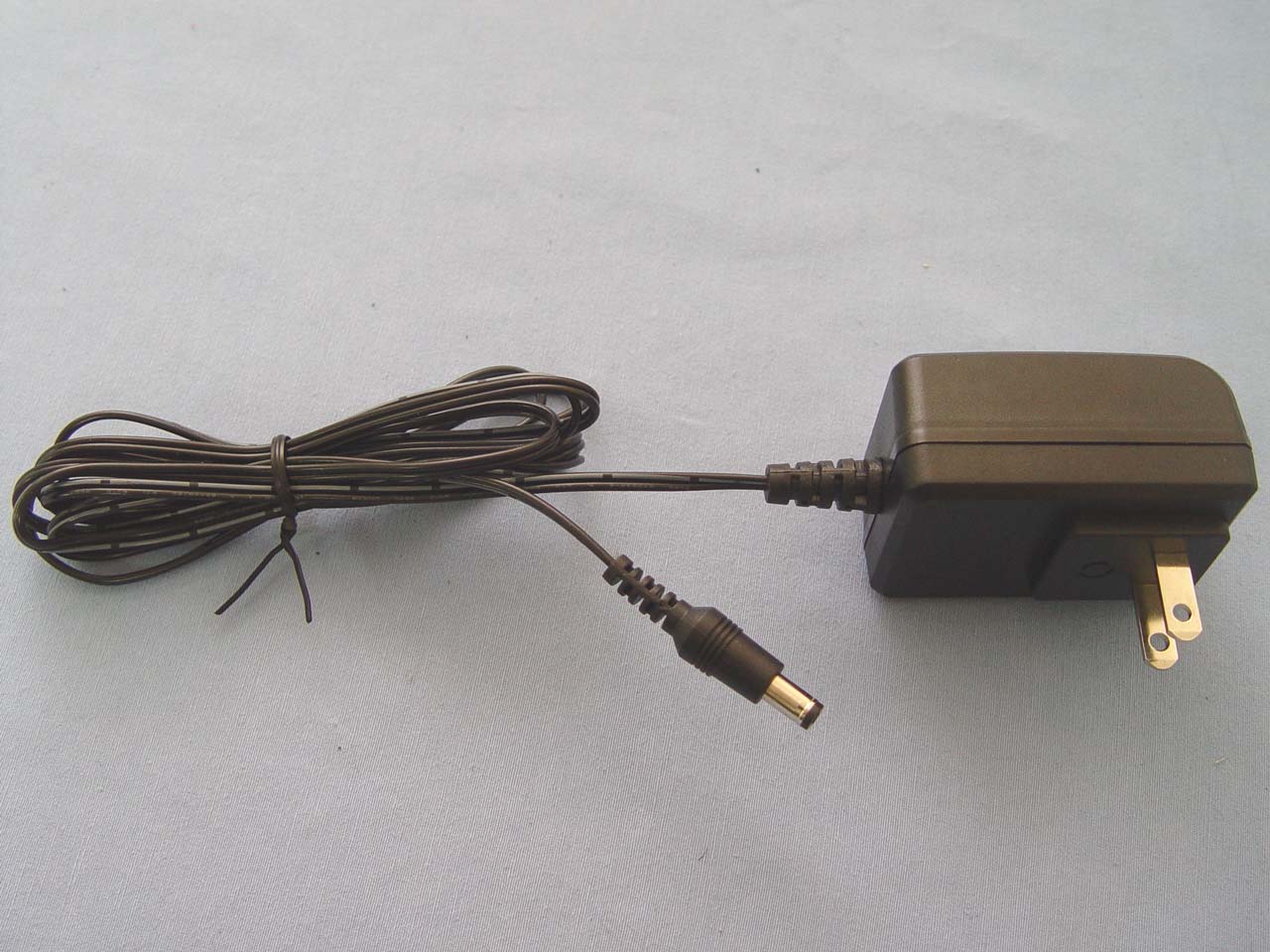

Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 1 Total Page: 17 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 5 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 6 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 7 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 8 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 9 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 10 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 11 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 12 Rev. 00

Complies with IDA Standards DB101520

Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 13 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Antenna for Wha Yu Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 14 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 15 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 16 Rev. 00 Antenna for GALTRONICS Compliance Certification Services Inc. Report No.: 71119205 Date of Issue: December 20, 2007 Page 17 Rev. 00

9.0 PIFA Antenna Appearance

Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ........................ 1.4 Return Loss.................. 1.5 Efficiency.....................50% 1.6 Peak Gain.................. ...2 .9dBi 1.7 Polarization............... ...Linear 1.8 Admitted Power............ 2. Physical Properties : 2.1 Cable...........................ψ1.13mm Coaxial Cable 2.2Operating Temp. ............-20°C ~ +65°C 2.3 Storage Temp. ...............-30°C ~ +75°C PIFA Antenna Assembly 1W 2.4GHz ~ 2.5GHz 50Ω Nominal 1.92 Max. -10 dB Max. 1 1 Phos.Bronze 2 PIFA Antenna Assembly P/NO：C147-510426-A(SSR-74300) SPEC：2.4GHz~2.5GHz S11:2.4~2.5GHz (Ant1) S22:2.4~2.5GHz (Ant2) 3 PIFA Antenna Appearance Ant2 Gain Table 2.4~2.5GHz場型 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field Power Distribution on X-Z Plane(E-Plane of L3 Pol Sense) Gain= 2.802 dBi; Total Radiati ng Efficiency: 71.344% @2.40000 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field Power Distribution on Y-Z Plane(H-Plane of L3 Pol Sense) Gain= 2.802 dBi; Total Radiati ng Efficiency: 71.344% @2.40000 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field Power Distribution on X-Y Plane Gain= 2.802 dBi; Total Radiati ng Efficiency: 71.344% @2.40000 GHz 2.4GHz Gain=2.802dBi Efficiency=71.344% 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field Power Distribution on X-Z Plane(E-Plane of L3 Pol Sense) Gain= 2.717 dBi; Total Radiati ng Efficiency: 70.036% @2.45000 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field Power Distribution on Y-Z Plane(H-Plane of L3 Pol Sense) Gain= 2.717 dBi; Total Radiati ng Efficiency: 70.036% @2.45000 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field Power Distribution on X-Y Plane Gain= 2.717 dBi; Total Radiati ng Efficiency: 70.036% @2.45000 GHz 2.45GHz Gain=2.717dBi Efficiency=70.036% 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field Power Distribution on X-Z Plane(E-Plane of L3 Pol Sense) Gain= 2.677 dBi; Total Radiati ng Efficiency: 69.399% @2.50000 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field Power Distribution on Y-Z Plane(H-Plane of L3 Pol Sense) Gain= 2.677 dBi; Total Radiati ng Efficiency: 69.399% @2.50000 GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field Power Distribution on X-Y Plane Gain= 2.677 dBi; Total Radiati ng Efficiency: 69.399% @2.50000 GHz 2.5GHz Gain=2.677dBi Efficiency=69.399% 4

Compliance Certification Services Inc. Report No.: 71119205-RP1 FCC ID: Q87-WAG160N Date of Issue: December 26, 2007 Page 131 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Wireless-N ADSL2+ Gateway Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 23.90 dBm (245.47 mW) IEEE 802.11g mode: 22.80 dBm (190.55 mW) draft 802.11n Standard-20 MHz Channel mode: 22.39 dBm (173.38 mW) draft 802.11n Wide-40 MHz Channel mode: 18.97 dBm (78.89 mW) Antenna gain (Max) MIMO Mode: Wha Yu: 2.9 dBi for TX / RX (Numeric gain: 1.95) GALTRONICS: 2.1 dBi for TX / RX (Numeric gain: 1.62) CDD Mode: Wha Yu: 2.9dBi + 10 log (2) = 5.91 dBi (Numeric gain: 3.89) GALTRONICS: 2.1dBi + 10 log (2) = 5.11 dBi (Numeric gain: 3.24) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 22.39dBm (173.38mW) at 2462MHz (with 3.89 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: 71119205-RP1 FCC ID: Q87-WAG160N Date of Issue: December 26, 2007 Page 132 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: 71119205-RP1 FCC ID: Q87-WAG160N Date of Issue: December 26, 2007 Page 133 Rev. 00 IEEE 802.11b mode: EUT output power = 245.47 mW Numeric Antenna gain = 3.89 Æ Power density = 0.1900 mW / cm 2 IEEE 802.11g mode: EUT output power = 190.55 mW Numeric Antenna gain = 3.89 Æ Power density = 0.1475 mW / cm 2 draft 802.11n Standard-20 MHz Channel mode: EUT output power = 173.38 mW Numeric Antenna gain = 1.95 Æ Power density = 0.0673 mW / cm 2 draft 802.11n Wide-40 MHz Channel mode: EUT output power = 78.89 mW Numeric Antenna gain = 1.95 Æ Power density = 0.0306 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: 71119205-RP1 FCC ID: Q87-WAG160N Date of Issue: December 26, 2007 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless-N ADSL2+ Gateway Model: WAG160N Trade Name: Linksys Issued to Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 136 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205-RP1 FCC ID: Q87-WAG160N Date of Issue: December 26, 2007 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION...........................................................................................................................4 3. TEST METHODOLOGY....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST.......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................27 7.3 AVERAGE POWER............................................................................................................................41 7.4 BAND EDGES MEASUREMENT................................................................................................55 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................72 7.6 SPURIOUS EMISSIONS................................................................................................................93 7.7 RADIATED EMISSIONS............................................................................................................112 7.8 POWERLINE CONDUCTED EMISSIONS.............................................................................................128 APPENDIX I RADIO FREQUENCY EXPOSURE.............................................................................131 APPENDIX II PHOTOGRAPHS OF TEST SETUP...........................................................................134 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205-RP1 FCC ID: Q87-WAG160N Date of Issue: December 26, 2007 1. TEST RESULT CERTIFICATION Applicant: Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 Equipment Under Test: Wireless-N ADSL2+ Gateway Trade Name: Linksys Model Number: WAG160N Date of Test: November 27 ~ December 25, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex Lai Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205-RP1 FCC ID:…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 71119205-RP1 FCC ID: Q87-WAG160N Date of Issue: December 26, 2007 7.5 PEAK POWER SPECTRAL DENSITY LIMIT 1. According to §15.247(e), for digitally modulated systems, the power spectral density conducted from the intentional radiator to the antenna shall not be greater than 8 dBm in any 3 kHz band during any time interval of continuous transmission. 2. According to §15.247(f), the digital modulation operation of the hybrid system, with the frequency hopping turned off, shall comply with the power density requirements of paragraph (d) of this section. Test Configuration Spectrum Analyzer EUT TEST PROCEDURE 1. Place the EUT on the table and set it in transmitting mode. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to the spectrum analyzer. 2. Set the spectrum analyzer as RBW = 3 kHz, VBW = 10 kHz, Span = 300 kHz, Sweep time = 100 s 3. Record the max reading. 4. Repeat the above procedure until the measurements for all frequencies are completed. TEST RESULTS No non-compliance noted. Page 72 Rev. 00 Compliance Certification Services Inc. Report No.: 71119205-RP1 FCC ID: Q87-WAG160N Date of Issue: December 26, 2007 Tes t D a t a Test mode: IEEE 802.11b mode Channel Frequency (MHz) Chain 0 PPSD (dBm) Chain 1 PPSD (dBm) PPSD (dBm) Limit (dBm) Result Low 2412 -4.62 -5.76 -2.14 PASS Mid 2437 -6.74 -5.82 -3.25 PASS High 2462 -5.51 -5.83 -2.66 8.00 PAS S Test mode: IEEE 802.11g mode Channel Frequency (MHz) Chain 0 PPSD (dBm) Chain 1 PPSD (dBm) PPSD (dBm) Limit (dBm) Result Low 2412 -8.82 -8.84 -5.82 PASS Mid 2437 -8.87 -8.66 -5.75 PASS High 2462 -7.77 -5.75 -3.63 8.00 PAS S Test mode: draft 802.11n Standard-20 MHz Channel mode Ch…
