Q87-WAG310GWireless-G ADSL2+ IAD Gateway

USER GUIDE Wireless-G ADSL2+ IAD Gateway Model No: WAG310G (E2)  About This Guide  Wreless-G ADSL2+ IAD Gateway About Ths Gude Icon Descriptions While reading through the User Guide you may see various icons that call attention to specific items. Below is a description of these icons: NOTE: This check mark indicates that there is a note of interest and is something that you should pay special attention to while using the product. WARNING: This exclamation point indicates that there is a caution or warning and it is something that could damage your property or product. WEB: This globe icon indicates a noteworthy website address or e-mail address. Online Resources Website addresses in this document are listed without http:// in front of the address because most current web browsers do not require it. If you use an older web browser, you may have to add http:// in front of the web address. ResourceWebste Linksyswww.linksys.com Linksys International www.linksys.com/international Glossarywww.linksys.com/glossary Network Securitywww.linksys.com/security Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2007 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.  Table of Contents  Wreless-G ADSL2+ IAD Gateway Chapter 1: Product Overview 4 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Top Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Chapter 2: Wireless Security Checklist 6 General Network Security Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Additional Security Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Chapter 3: Advanced Configuration 7 Setup > Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Setup > DDNS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Setup > Advanced Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Wireless > Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Wireless > Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Wireless > Wireless Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Wireless > Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Security > Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Security > VPN Passthrough. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Access Restrictions > Internet Access Policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Applications and Gaming > Single Port Forwarding. . . . . . . . . . . . . . . . . . . . . . . .18 Applications and Gaming > Port Range Forwarding . . . . . . . . . . . . . . . . . . . . . . .18 Applications & Gaming > Port Range Triggering . . . . . . . . . . . . . . . . . . . . . . . . . .19 Applications and Gaming > DMZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Applications and Gaming > QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Administration > Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Administration > Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Administration > Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Administration > Backup & Restore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Administration > Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Status > Gateway. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Status > Local Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Status > Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Status > DSL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Appendix A: Troubleshooting 27 Appendix B: Specifications 2 8 Appendix C: Warranty Information 2 9 Appendix D: Regulatory Information 3 0 FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Safety Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Industry Canada Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Avis d’Industrie Canada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31  Table of Contents  Wreless-G ADSL2+ IAD Gateway Declaration of Conformity with Regard to EU Directive 1999/5/EC (R&TTE Directive) . .31 CE Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 National Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Product Usage Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 Technical Documents on www.linksys.com/international . . . . . . . . . . . . . . . . . . . .34 User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE). . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: August 16, 2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, ___________________________ Jennifer Yu / Project Manager Cisco-Linksys LLC TEL: +1-949-823-3188 FAX: +1-949-823-3002 E-Mail: [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: August 16, 2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: Q87-WAG310G Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Sincerely Yours, ___________________________ Jennifer Yu / Project Manager Cisco-Linksys LLC TEL: +1-949-823-3188 FAX: +1-949-823-3002 E-Mail: [email protected]

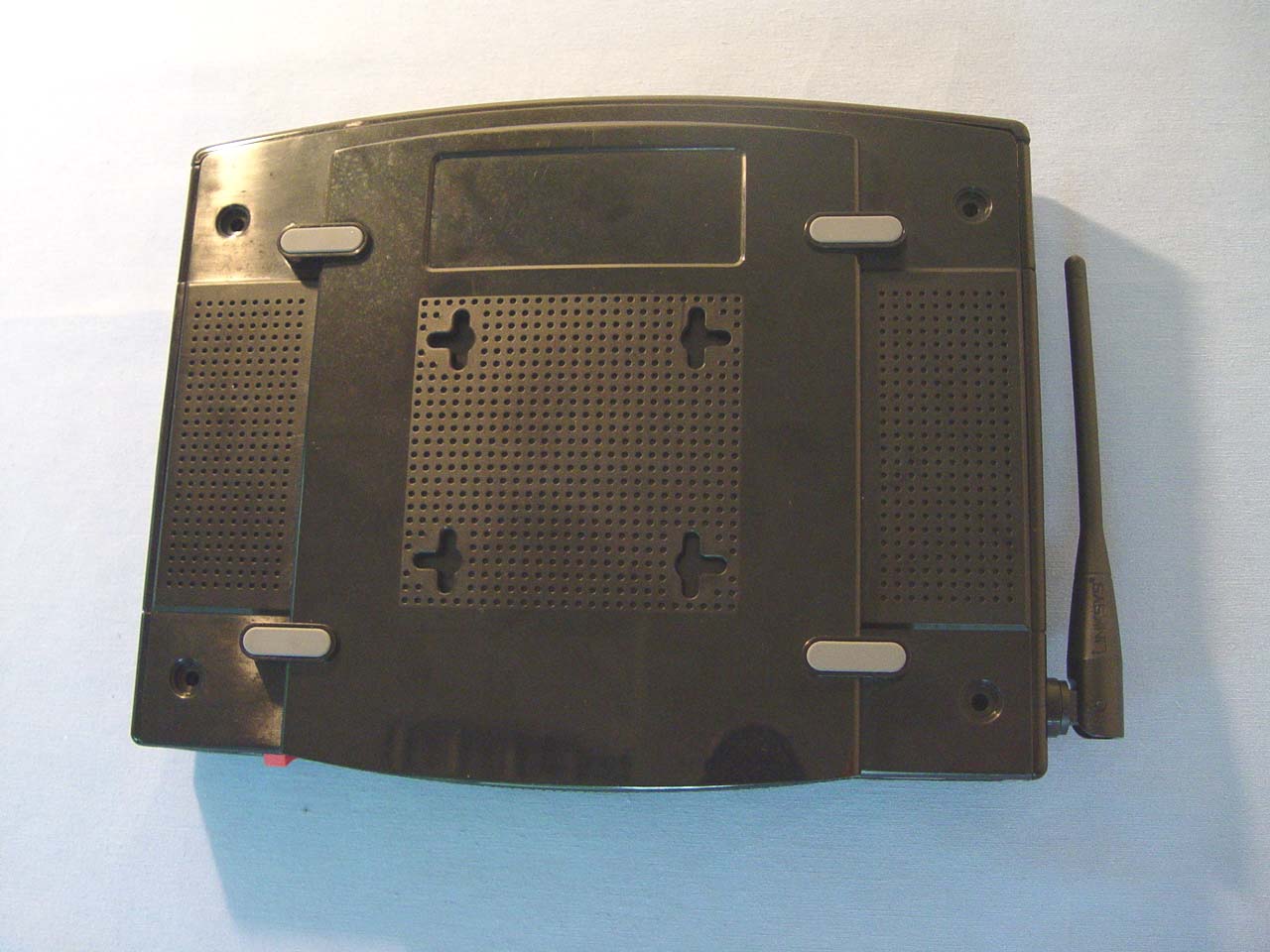

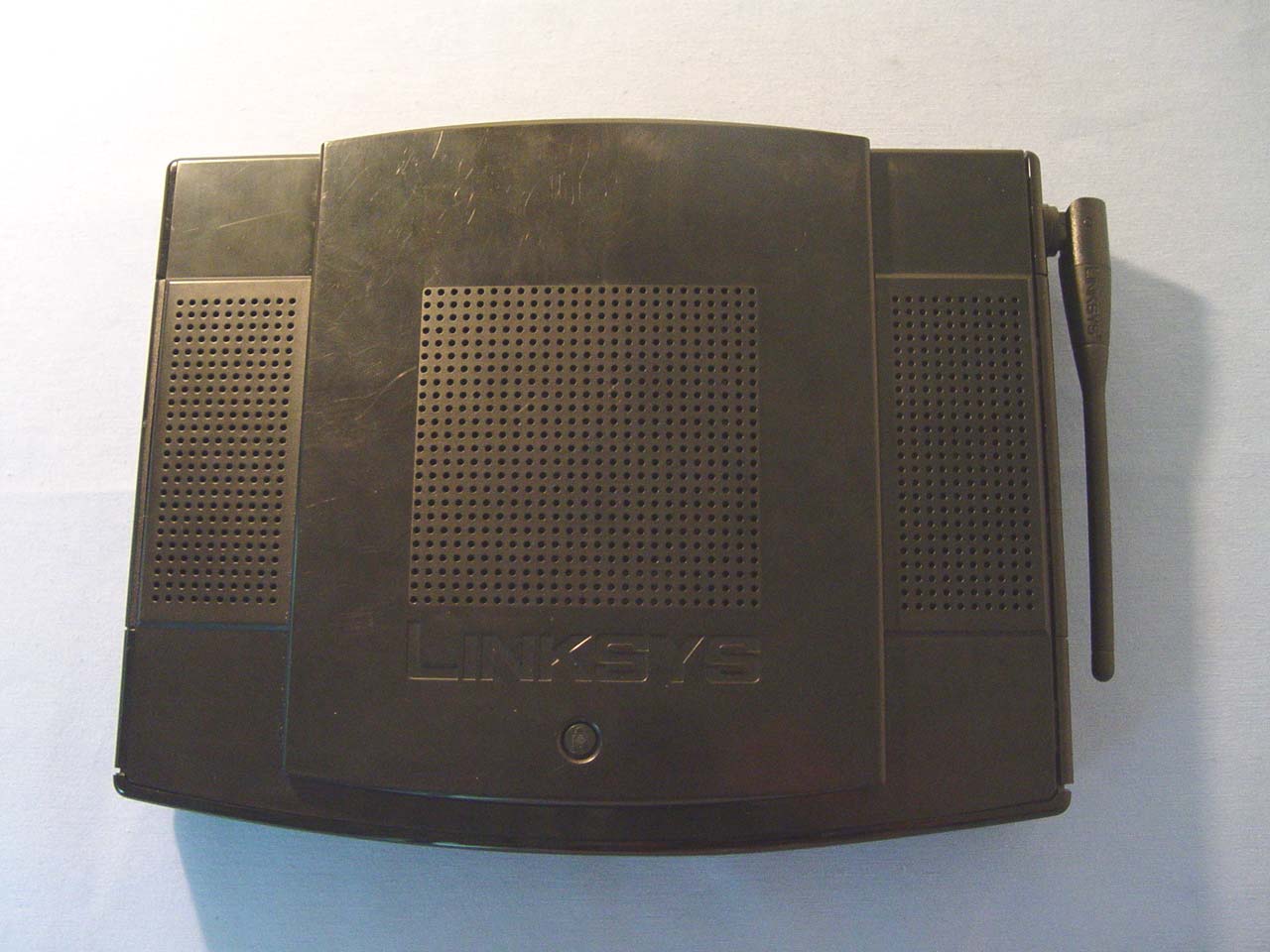

Compliance Certification Services Inc. Report No.: 70504203 Date of Issue: August 10, 2007 Page 1 Total Page: 10 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70504203 Date of Issue: August 10, 2007 Page 2 Rev.00 Compliance Certification Services Inc. Report No.: 70504203 Date of Issue: August 10, 2007 Page 3 Rev.00 Compliance Certification Services Inc. Report No.: 70504203 Date of Issue: August 10, 2007 Page 4 Rev.00 Compliance Certification Services Inc. Report No.: 70504203 Date of Issue: August 10, 2007 Page 5 Rev.00

Compliance Certification Services Inc. Report No.: 70504203 Date of Issue: August 10, 2007 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70504203 Date of Issue: August 10, 2007 Page 7 Rev.00 Compliance Certification Services Inc. Report No.: 70504203 Date of Issue: August 10, 2007 Page 8 Rev.00 Compliance Certification Services Inc. Report No.: 70504203 Date of Issue: August 10, 2007 Page 9 Rev.00 Compliance Certification Services Inc. Report No.: 70504203 Date of Issue: August 10, 2007 Page 10 Rev.00 Dipole Antenna

CUSTOMER: PART NAME: PARTNO.: W. Y.P/NO.: C147-510381-AREVISION: X1 MANUFACTURER SIGNATURE WHA YU GROUP WHA YU INDUSTRIAL CO., LTD.(HEAD OFFICE) Address: No. 326,Sec. 2,Kung Tao 5 Road, Hsin Chu Ciry, Taiwan, R.O.C. Address:Lakeside Industrial Park,Da Ling Shan Town,Dong Guan City,GuangDong,China TAI HWA ELECTRONC FACTORY HUA HONG INTERNATIONAL LTD. Tel: + 86-852-27712210 Fax: + 86-852-2384374 7 SHANGHAI HUA YU ELECTRONIC CO., LTD. (CHINA) Address:3586,Wai Qing Song Road, Qing Pu County, Shanghai China Tel: + 86-21-59741348 + 86-21-59744101~4 Fax: + 86-21-59741347 SU ZHOU AEON TECH CO., LTD. (CHINA) Address:Limin North Road , LiLi Town,LiLi Industrial Park,LinHu Economic Zone Wu jiang City,Jiangsu Province,China Tel: + 86-512-63627980 Fax: + 86-512-63627981 Address:Rm.1103A,President Commercial Centre,608 Nathan Road,Mong Kok,Kowloon,Hong Kong Address: Pak Ho District, Hou Street Town, Dong Guan City, Guangdong, China SIGNATURE RF Antenna Cable Assembly SHANGHAI HUA YU ELECTRONIC CO., LTD.(CHINA) Tel: + 86-769-85599375 + 86-769-85912375 Fax: + 86-769-85599376 DATE : Tel:+886-3-5714225(REP.) Fax:+ 886-3-5713853+ 886-3-5723600 DONGGUAN AEON TECH CO.,LTD.(CHINA) Tel: + 86-769-85655858 Fax: + 86-769-856552 SU ZHOU AEON TECH CO., LTD. (CHINA) APPROVED BY : CUSTOME R TAI HWA ELECTRONIC CO., LTD.(CHINA) SPECIFICATION FOR APPROVAL Item Page 1.1 2.2 3.3~5 4.6~8 5.9 6.10~49 7.50 8.51~63 ...................... ............................................ ...................... ...................... Contents Description ...................... ................ ...................... ...................... ................ Cable ...................... SGS ...................... SGS ...................................... ...................... ...................... Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Radiation ..................... 1.6 Gain(peak)................... 1.8dBi (excluding cable loss) 1.7 Cable Loss.................. ...1.0dB 1.8 Polarization............... ...Linear Vertical 1.9 Admitted Power............ 1.10 Cable........................ ...φ1.13 Coaxial Cable 2. Physical Properties : 2.1 Antenna Cover...............TPE 2.2 Antenna Base............... PC 2.3 Antenna Base............... PBT 2.4 Operating Temp. ......... ...-10 ~ +60 2.5 Storage Temp. ............ ...-10 ~ +70 2.6 Color ........................ .Black 1W 2.4GHz ~ 2.5GHz 50Ω Nominal 1.92 Max. -10 dB Max. RF Antenna Cable Assembly Omni-directional 1 2 RF Antenna Cable Assembly P/NO: C147-510381-A SPEC:2.4~2.5GHz NO:0706-0005 2007.6.7 3 RF Antenna Cable Assembly P/NO:C147-510381-A SPEC:2.4GHz NO:0706-0005 2007.6.7 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C147-510381-A (0706-0005) H.nsi 2.400000 GHz 2.450000 GHz2.500000 GHz 4 RF Antenna Cable Assembly P/NO:C147-510381-A SPEC:2.4GHz NO:0706-0005 2007.6.7 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C147-510381-A (0706-0005) V.nsi 2.400000 GHz 2.450000 GHz2.500000 GHz 5

Compliance Certification Services Inc. Report No.: 70504203-RP1 FCC ID: Q87-WAG310G Date of Issue: August 7, 2007 Page 56 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Wireless-G ADSL2+ IAD Gateway Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b: 19.17 dBm (82.60mW) IEEE 802.11g: 17.65 dBm (58.21mW) Antenna gain (Max) 0.8 dBi (Numeric gain: 1.20) Evaluation applied MPE Evaluation* SAR Evaluation Remark: 1. The maximum output power is 19.17dBm (82.60mW) at 2462MHz (with 1.20 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: 70504203-RP1 FCC ID: Q87-WAG310G Date of Issue: August 7, 2007 Page 57 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 82.60mW Numeric Antenna gain = 1.20 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.0197 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: 70504203-RP1 FCC ID: Q87-WAG310G Date of Issue: August 7, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 60 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless-G ADSL2+ IAD Gateway Model: WAG310G Trade Name: Linksys Issued to Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70504203-RP1 FCC ID: Q87-WAG310G Date of Issue: August 7, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................17 7.3 AVERAGE POWER............................................................................................................................21 7.4 BAND EDGES MEASUREMENT ................................................................................................25 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................34 7.6 SPURIOUS EMISSIONS ................................................................................................................39 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................53 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................56 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................58 Compliance Certification Services Inc. Report No.: 70504203-RP1 FCC ID: Q87-WAG310G Date of Issue: August 7, 2007 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Equipment Under Test: Wireless-G ADSL2+ IAD Gateway Trade Name: Linksys Model: WAG310G Date of Test: June 15 ~ July 27, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted Deviation from Applicable Standard The Powerline Conducted Emissions was tested at Compliance Certification Services. (Hsintien Lab.) The test equipments were listed in page 8 and the test data were recorded in page 54~55. We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Johnny Liu Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Ce…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 70504203-RP1 FCC ID: Q87-WAG310G Date of Issue: August 7, 2007 Page 58 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSIONS SETUP PHOTOS Compliance Certification Services Inc. Report No.: 70504203-RP1 FCC ID: Q87-WAG310G Date of Issue: August 7, 2007 Page 59 Rev. 00 RADIATED EMISSIONS SETUP PHOTOS Compliance Certification Services Inc. Report No.: 70504203-RP1 FCC ID: Q87-WAG310G Date of Issue: August 7, 2007 Page 60 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
