Q87-WAG325NV2Wireless-N ADSL2+ Gateway

Model No. ADSL2+ Gateway Wireless-N WAG325N V2 User Guide WIRELESS GHz 2.4 Wireless-N ADSL2+ Gateway Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this Guide Your Guide to the Wireless-N ADSL2+ Gateway has been designed to make understanding networking with the Gateway easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a Caution or Warning and is something that could damage your property or the Gateway. word: definition. This checkmark means there is a Note of interest and is something you should pay special attention to while using the Gateway. This question mark provides you with a reminder about something you might need to do while using the Gateway. Figure 0-1: Sample Figure Description WAG325N-EU-UG-61003NC BW Wireless-N ADSL2+ Gateway Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this User Guide?2 Chapter 2: Planning Your Network4 The Gateway’s Functions4 IP Addresses4 Chapter 3: Getting to Know the Wireless-N ADSL2+ Gateway6 Ports and Reset Button on Back Panel6 LEDs on Front Panel7 Chapter 4: Connecting the Wireless-N ADSL2+ Gateway8 Overview8 Wired Connection to a Computer8 Wireless Connection to a Computer9 Chapter 5: Configuring the Wireless-N ADSL2+ Gateway10 Overview10 How to Access the Web-based Utility12 The Setup Tab12 The Wireless Tab21 The Security Tab29 The Access Restrictions Tab31 The Applications and Gaming Tab33 The Administration Tab40 The Status Tab46 Appendix A: Troubleshooting50 Common Problems and Solutions50 Frequently Asked Questions58 Appendix B: Wireless Security65 Security Precautions65 Security Threats Facing Wireless Networks65 Appendix C: Finding the MAC Address and IP Address for Your Ethernet Adapter68 Windows 98 or Me Instructions68 Windows 2000 or XP Instructions69 Wireless-N ADSL2+ Gateway Appendix D: Upgrading Firmware70 Appendix E: Glossary71 Appendix F: Specifications76 Appendix G: Warranty Information78 Appendix H: Regulatory Information79 Appendix I: Regulatory Information91 Appendix J: Contact Information105 Wireless-N ADSL2+ Gateway List of Figures Figure 2-1: Network4 Figure 3-1: Ports and Reset Button on Side Panel6 Figure 3-2: LEDs on Side Panel7 Figure 4-1: Connect the ADSL Line8 Figure 4-2: Connect a PC8 Figure 4-3: Connect the Power8 Figure 4-4: Connect the ADSL Line9 Figure 4-5: Connect the Power9 Figure 5-1: Basic Setup12 Figure 5-2: RFC 1483 Bridged13 Figure 5-3: RFC 1483 Routed14 Figure 5-4: IPoA14 Figure 5-5: RFC 2516 PPPoE15 Figure 5-6: RFC 2364 PPPoA15 Figure 5-7: Bridge Mode Only16 Figure 5-8: Optional Settings16 Figure 5-9: DDNS - DynDNS.org18 Figure 5-10: DDNS - TZO.com18 Figure 5-11: Advanced Routing19 Figure 5-12: Routing Table20 Figure 5-13: Basic Wireless Settings21 Figure 5-14: Wireless Security - WPA-Personal22 Figure 5-15: Wireless Security - WPA2-Personal22 Figure 5-16: Wireless Security - WPA-Enterprise23 Figure 5-17: Wireless Security - WPA2-Enterprise23 Figure 5-18: Wireless Security - RADIUS24 Figure 5-19: Wireless Security - WEP25 Figure 5-20: Wireless MAC Filter26 Figure 5-21: Wireless Client List26 Figure 5-22: Advanced Wireless Settings27 Figure 5-23: Firewall29 Figure 5-24: VPN Passthrough30 Wireless-N ADSL2+ Gateway Figure 5-25: Internet Access Policy31 Figure 5-26: Internet Policy Summary31 Figure 5-27: List of PCs32 Figure 5-28: Single Port Forwarding33 Figure 5-29: Port Range Forwarding34 Figure 5-30: Port Triggering35 Figure 5-31: DMZ36 Figure 5-32: QoS37 Figure 5-33: QoS - Online Game38 Figure 5-34: QoS - MSN Messenger38 Figure 5-35: QoS - YAHOO Messenger38 Figure 5-36: QoS - Skype38 Figure 5-37: QoS - Voice Device38 Figure 5-38: QoS - Add a New Application (Port Range)38 Figure 5-39: QoS - Add a New Application (MAC Address)39 Figure 5-40: Management40 Figure 5-41: Reporting42 Figure 5-42: View Log42 Figure 5-43: Diagnostics43 Figure 5-44: Ping Test43 Figure 5-45: Backup & Restore44 Figure 5-46: Factory Defaults45 Figure 5-47: Firmware Upgrade45 Figure 5-48: Gateway46 Figure 5-49: Local Network47 Figure 5-50: DHCP Active IP Table47 Figure 5-51: ARP/RARP Table47 Figure 5-52: Wireless48 Figure 5-53: DSL Connection49 Figure C-1: IP Configuration Screen68 Figure C-2: MAC Address/Adapter Address68 Figure C-3: MAC Address/Physical Address69 Figure D-1: Firmware Upgrade70 1 Chapter 1: Introduction Welcome Wireless-N ADSL2+ Gateway Chapter 1: Introduction Welcome Thank you for choosing the Wireless-N ADSL2+ Gateway. The Gateway will allow you to network wirelessly better than ever, sharing Internet access, files and fun, easily and securely and with a greater range of up to three times farther than standard Wireless-G. The incredible speed of Wireless-N makes it ideal for media-centric applications like streaming video and Voice over IP (VoIP) telephony, so your network can handle multiple data streams at the same time, with no degradation in performance. How does the Gateway do all of this? By connecting the Internet, as well as your computers and peripherals, to the Gateway, then the Gateway can direct and control communications for your network. Plus, since the Gateway is wireless, Internet access can be shared over the wireless broadcast as well as the wired network. Use wireless security to secure your wireless network while the whole network is protected through a Stateful …

Text truncated - open the document above for the full version.

45 Chapter 5: Configuring the Wireless-N ADSL2+ Gateway The Administration Tab Wireless-N ADSL2+ Gateway The Factory Defaults Tab If you want to restore the Gateway’s factory default settings, then use this screen. Factory Defaults Restore Factory Defaults. If you wish to restore the Gateway to its factory default settings and lose all your settings, click Restore Factory Defaults. Then follow the on-screen instructions. Click Help for more information. The Firmware Upgrade Tab Use this screen to upgrade the Gateway’s firmware. Firmware Upgrade To upgrade the Gateway’s firmware: 1. Download the Gateway’s firmware upgrade file from www.linksys.com/international. 2. Extract the file on your computer. 3. On the Firmware Upgrade screen, click the Browse button to find the firmware upgrade file. 4. Double-click the firmware file that you have downloaded and extracted. 5. Click the Start to Upgrade button, and follow the on-screen instructions. Click Help for more information. Figure 5-47: Firmware Upgrade Figure 5-46: Factory Defaults 46 Chapter 5: Configuring the Wireless-N ADSL2+ Gateway The Status Tab Wireless-N ADSL2+ Gateway The Status Tab The Gateway Tab This screen displays information about the Gateway and its Internet connection. Gateway Information This section displays the Gateway’s Firmware Version, MAC Address, and Current Time. Internet Connection This section shows the following information: Login Type, Interface, IP Address, Subnet Mask, Default Gateway, and DNS 1, 2, and 3 server IP addresses. DHCP Renew. If available, click the DHCP Renew button to replace the Gateway’s current IP address with a new IP address. DHCP Release. If available, click the DHCP Release button to delete the Gateway’s current IP address. Click the Refresh button if you want to refresh the displayed information. Click Help for more information. Figure 5-48: Gateway 47 Chapter 5: Configuring the Wireless-N ADSL2+ Gateway The Status Tab Wireless-N ADSL2+ Gateway The Local Network Tab This screen displays information about the Gateway’s local network. Local Network This screen displays the following: the local Mac Address, IP Address, Subnet Mask, DHCP Server, Start IP Address, and End IP Address. To view the DHCP Client Table, click the DHCP Client Tab le button. To view the ARP/RARP Table, click the ARP/RARP Ta ble button. DHCP Clients Table. The DHCP Active IP Table shows the current DHCP Client data. You will see the computer name, IP address, MAC address, and expiration time of the dynamic IP address for the clients using the DHCP server. (This data is stored in temporary memory and changes periodically.) Click the Refresh button if you want to refresh the displayed information. To delete a client from the DHCP server, select the client, and then click the Delete button. Click the Close button to return to the Local Network screen. ARP/RARP Table. An ARP request is a request sent by the Gateway asking clients with IP addresses for their MAC addresses, so the Gateway can map IP addresses to MAC addresses. RARP is the reverse of ARP. The ARP/RARP Table shows the current data for the local network clients of the Gateway. You will see their IP addresses and MAC addresses. (This data is stored in temporary memory and changes periodically.) Click the Refresh button if you want to refresh the displayed information. Click the Close button to return to the Local Network screen. Click the Refresh button if you want to refresh the displayed information. Click Help for more information. Figure 5-51: ARP/RARP Table Figure 5-49: Local Network Figure 5-50: DHCP Active IP Table 48 Chapter 5: Configuring the Wireless-N ADSL2+ Gateway The Status Tab Wireless-N ADSL2+ Gateway The Wireless Tab This screen displays information about the Gateway’s wireless network. Wireless Network This screen displays the following: MAC Address, Mode, Network Name (SSID), Radio Band, Wide Channel, Standard Channel, Security method, and SSID Broadcast status. Click the Refresh button if you want to refresh the displayed information. Click Help for more information. Figure 5-52: Wireless 49 Chapter 5: Configuring the Wireless-N ADSL2+ Gateway The Status Tab Wireless-N ADSL2+ Gateway The DSL Connection Tab This screen shows information about the DSL connection. DSL Status This section shows the following: Status, Downstream Rate, and Upstream Rate. PVC Connection This section displays the following information: Encapsulation, Multiplexing, QoS, Pcr Rate, Scr Rate, Autodetect, VPI, VCI, Enable status, and PVC Status. Click the Refresh button if you want to refresh the displayed information. Click Help for more information. Figure 5-53: DSL Connection 50 Appendix A: Troubleshooting Common Problems and Solutions Wireless-N ADSL2+ Gateway Appendix A: Troubleshooting This appendix consists of two parts: “Common Problems and Solutions” and “Frequently Asked Questions.” Provided are possible solutions to problems that may occur during the installation and operation of the Gateway. Read the descriptions below to help you solve your problems. If you can’t find an answer here, check the Linksys international website at www.linksys.com. Common Problems and Solutions 1. I need to set a static IP address on a computer. You can assign a static IP address to a computer by performing the following steps: •For Windows 98 and Me: 1. Click Start, Settings, and Control Panel. Double-click Network. 2. In The following network components are installed box, select the TCP/IP-> associated with your Ethernet adapter. If you only have one Ethernet adapter installed, you will only see one TCP/IP line with no association to an Ethernet adapter. Highlight it and click the Properties button. 3. In the TCP/IP properties window, select the IP address tab, and select Specify an IP address. Enter a unique IP address that is not used by any other computer on the network connected to the Gateway. Make sure that each IP address is unique for each computer or network device. 4.…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: March 07, 2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, ___________________________ Jennifer Yu / Product Engineer March 07, 2007

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: March 07, 2007 Subject: Request for Confidentiality FCC ID: Q87-WAG325NV2 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation ANT specification Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 2006/11/30. External Photos Internal Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Sincerely yours, ___________________________ Jennifer Yu / Product Engineer March 07, 2007

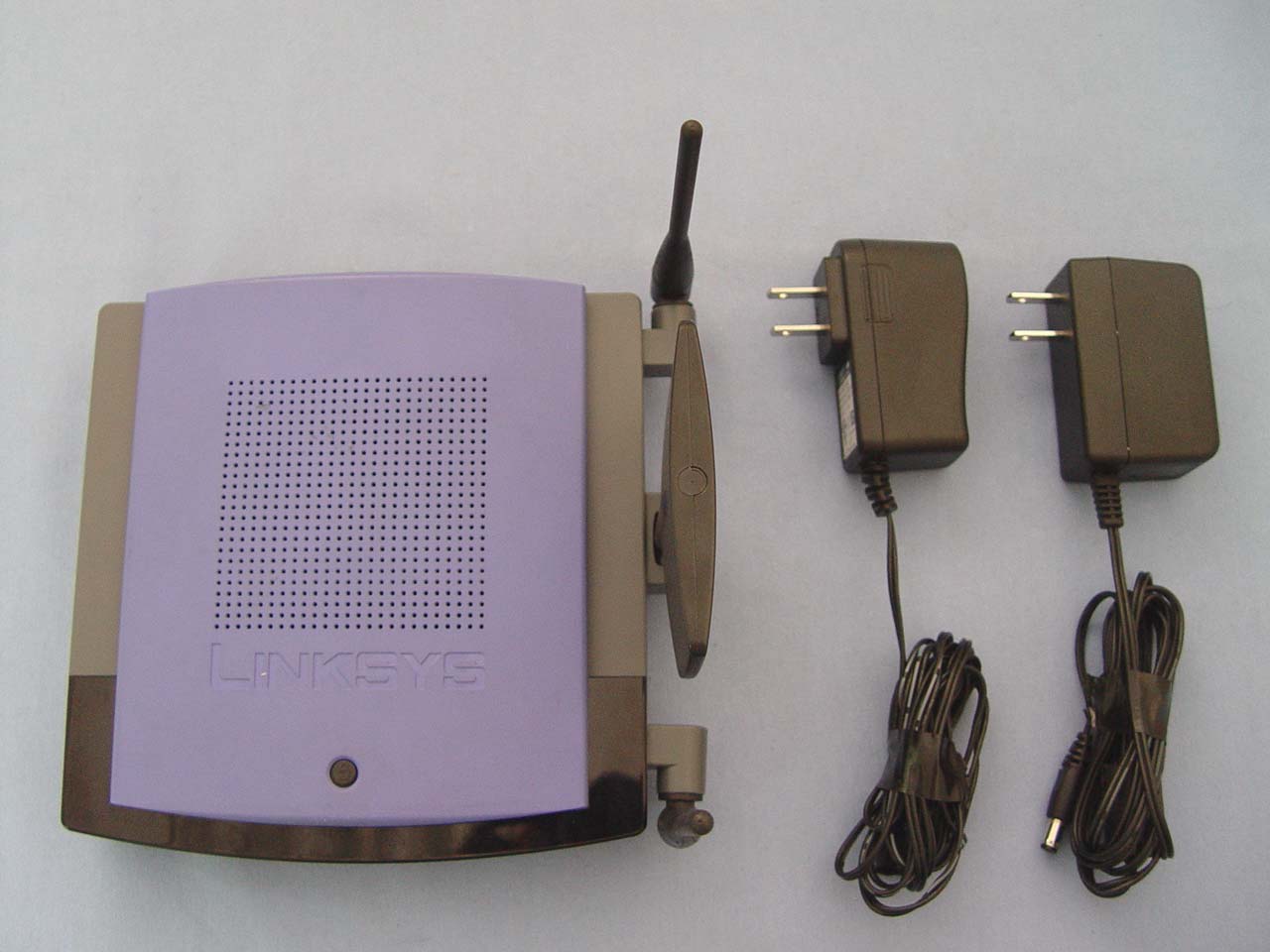

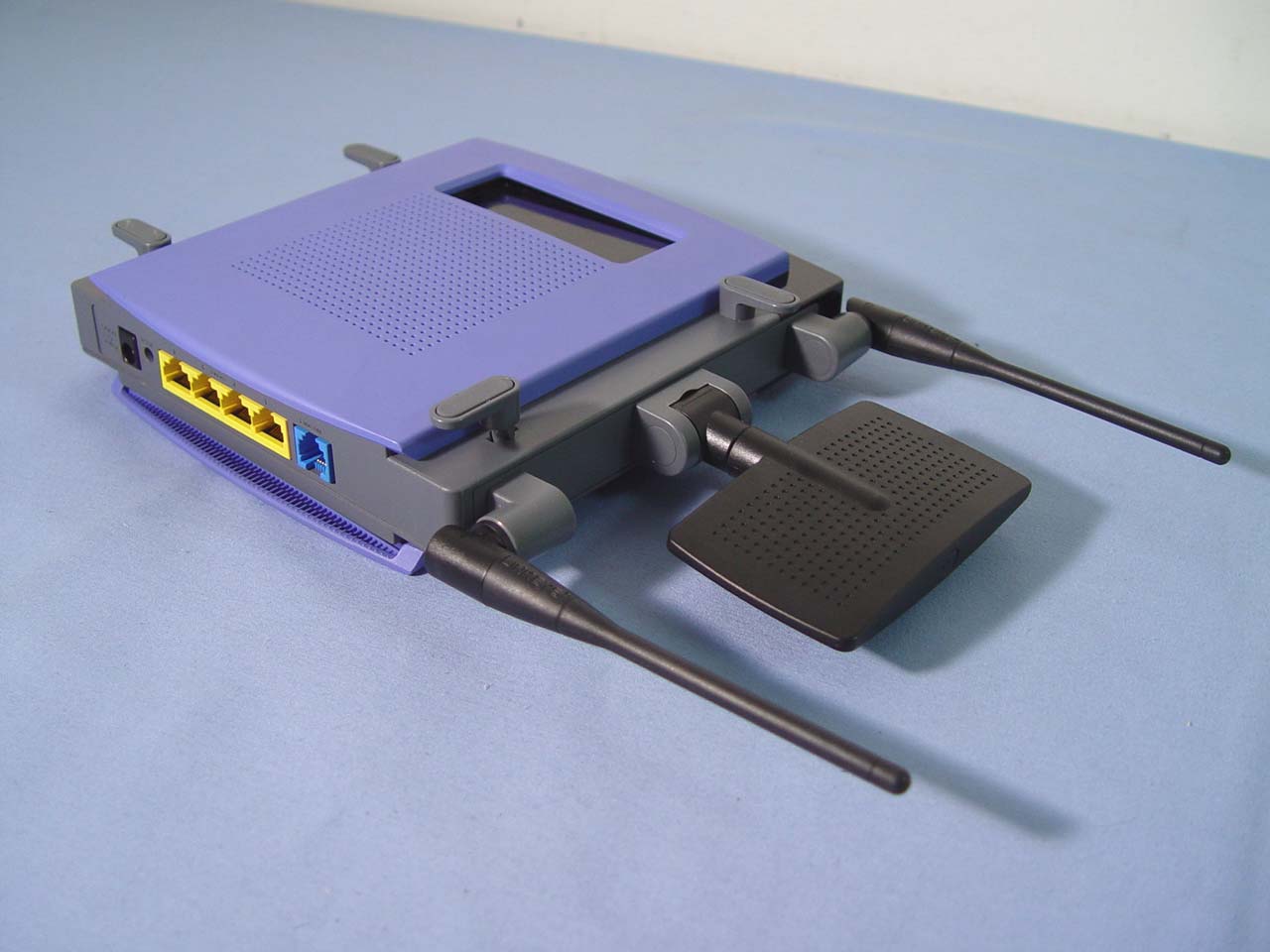

Compliance Certification Services Inc. Report No.: 70110206 Date of Issue: March 28, 2007 Page 1 Total Page: 6 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70110206 Date of Issue: March 28, 2007 Page 2 Total Page: 6 Rev. 00 Compliance Certification Services Inc. Report No.: 70110206 Date of Issue: March 28, 2007 Page 3 Rev.00

Compliance Certification Services Inc. Report No.: 70110206 Date of Issue: March 28, 2007 Page 4 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70110206 Date of Issue: March 28, 2007 Page 5 Rev.00 Compliance Certification Services Inc. Report No.: 70110206 Date of Issue: March 28, 2007 Page 6 Rev.00

Compliance Certification Services Inc. Report No.: 70110206-RP1 FCC ID: Q87-WAG325NV2 Date of Issue: March 27, 2007 Page 124 Rev. 00 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Wireless-N ADSL2+ Gateway Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 21.80 dBm (151.36 mW) IEEE 802.11g mode: 18.14 dBm (65.16 mW) draft 802.11n Standard-20 MHz Channel mode: 24.82 dBm ( 303.39 mW) draft 802.11n Wide-40 MHz Channel mode: 19.55 dBm ( 90.16 mW) Antenna gain (Max) MIMO Mode: 0.9dBi (including cable loss) (Numeric gain: 1.23) 0.95dBi (including cable loss) (Numeric gain: 1.24) CDD Mode: 0.9dBi (including cable loss)+ 10 log (2) = 3.91 dBi (Numeric gain: 2.46) 0.95dBi (including cable loss) + 10 log (2) = 3.96 dBi (Numeric gain: 2.49) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum output power is 24.82dBm (303.39mW) at 2437MHz (with 2.49 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. Compliance Certification Services Inc. Report No.: 70110206-RP1 FCC ID: Q87-WAG325NV2 Date of Issue: March 27, 2007 Page 125 Rev. 00 Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Report No.: 70110206-RP1 FCC ID: Q87-WAG325NV2 Date of Issue: March 27, 2007 Page 126 Rev. 00 IEEE 802.11b mode: EUT output power = 151.36 mW Numeric Antenna gain = 2.49 Æ Power density = 0.0750 mW / cm 2 IEEE 802.11g mode: EUT output power = 65.16 mW Numeric Antenna gain = 2.49 Æ Power density = 0.0323 mW / cm 2 draft 802.11n Standard-20 MHz Channel mode: EUT output power = 303.39 mW Numeric Antenna gain = 1.24 Æ Power density = 0.0749mW / cm 2 draft 802.11n Wide-40 MHz Channel mode: EUT output power = 90.16 mW Numeric Antenna gain = 1.24 Æ Power density = 0.0222 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. Report No.: 70110206-RP1 FCC ID: Q87-WAG325NV2 Date of Issue: March 27, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 129 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless-N ADSL2+ Gateway Model: WAG325N V2 Trade Name: Linksys Issued to Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70110206-RP1 FCC ID: Q87-WAG325NV2 Date of Issue: March 27, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................26 7.3 AVERAGE POWER............................................................................................................................39 7.4 BAND EDGES MEASUREMENT ................................................................................................52 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................69 7.6 SPURIOUS EMISSIONS ................................................................................................................88 7.7 POWERLINE CONDUCTED EMISSIONS.............................................................................................115 APPENDIX I RADIO FREQUENCY EXPOSURE .............................................................................124 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...........................................................................127 Compliance Certification Services Inc. Report No.: 70110206-RP1 FCC ID: Q87-WAG325NV2 Date of Issue: March 27, 2007 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Equipment Under Test: Wireless-N ADSL2+ Gateway Trade Name: Linksys Model: WAG325N V2 Date of Test: January 23 ~ March 24, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Johnny Liu Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 70110206-RP1 FCC ID: Q87-WAG325NV2 Date of Issue: March 27, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless-N ADSL2+ Gateway Trade N…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 70110206-RP1 FCC ID: Q87-WAG325NV2 Date of Issue: March 27, 2007 Page 127 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSIONS SETUP PHOTOS Compliance Certification Services Inc. Report No.: 70110206-RP1 FCC ID: Q87-WAG325NV2 Date of Issue: March 27, 2007 Page 128 Rev. 00 RADIATED EMISSIONS SETUP PHOTOS Compliance Certification Services Inc. Report No.: 70110206-RP1 FCC ID: Q87-WAG325NV2 Date of Issue: March 27, 2007 Page 129 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
