Q87-WAG54GP2V2VOIP Wireless-G ADSL Gateway with 2 Phone Ports

A Division of Cisco Systems, Inc. ® Model No. ADSL Gateway Wireless-G WAG54GP2 User Guide WIRELESS GHz 2.4 802.11g with 2 Phone Ports Wireless-G ADSL Gateway with 2 Phone Ports Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use This User Guide This User Guide has been designed to make understanding networking with the Wireless-G ADSL Gateway with 2 Phone Ports easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a caution or warning and is something that could damage your property or the Wireless-G ADSL Gateway with 2 Phone Ports. This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-G ADSL Gateway with 2 Phone Ports. This question mark provides you with a reminder about something you might need to do while using the Wireless-G ADSL Gateway with 2 Phone Ports. word: definition. Figure 0-1: Sample Figure Description WAG54GP2-UG-50911 KL WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G ADSL Gateway with 2 Phone Ports Chapter 1: Planning Your Network1 The Gateway’s Functions1 IP Addresses1 What is a VPN?2 Why do I need a VPN?4 Chapter 2: Getting to Know the Wireless-G ADSL Gateway with 2 Phone Ports6 The Back Panel6 The Front Panel7 Chapter 3: Connecting the Wireless-G ADSL Gateway8 Overview8 Wired Connection to a Computer9 Wireless Connection to a Computer10 Chapter 4: Configuring the Gateway11 Overview11 How to Access the Web-based Utility13 The Setup Tab14 The Wireless Tab28 The Security Tab33 The Access Restrictions Tab38 The Applications and Gaming Tab41 The Administration Tab45 The Status Tab51 The Voice Tab54 Chapter 5: Using the Linksys Parental Control Service55 Overview55 Introduction55 Signing up for the Linksys Parental Control Service56 Signing up for the Linksys Parental Control Service57 Managing Linksys Parental Controls60 Support Center61 Activity Reports63 Family Settings65 Suggest a Rating73 Using the Parental Control Service73 Wireless-G ADSL Gateway with 2 Phone Ports Appendix A: Troubleshooting76 Common Problems and Solutions76 Frequently Asked Questions84 Chapter 6: Wireless Security90 Important Information for Wireless Products90 Appendix B: Configuring IPSec between a Windows 2000 or XP Computer and the Gateway93 Introduction93 Environment93 How to Establish a Secure IPSec Tunnel94 Appendix C: Finding the MAC Address and IP Address for Your Ethernet Adapter104 Windows 98 or Me Instructions104 Windows 2000 or XP Instructions105 Appendix D: Upgrading Firmware106 Appendix E: Windows Help107 Appendix F: Glossary108 Appendix G: Specifications113 Appendix H: Warranty Information115 Appendix I: Regulatory Information116 Appendix J: Contact Information118 Wireless-G ADSL Gateway with 2 Phone Ports Figure 1-1: Network1 Figure 1-2: Computer-to-VPN Gateway3 Figure 1-3: VPN Gateway-to-VPN Gateway4 Figure 2-1: Back Panel6 Figure 2-2: Front Panel7 Figure 3-1: Connecting your networking devices9 Figure 3-2: Connecting your ADSL line9 Figure 3-3: Connecting your phones9 Figure 3-4: Connecting the power9 Figure 4-1: Password Screen13 Figure 4-2: Setup Tab - Basic Setup14 Figure 4-3: Basic Setup Tab - RFC 1483 Bridged15 Figure 4-4: Basic Setup Tab - RFC 1483 Routed17 Figure 4-5: Basic Setup Tab - IPoA18 Figure 4-6: Basic Setup Tab - RFC 2516 PPPoE19 Figure 4-7: Basic Setup Tab - RFC 2364 PPPoA21 Figure 4-8: Basic Setup Tab - Bridged Mode Only22 Figure 4-9: Basic Setup Tab - DNS Proxy and Optional Settings23 Figure 4-10: Basic Setup Tab - Network Setup24 Figure 4-11: Setup Tab - DDNS (DynDNS.org)25 Figure 4-12: Setup Tab - DDNS (TZO.com)25 Figure 4-13: Setup Tab - Advanced Routing26 Figure 4-14: Routing Table27 Figure 4-15: PVC Selection Table27 Figure 4-16: Wireless Tab - Wireless Network28 Figure 4-17: Wireless Tab - Wireless Security (WPA Pre-Shared Key)29 Figure 4-18: Wireless Tab - Wireless Security (WPA RADIUS)29 Figure 4-19: Wireless Tab - Wireless Security (WEP)30 Figure 4-20: Wireless Tab - Wireless Network Access31 Figure 4-21: MAC Address Access/Filter List31 Figure 4-22: Wireless Tab - Advanced Wireless Settings32 Figure 4-23: Security Tab - Firewall33 Figure 4-24: Security Tab - VPN34 Wireless-G ADSL Gateway with 2 Phone Ports Figure 4-25: VPN Settings Summary34 Figure 4-26: Auto Key Management35 Figure 4-27: Manual Key Management35 Figure 4-28: System Log36 Figure 4-29: Advanced VPN Tunnel Setup36 Figure 4-30: Access Restrictions Tab - Parental Control38 Figure 4-31: Access Restrictions Tab - Internet Access39 Figure 4-32: Internet Policy Summary39 Figure 4-33: List of PCs40 Figure 4-34: Port Services40 Figure 4-35: Applications and Gaming Tab - Single Port Forwarding41 Figure 4-36: Applications and Gaming Tab - Port Range Forwarding42 Figure 4-37: Applications and Gaming Tab - Port Triggering42 Figure 4-38: Applications and Gaming Tab - DMZ43 Figure 4-39: Applications and Gaming Tab - QOS43 Figure 4-40: Administration Tab - Management45 Figure 4-41: Administration Tab - Reporting48 Figure 4-42: System Log48 Figure 4-43: Administration Tab - Diagnostics49 Figure 4-44: Administration Tab - Backup&Restore49 Figure 4-45: Administration Tab - Factory Defaul…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: March 21, 2006 FCC ID: Q87-WAG54GP2V2 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: March 21, 2006 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

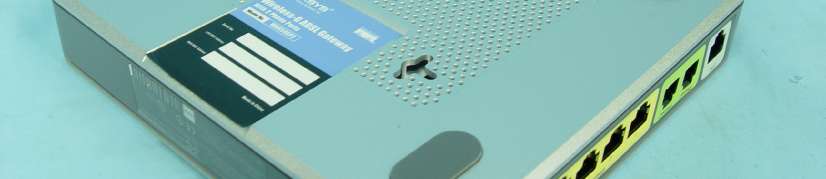

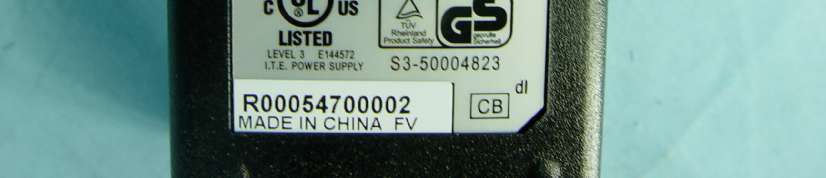

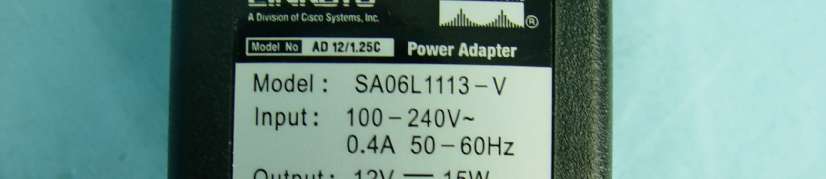

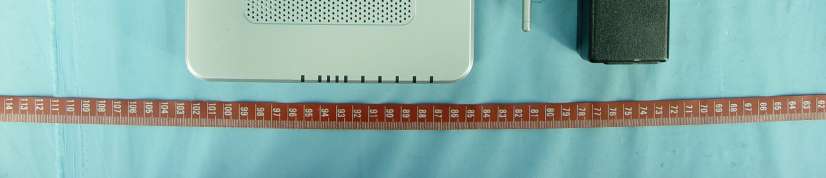

Model No.: WAG54GP2 V2- Annex A Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID : Q87-WAG54GP2V2 Label Location

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: Q87-WAG54GP2V2 Report No.: RF950214L17 Technical Description This device is a VOIP Wireless-G ADSL Gateway with 2 Phone Ports that operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with RSMA antenna connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-WAG54GP2V2 Report No: SA950214L17 1 RF EXPOSURE REPORT REPORT NO.: SA950214L17 MODEL NO.: WAG54GP2 V2- Annex A ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WAG54GP2V2 Report No: SA950214L17 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WAG54GP2V2 Report No: SA950214L17 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WAG54GP2V2 Report No: SA950214L17 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 3.3dBi or 2.1380 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.1190.0211.0 6243750.4660.0211.0 11246250.4660.0211.0 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.9890.0141.0 6243731.6960.0131.0 11246231.6230.0131.0

Report No.: RF950214L171Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950214L17 MODEL NO.: WAG54GP2 V2- Annex A RECEIVED: Feb. 14, 2006 TESTED: Mar. 13 ~ Mar. 14, 2006 ISSUED: Mar. 16, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950214L172Report Format Version 2.0.4 Table of Contents 1CERTIFICATION ..........................................................................................................4 2SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY ...............................................................................5 3GENERAL INFORMATION...........................................................................................6 3.1GENERAL DESCRIPTION OF EUT.............................................................................6 3.2DESCRIPTION OF TEST MODES...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................10 3.4DESCRIPTION OF SUPPORT UNITS .......................................................................10 4TEST TYPES AND RESULTS .................................................................................... 11 4.1CONDUCTED EMISSION MEASUREMENT .............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS................................................................................................ 11 4.1.3 TEST PROCEDURES ................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................12 4.1.5 TEST SETUP .............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ...............................................................................13 4.1.7 TEST RESULTS .........................................................................................................14 4.2RADIATED EMISSION MEASUREMENT ..................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................20 4.2.2 TEST INSTRUMENTS................................................................................................21 4.2.3 TEST PROCEDURES ................................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................22 4.2.5 TEST SETUP .............................................................................................................23 4.2.6 EUT OPERATING CONDITIONS ...............................................................................23 4.2.7 TEST RESULTS .........................................................................................................24 4.36dB BANDWIDTH MEASUREMENT .........................................................................31 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................31 4.3.2 TEST INSTRUMENTS................................................................................................31 4.3.3 TEST PROCEDURE...................................................................................................32 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................32 4.3.5 TEST SETUP .............................................................................................................32 4.3.6 EUT OPERATING CONDITIONS ...............................................................................32 4.3.7 TEST RESULTS .........................................................................................................33 4.4MAXIMUM PEAK OUTPUT POWER .........................................................................39 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................39 Report No.: RF950214L173Report Format Version 2.0.4 4.4.2 TEST INSTRUMENTS................................................................................................39 4.4.3 TEST PROCEDURES ................................................................................................40 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................40 4.4.5 TEST SETUP .............................................................................................................40 4.4.6 EUT OPERATING CONDITIONS ...............................................................................40 4.4.7 TEST RESULTS .........................................................................................................41 4.5POWER SPECTRAL DENSITY MEASUREMENT ....................................................42 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ..................................42 …

Text truncated - open the document above for the full version.

Report No.: RF950214L1760Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950214L1761Report Format Version 2.0.4 RADIATED EMISSION TEST
