Q87-WAP4410NWireless-N Access Point with power over ethernet

Model No. Model No. USER GUIDE BUSINESS SERIES Model No. Model No. Wireless-N Access Point with Ports Model No. WAP4410N 4-portuter with Power Over Ethernet Wireless Wireless-N Access Point with Power Over Ethernet Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this User Guide The user guide to the Wireless-G Exterior Access Point has been designed to make understanding networking with the Access Point easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section. This exclamation point means there is a caution or warning and is something that could damage your property or the Access Point. word: definition. This checkmark means there is a note of interest and is something you should pay special attention to while using the Access Point. This question mark provides you with a reminder about something you might need to do while using the Access Point. Figure 0-1: Sample Figure Description WAP4410N-UG-60519NC BW WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-N Access Point with Power Over Ethernet Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this User Guide?2 Chapter 2: Planning Your Wireless Network4 Network Topology4 Roaming4 Network Layout4 Example of a simple wireless network5 Chapter 3: Getting to Know the Wireless-G Exterior Access Point7 The LEDs7 The Ports8 Antennas and Positions9 Chapter 4: Connecting the Wireless-N Access Point11 Overview11 Connection11 Placement Options12 Chapter 5: Setting Up the Wireless-N Access Point13 Overview13 Accessing the Utility13 Navigating the Utility14 Chapter 6: Configuring the Wireless-N Access Point16 The Setup - Basic Setup Tab16 The Setup - Time Tab17 The Wireless - Basic Wireless Settings Tab18 The Wireless - Wireless Security Tab20 The Wireless - Wireless Connection Control Tab24 The Wireless - Advanced Wireless Settings Tab25 The Security Monitor Tab27 The Administration - Management Tab28 The Administration - Log Tab30 The Administration - Factory Default Tab32 The Administration - Firmware Upgrade Tab32 Wireless-N Access Point with Power Over Ethernet The Administration - Reboot Tab33 The Administration - Config Management Tab34 The Status - Local Network Tab35 The Status - Wireless Tab36 The Status - System Performance Tab37 Appendix A: Troubleshooting39 Frequently Asked Questions39 Appendix B: Wireless Security44 Security Precautions44 Security Threats Facing Wireless Networks44 Appendix C: Upgrading Firmware47 Appendix D: Windows Help48 Appendix E: Glossary49 Appendix F: Specifications54 Appendix G: Warranty Information56 Appendix H: Regulatory Information57 Appendix I: Contact Information63 Wireless-N Access Point with Power Over Ethernet List of Figures Figure 2-1: Example of a Simple Wireless Network5 Figure 3-1: Front Panel7 Figure 3-2: Back View8 Figure 3-3: Stackable Position and its Antenna Setup9 Figure 3-4: Standalone Position and its Antenna Setup10 Figure 4-1: Connect the Ethernet Cable11 Figure 4-2: Connect the Power11 Figure 4-3: The Stand Option12 Figure 4-4: Stand12 Figure 4-5: Mounting Dimensions12 Figure 5-1: Login Screen14 Figure 6-1: Setup - Static IP Address16 Figure 6-2: Setup - Automatic Configuration - DHCP17 Figure 6-3: Setup - Time17 Figure 6-4: Wireless - Basic Wireless Settings18 Figure 6-5: Pop-up message on Auto Channel Selection18 Figure 6-6: Wireless - Wireless Security (Disabled)20 Figure 6-7: Wireless - Wireless Security (WPA-Personal)20 Figure 6-8: Wireless - Wireless Security (WPA2-Personal)21 Figure 6-9: Wireless - Wireless Security (WPA2-Personal Mixed)21 Figure 6-10: Wireless - Wireless Security (WPA-Enterprise)22 Figure 6-11: Wireless - Wireless Security (WPA2-Enterprise)22 Figure 6-12: Wireless - Wireless Security (WPA2 - Enterprise Mixed)23 Figure 6-13: Wireless Settings - WEP23 Figure 6-14: Wireless - Wireless Connection Control24 Figure 6-15: Select MAC Address from Wireless Client List24 Figure 6-16: Wireless - Advanced Wireless25 Figure 6-17: Security Monitor27 Wireless-N Access Point with Power Over Ethernet Figure 6-18: Administration - Management28 Figure 6-19: The Administration - Log30 Figure 6-20: Administration - Factory Default32 Figure 6-21: Administration - Firmware Upgrade32 Figure 6-22: Administration - Reboot33 Figure 6-23: Administration - Config Management34 Figure 6-24: Status - Local Network35 Figure 6-25: Status - Wireless36 Figure 6-26: Status - System Performance37 Figure C-1: Firmware Upgrade47 1 Chapter 1: Introduction Welcome Wireless-N Access Point with Power Over Ethernet Chapter 1: Introduction Welcome Thank you for choosing the Wireless-N Access Point with Power Over Ethernet. This Access Point will allow you to network wirelessly better than ever. An access point allows for greater range and mobility within your wireless network while also allowing you to connect the wireless network to a wired environment. The Wireless-N Access Point also offers the convenience of Power over Ethernet (PoE) capability (in addition to regular 12VDC power adaptor), so it can receive data and power over a single Ethernet network cable. This Access Point supports the latest 802.11n draft Specification by IEEE early 2006. It also support 802.11g and 802.11b clients in a mixed environment. This…

Text truncated - open the document above for the full version.

30 Chapter 6: Configuring the Wireless-N Access Point The Administration - Log Tab Wireless-N Access Point with Power Over Ethernet The Administration - Log Tab On this screen you can configure the log settings and alerts of particular events. Log You can have logs that keep track of the Access Point’s activities. Email Alert E-Mail Alert. If you want the Access Point to send e-mail alerts in the event of certain attacks, select Enabled. The default is Disabled. E-Mail Address for Logs. Enter the e-mail address that will receive logs. Notification Queue Length Log Queue Length. You can designate the length of the log that will be e-mailed to you. The default is 20 entries. Log Time Threshold. You can designate how often the log will be emailed to you. The default is 600 seconds (10 minutes). Syslog Notification Syslog is a standard protocol used to capture information about network activity. The Access Point supports this protocol and sends its activity logs to an external server. To enable Syslog, select Enabled. The default is Disabled. Syslog Server IP Address. Enter the IP address of the Syslog server. In addition to the standard event log, the Access Point can send a detailed log to an external Syslog server. The Access Point’s Syslog captures all log activities and includes this information about all data transmissions: every connection source and destination IP address, IP server, and number of bytes transferred. Log Select the events that you want the Access Point to keep a log. Unauthorized Login Attempt. If you want to receive alert logs about any unauthorized login attempts, click the checkbox. Authorized Login. If you want to log authorized logins, click the checkbox. Figure 6-19: The Administration - Log 31 Chapter 6: Configuring the Wireless-N Access Point The Administration - Log Tab Wireless-N Access Point with Power Over Ethernet System Error Messages. If you want to log system error messages, click the checkbox. Configuration Changes. If you want to log any configuration changes, click the checkbox. Change these settings as described here and click Save Settings to apply your changes, or click Cancel Changes to cancel your changes. Help information is displayed on the right-hand side of the screen, and click More for additional details. 32 Chapter 6: Configuring the Wireless-N Access Point The Administration - Factory Default Tab Wireless-N Access Point with Power Over Ethernet The Administration - Factory Default Tab On this screen you can restore the Access Point’s factory default settings. Factory Default Note any custom settings before you restore the factory defaults. Once the Access Point is reset, you will have to re-enter all of your configuration settings. Restore Factory Defaults. To restore the Access Point's factory default settings, click the Ye s radio button. Then, click Save Settings. Your Access Point will reboot and come back up with the factory default settings in a few seconds. Click Save Settings to apply your change, or click Cancel Changes to cancel your change. Help information is displayed on the right-hand side of the screen. The Administration - Firmware Upgrade Tab On this screen you can upgrade the Access Point’s firmware. Do not upgrade the firmware unless you are experiencing problems with the Access Point or the new firmware has a feature you want to use. Firmware Upgrade Before you upgrade the Access Point’s firmware, note all of your custom settings. After you upgrade its firmware, you will have to re-enter all of your configuration settings. To upgrade the Access Point’s firmware: 1. Download the firmware upgrade file from the Linksys website, www.linksys.com. 2. Extract the firmware upgrade file on your computer. 3. On the Firmware Upgrade screen, enter the location of the firmware upgrade file in the field provided, or click the Browse button to find the file. 4. Click the Upgrade button, and follow the on-screen instructions. Help information is displayed on the right-hand side of the screen. Figure 6-20: Administration - Factory Default Figure 6-21: Administration - Firmware Upgrade 33 Chapter 6: Configuring the Wireless-N Access Point The Administration - Reboot Tab Wireless-N Access Point with Power Over Ethernet The Administration - Reboot Tab On this screen you can reboot the Access Point. Reboot This feature is useful when you need to remotely reboot the Access Point. Device Reboot. To reboot the Access Point, click the Yes radio button. Click Save Settings to apply your change and the Access Point will reboot itself, or click Cancel Changes to cancel your change. Help information is displayed on the right-hand side of the screen. Figure 6-22: Administration - Reboot 34 Chapter 6: Configuring the Wireless-N Access Point The Administration - Config Management Tab Wireless-N Access Point with Power Over Ethernet The Administration - Config Management Tab On this screen you can create a backup configuration file or save a configuration file to the Access Point. Config Management Use this screen to upload or download configuration files for the Access Point. Save Configuration. To save a backup configuration file on a computer, click the Save Configuration to File button and follow the on-screen instructions. Restore Configuration. To upload a configuration file to the Access Point, enter the location of the configuration file in the field provided, or click the Browse button to find the file. Then click the Load button. Help information is displayed on the right-hand side of the screen. Figure 6-23: Administration - Config Management 35 Chapter 6: Configuring the Wireless-N Access Point The Status - Local Network Tab Wireless-N Access Point with Power Over Ethernet The Status - Local Network Tab The Local Network screen displays the Access Point’s current status information for the local network. Information Hardware Version. This is the version of the Access Point’s current hardware. Software Version. This is the version of the …

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: July 8, 2008 To whom it may concern It is acknowledged by Cisco-Linksys LLC.. that the modification list below will be installed to our Model: WAP4410N in order to comply with FCC/ CE Approval requirements. These modifications will be incorporated into each unit sold and mass production under the rules. Change transformer to 0811A HN2404SG at T1

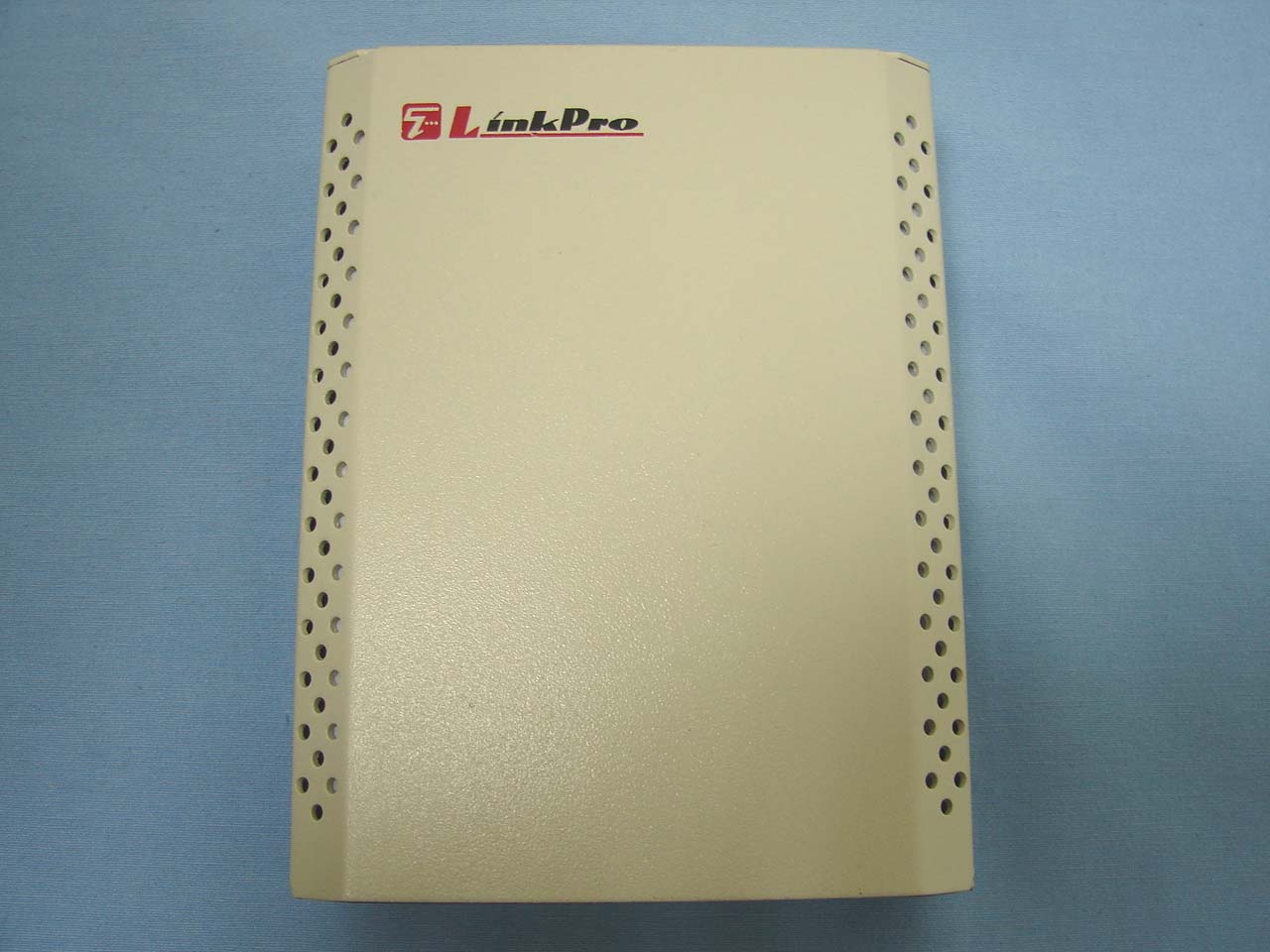

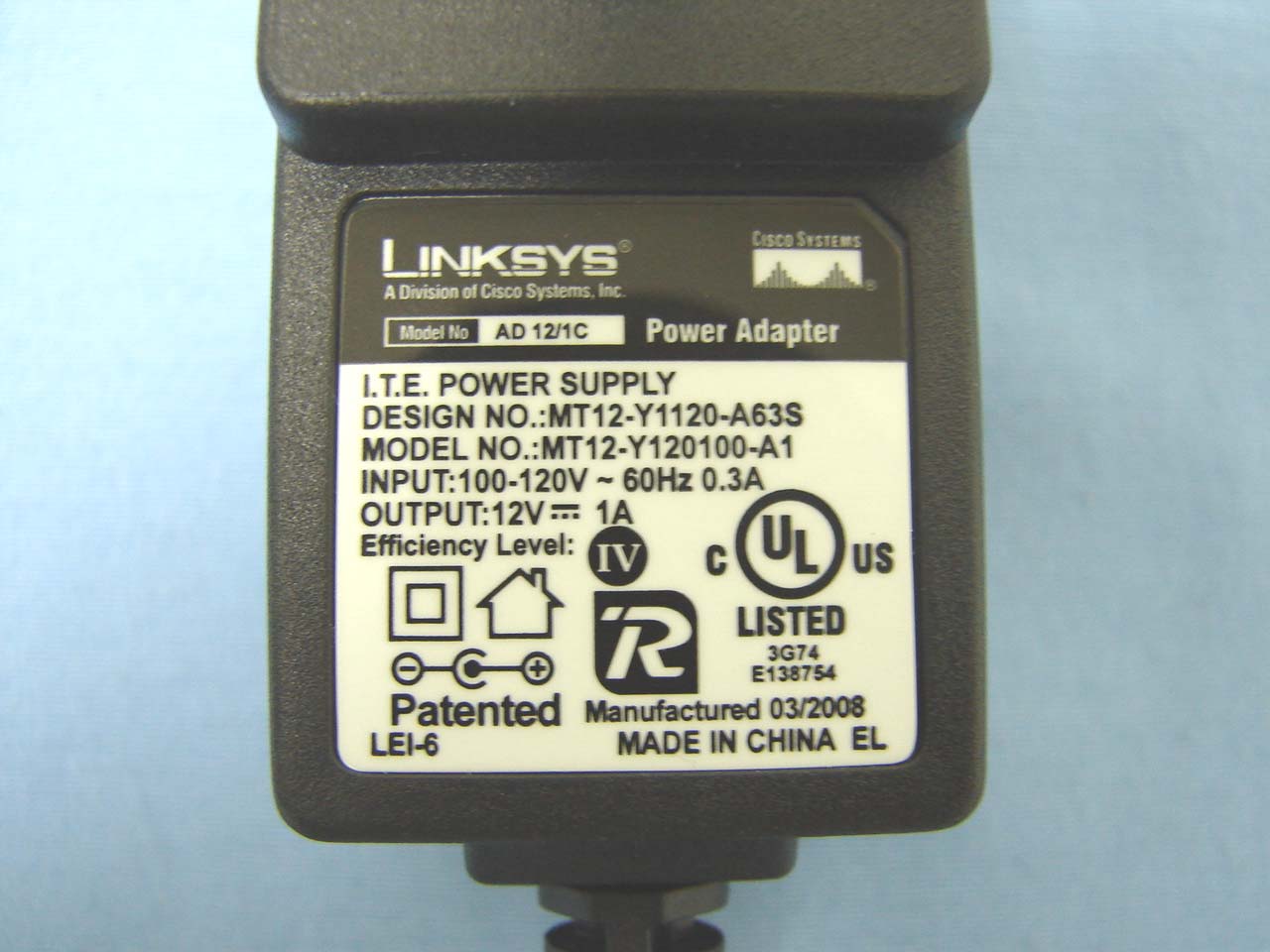

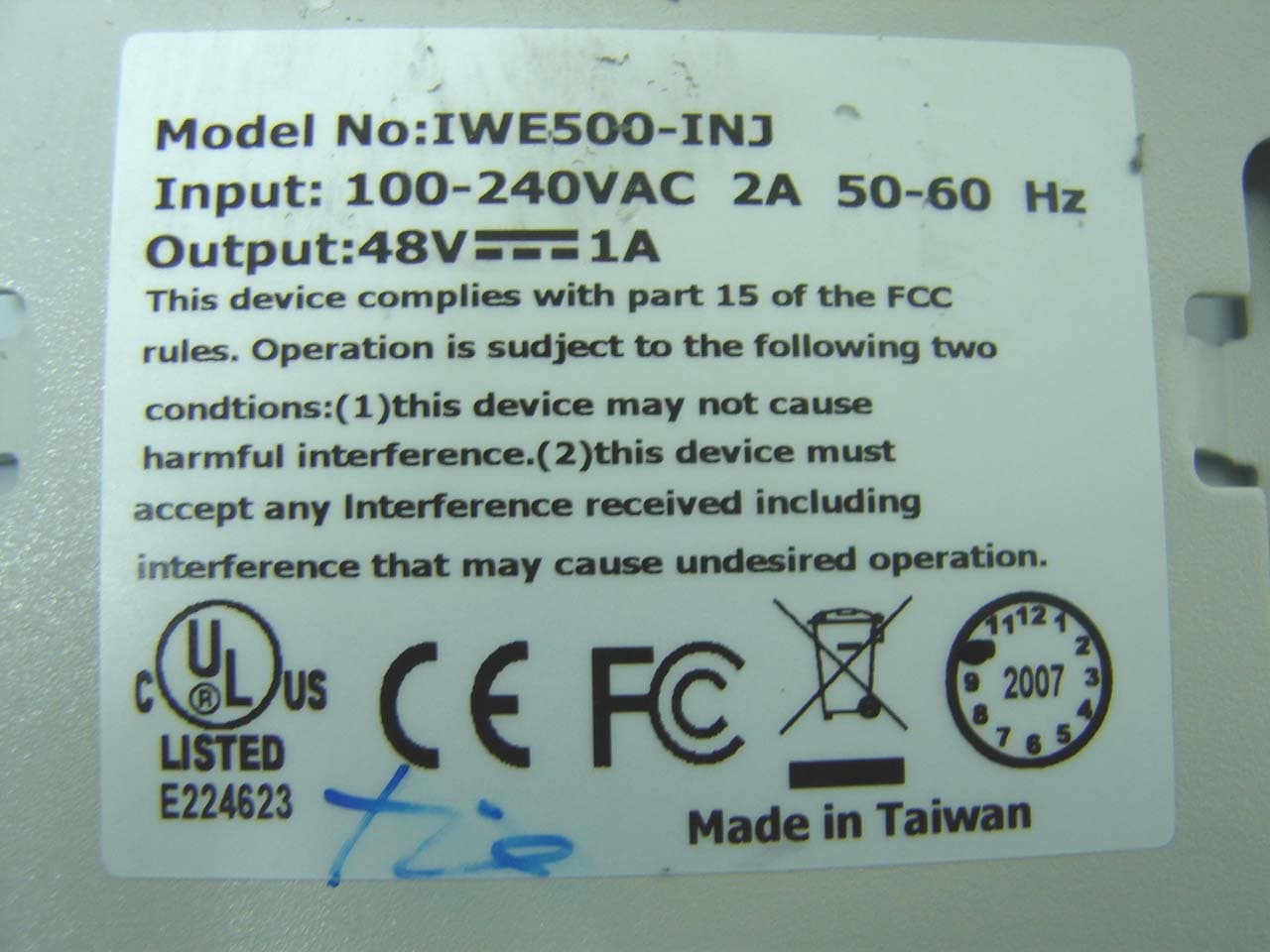

Compliance Certification Services Inc. Report No.: 80325206 Date of Issue: June 26, 2008 Page 1 Total Page: 11 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 80325206 Date of Issue: June 26, 2008 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 80325206 Date of Issue: June 26, 2008 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: 80325206 Date of Issue: June 26, 2008 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: 80325206 Date of Issue: June 26, 2008 Page 5 Rev. 00

77.8mm 49.5 mm 消銀龍/WAP4410N/Linksys 932YKB0008 大陸生產時,請改為 Made In China

Compliance Certification Services Inc. Report No.: 80325206 Date of Issue: June 26, 2008 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 80325206 Date of Issue: June 26, 2008 Page 7 Rev.00 Compliance Certification Services Inc. Report No.: 80325206 Date of Issue: June 26, 2008 Page 8 Rev.00 Compliance Certification Services Inc. Report No.: 80325206 Date of Issue: June 26, 2008 Page 9 Rev.00 Compliance Certification Services Inc. Report No.: 80325206 Date of Issue: June 26, 2008 Page 10 Rev.00 Compliance Certification Services Inc. Report No.: 80325206 Date of Issue: June 26, 2008 Page 11 Rev.00

ItemPage 1.1 2.2 3.3~8 4.9~13 5.14~15 6.16 7.17~107 8.108~121 ................ ................ SGS ................ SGS List ......... Connector ......... ............... ............... ......... Cable ......... ........................ ......... Contents Description ........................ ......... ............... Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance............... ... 1.3 VSWR..................... 1.4 Return Loss.................. 1.5 Radiation.................. 1.6 Gain(peak)................ ......2dBi (excluding cable loss )Free Space 1.7 Cable loss... ... .............0.8dB 1.8 Polarization............... ...Linear; Vertical 1.9 Admitted Power............ 1.10 Cable.....................RG-178 Coaxial Cable 1.11 Cable.....................ͅ1.13 Cable 1.12 Connector.................. ...SMA Plug Reverse 1.13 Connector.................. ...SMA Jack Reverse 2. Physical Properties : 2.1 Antenna Cap................... ...TPE 2.2 Antenna Base................... PC 2.3 Antenna Base................ ... PBT 2.4 Operating Temp. ............-10к ~ +60к 2.5 Storage Temp. ............ ...-10к ~ +70к 2.6 Color.....................Black 1W 2.4GHz ~ 2.5GHz 50͈ Nominal 1.92:1 Max. -10 dB Max. SMB Antenna Omni-directional 1 2 ˥ ̇ʳ˔́̇˸́́˴ʳ˔̆̆˸̀˵˿̌ʳʳ ˣ˂ˡˢˍ˖˄ˇˊˀˈ˄˃ˇˆ˃ˀ˔ʳʳʳʳʳʳʳ˦ˣ ̆˖ˍ˅ˁˇ̑˅ˁˈ ̊ ̨̍ʳʳʳʳʳʳʳˡˢˍʳ˦˦˥ˀˋ˃ˉˇ˄ʳ 2008.3.3 A-1-2 3 ˥ ̇ʳ˔́̇˸́́˴ʳ˔̆̆˸̀˵˿̌ʳʳ ˣ˂ˡˢˍ˖˄ˇˊˀˈ˄˃ˇˆ˃ˀ˔ʳʳʳʳʳʳʳ˦ˣ ̆˖ˍ˅ˁˇ̑˅ˁˈ ̊ ̨̍ʳʳʳʳʳʳʳˡˢˍʳ˦˦˥ˀˋ˃ˉˇ˄ʳ 2008.3.3 B-1-2 4 ˥ ̇ʳ˔́̇˸́́˴ʳ˔̆̆˸̀˵˿̌ʳʳ ˣ˂ˡˢˍ˖˄ˇˊˀˈ˄˃ˇˆ˃ˀ˔ʳʳʳʳʳʳʳ˦ˣ ̆˖ˍ˅ˁˇ̑˅ˁˈ ̊ ̨̍ʳʳʳʳʳʳʳˡˢˍʳ˦˦˥ˀˋ˃ˉˇ˄ʳ 2008.3.3 C-1-2 5 RF Antenna Assembly P/NO :C147-510430-A SPEC : 2.4~2.5GHz NO:SSR-80641 2008-2-1 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C147-510430-A SSR-80495Left.nsi 2.400000 GHz, 2.450000 GHz, 2.500000 GHz,, 6 RF Antenna Assembly P/NO :C147-510430-A SPEC : 2.4~2.5GHz NO:SSR-80641 2008-2-1 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C147-510430-A SSR-80495Middle.nsi 2.400000 GHz,2.450000 GHz,, 2.500000 GHz,, 7 RF Antenna Assembly P/NO :C147-510430-A SPEC : 2.4~2.5GHz NO:SSR-80641 2008-2-1 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C147-510430-A SSR-80495 Rignt.nsi 2.400000 GHz,2.450000 GHz,2.500000 GHz,, 8 11-15 Santai Rd., Hsinchuang, Taipei Hsien, 242, Taiwan, R.O.C. Nizing Electric Co., Ltd. Tel: 02 -29016164 Fax: 29050644 E-mail: [email protected] RG 178 B/UPAGE1 / 2 ISSUED16. Oct. 2003 PRODUCT STANDARD FEP INSULATED HIGH-FREQUENCY COAXIAL CABLE REVISED I - Scope This specification presents a FEP insulated high- frequency coaxial cable AWG 30, 1.8 mm O.D. for internal wiring of electronic equipment, such as Computer / Notebook with wireless communication systems. II - Construction ItemUnitDetails Material—CP-AG CompositionNo./mm AWG 30 or 7ͪ0.1 1. Inner Conductor Dia. (approx.)mm0.305 Material—Extruded FEP Nom. O.D. mm0.84 ± 0.05 2. Dielectric Color—Natural Material—Silver coated copper Composition—Braided (16 / 3 / 0.1) 3. Outer Conductor Dia. (approx)mm 1.29̈́0.01 Material—Extruded FEP Dia.mm 1.80̈́0.1 4. Jacket Color— Standard color is Light Orange MADE BY Note : APPROVALS 2 4 3 1 9 11-15 Santai Rd., Hsinchuang, Taipei Hsien, 242, Taiwan, R.O.C. Nizing Electric Co., Ltd. Tel: 02 -29016164 Fax: 29050644 E-mail: [email protected] RG 178 B/UPAGE2 / 2 ISSUED16. Oct. 2003 PRODUCT STANDARD FEP INSULATED HIGH-FREQUENCY COAXIAL CABLE REVISED III – Characteristics ItemUnitSpecified ValueNote Temperature Rating к -55 ~ +200 Voltage LastingV1000 Dielectric core: No breakdown at AC 3 kv for 0.2 sec. Spark test Dielectric strength— Jacket: No breakdown at AC 3 kv for 0.2 sec. Spark test Characteristic Impedance Ω50 ± 2TDR method CapacitancepF / m29.4at 1 kHz 52.01.0 GHz 94.03.0 GHz -5.0 GHz 16.0100.0 GHz Attenuation. (Max.)dB / 30m 33.0400.0 GHz Approx. Weight g / m 7.68 MADE BY Note : APPROVALS 10 11 12 13 14 15

Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 176 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless-N Access Point with power over ethernet Model: WAP4410N Trade Name: Linksys Issued to Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .... ....................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6 DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................35 7.3 A VERAGE POWER............................................................................................................................57 7.4 BAND EDGES MEASUREMENT ................................................................................................79 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................96 7.6 SPURIOUS EMISSIONS ..............................................................................................................125 7.7 RADIATED EMISSIONS ............................................................................................................152 7.8 POWERLINE CONDUCTED EMISSIONS.............................................................................................168 APPENDIX I RADIO FREQUENCY EXPOSURE .............................................................................171 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...........................................................................174 Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 Equipment Under Test: Wireless-N Access Point with power over ethernet Trade Name: Linksys Model Number: WAP4410N Date of Test: March 27 ~ July 8, 2008 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted Deviation from Applicable Standard The Powerline Conducted Emissions was tested at Compliance Certification Services. (Hsintien Lab.) The test equipments were listed in page 8 and the test data were recorded in page 169~170. We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tes…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 79 Rev. 00 7.4 BAND EDGES MEASUREMENT LIMIT According to §15.247(d), in any 100 kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in 15.209(a) (see Section 15.205(c)). Test Configuration Spectrum analyzer Horn antenna 3m 4m 1m Turntable EUT 0.8m Antenna tower Pre-amp TEST PROCEDURE 1. The EUT is placed on a turntable, which is 0.8m above the ground plane. 2. The turntable shall be rotated for 360 degrees to determine the position of maximum emission level. 3. EUT is set 3m away from the receiving antenna, which is varied from 1m to 4m to find out the highest emission. 4. Set the spectrum analyzer in the following setting in order to capture the lower and upper band-edges of the emission: (a) PEAK: RBW=VBW=1MHz / Sweep=AUTO (b) AVERAGE: RBW=1MHz / VBW=10Hz / Sweep=AUTO 5. Repeat the procedures until all the PEAK and AVERAGE versus POLARIZATION are measured. TEST RESULTS Refer to attach spectrum analyzer data chart. Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 80 Rev. 00 Band Edges (IEEE 802.11b mode / CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 81 Rev. 00 Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 82 Rev. 00 Band Edges (IEEE 802.11b mode / CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 83 Rev. 00 Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 84 Rev. 00 Band Edges (IEEE 802.11g mode / CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 85 Rev. 00 Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 86 Rev. 00 Band Edges (IEEE 802.11g mode / CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 87 Rev. 00 Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 88 Rev. 00 Band Edges (draft 802.11n Standard-20 MHz Channel mode / CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 89 Rev. 00 Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 90 Rev. 00 Band Edges (draft 802.11n Standard-20 MHz Channel mode / CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 91 Rev. 00 Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 92 Rev. 00 Band Edges (draft 802.11n Wide-40 MHz Channel mode / CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 93 Rev. 00 Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 94 Rev. 00 Band Edges (draft 802.11n Wide-40 MHz Channel mode / CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 95 Rev. 00 Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Compliance Certification Services Inc. Report No.: 80325206-RP1 FCC ID: Q87-WAP4410N Date of Issue: July 16, 2008 Page 96 Rev. 00 7.5 PEAK POWER SPECTRAL DENSITY LIMIT 1. According to §15.247(e), for digitally modulated systems, the power spectral density conducted from the intentional radiator to the antenna shall not be greater than 8 dBm in any 3 kHz band during any time interval of continuous transmission. 2. According to §15.247(f), the digital modulation operation of the hybrid system, with the frequency hopping turned off, shall comply with the power density…

Text truncated - open the document above for the full version.
