Q87-WAP54GV31Wireless-G Access Point

A Division of Cisco Systems, Inc. ® Model No. Access Point Wireless-G WAP54G ver. 3.1 User Guide WIRELESS GHz 2.4 802.11g Wireless-G Access Point Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this User Guide The user guide to the Wireless-G Access Point has been designed to make understanding networking with the Access Point easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section. This exclamation point means there is a caution or warning and is something that could damage your property or the Access Point. word: definition. This checkmark means there is a note of interest and is something you should pay special attention to while using the Access Point. This question mark provides you with a reminder about something you might need to do while using the Access Point. Figure 0-1: Sample Figure Description WAP54G_V3-UG-50509NC JL WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G Access Point Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this User Guide?2 Chapter 2: Planning Your Wireless Network4 Network Topology4 Roaming4 Network Layout5 Chapter 3: Getting to Know the Wireless-G Access Point6 The Front Panel6 The Back Panel7 Chapter 4: Connecting the Wireless-G Access Point8 Overview8 Connections for Setup8 Chapter 5: Setting up the Wireless-G Access Point9 Overview9 Using the Setup Wizard9 Chapter 6: Using the Linksys Wireless Guard Service25 Client Software Installation25 Network Access28 Your Account29 Chapter 7: Configuring the Wireless-G Access Point36 Overview36 Navigating the Utility36 Accessing the Utility38 The Setup - Network Setup Tab38 The Setup - AP Mode Tab40 The Wireless - Basic Wireless Settings Tab43 The Wireless - Wireless Security Tab45 The Wireless - Wireless MAC Filter Tab48 The Wireless - Advanced Wireless Settings Tab49 The Administration - Management Tab51 The Administration - SNMP Tab52 Wireless-G Access Point The Administration - Log Tab53 The Administration - Factory Defaults Tab54 The Administration - Firmware Upgrade Tab54 The Status - Local Network Tab55 The Status - Wireless Network Tab56 Appendix A: Troubleshooting57 Frequently Asked Questions57 Appendix B: Wireless Security61 Security Precautions61 Security Threats Facing Wireless Networks61 Appendix C: Upgrading Firmware64 Appendix D: Windows Help65 Appendix E: Glossary66 Appendix F: Specifications73 Appendix G: Warranty Information75 Appendix H: Regulatory Information76 Appendix I: Contact Information77 Wireless-G Access Point List of Figures Figure 3-1: Front Panel6 Figure 3-2: Back Panel7 Figure 4-1: Connect the Ethernet Network Cable8 Figure 4-2: Connect the Power8 Figure 5-1: Welcome Screen9 Figure 5-2: Connect the Network Cable to the Router or Switch Screen10 Figure 5-3: Connect the Network Cable to the Access Point Screen10 Figure 5-4: Power on the Access Point Screen11 Figure 5-5: Check the Access Point’s Status Screen11 Figure 5-6: Select the Access Point Screen12 Figure 5-7: Password Screen12 Figure 5-8: Basic Settings Screen13 Figure 5-9: Configure Wireless Settings Screen13 Figure 5-10: SecureEasySetup Screen14 Figure 5-11: SecureEasySetup Logo14 Figure 5-12: Additional Information - Hardware Button14 Figure 5-13: Additional Information - Software Button14 Figure 5-14: Configure Wireless Settings Screen15 Figure 5-15: Confirm New Settings Screen15 Figure 5-16: Congratulations Screen16 Figure 5-17: Configure Wireless Settings Screen17 Figure 5-18: Wireless Settings Screen17 Figure 5-19: Security Settings Screen18 Figure 5-20: WEP Settings Screen18 Figure 5-21: WPA Personal Settings19 Figure 5-22: WPA2 Personal Settings Screen19 Figure 5-23: WPA2 Mixed Mode Settings Screen20 Figure 5-24: Confirm New Settings Screen21 Wireless-G Access Point Figure 5-25: Congratulations Screen21 Figure 5-26: Attention Screen22 Figure 5-27: Linksys Wireless Guard Setup Screen22 Figure 5-28: Securing Your Access Point Screen23 Figure 5-29: Wireless Guard Password Screen23 Figure 5-30: Adding Authorized Users Screen24 Figure 5-31: Wireless Guard Congratulations Screen24 Figure 6-1: Note25 Figure 6-2: Configuring Windows Installer25 Figure 6-3: Exit Other Applications26 Figure 6-4: License Agreement26 Figure 6-5: Destination Location27 Figure 6-6: Copying Files27 Figure 6-7: Restart Your Computer28 Figure 6-8: The Network Access Screen28 Figure 6-9: Member Login29 Figure 6-10: Home30 Figure 6-11: Network Administration30 Figure 6-12: Modify Access Control31 Figure 6-13: Add Guest31 Figure 6-14: Add Member32 Figure 6-15: Welcome32 Figure 6-16: Subscriber Information33 Figure 6-17: Account Finances33 Figure 6-18: Credentials Information34 Figure 6-19: Congratulations34 Figure 7-1: Login Screen38 Figure 7-2: Setup - Automatic Configuration - DHCP Screen38 Figure 7-3: Setup - Static IP Screen39 Figure 7-4: Setup - AP Mode Screen40 Wireless-G Access Point Figure 7-5: Site Survey Screen40 Figure 7-6: Wireless Repeater Diagram41 Figure 7-7: Wireless Bridge Diagram42 Figure 7-8: Wireless - Basic Wireless Settings Screen43 Figure 7-9: Press the SecureEasySetup Button for Your Wireless Client43 Figure 7-10: Waiting for Completion of SecureEasySetup44 Figure 7-11: SecureEasySetup Completed Screen44 Figure 7-12: Confirm Reset44 F…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: March 8, 2006 FCC ID: Q87-WAP54GV31 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: March 8, 2006 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

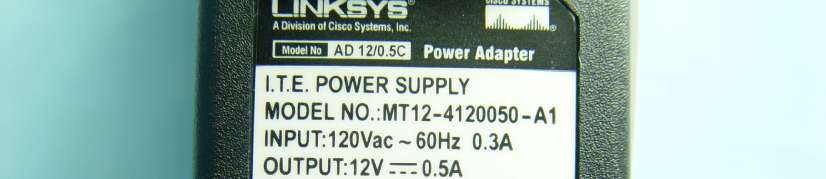

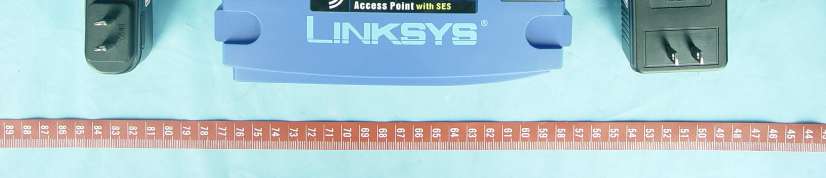

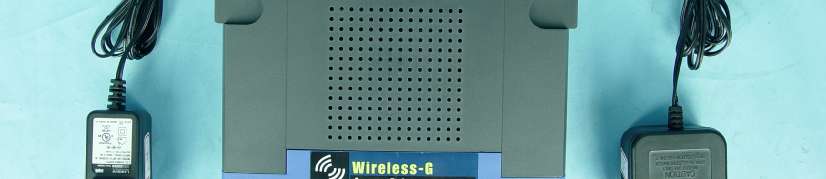

Model No.: WAP54G ver. 3.1 Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

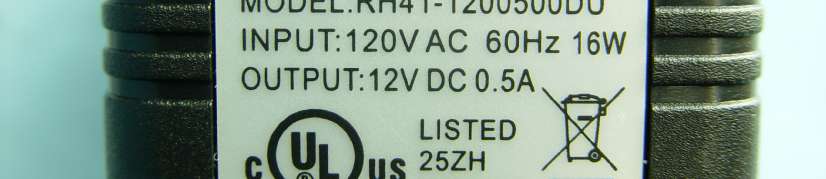

FCC ID : Q87-WAP54GV31 Label Location

Page 4 Page 5 Page 6 Page 7

FCC ID: Q87-WAP54GV31 Report No.RF941130L05 Operational Description This device is a Wireless-G Access Point, which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with Reverse TNC antenna connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-WAP54GV31 Report No: SA941130L05 1 RF EXPOSURE REPORT REPORT NO.: SA941130L05 MODEL NO.: WAP54G ver. 3.1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WAP54GV31 Report No: SA941130L05 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WAP54GV31 Report No: SA941130L05 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WAP54GV31 Report No: SA941130L05 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585 (numeric) 6.2 Output Power into Antenna & RF Exposure value at distance 20cm: For 802.11b DSSS Modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241244.8750.0141.0 6243744.7710.0141.0 11246244.7710.0141.0 For 802.11g OFDM Modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241235.9750.0111.0 6243735.9750.0111.0 11246236.1410.0111.0

Report No.: RF941130L051Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941130L05 MODEL NO.: WAP54G ver. 3.1 RECEIVED: Jan. 23, 2006 TESTED: Jan. 23 ~ Feb. 27, 2006 ISSUED: Mar. 02, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 72 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF941130L052Report Format Version 2.0.4 Table of Contents 1CERTIFICATION........................................................................................................4 2SUMMARY OF TEST RESULTS................................................................................5 2.1MEASUREMENT UNCERTAINTY..............................................................................5 3GENERAL INFORMATION.........................................................................................6 3.1GENERAL DESCRIPTION OF EUT...........................................................................6 3.2DESCRIPTION OF TEST MODES.............................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST.........................................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................10 3.4DESCRIPTION OF SUPPORT UNITS.....................................................................10 4TEST TYPES AND RESULTS..................................................................................11 4.1CONDUCTED EMISSION MEASUREMENT............................................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................11 4.1.2TEST INSTRUMENTS..............................................................................................11 4.1.3TEST PROCEDURES..............................................................................................12 4.1.4DEVIATION FROM TEST STANDARD.....................................................................12 4.1.5TEST SETUP...........................................................................................................13 4.1.6EUT OPERATING CONDITIONS.............................................................................13 4.1.7TEST RESULTS.......................................................................................................14 4.2RADIATED EMISSION MEASUREMENT.................................................................26 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...............................................26 4.2.2TEST INSTRUMENTS..............................................................................................27 4.2.3TEST PROCEDURES..............................................................................................28 4.2.4DEVIATION FROM TEST STANDARD.....................................................................28 4.2.5TEST SETUP...........................................................................................................29 4.2.6EUT OPERATING CONDITIONS.............................................................................29 4.2.7TEST RESULTS.......................................................................................................30 4.36dB BANDWIDTH MEASUREMENT........................................................................38 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT......................................................38 4.3.2TEST INSTRUMENTS..............................................................................................38 4.3.3TEST PROCEDURE.................................................................................................39 4.3.4DEVIATION FROM TEST STANDARD.....................................................................39 4.3.5TEST SETUP...........................................................................................................39 4.3.6EUT OPERATING CONDITIONS.............................................................................39 4.3.7TEST RESULTS.......................................................................................................40 4.4MAXIMUM PEAK OUTPUT POWER........................................................................46 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.........................46 Report No.: RF941130L053Report Format Version 2.0.4 4.4.2TEST INSTRUMENTS..............................................................................................46 4.4.3TEST PROCEDURES..............................................................................................47 4.4.4DEVIATION FROM TEST STANDARD.....................................................................47 4.4.5TEST SETUP...........................................................................................................47 4.4.6EUT OPERATING CONDITIONS.............................................................................47 4.4.7TEST RESULTS.......................................................................................................48 4.5POWER SPECTRAL DENSITY MEASUREMENT....................................................49 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..................................49 4.5.2TEST INSTRUMENTS..............................................................................................49 4.5.3TEST PROCEDURE.....…

Text truncated - open the document above for the full version.

Report No.: RF941130L0567Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST MODE A Report No.: RF941130L0568Report Format Version 2.0.4 MODE B Report No.: RF941130L0569Report Format Version 2.0.4 RADIATED EMISSION TEST MODE A Report No.: RF941130L0570Report Format Version 2.0.4 MODE B
