5 Chapter 2: Planning your Wireless Network Network Layout Dual-Band Wireless A + G Access Point Network Layout The Dual-Band Wireless A + G Access Point has been designed for use with 802.11g and 802.11b products. With 802.11g products communicating with the 802.11b standard, products using these standards can communicate with each other. The Access point is compatible with 802.11g and 802.11b adapters, such at the PC Cards for your laptop computers, PCI Card for your desktop PC, and USB Adapters for when you want to enjoy USB connectivity. These wireless products can also communicate with a 802.11g or 802.11b wireless PrintServer. When you wish to connect your wired network with your wireless network, the Access Point’s network port can be used to connect to any of Linksys's switches or routers. With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys website at www.linksys.com for more information about wireless products. 6 Chapter 3: Getting to Know the Dual-Band Wireless A + G Access Point The Back Panel Dual-Band Wireless A + G Access Point Chapter 3: Getting to Know the Dual-Band Wireless A + G Access Point The Back Panel The Access Point's ports, where the power cord and network cable are connected, are located on the back panel. EthernetThe Ethernet port connects to Ethernet network devices, such as a switch or router. PowerThe Power port is where you will connect the power adapter. Reset ButtonThere are two ways to Reset the Access Point's factory defaults. Either press the Reset Button, for approximately ten seconds, or restore the defaults from the Administration tab in the Access Point's Web-Based Utility. With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys website at www.linksys.com for more information about products that work with the Access Point. Important: Resetting the Access Point will erase all of your settings (Wireless Security, Wireless and LAN settings, etc.) and replace them with the factory defaults. Do not reset the Access Point if you want to retain these settings. Figure 3-1: The Access Point’s Back Panel port: the connection point on a computer or networking device used for plugging in cables or adapters 7 Chapter 3: Getting to Know the Dual-Band Wireless A + G Access Point The Front Panel Dual-Band Wireless A + G Access Point The Front Panel The Access Point's LEDs, where information about network activity is displayed, are located on the front panel. PowerGreen. The Power LED lights up when the Access Point is powered on. Wireless-A WLAN Green. When the WLAN LED is blinking, the Wireless-A network is operating. Wireless-G WLAN Green. When the WLAN LED is blinking, the Wireless-G network is operating. EthernetGreen. The Ethernet LED serves two purposes. If the LED is continuously lit, the Access Point is successfully connected to a device through the Ethernet port. If the LED is flickering, it is an indication of any network activity. Figure 3-2: Front Panel 8 Chapter 4: Connecting the Dual-Band Wireless A + G Access Point Hardware Installation Dual-Band Wireless A + G Access Point Chapter 4: Connecting the Dual-Band Wireless A + G Access Point Hardware Installation 1. Locate an optimum location for the Access Point. The best place for the Access Point is usually at the center of your wireless network, with line of sight to all of your PCs and wireless accessories. 2. Fix the direction of the antenna. Try to place it in a position that will best cover your wireless network. Normally, the higher you place the antenna, the better the performance will be. The antenna's position enhances the receiving sensitivity. 3. Connect a standard Ethernet network cable to the Access Point. Then, connect the other end of the Ethernet cable to a switch or router. The Access Point will then be connected to your wired Network. 4. Connect the AC Power Adapter to the Access Point's Power port and to an electrical outlet. Only use the power adapter supplied with the Access Point. Use of a different adapter may result in product damage. Now that the hardware installation is complete, proceed to Chapter 5: Setting Up the Dual-Band Wireless A + G Access Point, for directions on how to set up the Access Point. tcp/ip: a set of instructions PCs use to communicate over a network. HAVE YOU:Enabled TCP/IP on your PCs? PCs communicate over the network with this protocol. Refer to Appendix D: Windows Help for more information on TCP/IP. hardware: the physical aspect of computers, telecommunications, and other information technology devices NOTE: If you are setting up an Infrastructure Network, all of your wireless devices must be in Infrastructure mode in order to function within the network. Similarly, if your network is an Ad-Hoc Network, all of your wireless devices must operate in Ad-hoc mode in order for all other wireless devices to communicate. 9 Chapter 5: Setting Up the Dual-Band Wireless A + G Access Point Setup Wizard Dual-Band Wireless A + G Access Point Chapter 5: Setting Up the Dual-Band Wireless A + G Access Point Setup Wizard This Setup Wizard will take you through all the steps necessary to set up and configure the Access Point. 1. Insert the Setup Wizard CD into your PC's CD-ROM drive. Your PC must be on your wired network to set up the Access Point. 2. The Setup Wizard's Welcome screen should appear on your monitor. If it does not, this means the Setup Wizard is not automatically running as it should. Start the Setup Wizard manually by clicking the Start button, selecting Run, and typing d:\setup.exe (where "D" is your PC's CD-ROM drive). Click the Click Here to Start button to continue this Setup Wizard. Clicking the User Guide button opened this User Guide. To exit this Setup Wizard, click the Exit button. 3. The next screen shows how to start connecting the Access Point. Optimally, you should perform this setup through a PC on your wired network. Connect one end of the …

Text truncated - open the document above for the full version.

13 Chapter 5: Setting Up the Dual-Band Wireless A + G Access Point Setup Wizard Dual-Band Wireless A + G Access Point 11. The next screen that appears will depend on your security selection. Make sure that the security mode is the same for all the devices on your network. •WEP. From this screen, select the level of encryption, and enter a passphrase, which will generate the WEP key for you automatically, or you can enter the key manually. The WEP key can consist of the letters "A" through "F" and the numbers "0" through "9" and should be 10 characters in length for 64-bit encryption, 26 characters in length for 128-bit encryption, or 32 characters for 152-bit encryption. •PSK (Pre-Shared Key) you have two encryption options, TKIP and AES, with dynamic encryption keys. Select the type of algorithm, TKIP or AES. Enter a Passphrase of 8-32 characters. Then, click the Next button to continue or Back to return to the previous page. For more information on wireless security, refer to Appendix B: Wireless Security. Figure 5-10: Wireless-A Security - WEP Figure 5-11: Wireless-A Security - PSK bit: a binary digit encryption: encoding data transmitted in a network 14 Chapter 5: Setting Up the Dual-Band Wireless A + G Access Point Setup Wizard Dual-Band Wireless A + G Access Point 12. The Wireless-G Settings screen should now appear. Enter your wireless 802.11g network's SSID, select the channel at which the network broadcasts its wireless signal, and select the security. Then, click the Next button to continue or Back to return to the previous page. •SSID. The SSID is the unique name shared among all points in a wireless network. The SSID must be identical for all points in the wireless network. It is case sensitive and must not exceed 32 characters, which may be any keyboard character. Make sure this setting is the same for all points in your wireless network. •Channel. Select the appropriate channel from the list provided to correspond with your network settings, between 1 and 11. All points in your wireless network must use the same channel in order to function correctly. •SSID Broadcast. When wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the Access Point. To broadcast the Access Point's SSID, keep the default setting, Enabled. If you do not want to broadcast the Access Point's SSID, then select Disabled. •Security. Two wireless security methods are available: WEP (Wired Equivalent Privacy) and PSK (Pre- Shared Key), which is the stronger security method. Select WEP or PSK from the drop-down menu. All devices in your wireless network must use the same security method. 13. The next screen that appears will depend on your security selection. Make sure that the security mode is the same for all the devices on your network. •WEP. From this screen, select the level of encryption, and enter a passphrase, which will generate the WEP key for you automatically, or you can enter the key manually. The WEP key can consist of the letters "A" through "F" and the numbers "0" through "9" and should be 10 characters in length for 64-bit encryption or 26 characters in length for 128-bit encryption. Figure 5-13: Wireless-G Security - WEP Figure 5-12: Wireless-G Settings 15 Chapter 5: Setting Up the Dual-Band Wireless A + G Access Point Setup Wizard Dual-Band Wireless A + G Access Point •PSK (Pre-Shared Key) you have two encryption options, TKIP and AES, with dynamic encryption keys. Select the type of algorithm, TKIP or AES. Enter a Passphrase of 8-32 characters. Then, click the Next button to continue or Back to return to the previous page. For more information on wireless security, refer to Appendix B: Wireless Security. 14. The Confirm New Settings screen will appear to allow you to check your settings. If you want to change a setting, click the Back button until you find the correct screen. If your settings are correct, click the Save button. If you want to cancel the installation, you may click Exit. Figure 5-14: Wireless-G Security - PSK Figure 5-15: Confirm New Settings 16 Chapter 5: Setting Up the Dual-Band Wireless A + G Access Point Setup Wizard Dual-Band Wireless A + G Access Point 15. The configuration performed with the Setup Wizard is complete. To configure any other Access Points in your network, you can run this Setup Wizard again. Click the Exit button to exit the Setup Wizard. For more advanced configuration, you can go to Chapter 6: Configuring the Dual-Band Wireless A + G Access Point. Figure 5-16: Congratulations 17 Chapter 6: Configuring the Dual-Band Wireless A + G Access Point Overview Dual-Band Wireless A + G Access Point Chapter 6: Configuring the Dual-Band Wireless A + G Access Point Overview The Access Point has been designed to be functional right out of the box. However, if you'd like to change these settings, the Access Point can be configured through your web browser with the Web-Based Utility or Setup Wizard. For your convenience, use the Access Point’s Web-based Utility to administer it. This chapter will explain all of the functions in this Utility. The Utility can be accessed via Microsoft Internet Explorer or Netscape Navigator through use of a computer connected with an Ethernet cable to the Access Point. For a basic network setup, most users only have to use the following screens of the Utility: • Setup On the Network Setup screen, you can configure your basic network settings. • Wireless on the Basic Wireless screen, you can configure the wireless settings. • Administration Click the Administration tab and then select the Password screen. The Access Point’s default password is admin. To secure the Access Point, change the Password from its default. Navigating the Utility There are four main tabs: Setup, Wireless, Administration, and Status. Additional screens will be available from the main tabs. Setup •Network Setup. You can configure the Access Point’s network settings on this screen. Have You: Enabl…

Text truncated - open the document above for the full version.

25 Chapter 6: Configuring the Dual-Band Wireless A + G Access Point The Wireless Tab - Advanced Wireless Settings Dual-Band Wireless A + G Access Point The Wireless Tab - Advanced Wireless Settings This screen contains the advanced wireless settings. In most cases, these settings do not need to be changed. Wireless-A Settings Authentication Type. The default is set to Open System (Default) authentication, when the sender and the recipient do NOT use a WEP key for authentication. With Shared Key authentication, the sender and recipient use a WEP key for authentication. Transmission Rate. The rate of data transmission should be set depending on the speed of your wireless network. You can select from a range of transmission speeds, or you can select Auto (Default) to have the Access Point automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the Access Point and a wireless client. The default value is Auto (Default). Transmission Power. (Transmit Power Control (TPC)) The greater the transmission power used, the larger the area a wireless network covers. To minimize the likelihood of eavesdropping by unauthorized wireless users, do not use more transmission power than necessary to cover the range needed by your wireless network. Try using the Access Point at different levels of transmission power, and determine how much power is needed to reach the wireless client, such as a PC or access point, that is farthest from the Access Point. Then select the appropriate level, Full (Default), Half, Quarter, Eighth, or Min, from the drop-down menu. The default is Full (Default). Frame Burst Mode. Enabling this option should provide your network with greater performance, depending on the manufacturer of your wireless products. If you are not sure how to use this option, keep the default, Enabled (Default). Beacon Interval. The default value is 100. The Beacon Interval value indicates the frequency interval of the beacon. A beacon is a packet broadcast by the Access Point to synchronize the wireless network. DTIM Interval. This value indicates the interval of the Delivery Traffic Indication Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the Access Point has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. Its clients hear the beacons and awaken to receive the broadcast and multicast messages. The default value is 1. Fragmentation Threshold. This value specifies the maximum size for a packet before data is fragmented into multiple packets. If you experience a high packet error rate, you may slightly increase the Fragmentation Threshold. Setting the Fragmentation Threshold too low may result in poor network performance. Only minor reduction of the default value is recommended. In most cases, it should remain at its default value of 2346. Figure 6-9: Advanced Wireless beacon interval: data transmitted on your wireless network that keeps the network synchronized. dtim: a message included in data packets that can increase wireless efficiency. fragmentation: breaking a packet into smaller units when transmitting over a network medium that cannot support the original size of the packet. packet: a unit of data sent over a network 26 Chapter 6: Configuring the Dual-Band Wireless A + G Access Point The Wireless Tab - Advanced Wireless Settings Dual-Band Wireless A + G Access Point RTS Threshold. Should you encounter inconsistent data flow, only minor reduction of the default value, 2346, is recommended. If a network packet is smaller than the preset RTS threshold size, the RTS/CTS mechanism will not be enabled. The Access Point sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame. After receiving an RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission. The RTS Threshold value should remain at its default value of 2346. Wireless-G Settings Authentication Type. The default is set to Open System (Default) authentication, when the sender and the recipient do NOT use a WEP key for authentication. With Shared Key authentication, the sender and recipient use a WEP key for authentication. Basic Rate. The Basic Rate setting is not actually one rate of transmission but a series of rates at which the Access Point can transmit. The Access Point will advertise its Basic Rate to the other wireless devices in your network, so they know which rates will be used. The Access Point will also advertise that it will automatically select the best rate for transmission. The default setting is Default, when the Access Point can transmit at all standard wireless rates (1-2Mbps, 5.5Mbps, 11Mbps, 18Mbps, and 24Mbps). Other options are 1-2Mbps, for use with older wireless technology, and All, when the Access Point can transmit at all wireless rates. The Basic Rate is not the actual rate of data transmission. If you want to specify the Access Point’s rate of data transmission, configure the Transmission Rate setting. Transmission Rate. The rate of data transmission should be set depending on the speed of your wireless network. You can select from a range of transmission speeds, or you can select Auto (Default) to have the Access Point automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the Access Point and a wireless client. The default value is Auto (Default). Transmission Power. (Transmit Power Control (TPC)) The greater the transmission power used, the larger the area a wireless network covers. To minimize the likelihood of eavesdropping by unauthorized wireless users, do not use more transmission power than necessary to cover the range needed by your …

Text truncated - open the document above for the full version.

A Division of Cisco Systems, Inc. ® Model No. Access Point WAP55AG ver. 2 User Guide WIRELESS Wireless A+G Dual-Band GHz 5 GHz 2.4 802.11g 802.11a + Dual-Band Dual-Band Wireless A + G Access Point Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this Guide Your guide to the Dual-Band Wireless A + G Access Point has been designed to make understanding networking with the Access Point easier than ever. Look for the following items when reading this guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the "List of Figures" section in the “Table of Contents”. This exclamation point means there is a Caution or warning and is something that could damage your property or the Access Point. word: definition. This checkmark means there is a Note of interest and is something you should pay special attention to while using the Access Point. This question mark provides you with a reminder about something you might need to do while using the Access Point. Figure 0-1: Sample Figure Description WAP55AG-V2-UG-41223NC BW Dual-Band Wireless A + G Access Point Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Planning your Wireless Network4 Network Topology4 Roaming4 Network Layout5 Chapter 3: Getting to Know the Dual-Band Wireless A + G Access Point6 The Back Panel6 The Front Panel7 Chapter 4: Connecting the Dual-Band Wireless A + G Access Point8 Hardware Installation8 Chapter 5: Setting Up the Dual-Band Wireless A + G Access Point9 Setup Wizard9 Chapter 6: Configuring the Dual-Band Wireless A + G Access Point17 Overview17 Navigating the Utility17 Accessing the Utility19 The Setup Tab19 The Wireless Tab20 The Wireless Tab - Basic Wireless Settings20 The Wireless Tab - Wireless Security22 The Wireless Tab - Wireless MAC Filter24 The Wireless Tab - Advanced Wireless Settings25 The Administration Tab - Password28 The Administration Tab - Log28 The Administration Tab - Factory Defaults29 The Administration Tab - Firmware Upgrade29 The Status Tab - Local Network30 The Status Tab - Wireless31 Appendix A: Troubleshooting32 Frequently Asked Questions32 Dual-Band Wireless A + G Access Point Appendix B: Wireless Security36 Security Precautions36 Security Threats Facing Wireless Networks36 Appendix C: Upgrading Firmware39 Appendix D: Windows Help40 Appendix E: Glossary41 Appendix F: Specifications45 Appendix G: Warranty Information46 Appendix H: Regulatory Information47 Appendix I: Contact Information49 Dual-Band Wireless A + G Access Point List of Figures Figure 3-1: The Access Point’s Back Panel6 Figure 3-2: Front Panel7 Figure 5-1: The Setup Wizard’s Welcome Screen9 Figure 5-2: Connect to the Router9 Figure 5-3: Connect to the Ethernet Port10 Figure 5-4: Connect to the Power10 Figure 5-5: Check the LEDs10 Figure 5-6: Select the Access Point11 Figure 5-7: Enter the Password11 Figure 5-8: Basic Settings12 Figure 5-9: Wireless-A Settings12 Figure 5-10: Wireless-A Security - WEP13 Figure 5-11: Wireless-A Security - PSK13 Figure 5-12: Wireless-G Settings14 Figure 5-13: Wireless-G Security - WEP14 Figure 5-14: Wireless-G Security - PSK15 Figure 5-15: Confirm New Settings15 Figure 5-16: Congratulations16 Figure 6-1: Automatic Configuration - DHCP19 Figure 6-2: Static IP Address19 Figure 6-3: Basic Wireless Settings20 Figure 6-4: WEP22 Figure 6-5: Pre-Shared Key22 Figure 6-6: Pre-Shared Key + Radius23 Figure 6-7: Wireless MAC Filter24 Figure 6-8: Wireless Client List24 Figure 6-9: Advanced Wireless25 Figure 6-10: Password28 Dual-Band Wireless A + G Access Point Figure 6-11: Log28 Figure 6-12: Factory Defaults29 Figure 6-13: Firmware Upgrade29 Figure 6-14: Status - Local Network30 Figure 6-15: Status - Wireless Network30 Figure C-1: Upgrade Firmware39 1 Chapter 1: Introduction Welcome Dual-Band Wireless A + G Access Point Chapter 1: Introduction Welcome Thank you for choosing the Dual-Band Wireless A + G Access Point. This Access Point will allow you to network wirelessly better than ever. How does the Access Point do all of this? An access point allows for greater range and mobility within your wireless network while also allowing you to connect the wireless network to a wired environment. Being a dual- band access point, not only does the Access Point bring you these benefits, it also allows three wireless standards, 802.11a, 802.11b and 802.11g, to communicate with each other. This means that PCs with different wireless standards can communicate with each other and with a wired network. But what does all of this mean? Networks are useful tools for sharing computer resources. You can access one printer from different computers and access data located on another computer's hard drive. Networks are even used for playing multiplayer video games. So, networks are not only useful in homes and offices, they can also be fun. PCs on a wired network create a LAN, or Local Area Network. They are connected with Ethernet cables, which is why the network is called "wired". PCs equipped with wireless cards and adapters can communicate without cumbersome cables. By sharing the same wireless settings, within their transmission radius, they form a wireless network. This is sometimes called a WLAN, or Wired Local Area Network. The Access Point bridges wireless networks of both 802.11g and 802.11b standards and wired networks. Use the instructions in this Guide to help you connect the Access Point, set it up, and configure it to bridge your different network…

Text truncated - open the document above for the full version.

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: November 1, 2004 FCC ID: Q87-WAP55AGV2 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: November 1, 2004 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Cisco-Linksys, LLC declares that the equipment described in this document is within the requirements of the Code of Federal Regulations listed below: Product Name: Wireless A+G Access Point Model Number: WAP55AG ver. 2 This device complies with the limits for a Class B digital device pursuant to IEEE ANSI C63.4 and FCC Part 15 subpart B of the Rules and Regulations. The test result has been shown in the ADT test report with numbered FD931028L16 Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. The Part 15 radio device operates on a non-interference basis with other devices operation at this frequency. Any change or modification to the product not expressly approved by Linksys could void the user’s authority to operate the device. Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Agency Authorization Letter Date: November 1, 2004 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, _________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

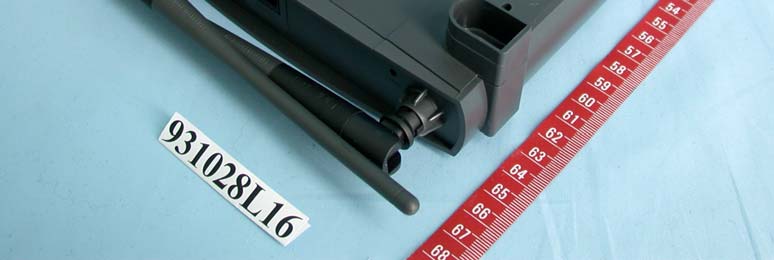

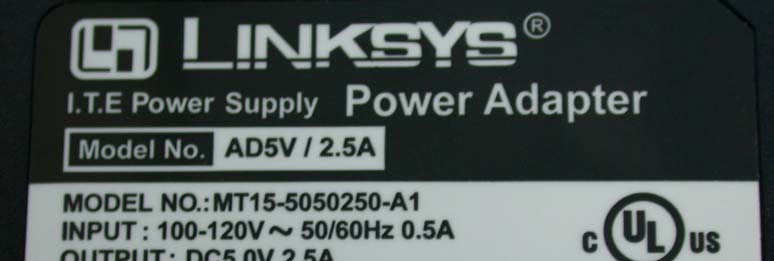

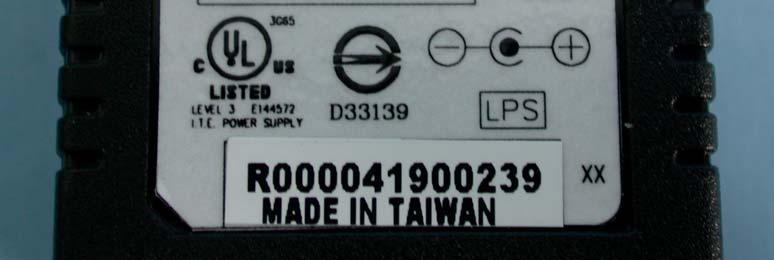

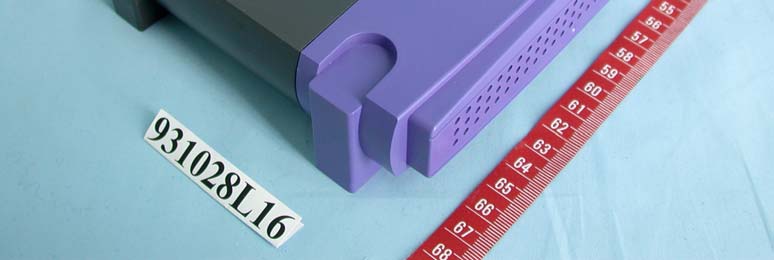

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

FCC ID Label Location

Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

FCC ID: Q87-WAP55AGV2 Report No.RF931028L16 Operational Description The transmitter of the EUT (Wireless A+G Access Point) is powered by AC adapter. The antenna types used in this product are Dipole and antenna with UFL antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a Wireless A+G Access Point, which operates in both of the 5GHz and 2.4GHz bands and can transmitting simultaneously, the maximum data rate could be 54Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: Q87-WAP55AGV2 Report No: SA931028L16 1 RF EXPOSURE REPORT REPORT NO.: SA931028L16 MODEL NO.: WAP55AG ver. 2 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive Irvine, CA 92612, USA ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WAP55AGV2 Report No: SA931028L16 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can c…
