USER GUIDE Ultra RangePlus Wireless-N Access Point with Dual-Band Model: WAP610N About This Guide i Ultra RangePlus Wireless-N Access Point with Dual-Band About This Guide Icon Descriptions While reading through the User Guide you may see various icons that call attention to specific items. Below is a description of these icons: NOTE: This check mark indicates that there is a note of interest and is something that you should pay special attention to while using the product. WARNING: This exclamation point indicates that there is a caution or warning and it is something that could damage your property or product. WEB: This globe icon indicates a noteworthy website address or e-mail address. Online Resources Website addresses in this document are listed without http:// in front of the address because most current web browsers do not require it. If you use an older web browser, you may have to add http:// in front of the web address. ResourceWebsite Linksyswww.linksysbycisco.com Linksys International www.linksysbycisco.com/international Glossarywww.linksysbycisco.com/glossary Network Security www.linksysbycisco.com/security Copyright and Trademarks Linksys, Cisco and the Cisco Logo are registered trademarks or trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Other brands and product names are trademarks or registered trademarks of their respective holders. Copyright © 2009 Cisco Systems, Inc. All rights reserved. Table of Contents ii Ultra RangePlus Wireless-N Access Point with Dual-Band Chapter 1: Product Overview 1 LEDs Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Ports Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Chapter 2: Wireless Security Checklist 2 General Network Security Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Additional Security Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Chapter 3: Advanced Configuration 3 Setup > Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Wireless > Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Wireless > Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Wireless > Wireless MAC Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Wireless > WMM® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Wireless > Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Administration > Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Administration > Factory Defaults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Administration > Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Status > Access Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Status > Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Status > About . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Appendix A: Troubleshooting 14 Appendix B: Specifications 15 Appendix C: Warranty Information 16 Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Appendix D: Regulatory Information 18 FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 FCC Radiation Exposure Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Safety Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Industry Canada Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Restrictions in the 5 GHz Band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Avis d’Industrie Canada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Restrictions dans la bande 5 GHz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Wireless Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Avis de non-responsabilité concernant les appareils sans fil . . . . . . . . . . . . . . . . . .20 Table of Contents iii Ultra RangePlus Wireless-N Access Point with Dual-Band User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Appendix E: Software End User License Agreement 25 Cisco Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Software Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Chapter 1 Product Overview 1 Ultra RangePlus Wireless-N Access Point with Dual-Band Chapter 1: Product Overview Thank you for choosing the Linksys by Cisco Ultra RangePlus Wireless-N Access Point with Dual-Band. TBD TBD TBD. LEDs Panel Wireless (Blue) The Wireless LED lights up when there is a wireless connection. The LED flashes when the Access Point is actively sending or receiving data over the wireless network. Wi-Fi Protected Setup Button If your router supports Wi-Fi Protected Setup and uses WPA or WPA2 security, then you can use Wi-Fi Protected Setup to automatically connect the Access Point. To use Wi-Fi Protected Setup, run the Setup Wizard, or refer to Wireless > Basic Wireless Settings, page 4. Wi-Fi Protected Setup LED (Blue/Amber) The LED flashes blue for two minutes during Wi-Fi Protected Setup. It lights up blue when wireless security is…

Text truncated - open the document above for the full version.

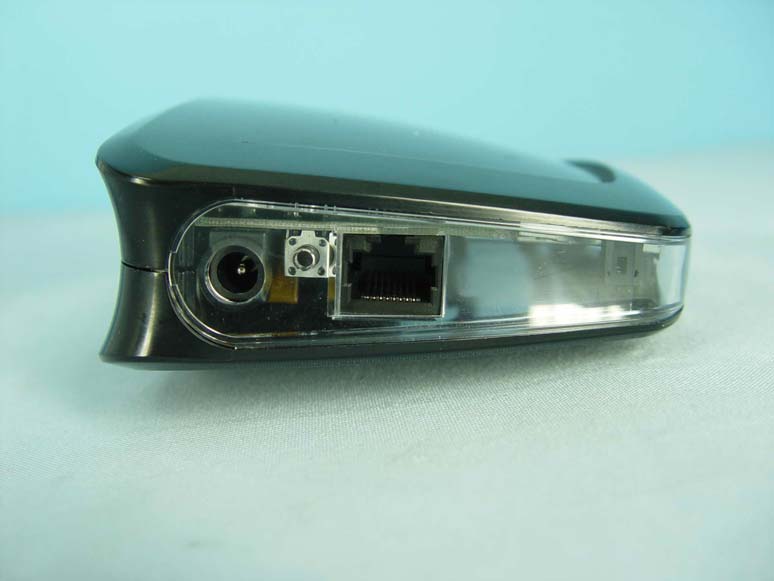

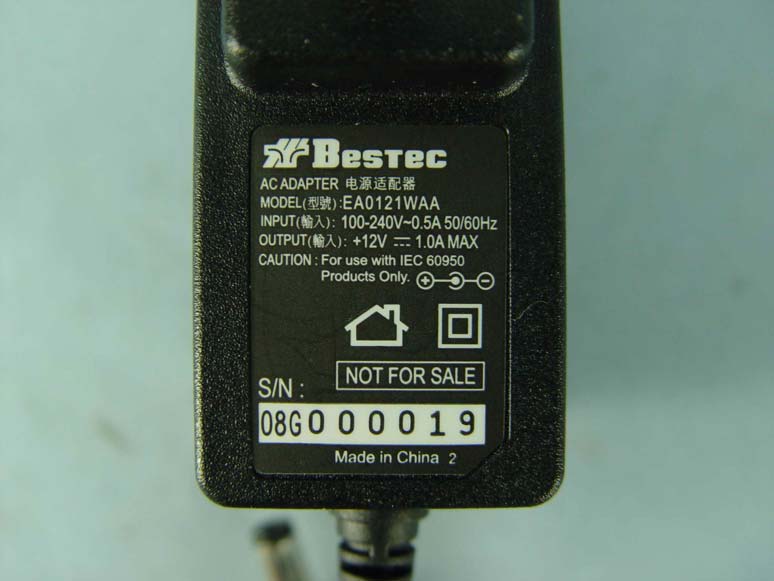

Model No.: WAP610N Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID .: Q87-WAP610N Label Location

Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: Q87-WAP610N Report No.: RF971208L04 Operational Description This device is a Wireless-N Access Point with Dual-Band, which operates in the 2.4GHz and 5GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antennas for 2.4GHz / 5GHz are PIFA Antenna and Printed Antenna without antenna connector. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: Q87-WAP610N Report No: SA971208L04 Report Format Version 3.0.0. 1 RF EXPOSURE REPORT REPORT NO.: SA971208L04 MODEL NO.:WAP610N ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WAP610N Report No: SA971208L04 Report Format Version 3.0.0. 2 RF EXPOSURE MEASUREMENT (MOBILE DEVICE) 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: Q87-WAP610N Report No: SA971208L04 Report Format Version 3.0.0. 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WAP610N Report No: SA971208L04 Report Format Version 3.0.0. 4 6. TEST RESULTS 6.1 ANTENNA GAIN The maximum Gain measured in Fully Anechoic Chamber is 1dBi or 1.258925(numeric) (for 2.4GHz); 1.28dBi or 1.342765(numeric) (for 5.0GHz). 6.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: For 2.412 ~ 2.462GHz band: 802.11b DSSS MODULATION: CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2412 129.122 21.11 0.032 1.000 6 2437 128.529 21.09 0.032 1.000 11 2462 127.350 21.05 0.032 1.000 802.11g OFDM MODULATION: PEAK POWER OUTPUT (dBm) CHAN. CHAN. FREQ. (MHz) CHAIN 0 CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 22.06 22.08 322.130 25.08 0.081 1.000 6 2437 22.56 22.11 342.857 25.35 0.086 1.000 11 2462 22.11 22.07 323.619 25.10 0.081 1.000 DRAFT 802.11n (20MHz) OFDM MODULATION: PEAK POWER OUTPUT (dBm) CHAN. CHAN. FREQ. (MHz) CHAIN 0 CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 19.05 19.09 161.449 22.08 0.040 1.000 6 2437 19.09 19.08 162.006 22.10 0.041 1.000 11 2462 19.03 19.03 159.967 22.04 0.040 1.000 DRAFT 802.11n (40MHz) OFDM MODULATION: PEAK POWER OUTPUT (dBm) CHAN. CHAN. FREQ. (MHz) CHAIN 0 CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2422 19.04 19.11 161.638 22.09 0.040 1.000 4 2437 19.59 19.62 182.613 22.62 0.046 1.000 7 2452 19.06 19.07 161.261 22.08 0.040 1.000 FCC ID: Q87-WAP610N Report No: SA971208L04 Report Format Version 3.0.0. 5 For 5.180 ~ 5.240GHz band: 802.11a OFDM MODULATION: PEAK POWER OUTPUT (dBm) CHAN. CHAN. FREQ. (MHz) CHAIN 0 CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 36 5180 11.11 11.08 25.735 14.11 0.007 1.000 40 5200 11.54 11.05 26.991 14.31 0.007 1.000 48 5240 11.07 11.09 25.647 14.09 0.007 1.000 DRAFT 802.11n (20MHz) OFDM MODULATION: PEAK POWER OUTPUT (dBm) CHAN. CHAN. FREQ. (MHz) CHAIN 0 CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 36 5180 9.58 9.59 18.177 12.60 0.005 1.000 40 5200 10.06 9.52 19.093 12.81 0.005 1.000 48 5240 9.54 9.56 18.031 12.56 0.005 1.000 DRAFT 802.11n (40MHz) OFDM MODULATION: PEAK POWER OUTPUT (dBm) CHAN. CHAN. FREQ. (MHz) CHAIN 0 CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 38 5190 9.04 9.10 16.145 12.08 0.004 1.000 46 5230 9.08 9.13 16.276 12.12 0.004 1.000 FCC ID: Q87-WAP610N Report No: SA971208L04 Report Format Version 3.0.0. 6 For 5.745 ~ 5.825GHz band: 802.11a OFDM MODULATION: PEAK POWER OUTPUT (dBm) CHAN. CHAN. FREQ. (MHz) CHAIN 0 CHAIN …

Text truncated - open the document above for the full version.

Report No.: RF971208L04 1 Report Format Version 3.0.0. FCC TEST REPORT (15.247) REPORT NO.: RF971208L04 MODEL NO.: WAP610N RECEIVED: Dec. 08, 2008 TESTED: Mar. 23 ~ Mar. 26, 2009 ISSUED: Apr. 02, 2009 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 156 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF971208L04 2 Report Format Version 3.0.0. TABLE OF CONTENTS 1. CERTIFICATION........................................................................................................... 5 2. SUMMARY OF TEST RESULTS .................................................................................. 6 2.1 MEASUREMENT UNCERTAINTY................................................................................ 6 3. GENERAL INFORMATION ........................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ............................................................................. 7 3.2 DESCRIPTION OF TEST MODES ............................................................................... 9 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ........................................................ 10 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................ 15 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 15 4. TEST TYPES AND RESULTS (FOR 2.4GHZ BAND)................................................. 16 4.1 RADIATED EMISSION MEASUREMENT .................................................................. 16 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................ 16 4.1.2 TEST INSTRUMENTS................................................................................................ 17 4.1.3 TEST PROCEDURES ................................................................................................ 18 4.1.4 DEVIATION FROM TEST STANDARD....................................................................... 18 4.1.5 TEST SETUP.............................................................................................................. 19 4.1.6 EUT OPERATING CONDITIONS ............................................................................... 19 4.1.7 TEST RESULTS ......................................................................................................... 20 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................. 33 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 33 4.2.2 TEST INSTRUMENTS................................................................................................ 33 4.2.3 TEST PROCEDURES ................................................................................................ 34 4.2.4 DEVIATION FROM TEST STANDARD....................................................................... 34 4.2.5 TEST SETUP.............................................................................................................. 35 4.2.6 EUT OPERATING CONDITIONS ............................................................................... 35 4.2.7 TEST RESULTS ......................................................................................................... 36 4.3 6dB BANDWIDTH MEASUREMENT.......................................................................... 38 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT ...................................................... 38 4.3.2 TEST INSTRUMENTS................................................................................................ 38 4.3.3 TEST PROCEDURE................................................................................................... 38 4.3.4 DEVIATION FROM TEST STANDARD....................................................................... 38 4.3.5 TEST SETUP.............................................................................................................. 39 4.3.6 EUT OPERATING CONDITIONS ............................................................................... 39 4.3.7 TEST RESULTS ......................................................................................................... 40 4.4 MAXIMUM PEAK OUTPUT POWER.......................................................................... 54 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................... 54 4.4.2 INSTRUMENTS .......................................................................................................... 54 4.4.3 TEST PROCEDURES ................................................................................................ 54 4.4.4 DEVIATION FROM TEST STANDARD....................................................................... 55 4.4.5 TEST SETUP.............................................................................................................. 55 4.4.6 EUT OPERATING CONDITIONS ............................................................................... 55 4.4.7 TEST RESULTS ......................................................................................................... 56 4.5 POWER SPECTRAL DENSITY MEASUREMENT ..................................................... 58 4.5.1 LIMITS OF…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
