Q87-WBP54GV2Wireless-G Bridge for Phone Adapters

A Division of Cisco Systems, Inc. ® Model No. Bridge for Phone Adapters Wireless-G WBP54G v2 User Guide WIRELESS GHz 2.4 802.11g Wireless-G Bridge for Phone Adapters Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use This User Guide This User Guide has been designed to make understanding networking with the Wireless-G Bridge for Phone Adapters easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a caution or warning and is something that could damage your property or the Wireless-G Bridge for Phone Adapters. This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-G Bridge for Phone Adapters. This question mark provides you with a reminder about something you might need to do while using the Wireless-G Bridge for Phone Adapters. word: definition. Figure 0-1: Sample Figure Description WBP54G_V2-UG-51205A JL WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G Bridge for Phone Adapters Table of Contents Chapter 1: Introduction1 Welcome1 What’s in This User Guide?2 Chapter 2: Planning Your Wireless Network3 Network Topology3 Roaming3 Network Layout4 Chapter 3: Getting to Know the Wireless-G Bridge for Phone Adapters5 Overview5 The LEDs5 The Port5 The Cable6 Chapter 4: Setting Up and Connecting the Wireless-G Bridge for Phone Adapters7 Starting the Setup Wizard7 Running the Setup Wizard7 Appendix A: Troubleshooting17 Common Problems and Solutions17 Frequently Asked Questions18 Appendix B: Wireless Security21 Security Precautions21 Security Threats Facing Wireless Networks21 Appendix C: Upgrading Firmware24 Appendix D: Windows Help29 Appendix E: Glossary30 Appendix F: Specifications35 Appendix G: Warranty Information37 Appendix H: Regulatory Information38 Appendix I: Contact Information45 Wireless-G Bridge for Phone Adapters List of Figures Figure 3-1: LEDs 5 Figure 3-2: Power Port 5 Figure 3-3: Combination Cable 6 Figure 4-1: Welcome Screen 7 Figure 4-2: License Agreement Screen 7 Figure 4-3: Check for Compatibility Screen 8 Figure 4-4: Disconnect the Power from the Phone Adapter or IP Phone Screen 8 Figure 4-5: Power on the Bridge Screen 9 Figure 4-6: Connecting the Network Cable to a Router Screen 9 Figure 4-7: Wireless-G Bridge Setup Screen 10 Figure 4-8: Choose a Wireless Network Screen 10 Figure 4-9: Security Settings - WPA Screen 11 Figure 4-10: Security Settings - WPA2 Screen 11 Figure 4-11: Security Settings - WEP (64-Bit) Screen 12 Figure 4-12: Security Settings - WEP Keys Screen 12 Figure 4-13: Confirmation Screen 13 Figure 4-14: If the Bridge Does Not Connect... Screen 13 Figure 4-15: Disconnect the Network Cable from the Router Screen 13 Figure 4-16: Disconnect the Power Adapter Screen 14 Figure 4-17: Disconnect the Network Cable from the Phone Adapter Screen 14 Figure 4-18: Connect the Attached Bridge Power Cable to the Phone Adapter Screen 15 Figure 4-19: Wireless is Now Active Screen 15 Figure 4-20: Congratulations Screen 16 Figure C-1: Icons 24 Figure C-2: Security Warning for Windows XP 24 Figure C-3: Upgrade Utility Setup - Welcome 24 Figure C-4: Choose Destination Location 25 Figure C-5: Setup is Complete 25 Figure C-6: Start Upgrade Utility Program 25 Figure C-7: Upgrade Utility - Browse Targets 26 Figure C-8: Browsed Devices on Network Screen - Click Files 26 Figure C-9: Open Firmware File 27 Wireless-G Bridge for Phone Adapters Figure C-10: BIN File Information Screen 27 Figure C-11: Browsed Devices on Network Screen - Select Bridge 27 Figure C-12: Upgrade Successful 28 1 Chapter 1: Introduction Welcome Wireless-G Bridge for Phone Adapters Chapter 1: Introduction Welcome Thank you for choosing the Wireless-G Bridge for Phone Adapters. With this Bridge, your wireless networking experience will be faster and easier than ever. How does the Bridge do this? You can put your Linksys phone adapter or IP phone almost anywhere, without the cost and hassle of running network cables. The Bridge was specially designed to convert your phone adapter or IP phone into a wireless device, so it can connect to your home network without an Ethernet cable. This lets you put your phone where it's most convenient for you, and not be limited to the area around your Internet connection. To make installation even more convenient, the Bridge shares electrical power with the phone adapter or IP phone, so only one power adapter is needed. To get connected, just plug your existing power adapter's power jack into the Bridge, and connect the power and data cables of the Bridge to the phone adapter or IP phone. The included Setup Wizard makes it easy to configure the Bridge for your wireless network. To protect your data and privacy, all wireless transmissions can be encrypted with WEP or industrial-strength, Wi-Fi Protected Access (WPA/WPA2) security. But what does all of this mean? Networks are useful tools for sharing computer resources. You can access one printer from different computers and access data located on another computer's hard drive. Networks are even used for playing multiplayer video games. So, networks are not only useful in homes and offices, they can also be fun. PCs equi…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: 2005/12/8 FCC ID: Q87-WBP54GV2 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: 2005/12/8 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

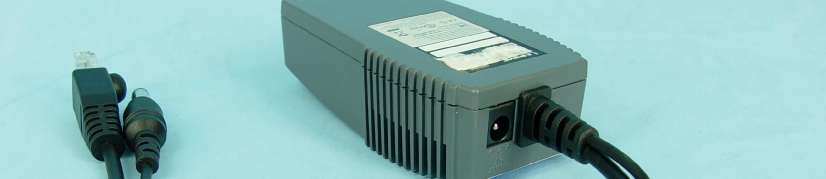

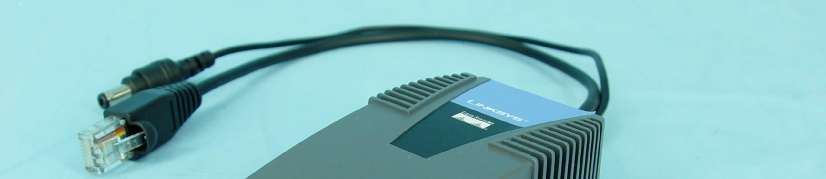

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID: Q87-WBP54GV2 Report No.: RF941103L05 Operational Description This device is a Wireless-G Bridge for Phone Adapter which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Helix antenna without antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: Q87-WBP54GV2 Report No: SA941103L05 1 RF EXPOSURE REPORT REPORT NO.: SA941103L05 MODEL NO.: WBP54G v2 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WBP54GV2 Report No: SA941103L05 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WBP54GV2 Report No: SA941103L05 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WBP54GV2 Report No: SA941103L05 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1dBi or 1.25893(numeric) 6.2 Output Power into Antenna & RF Exposure value at distance 20cm: For 802.11b DSSS Modulation: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241245.1860.0111.000 6243745.0820.0111.000 11246244.8750.0111.000 For 802.11g OFDM Modulation: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241232.1370.0081.000 6243732.1370.0081.000 11246225.5270.0061.000
