Q87-WCF54GWireless-G CompactFlash Card

A Division of Cisco Systems, Inc. ® Model No. CompactFlash Card Wireless-G WCF54G User Guide WIRELESS GHz 2.4 802.11g Wireless-G CompactFlash Card Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this User Guide The user guide to the CompactFlash Card has been designed to make understanding networking with the Access Point easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the "List of Figures" section. This exclamation point means there is a caution or warning and is something that could damage your property or the CompactFlash Card. word: definition. This checkmark means there is a note of interest and is something you should pay special attention to while using the CompactFlash Card. This question mark provides you with a reminder about something you might need to do while using the CompactFlash Card. Figure 0-1: Sample Figure Description WCF54G-UG-40818NC BW WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G CompactFlash Card Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?1 Chapter 2: Getting to Know the Wireless-G CompactFlash Card3 The Front Panel3 Chapter 3: Setting Up the PDA5 Overview5 Setup Wizard5 Chapter 4: Installing the CompactFlash Card8 Overview8 Installing the Card8 Chapter 5: Connecting to a Wireless Network10 Overview10 Connect to a Wireless Network10 Chapter 6: Configuring the Wireless-G CompactFlash Card with the Wireless Network Monitor16 Overview16 Wireless Network Monitor16 Appendix A: Troubleshooting21 Common Problems and Solutions21 Frequently Asked Questions21 Appendix B: Wireless Security24 Security Precautions24 Security Threats Facing Wireless Networks24 Appendix C: Upgrading Firmware27 Appendix D: Windows Help28 Appendix E: Glossary29 Appendix F: Specifications36 Appendix G: Warranty Information37 Appendix H: Regulatory Information38 Appendix I: Contact Information41 Wireless-G CompactFlash Card List of Figures Figure 2-1: Front Panel3 Figure 3-1: PDA to PC Installation5 Figure 3-2: Welcome5 Figure 3-3: License Agreement5 Figure 3-4: Click Yes6 Figure 3-5: Application Being Installed6 Figure 3-6: Mobile Device7 Figure 3-7: Congratulations7 Figure 4-1: Successful Installation8 Figure 4-2: CompactFlash Installation into PDA8 Figure 4-3: Start Screen9 Figure 4-4: Wireless Network Monitor Icon9 Figure 5-1: Wireless Network Monitor Icon10 Figure 5-2: Status Screen10 Figure 5-3: Configure Wireless Networks11 Figure 5-4: Settings11 Figure 5-5: Configure Network Authentication12 Figure 5-6: PDA Connected12 Figure 5-7: Configure Wireless Networks13 Figure 5-8: Add/Edit Configuration13 Figure 5-9: SSID14 Figure 5-10: Wireless Security (WEP)14 Figure 5-11: Power Management15 Figure 5-12: Select Profile15 Figure 6-1: Wireless Network Monitor Icon16 Figure 6-2: Status Screen16 Figure 6-3: Version Information Screen17 Figure 6-4: Wireless Advanced Screen17 Wireless-G CompactFlash Card Figure 6-5: Network Troubleshooting Screen18 Figure 6-6: More Information Screen18 Figure 6-7: Repair Screen18 Figure 6-8: Contact Screen19 Figure 6-9: Site Survey Screen19 Figure 6-10: Link Test Screen20 Figure C-1: Upgrade Firmware29 1 Chapter 1: Introduction Welcome Wireless-G CompactFlash Card Chapter 1: Introduction Welcome Thank you for choosing the Wireless-G CompactFlash Card. The Wireless-G CompactFlash Card installs directly into your Pocket PC using a CompactFlash Type II slot. The user-friendly software makes it a snap to set up, and you’re ready to share data, printers, or high-speed Internet access over your existing wireless network at speeds up to 54Mbps. It's also compatible with Wireless-B (802.11b) wireless networks. Use the Wireless CompactFlash Card to connect your PDA to wireless networks at the office, at home, or in any of the growing number of public wireless hotspot venues springing up in coffee shops, airport lounges, hotels and convention centers. Use the instructions in this Guide to help you connect the CompactFlash Card, set it up, and configure it to communicate with your PDA and PC. These instructions should be all you need to get the most out of the CompactFlash Card. What’s in this Guide? This user guide covers the steps for setting up and using the Dual-Band Wireless A+G Notebook Adapter. • Chapter 1: Introduction This chapter describes the Adapter’s applications and this User Guide. • Chapter 2: Getting to Know the Wireless-G CompactFlash Card This chapter describes the physical features of the Adapter. • Chapter 3: Setting Up the PDA This chapter instructs you on how to use the Card’s Setup Wizard. • Chapter 4: Installing the CompactFlash Card This chapter shows you how to install CompactFlash Card into your PDA. • Chapter 5: Connecting to a Wireless Network This chapter shows you how to connect the CompactFlash Card to a wireless network. 2 Chapter 1: Introduction What’s in this Guide? Wireless-G CompactFlash Card • Chapter 6: Configuring the Wireless-G CompactFlash Card with the Wireless Network Monitor This chapter show you how to use the CompactFlash Card’s Wireless Network Monitor. • Appendix A: Troubleshooting This appendix describes some potential problems and solutions, as well as frequently asked questions, regarding installation and use of the CompactFlash Card. •…

Text truncated - open the document above for the full version.

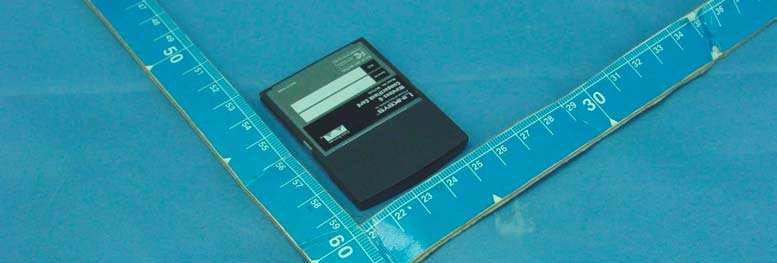

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: Q87-WCF54G FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID: Q87-WCF54G Report No. 930419H01 Operational Description This device is a Wireless-G CompactFlash Card, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Wireless-G CompactFlash Card) is powered by from host equipment. The antenna type used in this product is Diversity strip antenna without connector . The other instruction, please have a look at the users manual.

FCC ID: Q87-WCF54G Report No.: SA930419H011Issued: 02 July, 2004 SAR TEST REPORT REPORT NO.: SA930419H01 MODEL NO.: WCF54G RECEIVED: 19 April, 2004 TESTED: 30 June, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612 (USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 32 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: Q87-WCF54G Report No.: SA930419H012Issued: 02 July, 2004 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION .................9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................13 4.DESCRIPTION OF SUPPORT UNITS ......................................................................14 5.TEST RESULTS ........................................................................................................14 5.1 TEST PROCEDURES ...............................................................................................14 5.2 MEASURED SAR RESULT .......................................................................................16 5.3 SAR LIMITS...............................................................................................................19 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................19 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................21 6.SYSTEM VALIDATION ..............................................................................................22 6.1 TEST EQUIPMENT ...................................................................................................22 6.2 TEST PROCEDURE .................................................................................................22 6.3 VALIDATION RESULT...............................................................................................24 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................25 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................26 7.1 PROBE CALIBRATION UNCERTAINTY ...................................................................26 7.2 ISOTROPY UNCERTAINTY......................................................................................26 7.3 BOUNDARY EFFECT UNCERTAINTY .....................................................................27 7.4 PROBE LINEARITY UNCERTAINTY ........................................................................27 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................27 7.6 RESPONSE TIME UNCERTAINTY...........................................................................28 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................29 7.8 PROBE POSITIONER MECHANICAL TOLERANCE................................................29 7.9 PROBE POSITIONING .............................................................................................30 7.10 PHANTOM UNCERTAINTY ......................................................................................30 7.11 DASY4 UNCERTAINTY BUDGET.............................................................................31 8.INFORMATION ON THE TESTING LABORATORIES ..............................................32 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: Q87-WCF54G Report No.: SA930419H013Issued: 02 July, 2004 1. CERTIFICATION PRODUCT : Wireless-G CompactFlash Card MODEL NO. : WCF54G BRAND NAME : Linksys APPLICANT : Cisco-Linksys, LLC TESTED: 30 Jun, 2004 TEST ITEM : ENGINEERING SAMPLE STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE: July 2, 2004 APPROVED BY: Stacy Hsueh , DATE:July 2, 2004 Cody Chang / Supervisor FCC ID: Q87-WCF54G Report No.: SA930419H014Issued: 02 July, 2004 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless-G CompactFlash Card MODEL NO. WCF54G POWER SUPPLY 3.3Vdc powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS, OFDM TRANSFER RATE 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 MAXIMUN CONDUCTED OUTPUT POWER (FOR CCK) 15.11dBm MAXIMUN CONDUCTED OUTPUT POWER (FOR OFDM) 14.96dBm ANTENNA TYPE Diversity strip antenna with 0dBi gain AVERAGE SAR(1g) (FOR CCK) 0.204W/kg AVERAGE SAR(1g) (FOR OFDM) 0.103W/kg DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. Normal operating c…

Text truncated - open the document above for the full version.

Date/Time: 06/30/04 18:17:58 Test Laboratory: Advance Data Technology WCF54G 11b Mode 1 Bottom Ch 1 DUT: Wireless-G CompactFlash Card ; Type: WCF54G ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.9718 mho/m, ε r = 51.7313, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 15 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.6, 4.6, 4.6); Calibrated: 2003/11/24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2003/8/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Low Channel/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 7.95 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.188 mW/g Low Channel/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.38 W/kg SAR(1 g) = 0.177 mW/g; SAR(10 g) = 0.0917 mW/g Reference Value = 7.95 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.184 mW/g Date/Time: 06/30/04 17:41:32 Test Laboratory: Advance Data Technology WCF54G 11b Mode 1 Bottom Ch 6 DUT: Wireless-G CompactFlash Card ; Type: WCF54G ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.9972 mho/m, ε r = 51.6442, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 15 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.6, 4.6, 4.6); Calibrated: 2003/11/24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2003/8/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Middle Channel/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 8.14 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.205 mW/g Middle Channel/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.403 W/kg SAR(1 g) = 0.189 mW/g; SAR(10 g) = 0.0991 mW/g Reference Value = 8.14 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.197 mW/g Date/Time: 06/30/04 17:17:34 Test Laboratory: Advance Data Technology WCF54G 11b Mode 1 Bottom Ch 11 DUT: Wireless-G CompactFlash Card ; Type: WCF54G ; Test Channel Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 2.0180 mho/m, ε r = 51.5618, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 15 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.6, 4.6, 4.6); Calibrated: 2003/11/24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2003/8/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 High Channel/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 8.63 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.221 mW/g High Channel/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.452 W/kg SAR(1 g) = 0.204 mW/g; SAR(10 g) = 0.105 mW/g Reference Value = 8.63 V/m Power Drift = -0.2 dB Maximum value of SAR = 0.212 mW/g Date/Time: 06/30/04 19:01:58 Test Laboratory: Advance Data Technology WCF54G 11b Mode 2 Tip Ch 1 DUT: Wireless-G CompactFlash Card ; Type: WCF54G ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.9718mho/m, ε r = 51.7313, ρ = 1000 kg/m 3 ) ; Liquid level : 155 mm Phantom section: Flat Section ; Separation distance : 15 mm (The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.6, 4.6, 4.6); Calibrated: 2003/11/24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2003/8/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Low Channel/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 7.16 V/m Power Drift = -0.02 dB Maximum value of SAR = 0.109 mW/g Low Channel/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.233 W/kg SAR(1 g) = 0.101 mW/g; SAR(10 g) = 0.0556 mW/g Reference Value = 7.16 V/m Power Drift = -0.02 dB Maximum value of SAR = 0.103 mW/g Date/Time: 06/30/04 19:38:58 Test Laboratory: Advance Data Technology WCF54G 11b Mode 2 Tip Ch 6 DUT: Wireless-G CompactFlash Card ; Type: WCF54G ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.9972mho/m, ε r = 51.6442, ρ = 1000 kg/m 3 ) ; Liquid level : 155 mm Phantom section: Flat Section ; Separation distance : 15 mm (The tip of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.6, 4.6, 4.6); Calibrated: 2003/11/24 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2003/8/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 …

Text truncated - open the document above for the full version.

FCC ID: Q87-WCF54G Report No.: RF930419H011 Issued: Jun. 03, 2004 FCC TEST REPORT REPORT NO.: RF930419H01 MODEL NO.: WCF54G RECEIVED: Apr. 19, 2004 TESTED: Apr. 30 to May 31, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive Irvine, CA 92612 (USA) ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 59 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA FCC ID: Q87-WCF54G Report No.: RF930419H012 Issued: Jun. 03, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST ........................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST SETUP .............................................................................................. 10 4.1.4EUT OPERATING CONDITIONS.................................................................11 4.1.5TEST RESULTS.......................................................................................... 12 4.2Radiated Emission Measurement ............................................................... 14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 14 4.2.2TEST INSTRUMENTS ................................................................................ 15 4.2.3TEST PROCEDURES................................................................................. 16 4.2.4TEST SETUP .............................................................................................. 17 4.2.5EUT OPERATING CONDITIONS................................................................ 17 4.2.6TEST RESULTS.......................................................................................... 18 4.2.7TEST RESULTS - DSSS............................................................................. 19 4.2.8TEST RESULTS -OFDM ............................................................................. 22 4.36dB BANDWIDTH MEASUREMENT .......................................................... 25 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 25 4.3.2TEST INSTRUMENTS ................................................................................ 25 4.3.3TEST PROCEDURE ................................................................................... 26 4.3.4TEST SETUP .............................................................................................. 26 4.3.5EUT OPERATING CONDITIONS................................................................ 26 4.3.6TEST RESULTS-DSSS............................................................................... 27 4.3.7TEST RESULTS-OFDM .............................................................................. 31 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 35 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 35 4.4.2TEST INSTRUMENTS ................................................................................ 35 FCC ID: Q87-WCF54G Report No.: RF930419H013 Issued: Jun. 03, 2004 4.4.3TEST PROCEDURES................................................................................. 36 4.4.4TEST SETUP .............................................................................................. 36 4.4.5EUT OPERATING CONDITIONS................................................................ 36 4.4.6TEST RESULTS- DSSS.............................................................................. 37 4.4.7TEST RESULTS- OFDM ............................................................................. 38 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 39 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 39 4.5.2TEST INSTRUMENTS ................................................................................ 39 4.5.3TEST PROCEDURE ................................................................................... 40 4.5.4TEST SETUP .............................................................................................. 40 4.5.5EUT OPERATING CONDITIONS................................................................ 40 4.5.6TEST RESULTS-DSSS............................................................................... 41 4.5.7TEST RESULTS-OFDM .............................................................................. 45 4.6BAND EDGES MEASUREMENT ................................................................ 49 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 49 4.6.2TEST INSTRUMENTS ................................................................................ 49 4.6.3TES…

Text truncated - open the document above for the full version.

Report No. 930419H01 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G- 10SS SN4Jun. 08, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930419H01 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 930419H01 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930419H01 4 Ch1 Report No. 930419H01 5 Ch11 Report No. 930419H01 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930419H01 7 Ch1 Report No. 930419H01 8 Ch11

FCC ID: Q87-WCF54G Report No.: RF930419H0157 Issued: Jun. 03, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-WCF54G Report No.: RF930419H0158 Issued: Jun. 03, 2004 RADIATED EMISSION TEST
