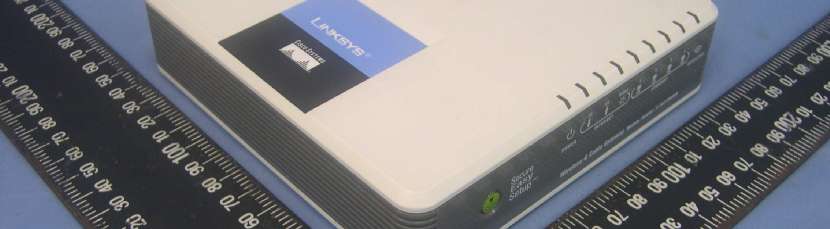

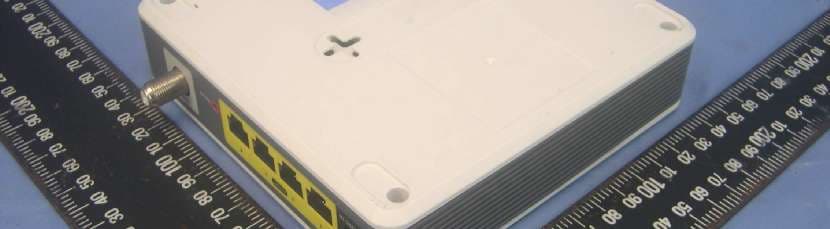

Page 1 CONSTRUCTION PHOTOS OF EUT EUT with Adapter Model No.: T481210RO3CT Page 2 EUT with Adapter Model No.: AD-121ANDT Page 3

FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL (Fig. 1) FCC ID: Q87-WCG104

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Adapter Model No.: T481210RO3CT 950102H01 950102H01 Page 10 950102H01 950102H01 Page 11 950102H01 950102H01 Page 12 Adapter Model No.: AD-121ANDT 950102H01 950102H01 Page 13 950102H01 950102H01 Page 14 950102H01 950102H01

FCC ID: Q87-WCG104 Report No. RF950102H01 Operational Description This device is a Wireless-G Cable Gateway, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Wireless-G Cable Gateway) is powered by power adapter. The antenna used in this product are printed antenna and PCB antenna with I-Pex connector. The other instruction, please have a look at the users manual.

Report No.: SA950102H01 1 RF EXPOSURE REPORT REPORT NO.: SA950102H01 MODEL NO.: WCG104 FCC ID: Q87-WCG104 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950102H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950102H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950102H01 4 6. Test Results 6.1 Antenna Gain No.Gain (dBi)Antenna TypeAntenna Connector 13PrintedI-Pex 23PCBI-Pex 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241285.5070.0341.0 6243784.9180.0341.0 11246283.3680.0331.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412115.8780.0461.0 62437116.6810.0461.0 112462120.5040.0481.0

Report No.: RF950102H011Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950102H01 MODEL NO.: WCG104 RECEIVED: Jan. 02, 2006 TESTED: Jan. 06 to 16, 2006 ISSUED: Jan. 18, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 82 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950102H012Report Format Version 2.0.4 Table of Contents 1CERTIFICATION...........................................................................................5 2SUMMARY OF TEST RESULTS...................................................................6 3GENERAL INFORMATION............................................................................7 3.1GENERAL DESCRIPTION OF EUT..............................................................7 3.2DESCRIPTION OF TEST MODES................................................................9 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:..............10 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS..............................12 3.5DESCRIPTION OF SUPPORT UNITS........................................................13 3.6CONFIGURATION OF SYSTEM UNDER TEST.........................................14 4TEST TYPES AND RESULTS.....................................................................15 4.1CONDUCTED EMISSION MEASUREMENT..............................................15 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................15 4.1.2TEST INSTRUMENTS.................................................................................15 4.1.3TEST PROCEDURES.................................................................................16 4.1.4TEST SETUP..............................................................................................16 4.1.5EUT OPERATING CONDITIONS................................................................17 4.1.6TEST RESULTS..........................................................................................18 4.2RADIATED EMISSION MEASUREMENT...................................................22 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................22 4.2.2TEST INSTRUMENTS.................................................................................23 4.2.3TEST PROCEDURES.................................................................................24 4.2.4TEST SETUP..............................................................................................25 4.2.5EUT OPERATING CONDITIONS................................................................26 4.2.6TEST RESULTS (ANTENNA 1)...................................................................27 4.2.7TEST RESULTS (ANTENNA 1 – DSSS )....................................................28 4.2.8TEST RESULTS ( ANTENNA 1 – OFDM )...................................................31 4.2.9TEST RESULTS (ANTENNA 2)...................................................................34 4.2.10TEST RESULTS (ANTENNA 2 – DSSS )....................................................35 4.2.11TEST RESULTS ( ANTENNA 2 – OFDM )...................................................38 4.36dB BANDWIDTH MEASUREMENT...........................................................41 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT........................................41 Report No.: RF950102H013Report Format Version 2.0.4 4.3.2TEST INSTRUMENTS.................................................................................41 4.3.3TEST PROCEDURE....................................................................................42 4.3.4TEST SETUP..............................................................................................42 4.3.5EUT OPERATING CONDITIONS................................................................42 4.3.6TEST RESULTS –DSSS..............................................................................43 4.3.7TEST RESULTS-OFDM..............................................................................46 4.4MAXIMUM PEAK OUTPUT POWER..........................................................49 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........49 4.4.2TEST INSTRUMENTS.................................................................................49 4.4.3TEST PROCEDURES.................................................................................50 4.4.4TEST SETUP..............................................................................................50 4.4.5EUT OPERATING CONDITIONS................................................................50 4.4.6TEST RESULTS – DSSS.............................................................................51 4.4.7TEST RESULTS –OFDM.............................................................................52 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................53 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................53 4.5.2TEST INSTRUMENTS.................................................................................53 4.5.3TEST PROCEDURE....................................................................................54 4.5.4TEST SETUP..............................................................................................54 4.5.5EUT OPERATING CONDITIONS................................................................54 4.5.6TEST RESULTS –DSSS..................................................................…

Text truncated - open the document above for the full version.

Report No.: RF950102H0179Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950102H0180Report Format Version 2.0.4 RADIATED EMISSION TEST
