Q87-WGA11BV1Wireless Game Adapter

Use this guide to install: WGA11B Wireless-B Game Adapter User Guide COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. Copyright © 2003 Cisco Systems,Inc. All rights reserved. Linksys is a registered trademarks of Cisco Systems, Inc. Otherbrands and product names are trademarks or registered trademarks of their respectiveholders.LIMITED WARRANTY Linksys guarantees that every Wireless-B Game Adapter will be free from physicaldefects in material and workmanship for one year from the date of purchase, when usedwithin the limits set forth in the Specifications section of this User Guide. TT hh ii ss WW aa rr rr aa nn tt yy ii ss vv aa ll ii dd aa nn dd mm aa yy bb ee pp rr oo cc ee ss ss ee dd oo nn ll yy ii nn tt hh ee cc oo uu nn tt rr yy oo ff pp uu rr cc hh aa ss ee .. If the product proves defective during this warranty period, go to the Linksys website at www.linksys.com for complete RMA (Return Merchandise Authorization) assistance. You can also call Linksys Technical Support in order to obtain a RMA Number. BE SURE TOHAVE YOUR PROOF OF PURCHASE AND A BARCODE FROM THE PRODUCT’S PACK-AGING ON HAND WHEN CALLING. RETURN REQUESTS CANNOT BE PROCESSEDWITHOUT PROOF OF PURCHASE. When returning a product, mark the RMA Numberclearly on the outside of the package and include a copy of your original proof of pur-chase. All customers located outside of the United States of America and Canada shallbe held responsible for shipping and handling charges.IN NO EVENT SHALL LINKSYS’S LIABILITY EXCEED THE PRICE PAID FOR THE PROD-UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-WARE, OR ITS DOCUMENTATION. LINKSYS DOES NOT OFFER REFUNDS FOR ANYPRODUCT. Linksys makes no warranty or representation, expressed, implied, or statuto-ry, with respect to its products or the contents or use of this documentation and allaccompanying software, and specifically disclaims its quality, performance, mer-chantability, or fitness for any particular purpose. Linksys reserves the right to revise orupdate its products, software, or documentation without obligation to notify any individ-ual or entity. Please direct all inquiries to:Linksys P.O. Box 18558, Irvine, CA 92623. SAFETY AND REGULATORY NOTICESFCC STATEMENTThis Wireless-B Game Adapter has been tested and complies with the specifications fora Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designedto provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if notinstalled and used according to the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in a par-ticular installation. If this equipment does cause harmful interference to radio or televisionreception, which is found by turning the equipment off and on, the user is encouraged totry to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna• Increase the separation between the equipment or devices• Connect the equipment to an outlet other than the receiver’s• Consult a dealer or an experienced radio/TV technician for assistance FCC Caution: Any change or modification to the product not expressly approved byLinksys could void the user’s authority to operate the device.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolledenvironment. This equipment should be installed and operated with minimum distance20cm between the radiator and your body.• Access points with 2.4 GHz or 5 GHz integrated antenna must operate with a sepa-ration distance of at least 20 cm from all persons using the cable provided and mustnot be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific operations for satisfying RF exposure compli-ance.Note: Dual antennas used for diversity operation are not considered co-located.INDUSTRY CANADA (CANADA)This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.The use of this device in a system operating either partially or completely outdoors mayrequire the user to obtain a license for the system according to the Canadian regulations.EC DECLARATION OF CONFORMITY (EUROPE)Linksys Group declares that the product included in the Instant Wireless Series conformsto the specifications listed below, following the provisions of the EMC Directive89/336/EEC and Low Voltage Directive 73/23/EEC:• ETS 300-826, 301 489-1 General EMC requirements for Radio equipment. • EN 609 50 Safety • ETS 300-328-2 Technical requirements for Radio equipment. Note: This equipment is intended to be used in all EU and EFTA countries. Outdoor usemay be restricted to certain frequencies and/or may require a license for operation. Formore details, contact Linksys Corporate Compliance.Note: Combinations of power levels and antennas resulting in a radiated power level ofabove 100 mW are considered as not compliant with the above mentioned directive andare not allowed for use within the European community and countries that have adoptedthe European R&TTE directive 1999/5/EC and/or the CEPT recommendation Rec 70.03.For more details on legal combinations of power levels and antennas, contact LinksysCorporate Compliance.• Linksys Group vakuuttaa täten että Wireless-B Game Adapter tyyppinen laite ondirektiivin 1999/5/EY, direktiivin 89/336/EEC ja direktiivin 73/23/EEC oleellisten vaa-timusten ja sitä koskevien näiden direktiivien muiden ehtojen mukainen. • Linksys Group déclare que le pont Ethernet sans fil B est conforme aux conditionsessentielles et aux dispositions relatives à la directive 1999/5/EC, la directive89/336/EEC, et à la directive 73/23/EEC.…

Text truncated - open the document above for the full version.

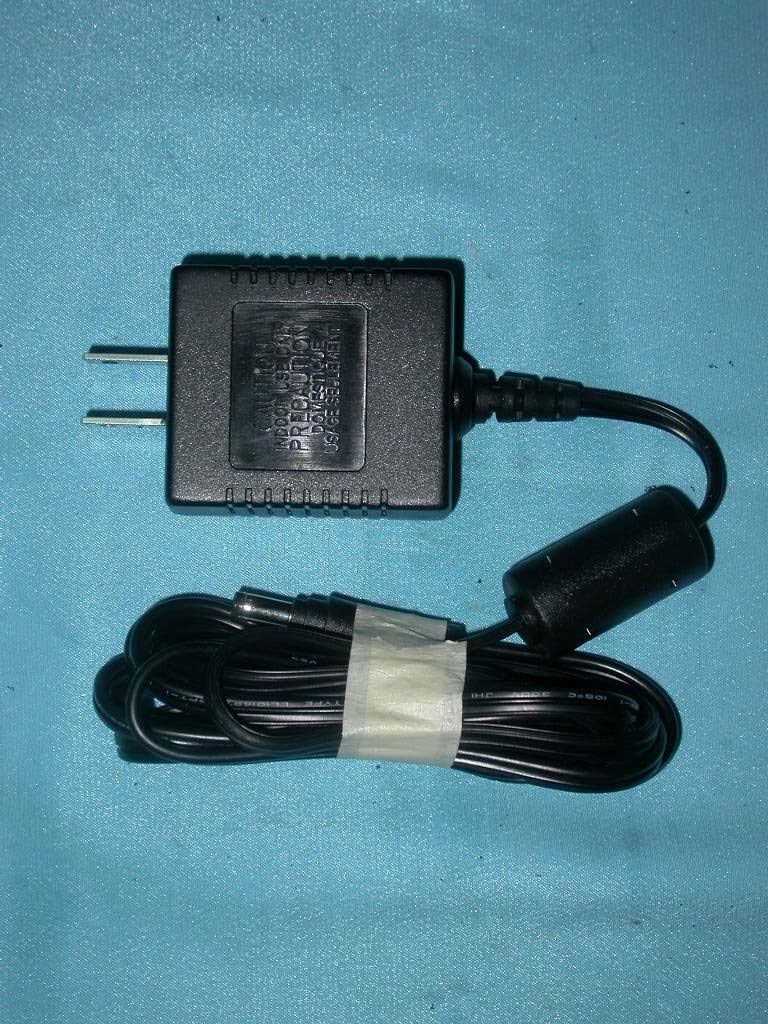

Company : Cisco-Linksys,LLC Page: 1 of 13 Product : Wireless Game Adaptor Model : WGA11BV1 Company : Cisco-Linksys,LLC Page: 2 of 13 Product : Wireless Game Adaptor Model : WGA11BV1 Company : Cisco-Linksys,LLC Page: 3 of 13 Product : Wireless Game Adaptor Model: WGA11BV1 Company : Cisco-Linksys,LLC Page: 4 of 13 Product : Wireless Game Adaptor Model : WGA11BV1 Company : Cisco-Linksys,LLC Page: 5 of 13 Product : Adaptor(1) for Wireless Game Adaptor Model : M1-10S05 Company : Cisco-Linksys,LLC Page: 6 of 13 Product : Adaptor(1) for Wireless Game Adaptor Model : M1-10S05 Company : Cisco-Linksys,LLC Page: 7 of 13 Product : Adaptor(1) for Wireless Game Adaptor Model : M1-10S05 Company : Cisco-Linksys,LLC Page: 8 of 13 Product : Adaptor(2) for Wireless Game Adaptor Model : MT12-1050100-A1 Company : Cisco-Linksys,LLC Page: 9 of 13 Product : Adaptor(2) for Wireless Game Adaptor Model : MT12-1050100-A1 Company : Cisco-Linksys,LLC Page: 10 of 13 Product : Adaptor(2) for Wireless Game Adaptor Model : MT12-1050100-A1 Company : Cisco-Linksys,LLC Page: 11 of 13 Product : Adaptor(2) for Wireless Game Adaptor Model : MT12-1050100-A1 Company : Cisco-Linksys,LLC Page: 12 of 13 Product : Adaptor(2) for Wireless Game Adaptor Model : MT12-1050100-A1 Company : Cisco-Linksys,LLC Page: 13 of 13 Product : Adaptor(2) for Wireless Game Adaptor Model : MT12-1050100-A1

Company : Cisco-Linksys,LLC Model: WGA11BV1 Product : Wireless Game Adaptor Wireless Game Adaptor Model No: WGA11BV1 FCC IDQ87-WGA11BV1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

Company : Cisco-Linksys,LLC Page : 1 of 4 Product : Wireless Game Adaptor Model: WGA11BV1 Company : Cisco-Linksys,LLC Page : 2 of 4 Product : Wireless Game Adaptor Model: WGA11BV1 Company : Cisco-Linksys,LLC Page : 3 of 4 Product : Wireless Game Adaptor Model: WGA11BV1 Company : Cisco-Linksys,LLC Page : 4 of 4 Product : Wireless Game Adaptor Model: WGA11BV1

Description of Operation EUT is a Wireless Game Adaptor with 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK,DB PSK and CCK. The device adapts direct sequence spread spectrum modulation. The Connector antenna was scolded on PCB provided diversity function to improve the receiving function. This Wireless Game Adaptor is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) radio transmission, the Wireless Game Adaptor transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：Q87-WGA11BV1 Report No. ：ER03-05-061FRF Page 1 of 2 RF EXPOSURE EVALUATION According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 FRIIS FORMULA Friis transmission formula : Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. EUT OPERATING CONDITION A software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：Q87-WGA11BV1 Report No. ：ER03-05-061FRF Page 2 of 2 TEST RESULT OF RF EXPOSURE EVALUATION Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation ANTENNA GAIN Antenna Gain：The maximum Gain measured in fully anechoic chamber is 2dBi linear scale. OUTPUT POWER INTO ANTENNA & RF EXPOSURE EVALUATION DISTANCE Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power density in mW/cm2 at Friis formula when r=20cm(mW/cm2) LIMITS CH1 2412.00 19.61 0.028822 1 CH6 2437.00 19.94 0.031098 1 CH11 2462.00 19.89 0.030742 1 The power density Pd (4 th column) at a distance of 20cm calculated from the Friis transmission formula is far belowthe limit of 1 mW/cm 2 . So, RF exposure limit warning or SAR test are not required.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID Q87-WGA11BV1 Report No.ER03-05-061FRF Page 1 of 41 TEST REPORT Product Name Wireless Game Adaptor Model Number WGA11BV1 Applicant Cisco-Linksys, LLC Address 7451 Nelson Road Richmond, BC V6W 1L7 Canada Date Received MAY. 23, 2003 Date Tested MAY. 23~30, 2003 Notes 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to testing, and be invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID Q87-WGA11BV1 Report No.ER03-05-061FRF Page 2 of 41 Test Report Certification Product Name Wireless Game Adaptor Model Number : WGA11BV1 Applicant : Cisco-Linksys, LLC Measurement Standard : 47 CFR Part 15, Subpart B and Subpart C (Section 15.247), ANSI C63.4-2001 WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID Q87-WGA11BV1 Report No.ER03-05-061FRF Page 3 of 41 TABLE OF CONTENTS TITLE PAGE NO. 1. GENERAL INFORMATION .................................................................................................................... 5 1.1 GENERAL STATEMENT................................................................................................................. 5 1.2 GENERAL DESCRIPTION OF EUT & POWER............................................................................. 5 1.3 DESCRIPTION OF PERIPHERALS.................................................................................................6 1.4 EUT & PERIPHERALS SETUP DIAGRAM.................................................................................... 7 1.5 EUT OPERATING CONDITION .....................................................................................................7 1.6 DESCRIPTION OF TEST SITE ........................................................................................................ 8 1.7 SUMMARY OF TEST RESULTS ....................................................................................................8 2. CONDUCTED POWERLINE TEST ........................................................................................................ 9 2.1 TEST EQUIPMENTS ......................................................................................................................... 9 2.2 TEST SETUP ...................................................................................................................................... 9 2.3 CONDUCTED POWER LINE EMISSION LIMIT............................................................................ 10 2.4 TEST PROCEDURE ........................................................................................................................... 10 2.5 UNCERTAINTY OF CONDUCTED EMISSION ............................................................................. 10 2.6 CONDUCTED RF VOLTAGE MEASUREMENT ........................................................................... 11 2.7 PHOTOS OF CONDUCTION TEST..................................................................................................12 3. RADIATED EMISSION TEST................................................................................................................. 13 3.1 TEST EQUIPMENTS ......................................................................................................................... 13 3.2 TEST SETUP ...................................................................................................................................... 13 3.3 RADIATION LIMIT ........................................................................................................................... 14 3.4 TEST PROCEDURES......................................................................................................................... 15 3.5 UNCERTAINTY OF RADIATED EMISSION ................................................................................. 15 3.6 RADIATED RF NOISE MEASUREMENT....................................................................................... 16-24 3.7 PHOTOS OF OPEN SITE................................................................................................................... 25-27 4. 6dB BANDWIDTH MEASUREMENT .................................................................................................... 28 4.1 TEST EQUIPMENTS ......................................................................................................................... 28 4.2 TEST SETUP ...................................................................................................................................... 28 4.3 LIMITS OF 6dB BANDWIDTH MEASUREMENT ......................................................................... 28 4.4 TEST PROCEDURE ........................................................................................................................... 28 4.5 UNCERTAINTY OF CONDUCTED EMISSION ............................................................................. 29 4.6 TEST RE…

Text truncated - open the document above for the full version.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：Q87-WGA11BV1 Report No.：ER03-05-061FRF Page 1 of 3 PHOTOS OF CONDUCTION TEST Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：Q87-WGA11BV1 Report No. ：ER03-05-061FRF Page 2 of 3 PHOTOS OF OPEN SITE Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：Q87-WGA11BV1 Report No. ：ER03-05-061FRF Page 3 of 3 PHOTOS OF OPEN SITE
