Q87-WGA600NDual-Band Wireless-N Gaming Adapter

Package Contents Dual-Band Wireless-N Gaming Adapter CD-ROM with User Guide and Setup Wizard Quick Installation 2 ft Network Cable Power Adapter • • • • • QUICK INSTALLATION GUIDE Dual-Band Wireless-N Gaming Adapter Model: WGA600N Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. WGA600N with PIFA antenna and max. antenna gain is 2.37dBi in 2.4G and 1dBi in 5G. Industry Canada statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Règlement d’Industry Canada Les conditions de fonctionnement sont sujettes à deux conditions: 1) Ce périphérique ne doit pas causer d’interférence et. 2) Ce périphérique doit accepter toute interférence, y compris les interférences pouvant perturber le bon fonctionnement de ce périphérique. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Industry Canada Interference Statement The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems; The maximum antenna gain 1 dBi permitted (for devices in the bands 5250-5350 MHz and 5470-5725 MHz) to comply with the e.i.r.p. limit; and The maximum antenna gain 1 dBi permitted (for devices in the band 5725-5825 MHz) to comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate, as stated in section A9.2(3). In addition, users should also be cautioned to take note that high-power radars are allocated as primary users (meaning they have priority) of the bands 5250-5350 MHz and 5650-5850 MHz and these radars could cause interference and/or damage to LE-LAN devices. Note: The WGA600N has disable the 5600-5650M band by S/W to avoid 5600-5650M band for IC certification.  Table of Contents Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Wi-Fi Protected Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Manual Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Online Resources Website addresses in this document are listed without http:// in front of the address because most current web browsers do not require it . If you use an older web browser, you may have to add http:// in front of the web address . ResourceWebsite Linksyswww .linksys .com Linksys Europewww .linksys .eu Linksys International www .linksys .com/international Glossarywww .linksys .com/glossary Network Securitywww .linksys .com/security 2 Insert the Setup Wizard CD into your CD-ROM drive . NOTE: Windows or other personal firewalls may ask for permission to run the software or program . You will need to allow the software to run in order to continue . The Welcome screen appears on your monitor . Click the Click Here to Start button . Read the License Agreement, and click Next to continue the installation . A. B. C. Insert the CD-ROMInsert the CD-ROM Linksys Setup Wizard Start Setup Click Here to Start Linksys Setup Wizard Start Setup Click Here to Start License AgreementLicense Agreement Installation1�  Installation The Installation Notice screen will appear . This message is to let you know that your computer may be temporarily disconnected from the Internet . Be sure to read the entire message and then click Next . Connect one end of the provided network cable into your computer’s networ…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 FCC DFS Declaration letter FCC ID: Q87-WGA600N Date: 11.30.2007 To whom it may concern: We, the undersigned, declare that the WGA600N ( FCC ID: Q87-WGA600N ) doesn’t have“Ad Hoc on non-US frequencies” and/or “on DFS frequencies” Sincerely, __________________________________________ Jennifer Yu / Program Manager Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: 11.30.2007 FCC ID: Q87-WGA600N Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Program Manager Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: 11.30.2007 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, _________________________________________ Jennifer Yu / Program Manager Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

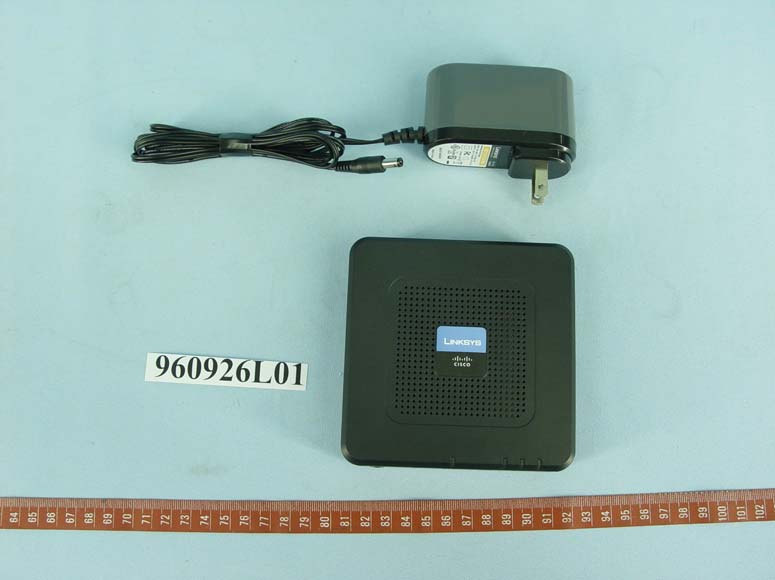

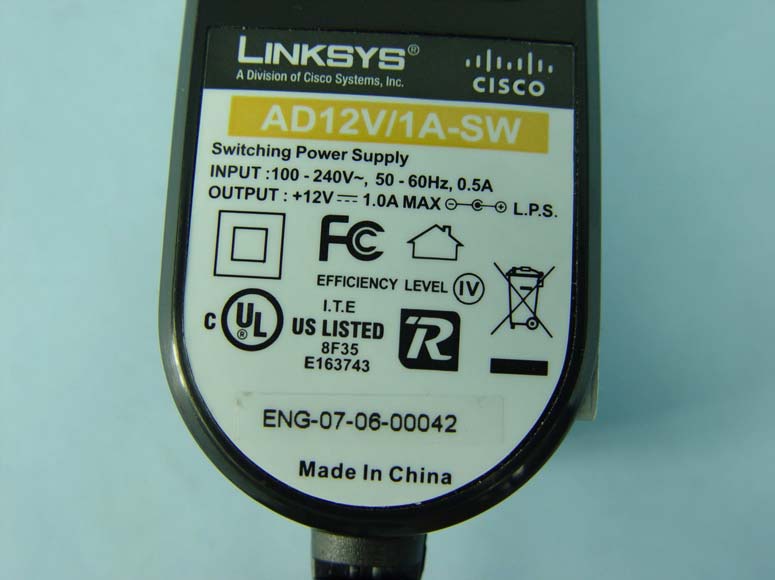

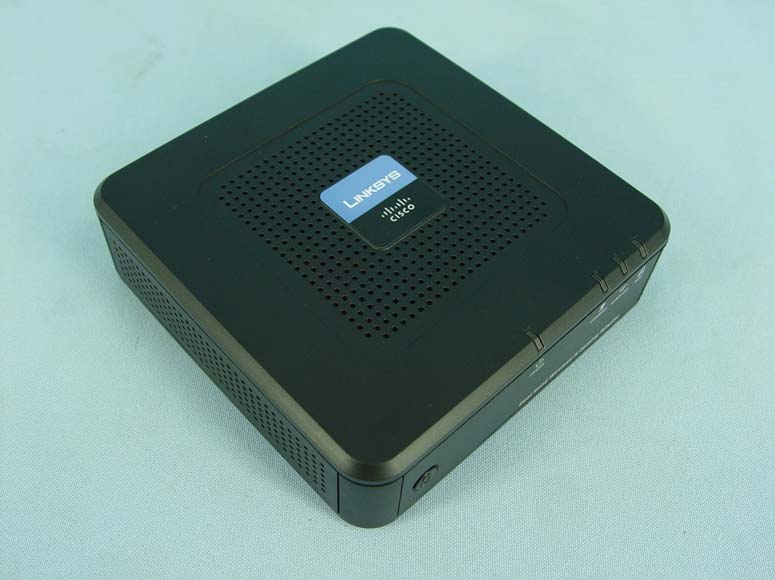

Model No.: WGA600N Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID .: Q87-WGA600N Label Location

Page 3 Page 4 Page 5 Page 6

FCC ID: Q87-WGA600N Report No.: RF960926L01 Technical Description This device is a Dual-Band Wireless-N Gaming Adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is PIFA antenna without antenna connector. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted. For more detailed instruction, please take a look at the user’s manual.

FCC ID: Q87-WGA600N Report No: SA960926L01 1 RF EXPOSURE REPORT REPORT NO.: SA960926L01 MODEL NO.: WGA-600N ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: Q87-WGA600N Report No: SA960926L01 2 RF EXPOSURE MEASUREMENT (MOBILE DEVICE) 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: Q87-WGA600N Report No: SA960926L01 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WGA600N Report No: SA960926L01 4 6. TEST RESULTS 6.1 ANTENNA GAIN The maximum Gain measured in Fully Anechoic Chamber is 2.37dBi or 1.725837892 (numeric)(2.4GHz) & 1.00dBi or 1.258925412 (numeric)(5.0GHz). 6.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: 802.11b DSSS MODULATION CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2412 64.121 18.07 0.022 1.0 6 2437 64.714 18.11 0.022 1.0 11 2462 64.417 18.09 0.022 1.0 802.11g OFDM MODULATION CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2412 40.087 16.03 0.014 1.0 6 2437 40.551 16.08 0.014 1.0 11 2462 40.272 16.05 0.014 1.0 DRAFT 802.11n (20MHz) OFDM MODULATION PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHAN. CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1CHAIN 0CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2412 25.468 25.527 14.06 14.07 50.99517.075 0.018 1.0 6 2437 25.468 25.410 14.06 14.05 50.87817.065 0.017 1.0 11 2462 20.324 19.999 13.08 13.01 40.32316.056 0.014 1.0 FCC ID: Q87-WGA600N Report No: SA960926L01 5 DRAFT 802.11n (40MHz) OFDM MODULATION PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHAN. CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1CHAIN 0CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) 1 2422 16.144 16.106 12.08 12.07 32.250 15.085 0.011 1.0 4 2437 25.177 25.177 14.01 14.01 50.354 17.020 0.017 1.0 7 2452 16.181 16.069 12.09 12.06 32.205 15.079 0.011 1.0 For 5.150 ~ 5.350, 5.470 ~ 5.725GHz band: 802.11a OFDM MODULATION: CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) For 5.150 ~ 5.350GHz band: 1 5180 25.293 14.03 0.006 1.0 4 5240 25.704 14.10 0.006 1.0 5 5260 25.351 14.04 0.006 1.0 8 5320 25.586 14.08 0.006 1.0 For 5.470 ~ 5.725GHz band: 1 5500 25.293 14.03 0.006 1.0 6 5600 25.351 14.04 0.006 1.0 11 5700 25.410 14.05 0.006 1.0 FCC ID: Q87-WGA600N Report No: SA960926L01 6 DRAFT 802.11n (20MHz) OFDM MODULATION PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHAN. CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1CHAIN 0CHAIN 1 TOTAL PEAK POWER (mW) TOTAL PEAK POWER (dBm) POWER DENSITY (mW/cm 2 ) LIMIT OF POWER DENSITY (mW/cm 2 ) For 5.150 ~ 5.350GHz band: 1 5180 20.230 25.235 13.06 14.02 45.46516.577 0.011 1.0 4 5240 20.184 25.410 13.05 14.05 45.59416.589 0.011 1.0 5 5260 17.458 26.303 12.42 14.20 43.76116.411 0.011 1.0 8 5320 20.512 26.546 13.12 14.24 47.05816.726 0.012 1.0 For 5.470 ~ 5.725GHz band: 1 5500 20.464 22.646 13.11 13.55 43.11016.346 0.011 1.0 6 5600 22.029 24.378 13.43 13.87 46.40716.666 0.012 1.0 11 5700 21.330 23.496 13.29 13.71 44.82616.515 0.011 1.0 DRAFT 802.11n (40MHz) OFDM MODULATION PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) CHAN. CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1CHAIN 0CHAIN 1 TOTAL PEAK…

Text truncated - open the document above for the full version.

Report No.: RF960926L01 1 Report Format Version 2.0.6 FCC TEST REPORT (15.247) REPORT NO.: RF960926L01 MODEL NO.: WGA-600N RECEIVED: Sep. 26, 2007 TESTED: Sep. 26 ~ Dec. 04, 2007 ISSUED: Dec. 11, 2007 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 147 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF960926L01 2 Report Format Version 2.0.6 TABLE OF CONTENTS 1. CERTIFICATION....................................................................................................... 5 2. SUMMARY OF TEST RESULTS .............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 6 3. GENERAL INFORMATION ....................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ......................................................................... 7 3.2 DESCRIPTION OF TEST MODES ........................................................................... 8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................... 9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................14 3.4 DESCRIPTION OF SUPPORT UNITS ...................................................................14 4. TEST TYPES AND RESULTS (FOR 2.4GHz)........................................................15 4.1 RADIATED EMISSION MEASUREMENT ..............................................................15 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 15 4.1.2 TEST INSTRUMENTS............................................................................................ 16 4.1.3 TEST PROCEDURES ............................................................................................ 17 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 17 4.1.5 TEST SETUP.......................................................................................................... 18 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 18 4.1.7 TEST RESULTS ..................................................................................................... 19 4.2 CONDUCTED EMISSION MEASUREMENT .........................................................32 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 32 4.2.2 TEST INSTRUMENTS............................................................................................ 32 4.2.3 TEST PROCEDURES ............................................................................................ 33 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 33 4.2.5 TEST SETUP.......................................................................................................... 34 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 34 4.2.7 TEST RESULTS ..................................................................................................... 35 4.3 6dB BANDWIDTH MEASUREMENT......................................................................37 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................... 37 4.3.2 TEST INSTRUMENTS............................................................................................ 37 4.3.3 TEST PROCEDURE............................................................................................... 37 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 37 4.3.5 TEST SETUP.......................................................................................................... 38 4.3.6 EUT OPERATING CONDITIONS ........................................................................... 38 4.3.7 TEST RESULTS ..................................................................................................... 39 4.4 MAXIMUM PEAK OUTPUT POWER .....................................................................51 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ...................... 51 4.4.2 INSTRUMENTS...................................................................................................... 51 4.4.3 TEST PROCEDURES ............................................................................................ 51 4.4.4 DEVIATION FROM TEST STANDARD .................................................................. 52 4.4.5 TEST SETUP.......................................................................................................... 52 4.4.6 EUT OPERATING CONDITIONS ........................................................................... 52 4.4.7 TEST RESULTS ..................................................................................................... 53 4.5 POWER SPECTRAL DENSITY MEASUREMENT .................................................55 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT .............................. 55 4.5.2 TEST INSTRUMENTS............................................................................................ 55 4.5.3 TEST PROCEDURE..........…

Text truncated - open the document above for the full version.

Report No.: RF960926L01-1 1 Report Format Version 2.0.6 FCC TEST REPORT (15.407) REPORT NO.: RF960926L01-1 MODEL NO.: WGA600N RECEIVED: Sep. 26, 2007 TESTED: Sep. 26 ~ Dec. 04, 2007 ISSUED: Dec. 11, 2007 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 195 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF960926L01-1 2 Report Format Version 2.0.6 TABLE OF CONTENTS 1. CERTIFICATION .....................................................................................................4 2. SUMMARY OF TEST RESULTS.............................................................................5 2.1 MEASUREMENT UNCERTAINTY ..........................................................................5 3. GENERAL INFORMATION .....................................................................................6 3.1 GENERAL DESCRIPTION OF EUT........................................................................6 3.2 DESCRIPTION OF TEST MODES..........................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.....................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..........................9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 11 3.4 DESCRIPTION OF SUPPORT UNITS.................................................................. 11 4. TEST TYPES AND RESULTS ...............................................................................12 4.1 CONDUCTED EMISSION MEASUREMENT ........................................................45 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .....................................45 4.1.2 TEST INSTRUMENTS ..........................................................................................45 4.1.3 TEST PROCEDURES ...........................................................................................46 4.1.4 DEVIATION FROM TEST STANDARD .................................................................46 4.1.5 TEST SETUP ........................................................................................................47 4.1.6 EUT OPERATING CONDITIONS..........................................................................47 4.1.7 TEST RESULTS ....................................................................................................48 4.2 RADIATED EMISSION MEASUREMENT .............................................................12 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ..........................................12 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS.........12 4.2.3 TEST INSTRUMENTS ..........................................................................................12 4.2.4 TEST PROCEDURES ...........................................................................................14 4.2.5 DEVIATION FROM TEST STANDARD .................................................................14 4.2.6 TEST SETUP ........................................................................................................15 4.2.7 EUT OPERATING CONDITION ............................................................................15 4.2.8 TEST RESULTS ....................................................................................................16 4.3 PEAK TRANSMIT POWER MEASUREMENT ......................................................52 4.3.1 LIMITS OF PEAK TRANSMIT POWER MEASUREMENT ...................................52 4.3.2 TEST INSTRUMENTS ..........................................................................................52 4.3.3 TEST PROCEDURE .............................................................................................52 4.3.4 DEVIATION FROM TEST STANDARD .................................................................53 4.3.5 TEST SETUP ........................................................................................................53 4.3.6 EUT OPERATING CONDITIONS..........................................................................53 4.3.7 TEST RESULTS ....................................................................................................54 4.4 PEAK POWER EXCURSION MEASUREMENT .................................................106 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT ..............................106 4.4.2 TEST INSTRUMENTS ........................................................................................106 4.4.3 TEST PROCEDURE ...........................................................................................106 4.4.4 DEVIATION FROM TEST STANDARD ...............................................................107 4.4.5 TEST SETUP ......................................................................................................107 4.4.6 EUT OPERATING CONDITIONS........................................................................107 Report No.: RF960926L01-1 3 Report Format Version 2.0.6 4.4.7 TEST RESULTS ..................................................................................................108 4.5 PEAK POWER SPECTRAL DENSITY MEASUREMENT ...................................134 4.5.1 LIMITS OF PEAK POWER SPECTRAL DENSITY MEASUREMENT ................134 4.5.2 TEST INSTRUMENTS ........................................................................................134 4.5.3 TEST PROCEDURES …

Text truncated - open the document above for the full version.

Report No.: RF960926L01 1 Report Format Version 2.0.5 DFS TEST REPORT REPORT NO.: RF960926L01 MODEL NO.: WGA600N RECEIVED: Nov. 17, 2007 TESTED: Nov. 21, 2007 ISSUED: Nov. 21, 2007 APPLICANT: Cisco-Linksys LLC. ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation TEST LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 22 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF960926L01 2 Report Format Version 2.0.5 Table of Contents 1. LAB DECLARATION ................................................................................................3 2. EUT INFORMATION.................................................................................................4 2.1 OPERATING FREQUENCY BANDS AND MODE OF EUT .....................................4 2.2 EUT SOFTWARE AND FIRMWARE VERSION .......................................................4 2.3 DESCRIPTION OF AVAILABLE ANTENNAS TO THE EUT .....................................4 2.4 EUT MAXIMUM AND MINIMUM CONDUCTED POWER ........................................5 2.5 EUT MAXIMUM AND MINIMUM E.I.R.P. POWER ...................................................5 2.6 STATEMENT OF MAUNFACTURER .......................................................................5 3. U-NII DFS RULE REQUIREMENTS ........................................................................6 3.1 WORKING MODES AND REQUIRED TEST ITEMS ...............................................6 3.2 TEST LIMITS AND RAD…
