Q87-WIP300Wireless-G IP Phone

Wireless-G IP Phone USER’s MANUAL December, 2005 1 Contents 1. Getting Started....................................................................................5 1.1 Reading this User’s Guide................................................................5 1.2 Charging the Battery........................................................................5 1.3 Switching the Phone On or Off.........................................................6 1.4 Power Saving Mode.........................................................................6 1.5 Making a Call..................................................................................6 1.6 Answering a Call..............................................................................7 1.7 Using the Key Lock Feature.............................................................7 1.8 Care and Maintenance.....................................................................7 2. Phone Features...................................................................................8 2.1 Overall Appearance.........................................................................8 2.2 Overall Features..............................................................................9 2.3 Product Specification.......................................................................9 2.4 WLAN Application..........................................................................10 3. Learning to Use Your Phone............................................................11 3.1 Using the Icons.............................................................................11 3.2 Entering Text.................................................................................11 3.2.1 English Mode.......................................................................11 3.2.2 Using Numeric Mode............................................................12 3.2.3 Using IP Mode.....................................................................12 3.2.4 While Making a Call.............................................................13 3.3 Checking the Status.......................................................................13 4. Setting UP Your Phone.....................................................................14 4.1 Quick Ways to Set Up Your Wi-Fi Phone.........................................14 4.2 Storing Names and Numbers..........................................................16 4.3 Setting the Time and Date..............................................................17 4.4 Setting a Ring Mode......................................................................18 4.5 Setting a Wallpaper Image.............................................................18 4.6 Adjusting the Backlight................................................................... 19 5. Calling Features................................................................................20 5.1 Viewing Recent Calls.....................................................................20 5.2 Returning an Unanswered Call.......................................................20 2 5.3 Transferring a Call.........................................................................20 5.4 Using the Call Mute.......................................................................21 5.5 Using Call Waiting.........................................................................21 5.6 Using Call Forwarding....................................................................21 6. Menus.................................................................................................23 6.1 Main Menu....................................................................................23 6.1.1 Phonebook..........................................................................23 6.1.2 Call Log...............................................................................24 6.1.3 E-mail.................................................................................25 6.1.4 Speed Dial...........................................................................27 6.1.5 Profile.................................................................................27 6.1.6 Setting.................................................................................28 6.1.7 Tools...................................................................................33 7. Troubleshooting.................................................................................35 3 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void …

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: 2005/12/21 FCC ID: Q87-WIP300 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: 2005/12/21 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002s [email protected]

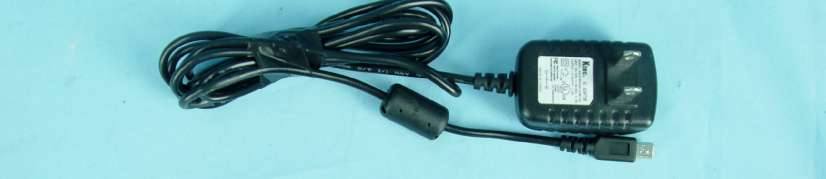

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 1 Aux. antenna Main antenna

FCC ID: Q87-WIP300 Report No.RF941110L07 Operational Description This device is a Wireless-G IP Phone which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by battery or AC adapter. The antenna is Chip antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

D3: DAE SN: 579

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

A - 1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Right Head Cheek Position A - 2 Right Head Tilt Position A - 3 Left Head Cheek Position A - 4 Left Head Tilt Position A - 5 Body Worn Position The bottom of the EUT to the flat phantom distance 0 mm A - 6 Body Worn Position The front of the EUT to the flat phantom distance 0 mm A - 7 EUT Photo Reference Point (HEAD) Reference Point (BODY) A - 8 A - 9 Liquid Level Photo Tissue HSL2450MHz D=155mm Tissue MSL2450MHz D=151mm A - 10 Date/Time: 2005/12/19 11:17:40 Test Laboratory: Advance Data Technology Right Head-Cheek-11b-Ch1-Mode 1 DUT: Wireless-G IP Phone ; Type: WIP300 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 Phantom: SAM 12 Medium parameters used: f = 2412 MHz; σ = 1.76 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 ; Liquid level: 155 mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: CCK Antenna type : Chip Antenna ; Air temp. : 21.8 degrees ; Liquid temp. : 20.6 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Touch position - Low Channel 1/Area Scan (5x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.078 mW/g Touch position - Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.16 V/m Peak SAR (extrapolated) = 0.218 W/kg SAR(1 g) = 0.100 mW/g; SAR(10 g) = 0.040 mW/g Maximum value of SAR (measured) = 0.159 mW/g Touch position - Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.16 V/m Peak SAR (extrapolated) = 0.302 W/kg SAR(1 g) = 0.121 mW/g; SAR(10 g) = 0.057 mW/g Maximum value of SAR (measured) = 0.152 mW/g A - 11 Date/Time: 2005/12/19 11:56:13 Test Laboratory: Advance Data Technology Right Head-Cheek-11b-Ch6-Mode 1 DUT: Wireless-G IP Phone ; Type: WIP300 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 Phantom: SAM 12 Medium parameters used: f = 2437 MHz; σ = 1.79 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 ; Liquid level: 155 mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: CCK Antenna type : Chip Antenna ; Air temp. : 21.8 degrees ; Liquid temp. : 20.6 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Touch position - Mid Channel 6/Area Scan (5x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.119 mW/g Touch position - Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.86 V/m Peak SAR (extrapolated) = 0.268 W/kg SAR(1 g) = 0.084 mW/g; SAR(10 g) = 0.044 mW/g Maximum value of SAR (measured) = 0.098 mW/g Touch position - Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.86 V/m Peak SAR (extrapolated) = 0.216 W/kg SAR(1 g) = 0.111 mW/g; SAR(10 g) = 0.059 mW/g Maximum value of SAR (measured) = 0.135 mW/g A - 12 Date/Time: 2005/12/19 12:25:49 Test Laboratory: Advance Data Technology Right Head-Cheek-11b-Ch11-Mode 1 DUT: Wireless-G IP Phone ; Type: WIP300 ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 Phantom: SAM 12 Medium parameters used: f = 2462 MHz; σ = 1.82 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 ; Liquid level: 155 mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: CCK Antenna type : Chip Antenna ; Air temp. : 21.8 degrees ; Liquid temp. : 20.6 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Touch position - High Channel 11/Area Scan (5x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.111 mW/g Touch position - High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.50 V/m Peak SAR (extrapolated) = 0.229 W/kg SAR(1 g) = 0.066 mW/g; SAR(10 g) = 0.036 mW/g Maximum value of SAR (measured) = 0.103 mW/g Touch position - Mid Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.50 V/m Peak SAR (extrapolated) = 0.255 W/kg SAR(1 g) = 0.106 mW/g; SAR(10 g) = 0.051 mW/g Maximum value of SAR (measured) = 0.118 mW/g A - 13 Date/Time: 2005/12/19 12:44:34 Test Laboratory: Advance Data Technology Right Head-Tilt-11b-Ch1-Mode 2 DUT: Wireless-G IP Phone ; Type: WIP300 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2412 MHz; σ = 1.76 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 ; Liquid level: 155 mm Phantom section: Right Section ; DUT test position : Tilt ; Modulation type: CCK Antenna type : Chip Antenna ; Air temp. : 21.8 degrees ; Liquid temp. : 20.6 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Tilt position - Low Channel 1/Area Scan (5x10x1): Measurement grid: dx…

Text truncated - open the document above for the full version.

FCC ID: Q87-WIP300 Report no.: SA941110L071Report Format Version 2.0.2 SAR TEST REPORT REPORT NO.: SA941110L07 MODEL NO.: WIP300 RECEIVED: Nov. 10, 2005 TESTED: Dec. 16 ~ Dec. 19 , 2005 ISSUED: Dec. 21 , 2005 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 42 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: Q87-WIP300 Report no.: SA941110L072Report Format Version 2.0.2 TABLE OF CONTENTS 1.CERTIFICATION.......................................................................................................3 2.GENERAL INFORMATION........................................................................................4 2.1GENERAL DESCRIPTION OF EUT.......................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS.........................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM................................................5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION...............9 3.DESCRIPTION OF SUPPORT UNITS....................................................................12 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS.................................13 4.1.DESCRIPTION OF ANTENNA LOCATION...........................................................13 4.2.DESCRIPTION OF ASSESSMENT POSITION.....................................................14 4.3.DESCRIPTION OF TEST MODE..........................................................................16 4.4.SUMMARY OF TEST RESULTS...........................................................................17 5.TEST RESULTS......................................................................................................18 5.1TEST PROCEDURES..........................................................................................18 5.2MEASURED SAR RESULTS................................................................................20 5.3SAR LIMITS..........................................................................................................26 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS..................................................27 5.5TEST EQUIPMENT FOR TISSUE PROPERTY....................................................29 6.SYSTEM VALIDATION............................................................................................30 6.1TEST EQUIPMENT..............................................................................................30 6.2TEST PROCEDURE.............................................................................................31 6.3VALIDATION RESULTS........................................................................................33 6.4SYSTEM VALIDATION UNCERTAINTIES............................................................34 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES........................................35 7.1.PROBE CALIBRATION UNCERTAINTY...............................................................35 7.2.ISOTROPY UNCERTAINTY.................................................................................36 7.3.BOUNDARY EFFECT UNCERTAINTY.................................................................36 7.4.PROBE LINEARITY UNCERTAINTY....................................................................37 7.5.READOUT ELECTRONICS UNCERTAINTY........................................................37 7.6.RESPONSE TIME UNCERTAINTY......................................................................37 7.7.INTEGRATION TIME UNCERTAINTY..................................................................38 7.8.PROBE POSITIONER MECHANICAL TOLERANCE...........................................39 7.9.PROBE POSITIONING.........................................................................................39 7.10.PHANTOM UNCERTAINTY..................................................................................40 7.11.DASY4 UNCERTAINTY BUDGET........................................................................41 8.INFORMATION ON THE TESTING LABORATORIES.............................................42 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: Q87-WIP300 Report no.: SA941110L073Report Format Version 2.0.2 1. CERTIFICATION PRODUCT: Wireless-G IP Phone MODEL: WIP300 BRAND: Linksys APPLICANT: Cisco-Linksys LLC TESTED: Dec. 16 ~ Dec. 19 , 2005 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01), The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY :, DATE:Dec. 21, 2005 Rebecca Huang TECHNICAL ACCEPTANCE:, DATE:Dec. 21, 2005 Responsible for RF Stanely Hsu APPROVED BY:, DATE:Dec. 21, 2005 Cody Chang / Deputy Manager FCC ID: Q87-WIP300 Report no.: SA941110L074Report Format Version 2.0.2 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless-G IP Phone MODEL NO. WIP300 POWER SUPPLY 4.0Vdc from battery 5.0Vdc from AC adapter CLASSIFICATION Portabl…

Text truncated - open the document above for the full version.

FCC ID: Q87-WIP300 Report No.: RF941110L071Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941110L07 MODEL NO.: WIP300 RECEIVED: Nov. 28, 2005 TESTED: Nov. 28 ~ Dec. 12, 2005 ISSUED: Dec. 13, 2005 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 65 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: Q87-WIP300 Report No.: RF941110L072Report Format Version 2.0.4 Table of Contents 1CERTIFICATION...........................................................................................................4 2SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY ...............................................................................5 3GENERAL INFORMATION ...........................................................................................6 3.1GENERAL DESCRIPTION OF EUT.............................................................................6 3.2DESCRIPTION OF TEST MODES...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................10 3.4DESCRIPTION OF SUPPORT UNITS .......................................................................10 4TEST TYPES AND RESULTS .................................................................................... 11 4.1CONDUCTED EMISSION MEASUREMENT .............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS................................................................................................ 11 4.1.3 TEST PROCEDURES ................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................12 4.1.5 TEST SETUP .............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ...............................................................................13 4.1.7 TEST RESULTS .........................................................................................................14 4.2RADIATED EMISSION MEASUREMENT ..................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................20 4.2.2 TEST INSTRUMENTS................................................................................................21 4.2.3 TEST PROCEDURES ................................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................22 4.2.5 TEST SETUP .............................................................................................................23 4.2.6 EUT OPERATING CONDITIONS ...............................................................................23 4.2.7 TEST RESULTS .........................................................................................................24 4.36dB BANDWIDTH MEASUREMENT .........................................................................32 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................32 4.3.2 TEST INSTRUMENTS................................................................................................32 4.3.3 TEST PROCEDURE...................................................................................................33 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................33 4.3.5 TEST SETUP .............................................................................................................33 4.3.6 EUT OPERATING CONDITIONS ...............................................................................33 4.3.7 TEST RESULTS .........................................................................................................34 4.4MAXIMUM PEAK OUTPUT POWER .........................................................................40 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................40 4.4.2 TEST INSTRUMENTS................................................................................................40 4.4.3 TEST PROCEDURES ................................................................................................41 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................41 4.4.5 TEST SETUP .............................................................................................................41 4.4.6 EUT OPERATING CONDITIONS ...............................................................................41 FCC ID: Q87-WIP300 Report No.: RF941110L073Report Format Version 2.0.4 4.4.7 TEST RESULTS .........................................................................................................42 4.5POWER SPECTRAL DENSITY MEASUREMENT ....................................................43 4.5.1 LIMITS OF POWER SPECTRAL…

Text truncated - open the document above for the full version.

FCC ID: Q87-WIP300 Report No.: RF941110L0762Report Format Version 2.0.4 RADIATED EMISSION TEST TEST MODE A FCC ID: Q87-WIP300 Report No.: RF941110L0763Report Format Version 2.0.4 RADIATED EMISSION TEST TEST MODE B
