User Guide Model No. WIP310 IP Phone Wireless-G Voice Wireless-G IP Phone Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this Guide This User Guide has been designed to make understanding networking with the Wireless-G IP Phone easier than ever. Look for the following items when reading this User Guide: Warning: This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. This exclamation point means there is a caution or warning and is something that could damage your property or IP Phone. This question mark provides you with a reminder about something you might need to do while using the IP Phone. This checkmark means there is a note of interest and is something you should pay special attention to while using the IP Phone. WIP310-UG-60905A BW Wireless-G IP Phone Table of Contents Chapter 1: Introduction1 Welcome1 What’s in This User Guide?2 Chapter 2: Getting to Know the Wireless-G IP Phone3 The Bottom Panel3 The Front Panel4 The Side Panel5 The Back Panel6 Chapter 3: Installing and Using the Wireless-G IP Phone7 Overview7 Charging the IP Phone’s Battery8 Setting up the Wireless-G IP Phone9 Using the Wireless-G IP Phone16 Chapter 4: Configuring the Wireless-G IP Phone17 Home Screen17 Status18 Main Menu18 Phonebook18 Call Log19 E-mail20 Speed Dial22 Profile22 Settings28 Tools33 Chapter 5: Using the Web-Based Utility35 Overview35 How to access the web-based utility35 Wireless-G IP Phone Phonebook37 E-mail38 Network Profile39 SIP41 Settings42 Upload45 Upgrade46 Password47 Reboot47 Appendix A: Troubleshooting49 Common Problems and Solutions49 Frequently Asked Questions54 Appendix B: Glossary55 Appendix C: Specifications59 Appendix D: Warranty Information61 Appendix E: Regulatory Information63 Appendix F: Contact Information77 Wireless-G IP Phone List of Figures Figure 3-1: Enter Phone Password9 Figure 3-2: Profile menu9 Figure 3-3: Profile menu - SIP Account10 Figure 3-4: SIP Account menu - Edit10 Figure 3-5: Edit SIP Account Settings10 Figure 3-6: Edit SIP Account - Advanced10 Figure 3-7: Advanced menu11 Figure 3-8: Profile menu11 Figure 3-9: Profile menu - Network Profile11 Figure 3-10: Profile - Network Profile12 Figure 3-11: Edit Network Security12 Figure 3-12: Edit Network Security - Wireless Settings12 Figure 3-13: ESSID menu - Site Survey12 Figure 3-14: ESSID menu - New ESSID13 Figure 3-15: Wireless Settings menu13 Figure 3-16: Wireless - Security13 Figure 3-17: Security menu14 Figure 3-18: Edit Network Profile menu14 Figure 3-19: Edit menu - Account Choice14 Figure 3-20: Select default SIP Account15 Figure 3-21: Account Reg. - On15 Figure 3-22: Profile Options - Auto Detect15 Figure 3-23: Auto Detect - On15 Figure 3-24: Home screen15 Figure 5-1: Wireless Network Status36 Figure 5-2: Phonebook List37 Figure 5-3: Phonebook Edit37 Figure 5-4: E-mail Account List38 Figure 5-5: Configure E-mail Account38 Figure 5-6: Network Profile List39 Figure 5-7: Wireless Network Settings40 Figure 5-8: SIP Account List41 Figure 5-9: SIP Setting41 Figure 5-10: Settings42 Figure 5-11: Upload45 Figure 5-12: Upgrade46 Figure 5-13: Password47 Figure 5-14: Reboot47 Wireless-G IP Phone 1 Chapter 1: Introduction Welcome Chapter 1: Introduction Welcome Thank you for choosing the Linksys Wireless-G IP Phone. Whether you are at home or in your office, this phone lets you use your broadband connection to make phone calls. How does the IP Phone do this? It connects to your wireless router or access point to receive telephone service through your cable or DSL Internet connection. But what does all of this mean? Networks are useful tools for sharing Internet access and computer resources and making voice calls using your high-speed Internet connection. You’ll be able to make phone calls using the account you set up with your Internet phone service provider while surfing the Internet on your computer. So, networks not only are useful in homes and offices, but also can be fun. Use the instructions in this User Guide to help you set up and configure the IP Phone after you have created an account with your Internet phone service provider. These instructions should be all you need to get the most out of the Wireless-G IP Phone. Note: For information about your Internet phone service, refer to the materials provided by your Internet phone service provider. Wireless-G IP Phone 2 Chapter 1: Introduction What’s in This User Guide? What’s in This User Guide? This guide covers installing, configuring, and troubleshooting the Wireless-G IP Phone. •Chapter 1: Introduction Describes the IP Phone’s applications and this User Guide. •Chapter 2: Getting to Know the Wireless-G IP Phone Describes the physical features of the IP Phone. •Chapter 3: Installing and Using the Wireless-G IP Phone Explains how to install and use the IP Phone. •Chapter 4: Configuring the Wireless-G IP Phone Discusses how to configure the IP Phone’s settings. •Chapter 5: Using the Web-Based Utility Explains how to configure the IP-Phone using the Web-Based Utility. •Appendix A: Troubleshooting Describes potential problems and solutions, as well as frequently asked questions, regarding use of the IP Phone. •Appendix B: Glossary Gives a brief glossary of terms frequently used in networking. •Appendix C: Specifications Provides technical specifications for the IP Phone. •Appendix D: Warranty Information Provides warranty information for the IP Phone. •Appendix E: Regulatory Information Provides regulatory information regarding the IP Phone. •Appendix F: Contact Information Provides contact information for a variety of Linksys…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 FCC ID: Q87-WIP310 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: 9/5/2006 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, _________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Page 1 CONSTRUCTION PHOTOS OF EUT For Model: WIP310 Page 2 For Model: WIP320 Page 3 Page 4 Page 5

FCC ID .: Q87-WIP310 Label Location

Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17

FCC ID: Q87-WIP310 Report No.RF950714L13 Operational Description This device is a Wireless-G IP Phone which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by battery or AC adapter. The antenna is Chip antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

A - 1 APPENDIX A: TEST DATA Liquid Level Photo Tissue HSL2450MHz D=150mm Tissue MSL2450MHz D=155mm A - 2 Date/Time: 2006/8/29 10:22:08 Test Laboratory: Advance Data Technology Right Head-Cheek-11b-CH1-Mode 1 DUT: Wireless-G IP Phone ; Type: WIP310 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 Phantom: SAM 12 Medium parameters used: f = 2412 MHz; σ = 1.81 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 ; Liquid level: 150 mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: CCK Antenna type : Chip Antenna ; Air temp. : 23.8 degrees ; Liquid temp. : 22.5 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.41, 4.41, 4.41) ; Calibrated: 2005/9/15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2006/3/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Touch position - Low Channel 1/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.156 mW/g Touch position - Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.68 V/m Peak SAR (extrapolated) = 0.408 W/kg SAR(1 g) = 0.165 mW/g; SAR(10 g) = 0.081 mW/g Maximum value of SAR (measured) = 0.171 mW/g Touch position - Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.68 V/m Peak SAR (extrapolated) = 0.279 W/kg SAR(1 g) = 0.162 mW/g; SAR(10 g) = 0.077 mW/g Maximum value of SAR (measured) = 0.180 mW/g A - 3 Date/Time: 2006/8/29 10:51:44 Test Laboratory: Advance Data Technology Right Head-Cheek-11b-CH6-Mode 1 DUT: Wireless-G IP Phone ; Type: WIP310 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 Phantom: SAM 12 Medium parameters used: f = 2437 MHz; σ = 1.84 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 ; Liquid level: 150 mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: CCK Antenna type : Chip Antenna ; Air temp. : 23.8 degrees ; Liquid temp. : 22.5 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.41, 4.41, 4.41) ; Calibrated: 2005/9/15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2006/3/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Touch position - Mid Channel 6/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.172 mW/g Touch position - Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.25 V/m Peak SAR (extrapolated) = 0.282 W/kg SAR(1 g) = 0.167 mW/g; SAR(10 g) = 0.091 mW/g Maximum value of SAR (measured) = 0.189 mW/g Touch position - Mid Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.25 V/m Peak SAR (extrapolated) = 0.335 W/kg SAR(1 g) = 0.102 mW/g; SAR(10 g) = 0.041 mW/g Maximum value of SAR (measured) = 0.126 mW/g A - 4 Date/Time: 2006/8/29 11:21:16 Test Laboratory: Advance Data Technology Right Head-Cheek-11b-CH11-Mode 1 DUT: Wireless-G IP Phone ; Type: WIP310 ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 Phantom: SAM 12 Medium parameters used: f = 2462 MHz; σ = 1.87 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 ; Liquid level: 150 mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: CCK Antenna type : Chip Antenna ; Air temp. : 23.8 degrees ; Liquid temp. : 22.5 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687; ConvF(4.41, 4.41, 4.41) ; Calibrated: 2005/9/15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2006/3/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Touch position - High Channel 11/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.175 mW/g Touch position - High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.38 V/m Peak SAR (extrapolated) = 0.289 W/kg SAR(1 g) = 0.174 mW/g; SAR(10 g) = 0.096 mW/g Maximum value of SAR (measured) = 0.191 mW/g Touch position - High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.38 V/m Peak SAR (extrapolated) = 0.393 W/kg SAR(1 g) = 0.151 mW/g; SAR(10 g) = 0.085 mW/g Maximum value of SAR (measured) = 0.174 mW/g A - 5 A - 6 Date/Time: 2006/8/29 11:42:31 Test Laboratory: Advance Data Technology Right Head-Tilt-11b-CH1-Mode 2 DUT: Wireless-G IP Phone ; Type: WIP310 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2412 MHz; σ = 1.81 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 ; Liquid level: 150 mm Phantom section: Right Section ; DUT test position : Tilt ; Modulation type: CCK Antenna type : Chip Antenna ; Air temp. : 23.8 degrees ; Liquid temp. : 22.5 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1687 ; ConvF(4.41, 4.41, 4.41) ; Calibrated: 2005/9/15 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2006/3/15 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Tilt position - Low Channel 1/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.146 mW/g Tilt position - Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.78 V/m Peak SAR (extrapolated) = 0.245 W/kg SAR(1 g) = 0.130 mW/g; SAR(10 g) = 0.069 mW/g Maximum value of SAR (measured) = 0.142 mW/g A - 7 Date/Time: 2006/8/29 12:03:09 Test Laboratory: Advance Data Technology Right He…

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: DOSIMETRIC E-FIELD PROBE D3: DAE D4: SYSTEM VALIDATION DIPOLE

Report no.: SA950714L131Report Format Version 2.0.3 SAR TEST REPORT REPORT NO.: SA950714L13 MODEL NO.: WIP310 SERIES MODEL NO.: WIP320 RECEIVED: Jul. 27, 2006 TESTED: Aug. 29 ~ 30, 2006 ISSUED: Aug. 31, 2006 APPLICANT : Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 46 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report no.: SA950714L132Report Format Version 2.0.3 TABLE OF CONTENTS 1.CERTIFICATION.....................................................................................................3 2.GENERAL INFORMATION.....................................................................................4 2.1GENERAL DESCRIPTION OF EUT.......................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS.........................................6 2.3GENERAL INOFRMATION OF THE SAR SYSTEM................................................6 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION...............9 3.DESCRIPTION OF SUPPORT UNITS..................................................................12 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS...............................13 4.1.DESCRIPTION OF ANTENNA LOCATION...........................................................13 4.2.DESCRIPTION OF ASSESSMENT POSITION.....................................................15 4.3.DESCRIPTION OF TEST MODE..........................................................................18 4.4.SUMMARY OF TEST RESULTS...........................................................................19 5.TEST RESULTS...................................................................................................20 5.1TEST PROCEDURES..........................................................................................20 5.2MEASURED SAR RESULTS................................................................................22 5.3SAR LIMITS..........................................................................................................30 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS..................................................31 5.5TEST EQUIPMENT FOR TISSUE PROPERTY....................................................33 6.SYSTEM VALIDATION.........................................................................................34 6.1TEST EQUIPMENT..............................................................................................34 6.2TEST PROCEDURE.............................................................................................35 6.3VALIDATION RESULTS........................................................................................37 6.4SYSTEM VALIDATION UNCERTAINTIES............................................................38 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.....................................38 7.1.PROBE CALIBRATION UNCERTAINTY...............................................................39 7.2.ISOTROPY UNCERTAINTY.................................................................................40 7.3.BOUNDARY EFFECT UNCERTAINTY.................................................................40 7.4.PROBE LINEARITY UNCERTAINTY....................................................................41 7.5.READOUT ELECTRONICS UNCERTAINTY........................................................41 7.6.RESPONSE TIME UNCERTAINTY......................................................................41 7.7.INTEGRATION TIME UNCERTAINTY..................................................................42 7.8.PROBE POSITIONER MECHANICAL TOLERANCE...........................................43 7.9.PROBE POSITIONING.........................................................................................43 7.10.PHANTOM UNCERTAINTY..................................................................................44 7.11.DASY4 UNCERTAINTY BUDGET........................................................................45 8.INFORMATION ON THE TESTING LABORATORIES..........................................46 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report no.: SA950714L133Report Format Version 2.0.3 1. CERTIFICATION PRODUCT: Wireless-G IP Phone MODEL: WIP310 SERIES MODEL: WIP320 BRAND: Linksys APPLICANT : Cisco-Linksys LLC TESTED: Aug. 29 ~ 30, 2006 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01) The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY :, DATE:Aug. 31, 2006 Rennie Wang TECHNICAL ACCEPTANCE : , DATE: Aug. 31, 2006 Responsible for RF Stanely Hsu APPROVED BY : , DATE: Aug. 31, 2006 Gary Chang / Supervisor Report no.: SA950714L134Report Format Version 2.0.3 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless-G IP Phone MODEL NO. WIP310 SERIES MODEL NO. WIP320 FCC ID Q87-WIP310 POWER SUPPLY 3.7Vdc from battery 5.0Vdc & 5.2Vdc from AC adapter CLASSIFICATION Portable device, production unit MODULATION T…

Text truncated - open the document above for the full version.

Report No.: RF950714L131Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950714L13 MODEL NO.: WIP310 SERIES MODEL NO.: WIP320 RECEIVED: Jul. 27, 2006 TESTED: Aug. 01 ~ Aug. 18, 2006 ISSUED: Aug. 22, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 75 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950714L132Report Format Version 2.0.4 Table of Contents 1CERTIFICATION...........................................................................................................4 2SUMMARY OF TEST RESULTS ..................................................................................4 2.1MEASUREMENT UNCERTAINTY ...............................................................................5 3GENERAL INFORMATION ...........................................................................................6 3.1GENERAL DESCRIPTION OF EUT.............................................................................6 3.2DESCRIPTION OF TEST MODES...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................10 3.4DESCRIPTION OF SUPPORT UNITS .......................................................................10 4TEST TYPES AND RESULTS .................................................................................... 11 4.1CONDUCTED EMISSION MEASUREMENT .............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS................................................................................................ 11 4.1.3 TEST PROCEDURES ................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................12 4.1.5 TEST SETUP .............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ...............................................................................13 4.1.7 TEST RESULTS .........................................................................................................14 4.2RADIATED EMISSION MEASUREMENT ..................................................................32 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................32 4.2.2 TEST INSTRUMENTS................................................................................................33 4.2.3 TEST PROCEDURES ................................................................................................34 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................34 4.2.5 TEST SETUP .............................................................................................................35 4.2.6 EUT OPERATING CONDITIONS ...............................................................................35 4.2.7 TEST RESULTS .........................................................................................................36 4.36dB BANDWIDTH MEASUREMENT .........................................................................45 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................45 4.3.2 TEST INSTRUMENTS................................................................................................45 4.3.3 TEST PROCEDURE...................................................................................................46 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................46 4.3.5 TEST SETUP .............................................................................................................46 4.3.6 EUT OPERATING CONDITIONS ...............................................................................46 4.3.7 TEST RESULTS .........................................................................................................47 4.4MAXIMUM PEAK OUTPUT POWER .........................................................................53 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................53 4.4.2 TEST INSTRUMENTS................................................................................................53 4.4.3 TEST PROCEDURES ................................................................................................54 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................54 4.4.5 TEST SETUP .............................................................................................................54 4.4.6 EUT OPERATING CONDITIONS ...............................................................................54 Report No.: RF950714L133Report Format Version 2.0.4 4.4.7 TEST RESULTS .........................................................................................................55 4.5POWER SPECTRAL DENSITY MEASUREMENT ....................................................56 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT .........................…

Text truncated - open the document above for the full version.

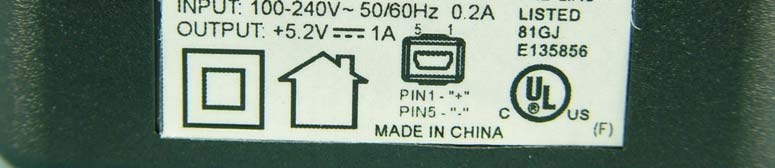

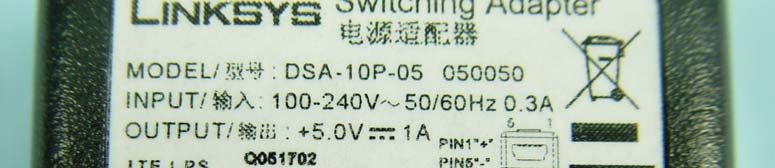

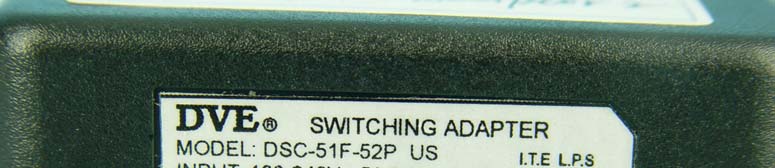

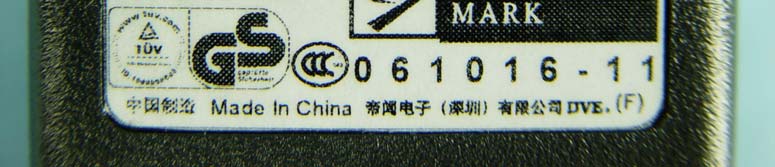

Report No.: RF950714L131Report Format Version 2.0.4 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (For Adapter: DSA-5P-05 FUS 050100) Report No.: RF950714L132Report Format Version 2.0.4 CONDUCTED EMISSION TEST (For Adapter: For Adapter: DSC-51F-52P US) Report No.: RF950714L133Report Format Version 2.0.4 CONDUCTED EMISSION TEST (For Adapter: For Adapter: DSA-10P-05 050050) Report No.: RF950714L134Report Format Version 2.0.4 RADIATED EMISSION TEST (For Adapter: DSA-5P-05 FUS 050100) Report No.: RF950714L13A-1Report Format Version 2.0.4 RADIATED EMISSION TEST (For Adapter: DSC-51F-52P US) Report No.: RF950714L13A-1Report Format Version 2.0.4 RADIATED EMISSION TEST (For Adapter: DSA-10P-05 050050)
